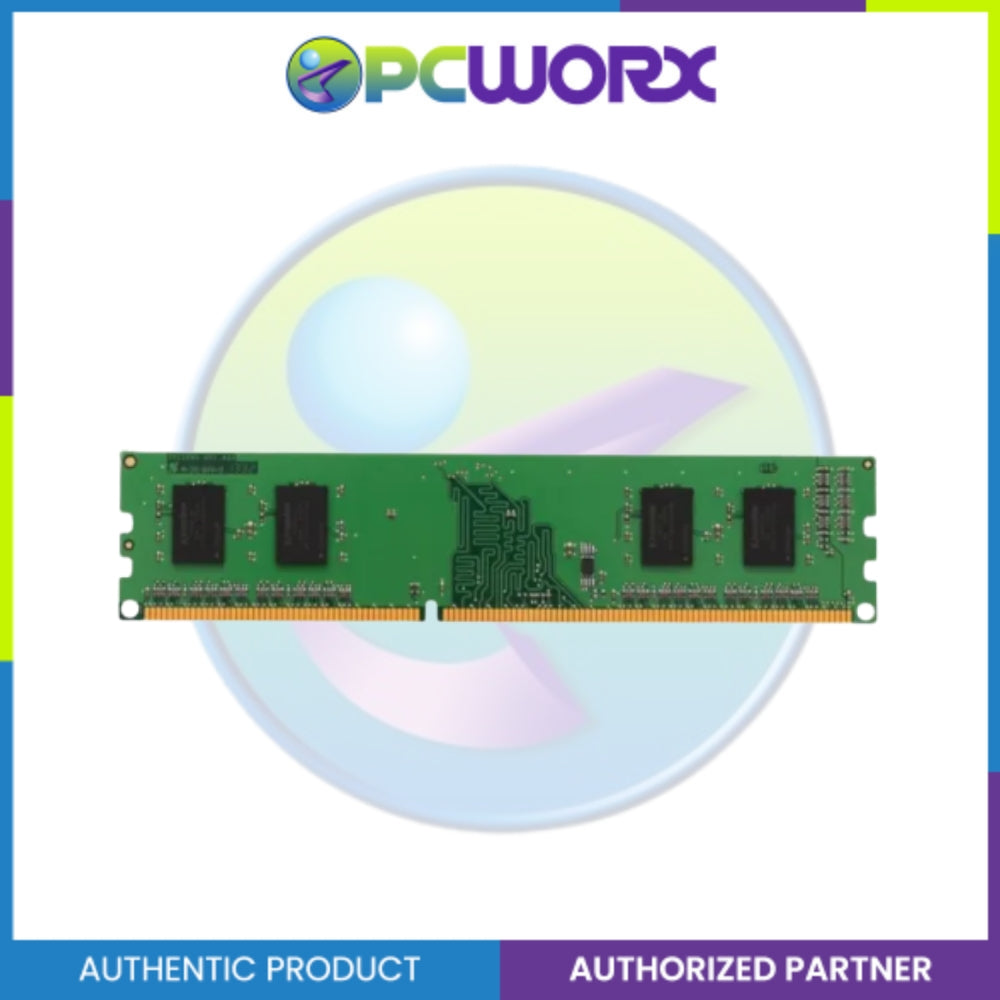

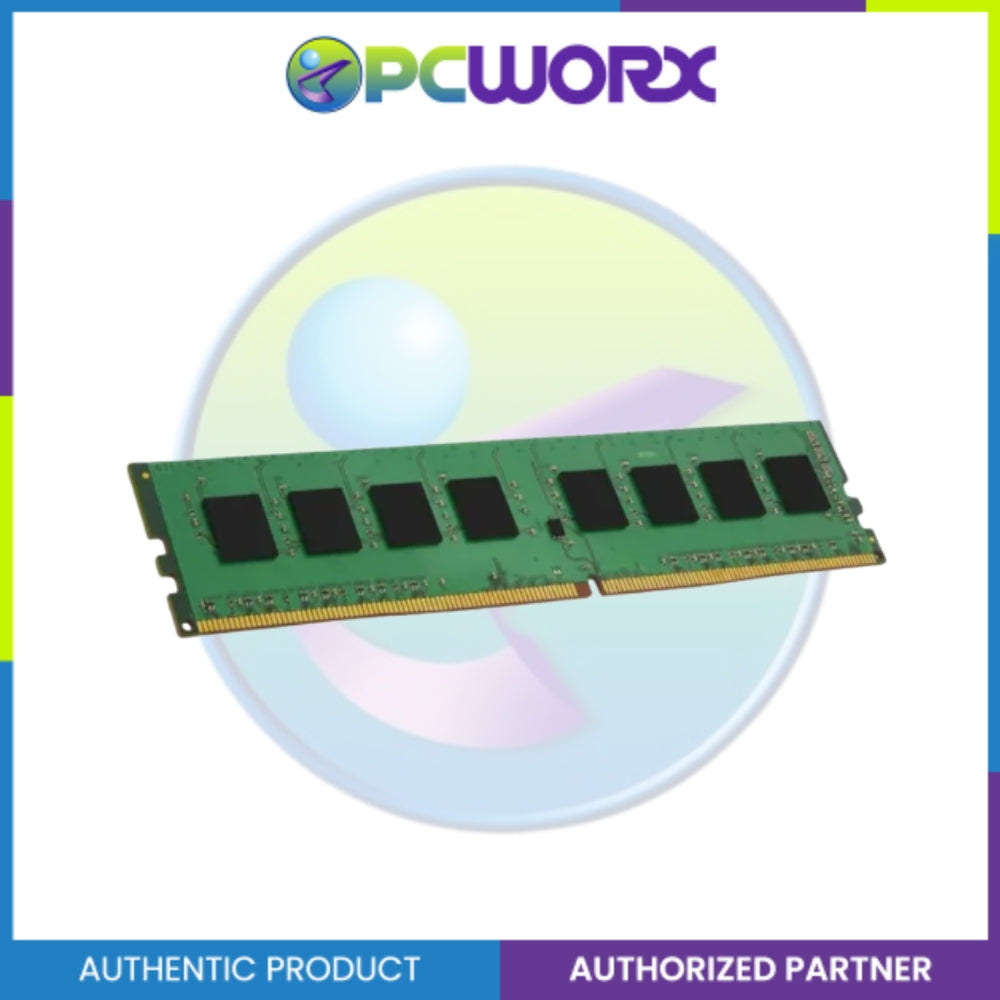

Kingston KVR32N22D8/16WP 16GB 3200Mhz DDR4 Dimm

Description

ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22 22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features:
Power Supply:  VDD = 1.2V Typical
VDDQ =  1.2V Typical
VPP =  2.5V Typical
VDDSPD =  2.2V to 3.6V
 Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
Low-power auto self refresh (LPASR)
 Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
 Selectable BC4 or BL8 on-the-fly (OTF)
 Fly-by topology
 Terminated control command and address bus
 PCB:  Height 1.18” (30.00mm)
 RoHS Compliant and Halogen-Free

Kingston KVR32N22D8/16WP 16GB 3200Mhz DDR4 Dimm

Product form

ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x... Read more

Free pickup in our shop(s)

SKU: 0000072379

₱7,944.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22 22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

    Features:
    Power Supply:  VDD = 1.2V Typical
    VDDQ =  1.2V Typical
    VPP =  2.5V Typical
    VDDSPD =  2.2V to 3.6V
     Nominal and dynamic on-die termination (ODT) for
    data, strobe, and mask signals
    Low-power auto self refresh (LPASR)
     Data bus inversion (DBI) for data bus
    On-die VREFDQ generation and calibration
    Dual-rank
    On-board I2 serial presence-detect (SPD) EEPROM
    16 internal banks; 4 groups of 4 banks each
    Fixed burst chop (BC) of 4 and burst length (BL) of 8
    via the mode register set (MRS)
     Selectable BC4 or BL8 on-the-fly (OTF)
     Fly-by topology
     Terminated control command and address bus
     PCB:  Height 1.18” (30.00mm)
     RoHS Compliant and Halogen-Free
