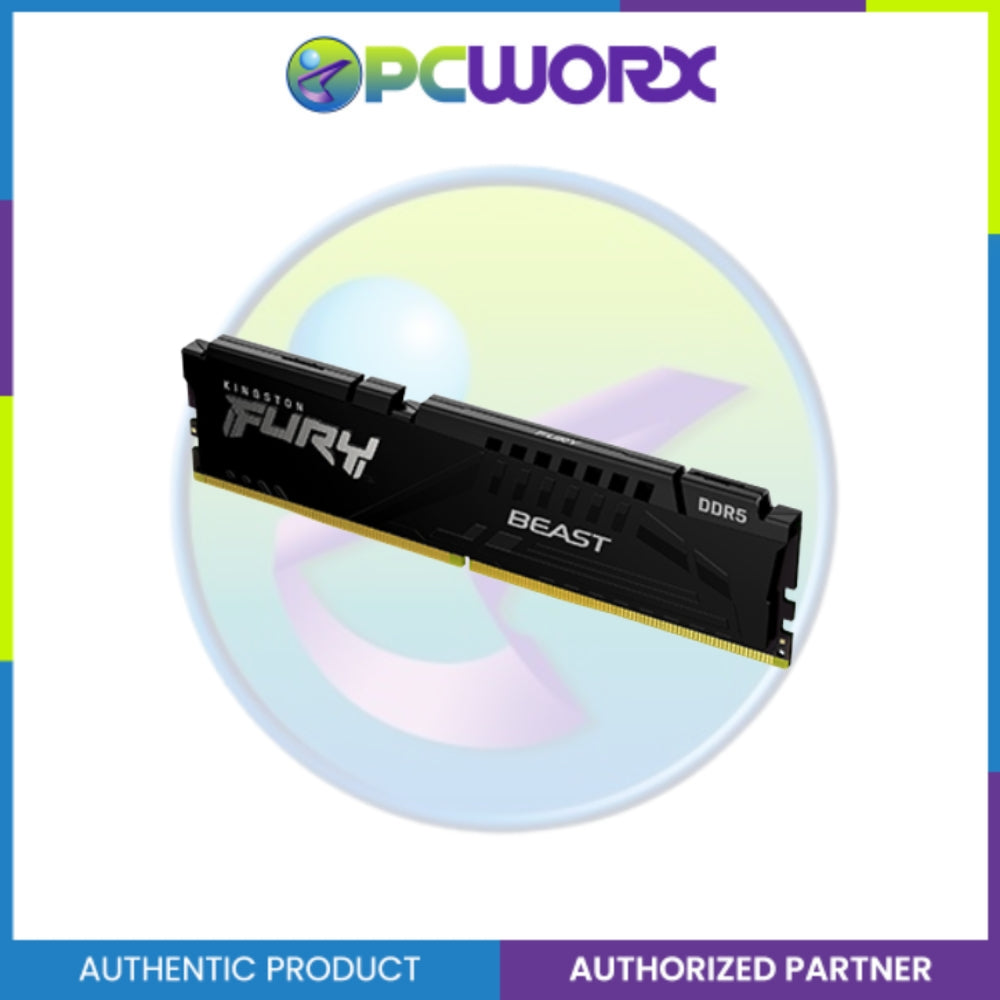

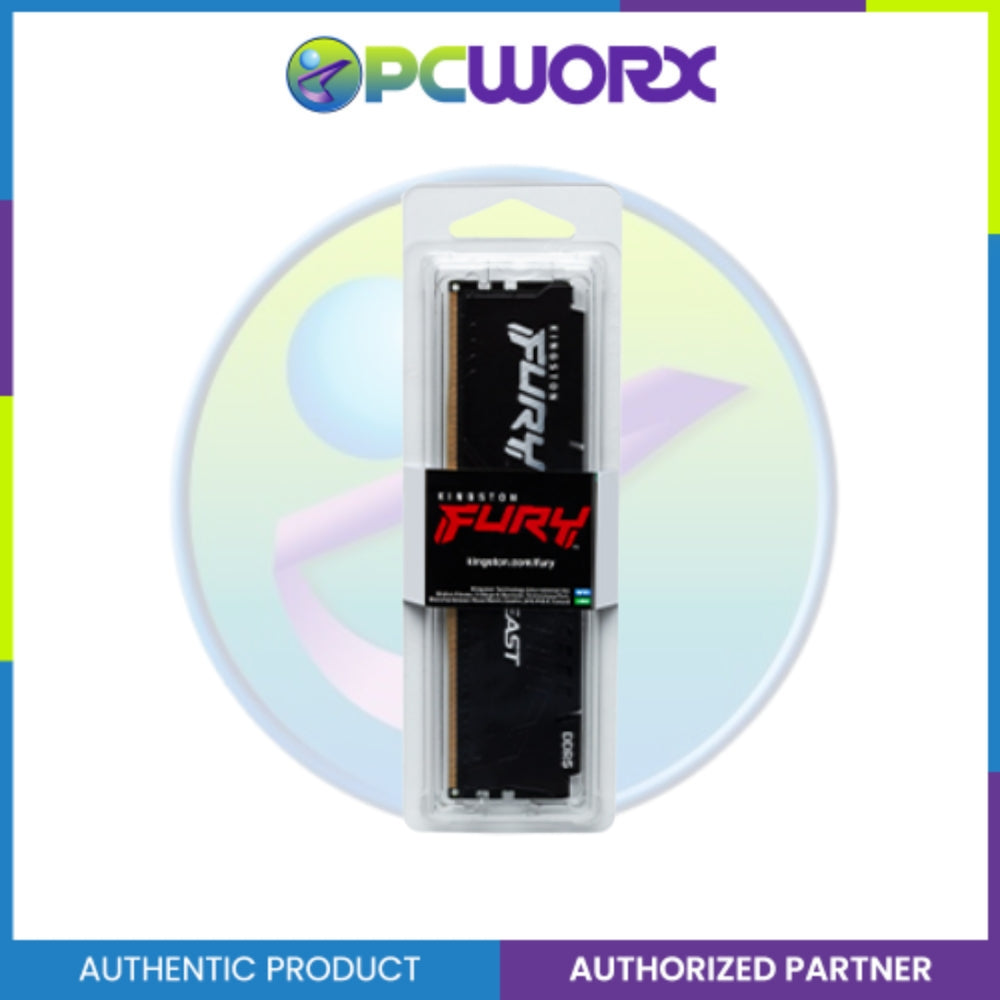

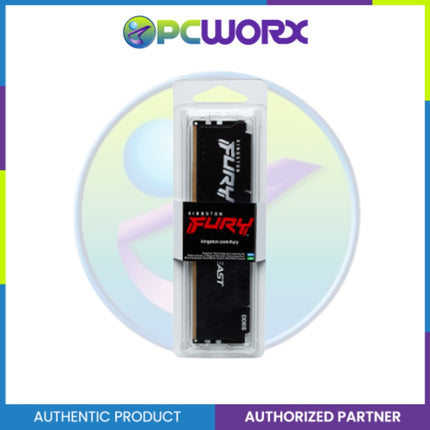

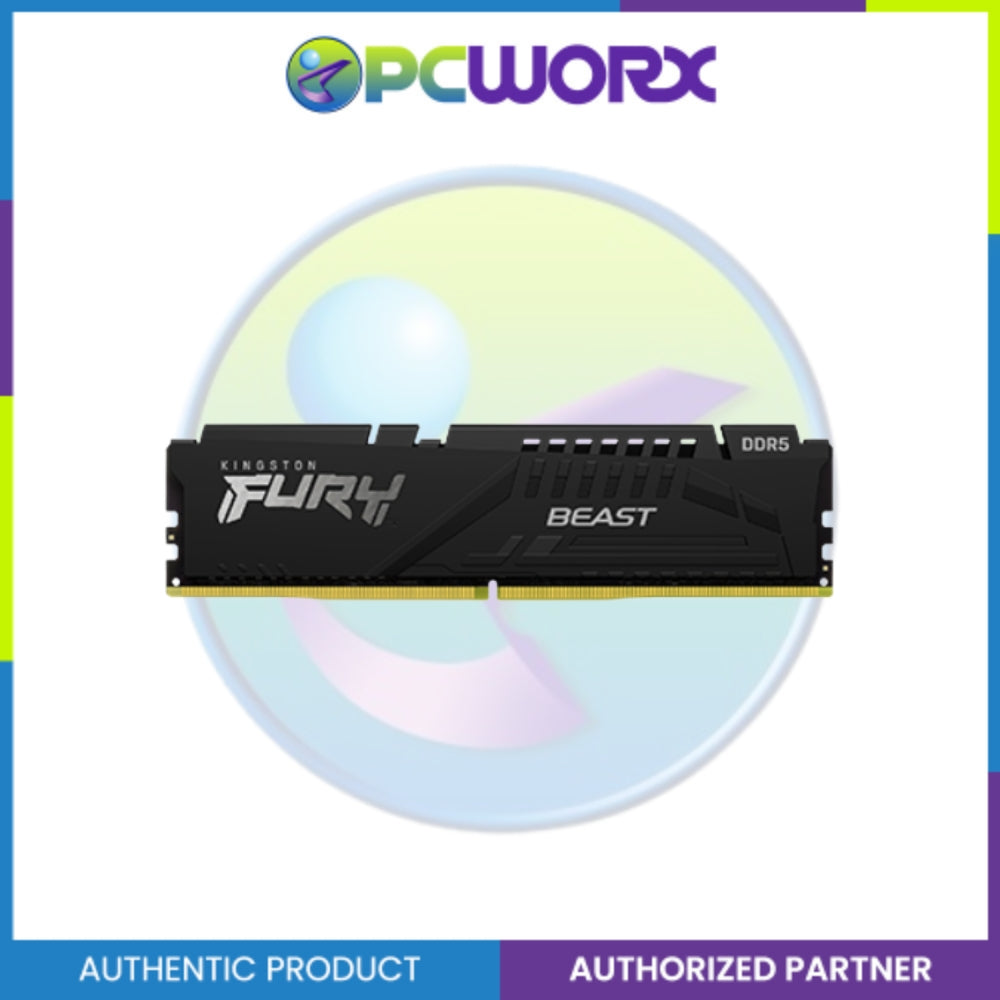

Kingston KF564C32BB-32 32GB 6400MT/s DDR5 CL32 DIMM FURY Beast Black XMP

Description

Kingston FURY KF564C32BB-32 is a 4G x 64-bit (32GB)
DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory
module, based on sixteen 2G x 8-bit FBGA components per module.
The module supports Intel® Extreme Memory Profiles (Intel®
XMP) 3.0. Each module has been tested to run at DDR5-6400 at a
low latency timing of 32-39-39 at 1.4V. The SPDs are
programmed to JEDEC standard latency DDR5-4800 timing
of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact
fingers. The JEDEC standard electrical and mechanical
specifications are as follows:

Category Details
Model KF564C32BB-32
Capacity 32GB (4G x 64-Bit)
Type DDR5-6400 CL32 288-Pin DIMM
Memory Organization 2Rx8, sixteen 2G x 8-bit FBGA components per module
XMP Support Intel® XMP 3.0
Default SPD Timing DDR5-4800 CL40-39-39 @ 1.1V
XMP Profile #1 DDR5-6400 CL32-39-39 @ 1.4V
XMP Profile #2 DDR5-6000 CL30-36-36 @ 1.4V
XMP Profile #3 DDR5-4800 CL38-38-38 @ 1.1V
Power Supply VDD = 1.1V Typical, VDDQ = 1.1V Typical, VPP = 1.8V Typical, VDDSPD = 1.8V–2.0V
On-Die ECC Yes
Height 1.37" (34.9 mm) w/heatsink
CL (IDD) 40 cycles
Row Cycle Time (tRCmin) 48 ns (min.)
Refresh to Active/Refresh Command Time (tRFCmin) 295 ns (min.)
Row Active Time (tRASmin) 32 ns (min.)
UL Rating 94 V-0
Operating Temperature 0°C to +85°C
Storage Temperature -55°C to +100°C





Kingston KF564C32BB-32 32GB 6400MT/s DDR5 CL32 DIMM FURY Beast Black XMP

Product form

Kingston FURY KF564C32BB-32 is a 4G x 64-bit (32GB)DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memorymodule, based on sixteen 2G x... Read more

SKU: 0000069551

Out of stock

₱26,736.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Kingston FURY KF564C32BB-32 is a 4G x 64-bit (32GB)
    DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory
    module, based on sixteen 2G x 8-bit FBGA components per module.
    The module supports Intel® Extreme Memory Profiles (Intel®
    XMP) 3.0. Each module has been tested to run at DDR5-6400 at a
    low latency timing of 32-39-39 at 1.4V. The SPDs are
    programmed to JEDEC standard latency DDR5-4800 timing
    of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact
    fingers. The JEDEC standard electrical and mechanical
    specifications are as follows:

    Category Details
    Model KF564C32BB-32
    Capacity 32GB (4G x 64-Bit)
    Type DDR5-6400 CL32 288-Pin DIMM
    Memory Organization 2Rx8, sixteen 2G x 8-bit FBGA components per module
    XMP Support Intel® XMP 3.0
    Default SPD Timing DDR5-4800 CL40-39-39 @ 1.1V
    XMP Profile #1 DDR5-6400 CL32-39-39 @ 1.4V
    XMP Profile #2 DDR5-6000 CL30-36-36 @ 1.4V
    XMP Profile #3 DDR5-4800 CL38-38-38 @ 1.1V
    Power Supply VDD = 1.1V Typical, VDDQ = 1.1V Typical, VPP = 1.8V Typical, VDDSPD = 1.8V–2.0V
    On-Die ECC Yes
    Height 1.37" (34.9 mm) w/heatsink
    CL (IDD) 40 cycles
    Row Cycle Time (tRCmin) 48 ns (min.)
    Refresh to Active/Refresh Command Time (tRFCmin) 295 ns (min.)
    Row Active Time (tRASmin) 32 ns (min.)
    UL Rating 94 V-0
    Operating Temperature 0°C to +85°C
    Storage Temperature -55°C to +100°C
