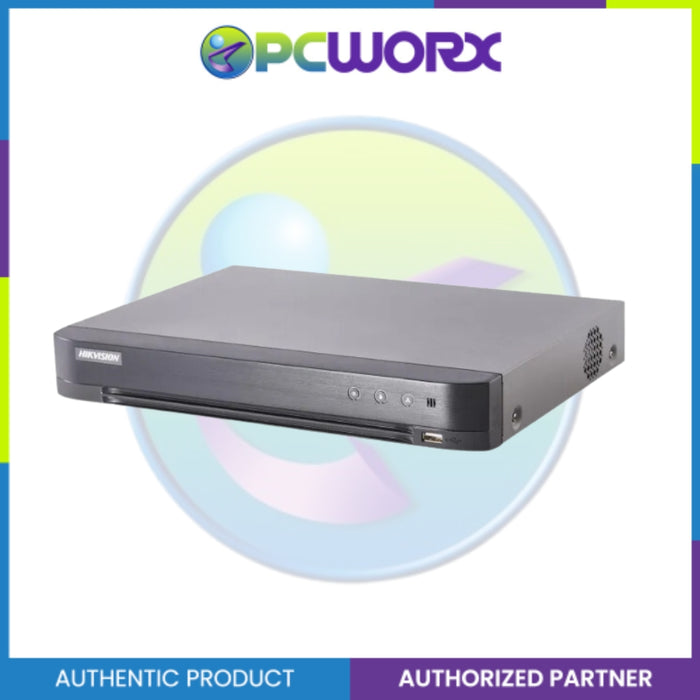

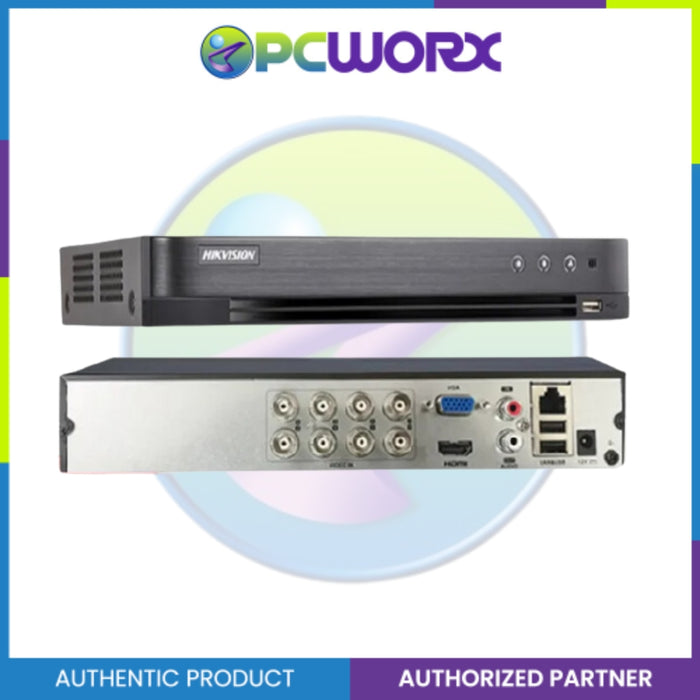

Hikvision DS-7208HQHI-K1/E H.265+ 1080P/4MP Lite 8CH 1SATA 1U DVR
by PCWORX
Original price
₱3,720.00
-
Original price
₱3,720.00
Original price
₱3,720.00
₱3,720.00
-
₱3,720.00
Current price
₱3,720.00
8-ch 1080p 1U H.265 DVR
- 8 channels and 1 HDD 260 case DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected.
SPECIFICATIONS:
| Recording: | |
| Encoding resolution: | When 1080p lite mode is not enabled: |
| 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF | |
| When 1080p Lite mode is enabled: | |
| 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF | |
| Video bit rate: | 32 Kbps to 6 Mbps |
| Frame rate: | Mainstream: |
| When 1080p Lite mode is not enabled: | |
| For 4 MP stream access: | |
| 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps | |
| For 1080p stream access: | |
| 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| When 1080p Lite mode is enabled: | |
| 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Sub-stream: | |
| WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | |
| Video compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Dual streamSupport: | Stream typeVideo, Video & Audio |
| Audio compression: | G.711u |
| Audio bit rate: | 64 Kbps |
| Video and Audio | |
| Audio input: | 1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable |
| Audio output: | 1-ch, RCA (Linear, 1 KΩ) |
| Synchronous playback: | 8-ch |
| IP video input: | 2-ch (up to 10-ch) |
| Enhanced IP mode on: | |
| 4-ch (up to 12-ch), each up to 4 Mbps | |
| Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras | |
| HDTVI input: | 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, |
| HDCVI input; | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input: | PAL/NTSC |
| Two-way audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Analog video input: | 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| AHD input: | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS output: | N/A |
| HDMI/VGA output: | HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output |
| VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Network | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote connections: | 64 |
| Network interface: | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Auxiliary interface | |
| Capacity: | Up to 10 TB capacity for each disk |
| Serial interface: | N/A |
| USB interface: | 2 × USB 2.0 |
| Alarm in/out: | N/A |
| SATA: | 1 SATA interface |
| General | |
| Consumption (without HDD): | ≤ 9 W |
| Working humidity: | 10% to 90% |
| Power supply: | 12 VDC |
| Working temperature: | -10 °C to +55 °C (+14 °F to +131 °F) |
| Dimensions (W × D × H): | 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch) |
| Weights (without HDD): | ≤ 1.6 kg (3.5 lb) |
