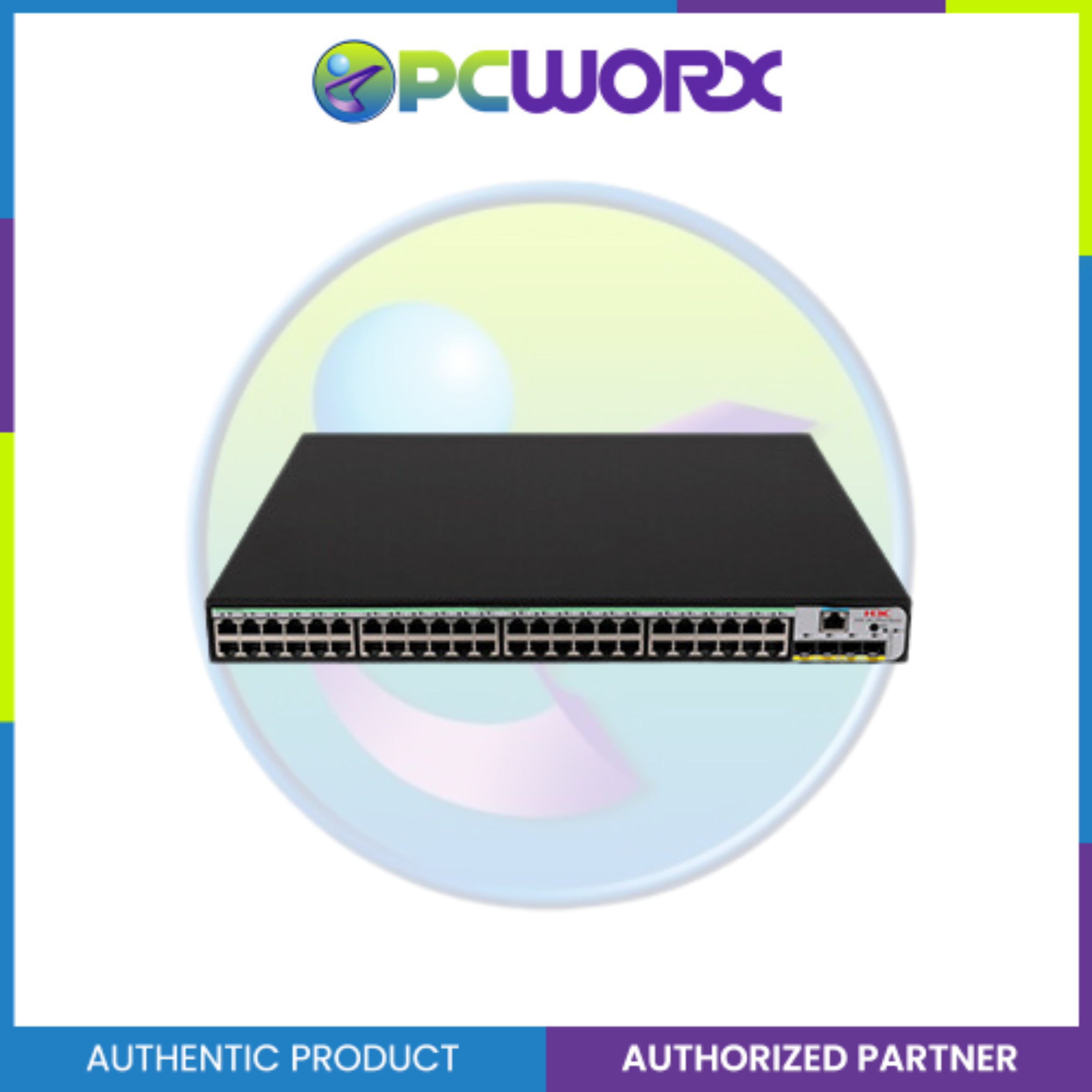

H3C S5120V3-52P-LI L3 Ethernet Switch with 48 Ports

Description

Description

Feature S5120V3-52P-LI
Switching capacity 104Gbps
Forwarding capacity 77.4Mpps
CPU 1 Core, 800MHz
Flash/SDRAM 256MB/512MB
Dimensions (W × D × H) 440×230×43.6 mm
Weight ≤ 3.5 kg
Management port 1 console port
Networking interface 48×10/100/1000TX+4×SFP
Maximum Stacking bandwidth 16Gbps
Maximum stacking num 9
Port Surge 6KV
Input voltage AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption MIN:
AC: 18W
MAX:
AC: 41W
Fan number 1
MTBF(Year) 115.68
MTTR(Hour) 1
Operating temperature -5℃ ~ 50℃(normal operating temperature)
-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature -40℃ ~ 70℃
Relative humidity (non-condensing) 5% RH to 95% RH, non-condensing

H3C S5120V3-52P-LI L3 Ethernet Switch with 48 Ports

Product form

Feature S5120V3-52P-LI Switching capacity 104Gbps Forwarding capacity 77.4Mpps CPU 1 Core, 800MHz Flash/SDRAM 256MB/512MB Dimensions (W × D × H)... Read more

Free pickup in our shop(s)

SKU: 9801A41M

1 in stock

₱32,966.24 Excl. VAT

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Guaranteed secure & safe checkout.

    Description

    Description

    Feature S5120V3-52P-LI
    Switching capacity 104Gbps
    Forwarding capacity 77.4Mpps
    CPU 1 Core, 800MHz
    Flash/SDRAM 256MB/512MB
    Dimensions (W × D × H) 440×230×43.6 mm
    Weight ≤ 3.5 kg
    Management port 1 console port
    Networking interface 48×10/100/1000TX+4×SFP
    Maximum Stacking bandwidth 16Gbps
    Maximum stacking num 9
    Port Surge 6KV
    Input voltage AC: The rated voltage range is 100V to 240V, 50/60Hz.
    Total power consumption MIN:
    AC: 18W
    MAX:
    AC: 41W
    Fan number 1
    MTBF(Year) 115.68
    MTTR(Hour) 1
    Operating temperature -5℃ ~ 50℃(normal operating temperature)
    -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
    -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
    Storage temperature -40℃ ~ 70℃
    Relative humidity (non-condensing) 5% RH to 95% RH, non-condensing
