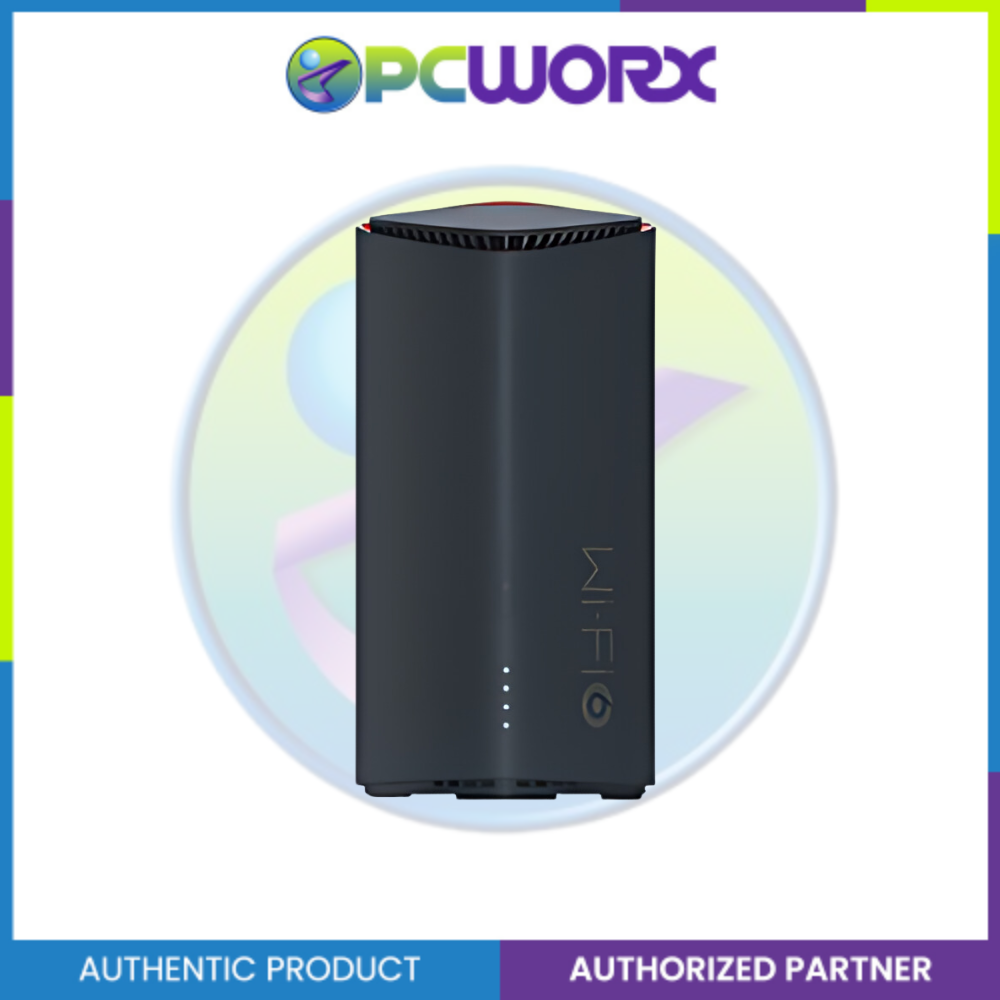

H3C Magic BX54 802.11ax 5400M Gigabit Dual Band Wi-Fi 6 Wireless Broadband Router

Description

Specifications and parameters
Hardware
Fixed port
 Four 10/100/1000Base-T Ethernet port
Independent reset key, function keys (Mesh, wireless optimization)
Wireless 4 built-in high gain omnidirectional antennas (2.4 GHz 3 dBi & 5 GHz 5dBi)
CPU Dual-core 1.0 GHz
Memory 512 MB
Indicator Front LED: system status indicator
Rear LED: 1 WAN port status indicator, 3 LAN port status indicators
Dimensions (W×D×H) 95mm x 95mm x 226mm
Power supply 12V⎓2A
Cooling method Natural cooling
Wireless
Wireless protocol
 2.4 GHz: 802.11ax/n/g/b
5 GHz: 802.11ax/ac/n/a
Spatial flow 2.4 GHz 2x2 MIMO
5 GHz 4x4 MIMO
Wireless bandwidth 2.4G HT20/HT40
5G HT20/HT40/HT80/HT160
Wireless rate Dual-frequency concurrency 5,378 Mbps
2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps
Wireless roaming Follow-up supporting of 11k/v
MU-MIMO Upstream and downstream MU-MIMO
Software
Internet connection
 Routing mode: DHCP/PPPoE/Static IP
Bridge mode: wired relay/wireless relay
EasyMesh Support
IPv6 Support
Blind-mating port Available upon software update
Security features WPA-PSK/WPA2-PSK//WPA3 encryption
Anti-Wi-Fi squatting/anti-attack
Firewall, DMZ, DoS attacks
Network management Guest Wi-Fi, access allow list/deny list, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch
Management method Support H3C Magic App (iOS, Android), Web
Internet diagnosis
Operating environment
Operating temperature
 0ºC–40ºC
Storage humidity 10%–90%, RH non-condensing

H3C Magic BX54 802.11ax 5400M Gigabit Dual Band Wi-Fi 6 Wireless Broadband Router

Product form

Specifications and parameters Hardware Fixed port Four 10/100/1000Base-T Ethernet port Independent reset key, function keys (Mesh, wireless optimization) Wireless 4... Read more

SKU: 9801A4ER

Out of stock

₱12,491.21

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Specifications and parameters
    Hardware
    Fixed port
    		 Four 10/100/1000Base-T Ethernet port
    Independent reset key, function keys (Mesh, wireless optimization)
    Wireless 4 built-in high gain omnidirectional antennas (2.4 GHz 3 dBi & 5 GHz 5dBi)
    CPU Dual-core 1.0 GHz
    Memory 512 MB
    Indicator Front LED: system status indicator
    Rear LED: 1 WAN port status indicator, 3 LAN port status indicators
    Dimensions (W×D×H) 95mm x 95mm x 226mm
    Power supply 12V⎓2A
    Cooling method Natural cooling
    Wireless
    Wireless protocol
    		 2.4 GHz: 802.11ax/n/g/b
    5 GHz: 802.11ax/ac/n/a
    Spatial flow 2.4 GHz 2x2 MIMO
    5 GHz 4x4 MIMO
    Wireless bandwidth 2.4G HT20/HT40
    5G HT20/HT40/HT80/HT160
    Wireless rate Dual-frequency concurrency 5,378 Mbps
    2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps
    Wireless roaming Follow-up supporting of 11k/v
    MU-MIMO Upstream and downstream MU-MIMO
    Software
    Internet connection
    		 Routing mode: DHCP/PPPoE/Static IP
    Bridge mode: wired relay/wireless relay
    EasyMesh Support
    IPv6 Support
    Blind-mating port Available upon software update
    Security features WPA-PSK/WPA2-PSK//WPA3 encryption
    Anti-Wi-Fi squatting/anti-attack
    Firewall, DMZ, DoS attacks
    Network management Guest Wi-Fi, access allow list/deny list, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch
    Management method Support H3C Magic App (iOS, Android), Web
    Internet diagnosis
    Operating environment
    Operating temperature
    		 0ºC–40ºC
    Storage humidity 10%–90%, RH non-condensing
