Gigabyte GP-UD1000GM-PG5 1000W 80+ Gold Fully Modular PSU

Description

Description

UD1000GM PG5 (rev. 2.0)

KEY FEATURE

  • Ultra Durable
    •  Main Japanese capacitors
    •  Enhanced thermal solution

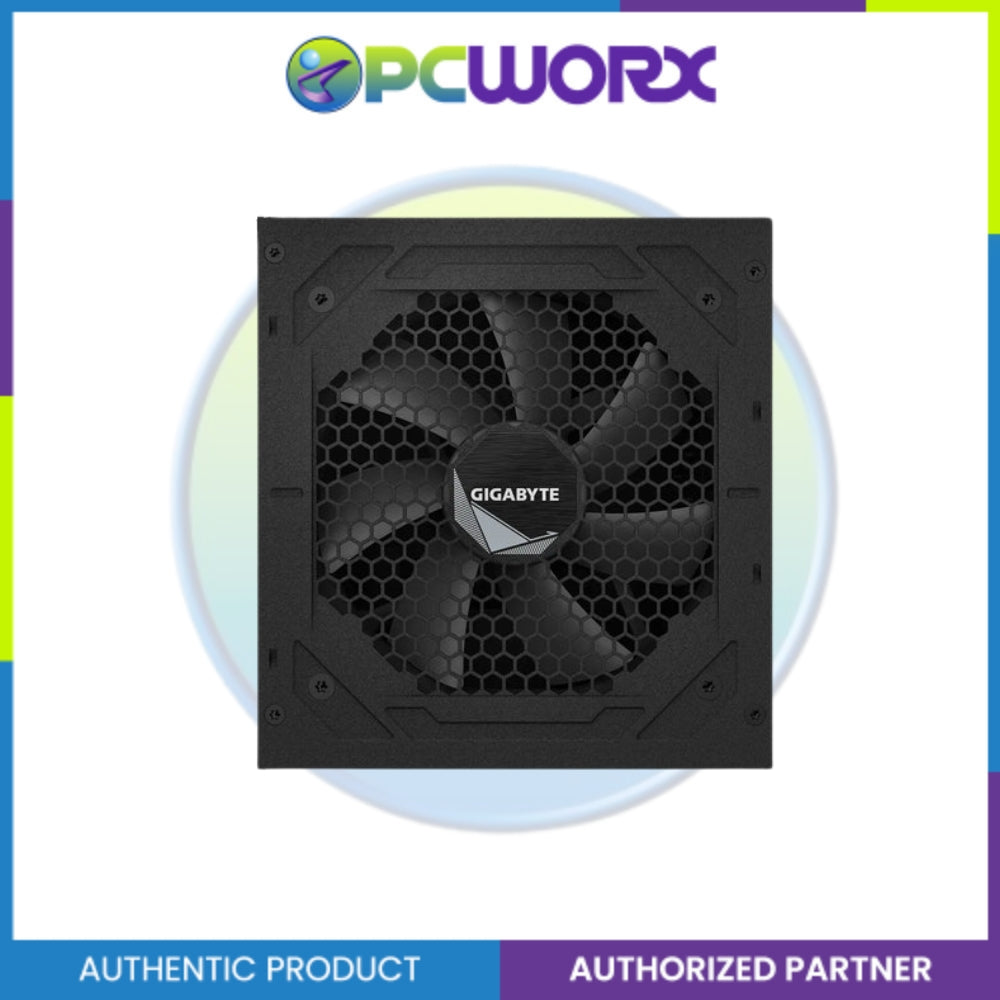

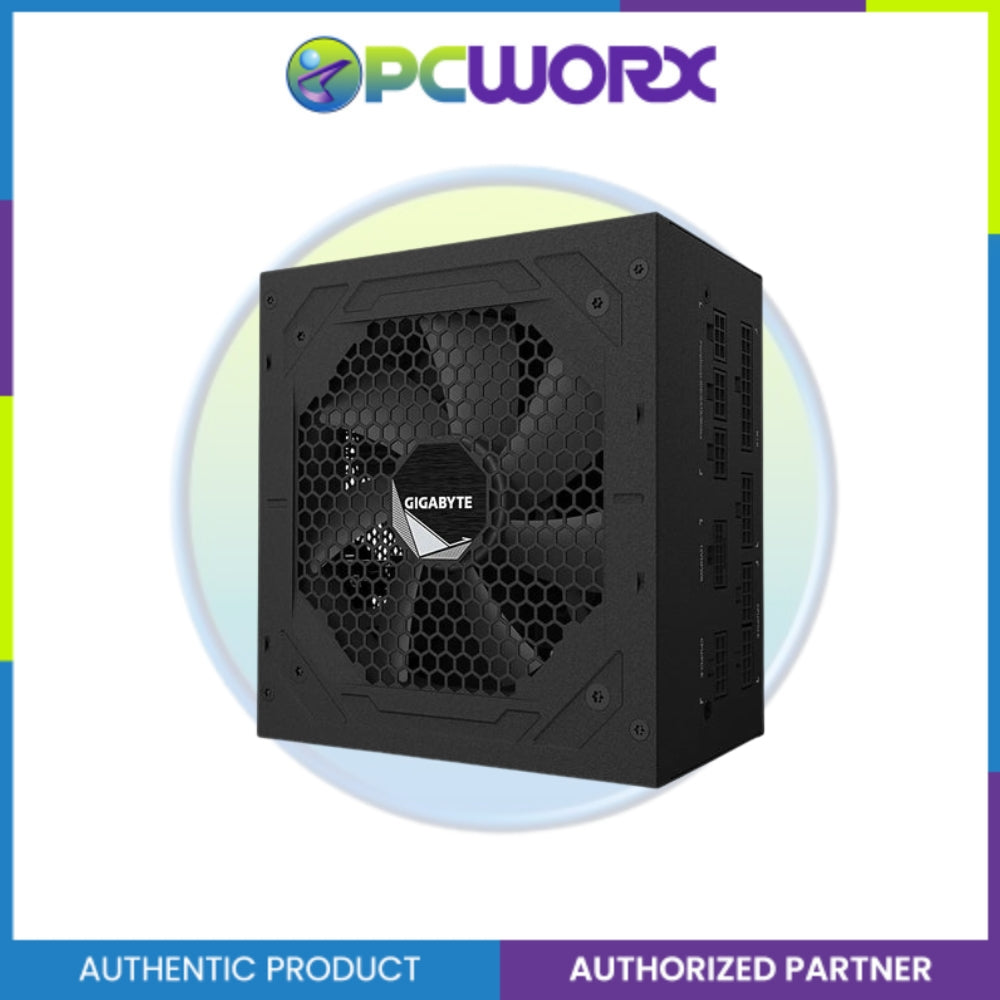

    •  120mm smart hydraulic bearing (HYB) fan
    •  OVP/OPP/SCP/UVP/OCP/OTP protection
  • Support PCIe Gen 5.0 graphics cards
  • Support Intel ATX 3.0 standard
  • 80 PLUS Gold certified

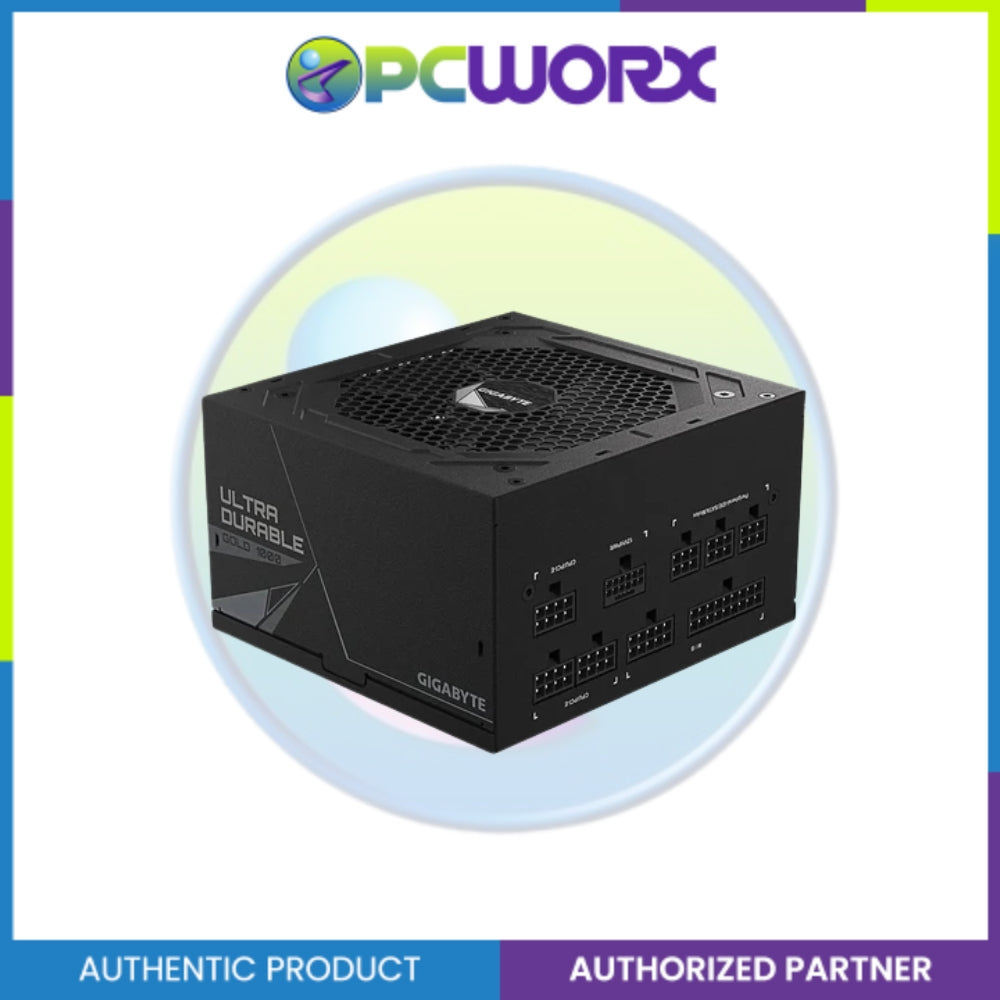

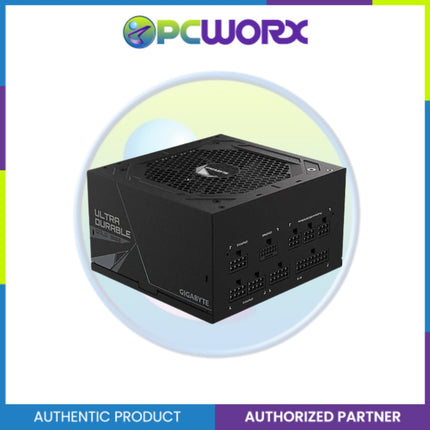

  • Fully modular design
  • Compact design

Support PCIe Gen 5.0 graphics cards

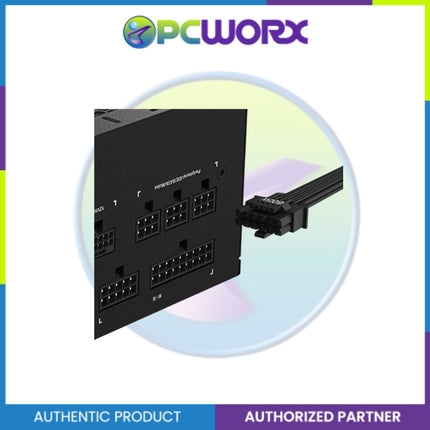

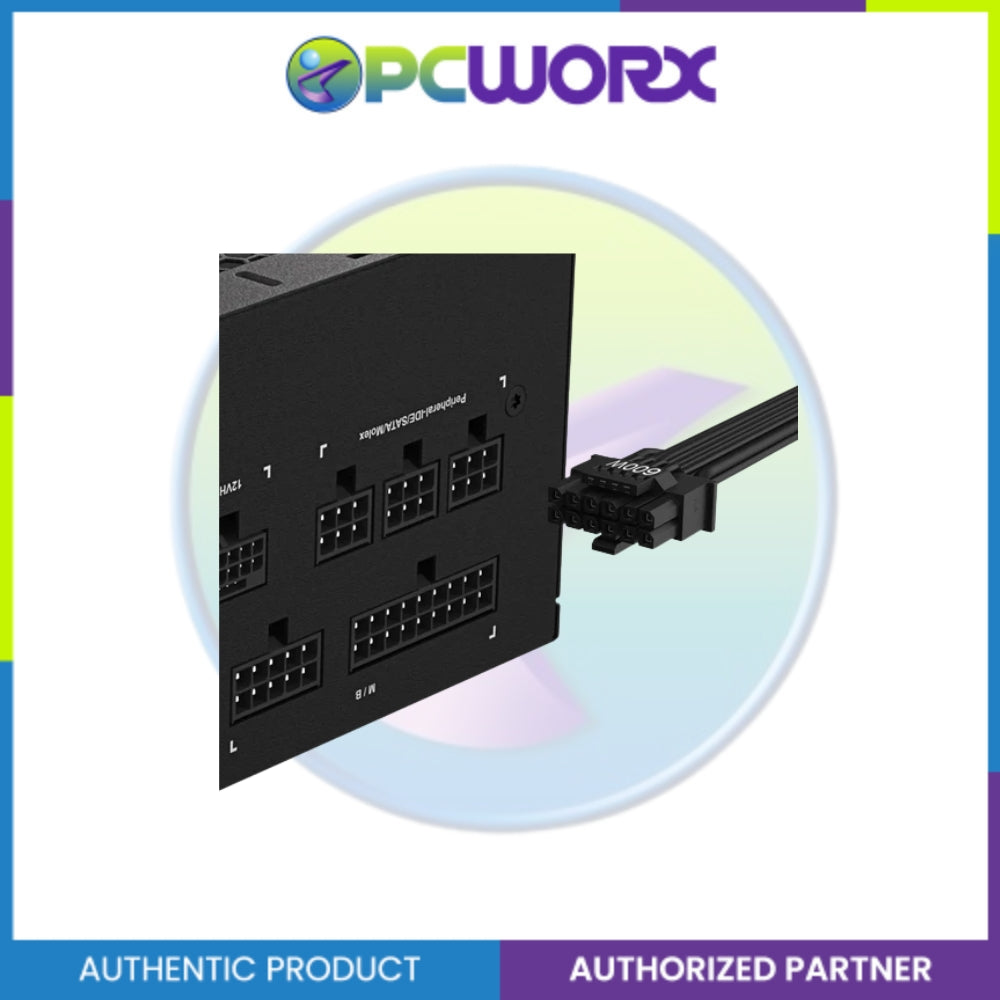

The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

Support Intel ATX 3.0 standard

The UD1000GM PG5 can sustain up to 3x GPU power excursion and 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standa
Category Specification

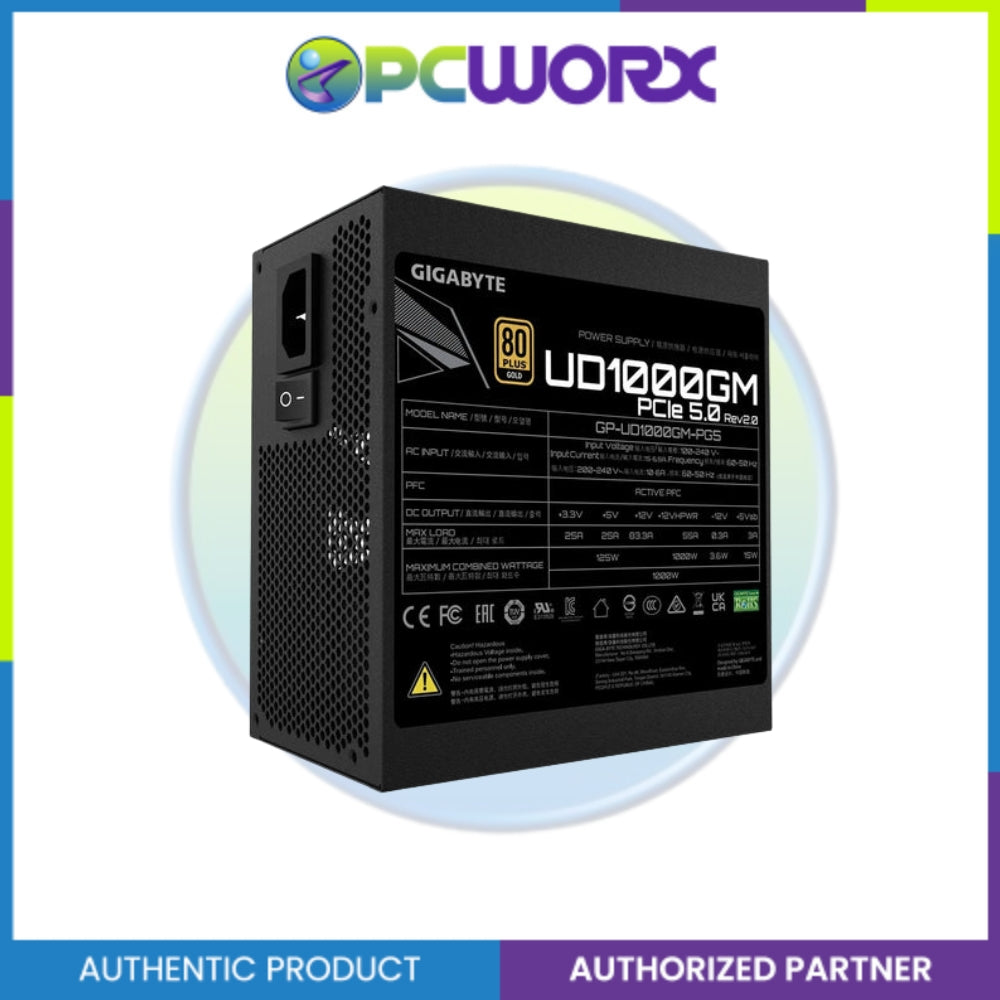

Model GP-UD1000GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100–240 Vac (Full Range)
Input Current 15–6.5A
Input Frequency 50–60 Hz
Output Capacity 1000W
Dimensions 150 × 140 × 86 mm
Fan Type 120mm Hydraulic Bearing (HYB) Fan
80 PLUS Certification Gold
Efficiency 90% (Typical Load)
MTBF >100,000 hours
Protection Features OVP / OPP / SCP / UVP / OCP / OTP
Power Good Signal 100–150 ms
Hold Up Time >16 ms
Cable Type Flat, All Black

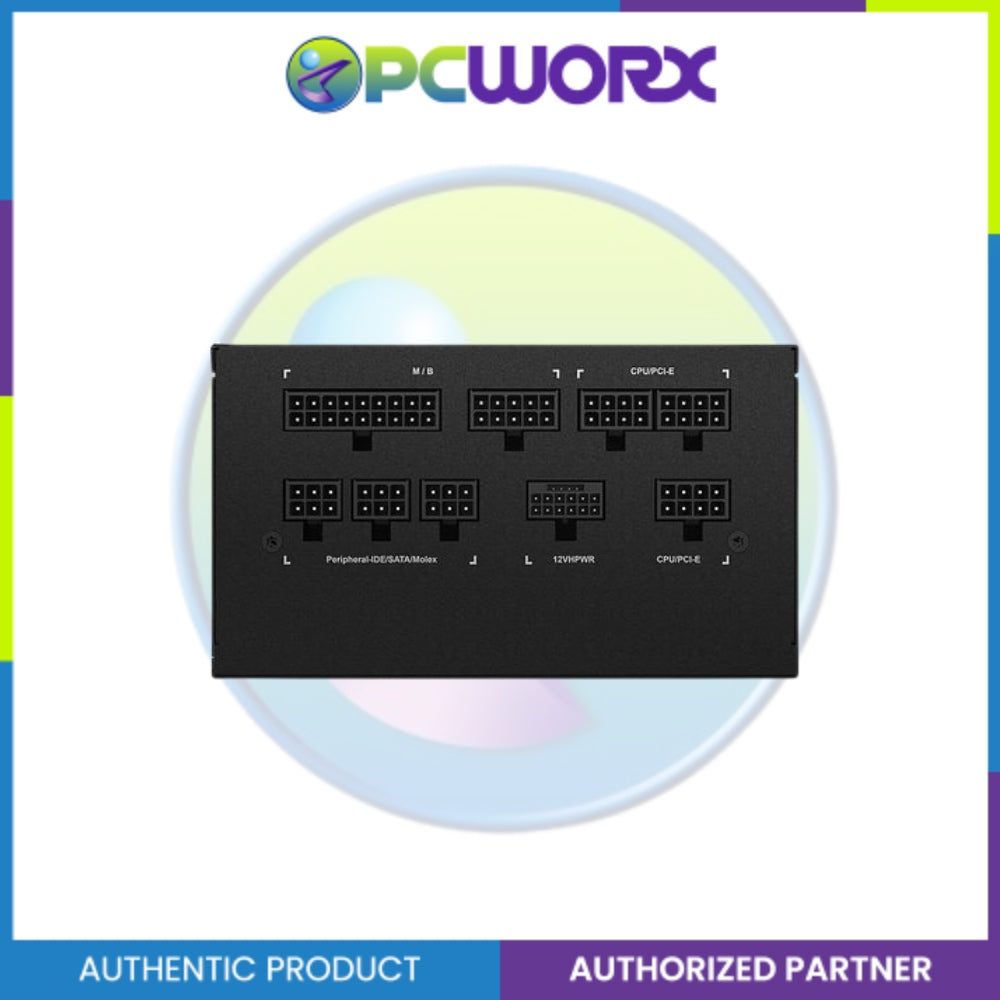

Connectors ATX/MB 20+4 Pin: 610 mm × 1
CPU/EPS 4+4 Pin: 600 mm + 200 mm × 1
PCI-E 16 Pin: 700 mm × 1
PCI-E 6+2 Pin: 600 mm + 150 mm × 2
SATA (x8): 600 mm + 150 mm + 150 mm + 150 mm × 2
4-Pin Peripheral (x3) + 4-Pin Floppy (x1): 500 mm + 120 mm + 120 mm + 150 mm × 1

Gigabyte GP-UD1000GM-PG5 1000W 80+ Gold Fully Modular PSU

Product form

Description UD1000GM PG5 (rev. 2.0) KEY FEATURE Ultra Durable  Main Japanese capacitors  Enhanced thermal solution  120mm smart hydraulic bearing (HYB)... Read more

Free pickup in our shop(s)

SKU: 0000055276

2 in stock

₱9,315.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Description

    UD1000GM PG5 (rev. 2.0)

    KEY FEATURE

    • Ultra Durable
      •  Main Japanese capacitors
      •  Enhanced thermal solution
      •  120mm smart hydraulic bearing (HYB) fan
      •  OVP/OPP/SCP/UVP/OCP/OTP protection
    • Support PCIe Gen 5.0 graphics cards
    • Support Intel ATX 3.0 standard
    • 80 PLUS Gold certified
    • Fully modular design
    • Compact design

    Support PCIe Gen 5.0 graphics cards

    The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.

    Support Intel ATX 3.0 standard

    The UD1000GM PG5 can sustain up to 3x GPU power excursion and 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standa
    Category Specification
    Model GP-UD1000GM PG5
    Type Intel Form Factor ATX 12V v3.0
    PFC Active PFC (>0.9 typical)
    Input Voltage 100–240 Vac (Full Range)
    Input Current 15–6.5A
    Input Frequency 50–60 Hz
    Output Capacity 1000W
    Dimensions 150 × 140 × 86 mm
    Fan Type 120mm Hydraulic Bearing (HYB) Fan
    80 PLUS Certification Gold
    Efficiency 90% (Typical Load)
    MTBF >100,000 hours
    Protection Features OVP / OPP / SCP / UVP / OCP / OTP
    Power Good Signal 100–150 ms
    Hold Up Time >16 ms
    Cable Type Flat, All Black
    Connectors ATX/MB 20+4 Pin: 610 mm × 1
    CPU/EPS 4+4 Pin: 600 mm + 200 mm × 1
    PCI-E 16 Pin: 700 mm × 1
    PCI-E 6+2 Pin: 600 mm + 150 mm × 2
    SATA (x8): 600 mm + 150 mm + 150 mm + 150 mm × 2
    4-Pin Peripheral (x3) + 4-Pin Floppy (x1): 500 mm + 120 mm + 120 mm + 150 mm × 1
