| CPU |
AMD Socket AM5, support for: Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset |
AMD X870 |
| Memory |
DDR5 8200(O.C) to 4400 MT/s supported
4 x DDR5 DIMM sockets, up to 256 GB
Dual channel architecture
Supports AMD EXPO™ and XMP profiles |
| Onboard Graphics |
Integrated AMD Radeon™ Graphics
2 x USB4 Type-C (3840x2160@240Hz)
1 x HDMI (4096x2160@60Hz)
1 x front HDMI (1920x1080@30Hz) |
| Audio |
Realtek ALC1220 CODEC, DSD Audio
7.1-channel HD Audio
S/PDIF Out supported |
| LAN |
Realtek 2.5GbE LAN |
| Wireless |
Realtek Wi-Fi 7 RTL8922AE
Bluetooth 5.4
Supports 2.4/5/6 GHz bands
*Requires Windows 11 SV3 |
| Expansion Slots |
1 x PCIe x16 (CPU):
- Ryzen 9000/7000: PCIe 5.0 x16
- Ryzen 8000 Phoenix 1: PCIe 4.0 x8
- Phoenix 2: PCIe 4.0 x4
1 x PCIe x4 (Chipset): PCIe 4.0 x4 |
| Storage Interface |
1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2
1 x M.2 (M2C_SB): PCIe 4.0 x2
2 x SATA 6Gb/s
RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA)
*RAID 5 only on Ryzen 9000 |
| USB |
Rear:
- 2 x USB4 Type-C
- 1 x USB 3.2 Gen 2 Type-A (red)
- 4 x USB 2.0
- 4 x USB 3.2 Gen 1
Internal:
- 1 x USB 3.2 Gen 2x2 Type-C
- 1 x USB 3.2 Gen 2 Type-A
- 2 x USB 3.2 Gen 1
- 4 x USB 2.0 |
| Internal I/O |
1 x 24-pin ATX
1 x 8-pin ATX 12V
1 x CPU fan / 1 x pump header
3 x system fan / 1 x pump header
3 x ARGB Gen2 / 1 x RGB header
2 x M.2 Socket 3
2 x SATA 6Gb/s
Front panel, audio, TPM, HDMI headers
USB 3.2 Gen 2x2, USB 3.2 Gen 1, USB 2.0 |

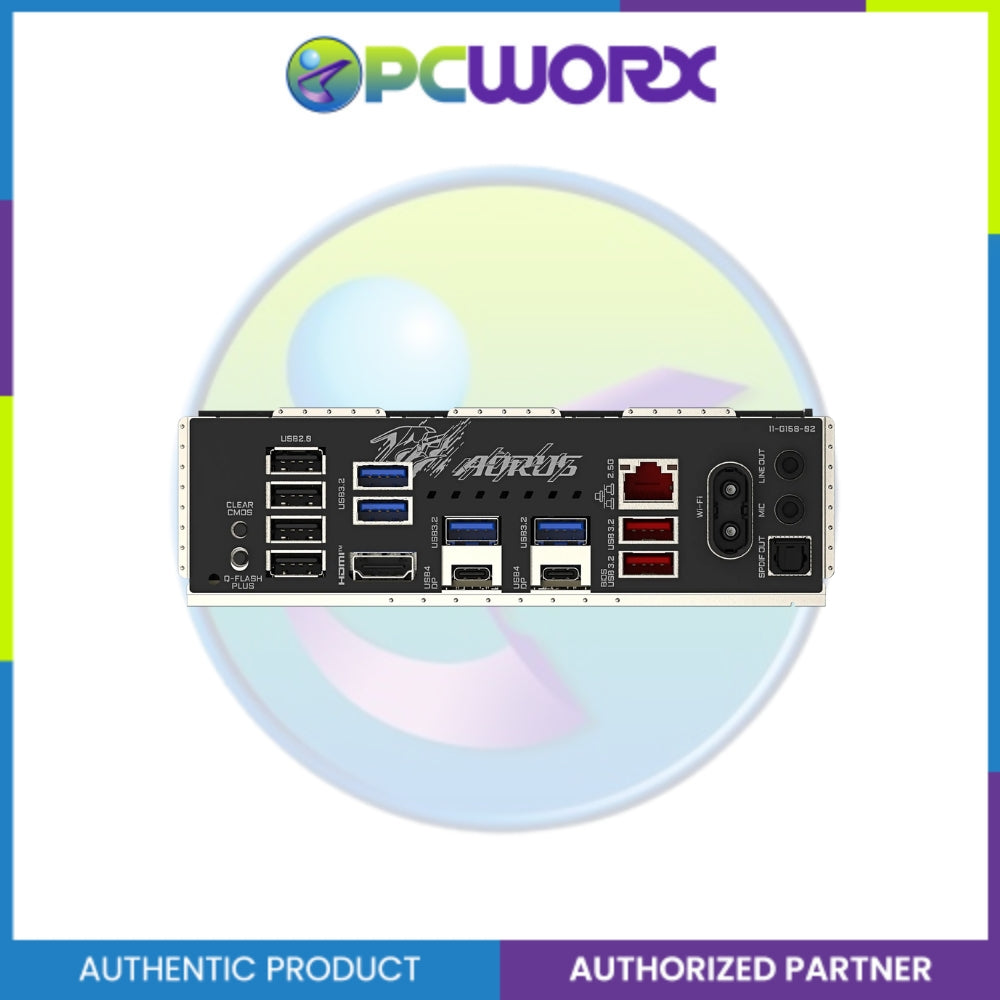

| Back Panel I/O |
1 x Clear CMOS / Q-Flash Plus button
1 x HDMI
4 x USB 2.0 / 4 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 Type-A (red)
2 x USB4 Type-C (DisplayPort capable)
1 x RJ-45
2 x antenna connectors
2 x audio jacks + Optical S/PDIF Out |
| Monitoring |
Voltage / Temp / Fan / Water flow
Fan fail warning / Fan control |
| BIOS |
256 Mbit AMI UEFI BIOS
Supports PnP, DMI 2.7, ACPI 5.0 |
| Unique Features |
GIGABYTE Control Center
Q-Flash / Q-Flash Plus
Smart Backup |
| Software |
Norton Internet Security (OEM) |
| OS Support |
Windows 11 64-bit |
| Form Factor |
Micro ATX (24.4 x 24.4 cm) |
