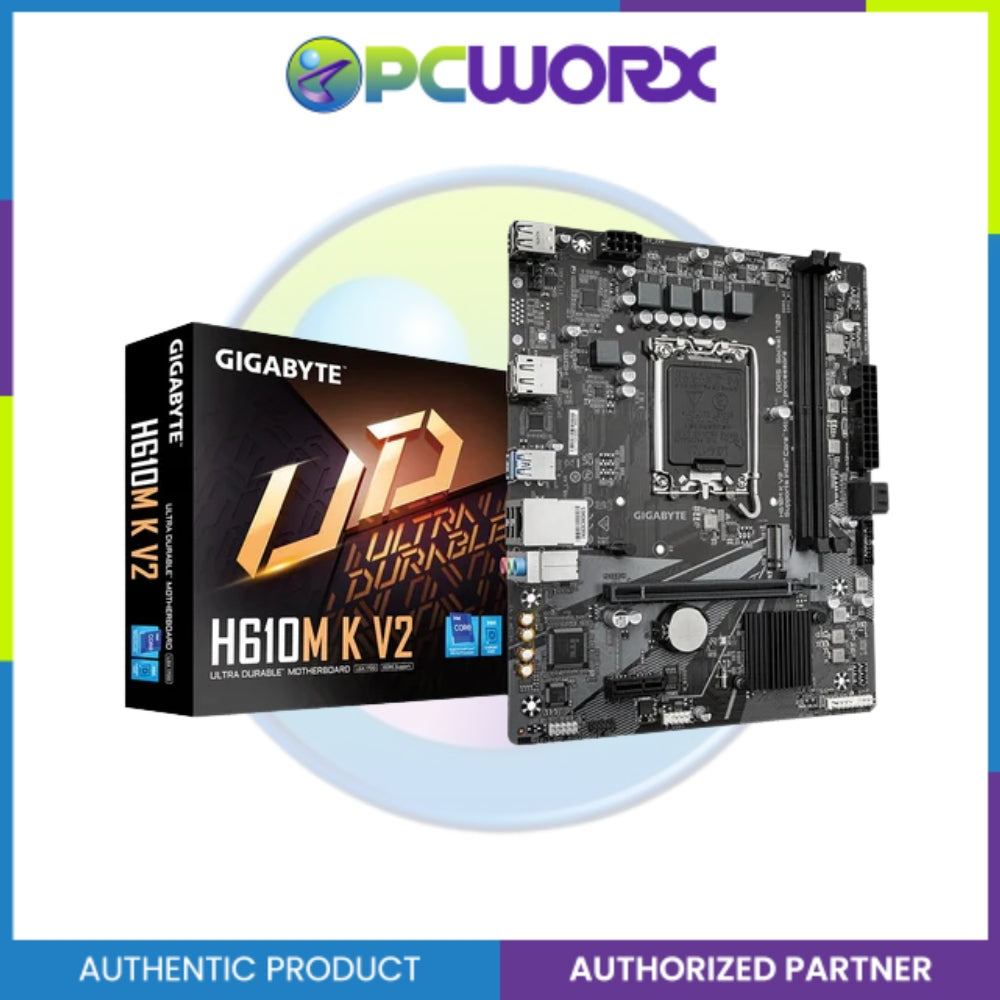

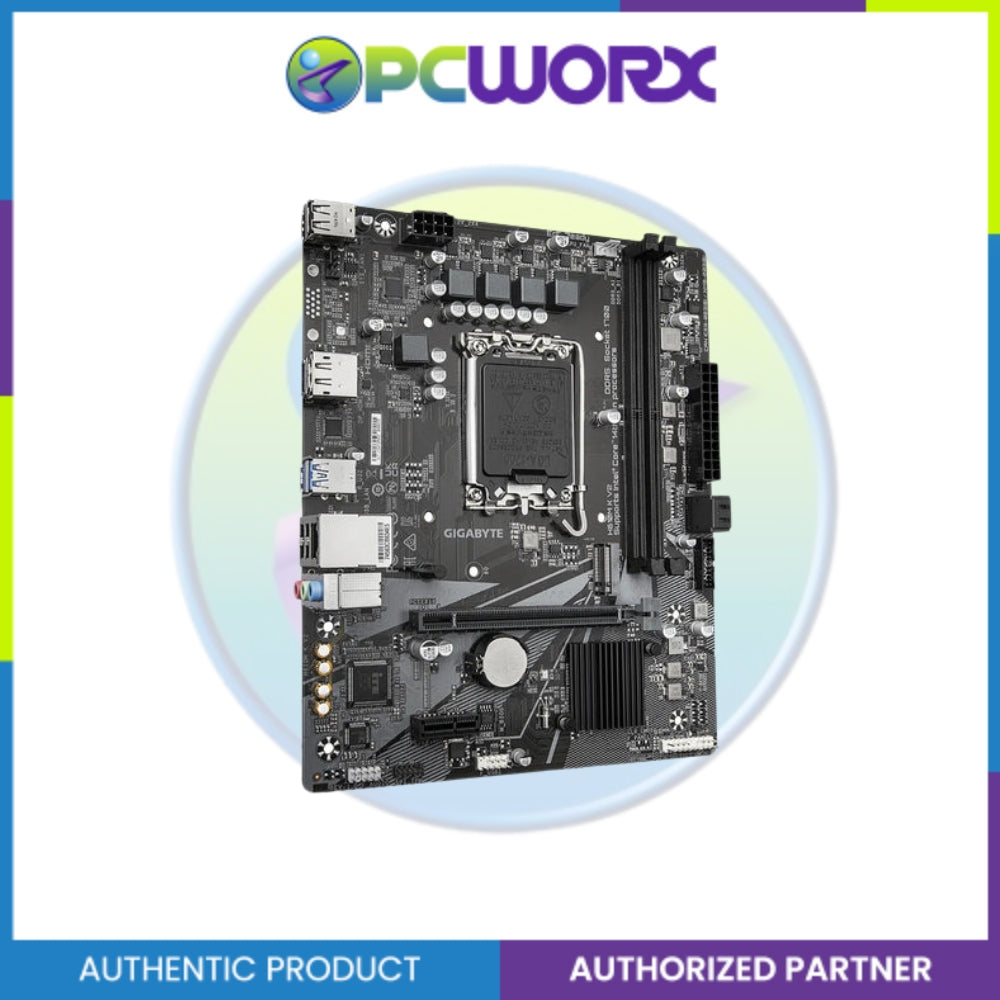

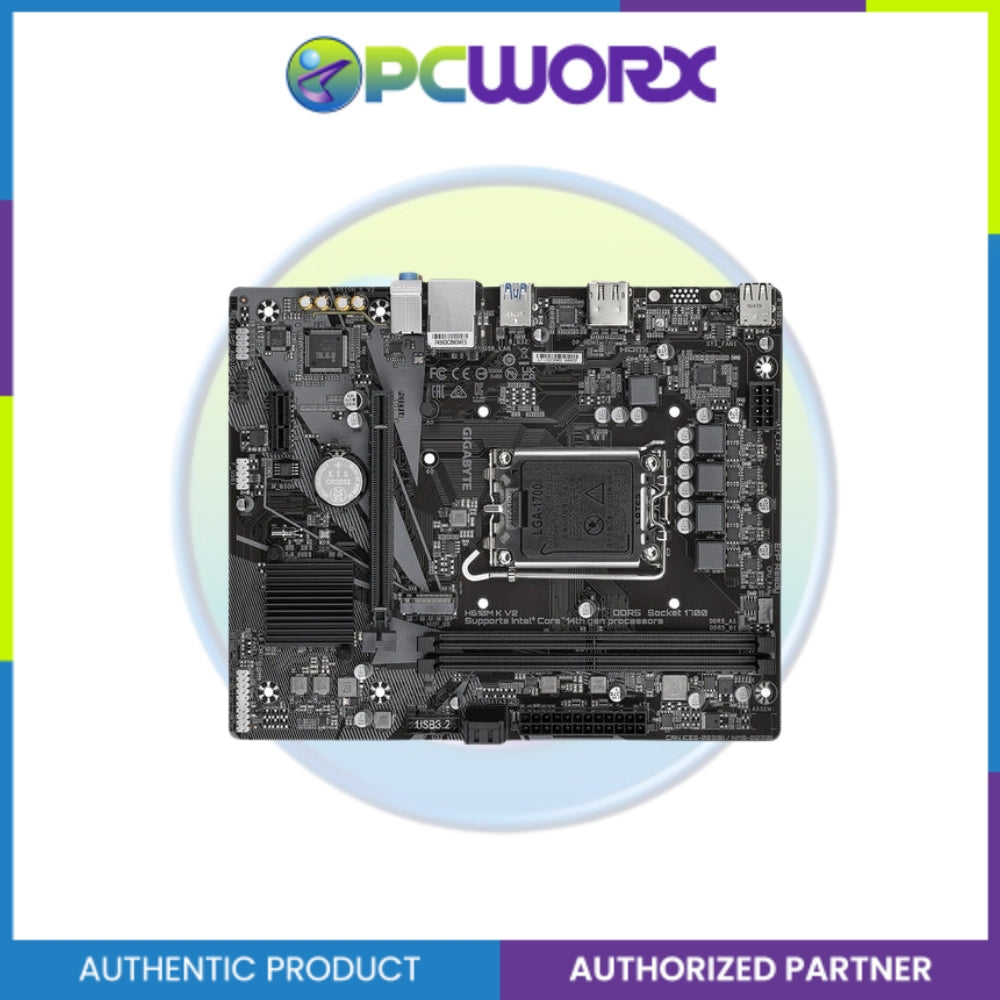

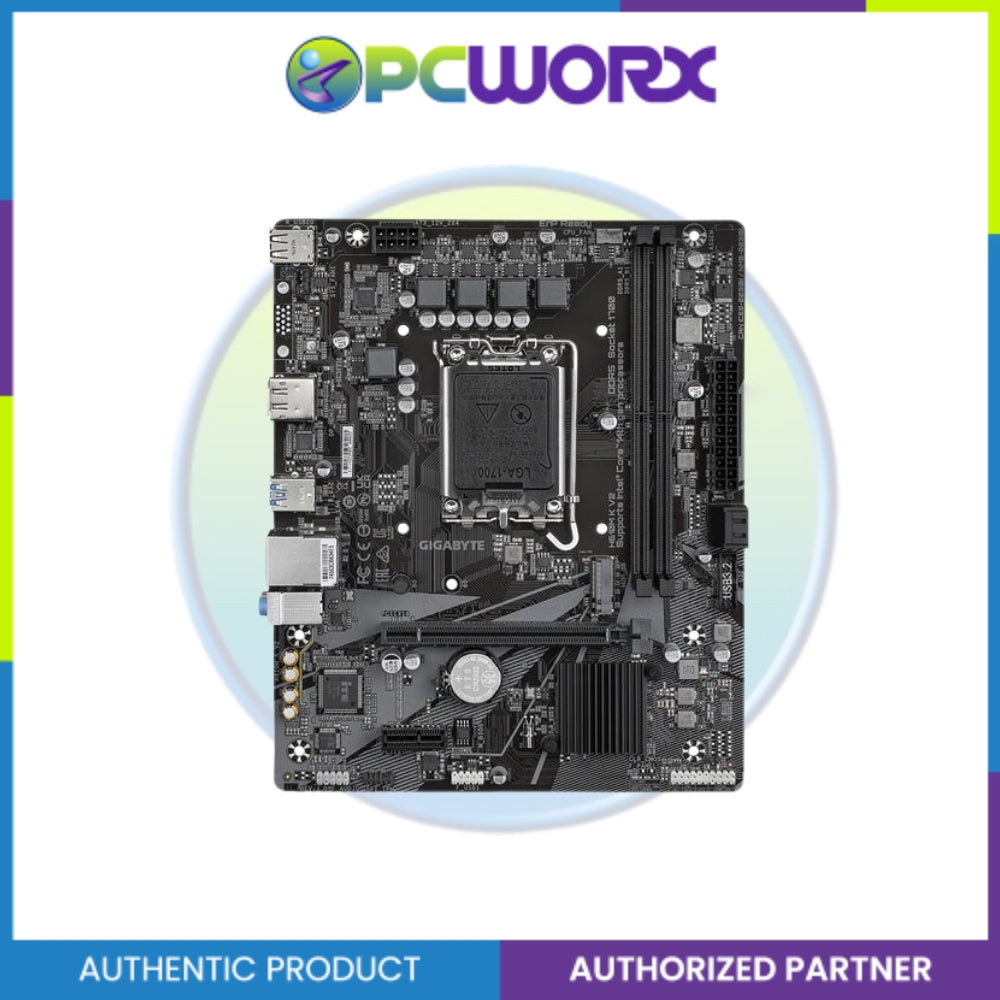

Gigabyte GA-H610M-K-V2 DDR5 Motherboard

Description

H610M K V2 (rev. 1.0)

PCIe 4.0 Design, Gen3 x4 M.2 , GbE LAN , Anti-Sulfur Resistor, Smart Fan 6
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

Specifications:

CPU LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
* L3 cache varies with CPU
* Refer to "CPU Support List"
Chipset Intel® H610 Express Chipset
Memory 14th/13th Gen i9/i7: DDR5 5600/5200/4800/4400 MT/s
13th Gen i5/i3 & 12th Gen: DDR5 4800/4400 MT/s
2 x DDR5 DIMM sockets, up to 128 GB
Dual channel architecture
ECC/Non-ECC support (ECC operates in non-ECC mode)
XMP support
* Refer to "Memory Support List"
Onboard Graphics Intel® HD Graphics (depends on CPU)
1 x HDMI (4096x2160@60Hz) – HDMI 2.1, HDCP 2.3
1 x DisplayPort (4096x2304@60Hz) – DP 1.2, HDCP 2.3
Audio Realtek® Audio CODEC
High Definition Audio, 2/4/5.1/7.1-channel
* Configurable via software
LAN Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots CPU: 1 x PCIe x16 (PCIe 4.0, x16)
Chipset: 1 x PCIe x1 (PCIe 3.0, x1)
Storage Interface 1 x M.2 (PCIe 3.0 x4/x2)
2 x SATA 6Gb/s
USB Ports 4 x USB 3.2 Gen 1 (2 rear, 2 via header)
6 x USB 2.0/1.1 (4 rear, 2 via header)
Internal I/O 1 x 24-pin ATX
1 x 8-pin ATX 12V
1 x CPU fan header
1 x System fan header
1 x M.2 Socket 3
2 x SATA
1 x Front panel header
1 x Front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0 header
1 x TPM header
1 x Clear CMOS jumper
Back Panel 1 x HDMI
1 x DisplayPort
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x RJ-45
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
Monitoring Voltage, Temperature, Fan speed, Water flow
Fan fail warning
Fan speed control (*depends on fan)
BIOS 128 Mbit flash, AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features APP Center (*varies by model)
- @BIOS, EasyTune, Smart Backup, System Info Viewer
Support for Q-Flash
Bundled Software Norton® Internet Security (OEM), LAN bandwidth manager
OS Support Windows 11 64-bit, Windows 10 64-bit
Form Factor Micro ATX, 22.6cm x 18.5cm

Gigabyte GA-H610M-K-V2 DDR5 Motherboard

Product form

H610M K V2 (rev. 1.0) PCIe 4.0 Design, Gen3 x4 M.2 , GbE LAN , Anti-Sulfur Resistor, Smart Fan 6... Read more

Free pickup in our shop(s)

SKU: 0000071960

1 in stock

₱4,887.50
