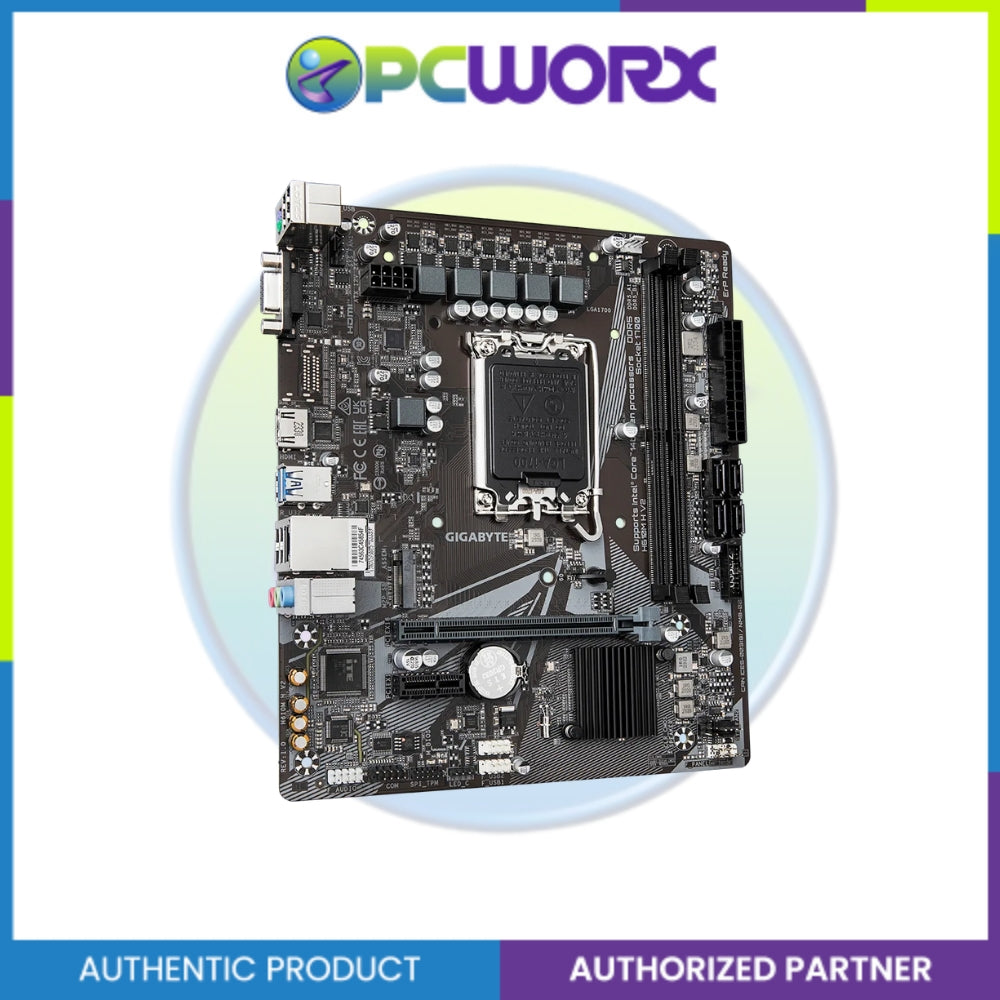

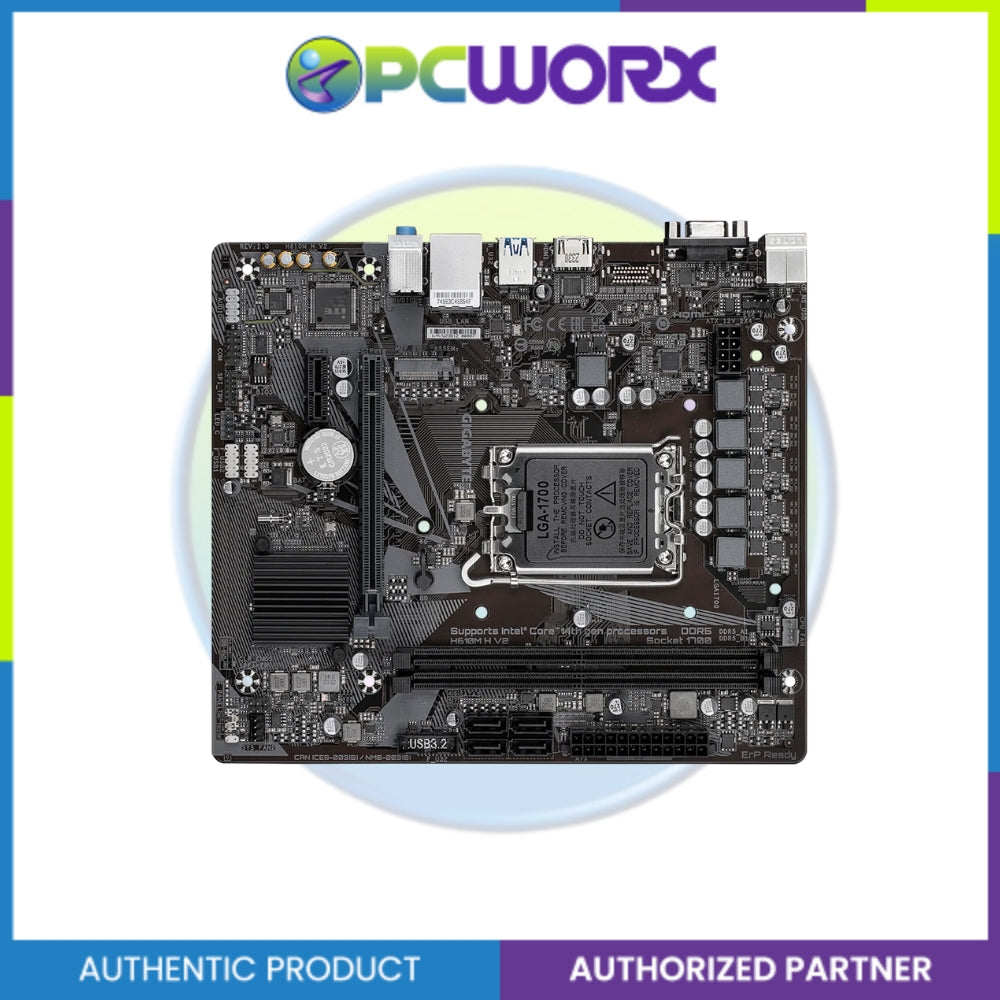

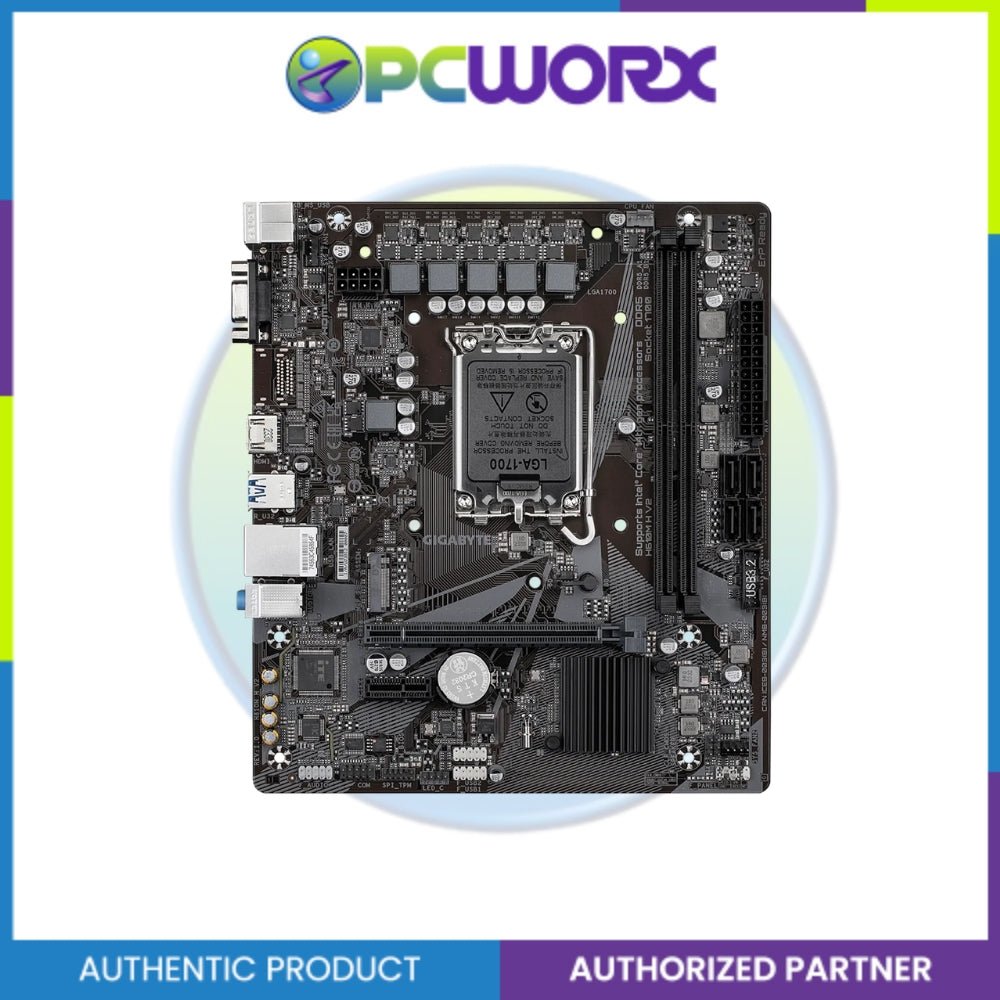

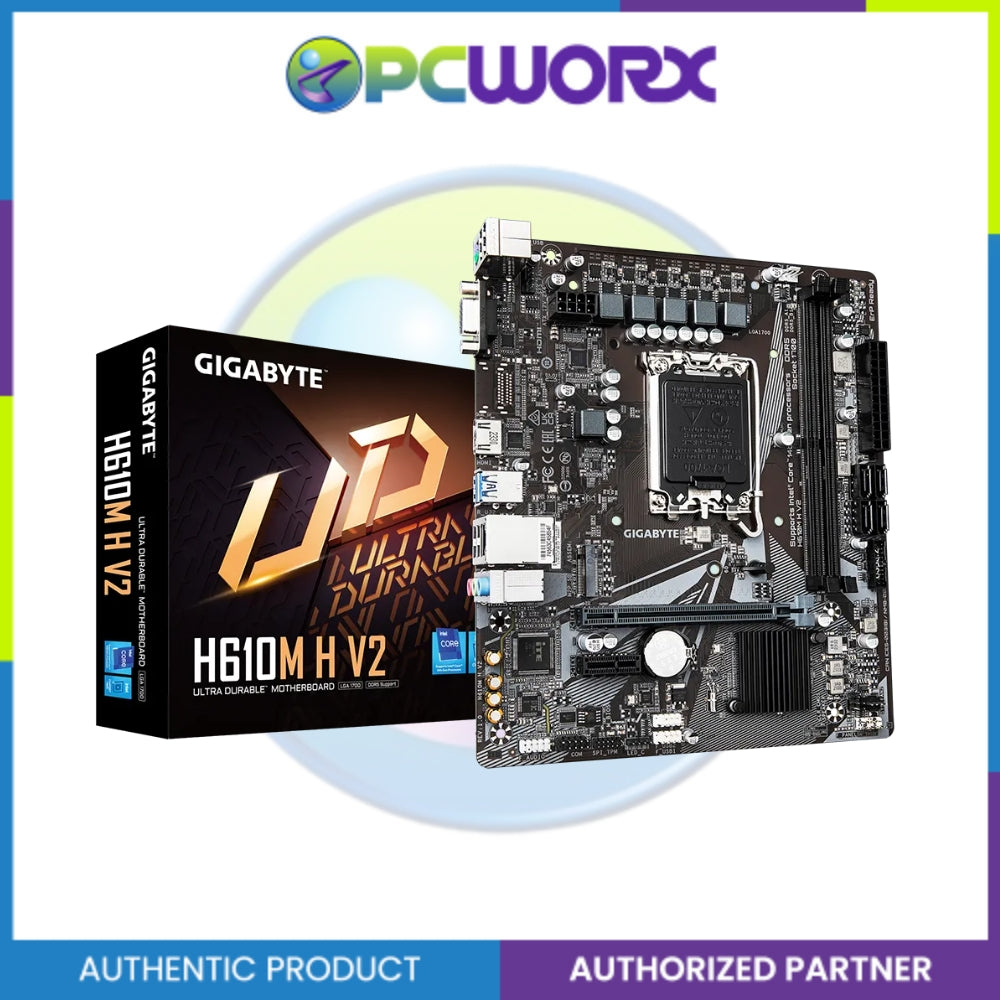

Gigabyte GA-H610M-H-V2 DDR5 LGA1700 m-ATX Mobo

Description


Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 4+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design



Specifications:

CPU Support LGA1700 socket
14th, 13th, 12th Gen Intel Core, Pentium Gold, Celeron
L3 cache varies by CPU
Chipset Intel H610 Express Chipset
Memory 2 x DDR5 DIMM, up to 128GB
Up to DDR5-5600 (depends on CPU)
Dual channel
Supports ECC (non-ECC mode) and non-ECC DIMMs
XMP support
Graphics Outputs 1 x D-Sub (1920x1200@60Hz)
1 x HDMI (4096x2160@60Hz, HDMI 2.1)
Graphics support varies by CPU
Audio Realtek Audio CODEC
2/4/5.1/7.1-channel HD Audio
LAN Realtek GbE LAN (1Gbps)
Expansion Slots 1 x PCIe 4.0 x16 (CPU)
1 x PCIe 3.0 x1 (Chipset)
Storage 1 x M.2 PCIe 3.0 x4/x2 (2280/2260)
4 x SATA 6Gb/s
USB Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0
Internal: 2 x USB 3.2 Gen 1 (via header), 4 x USB 2.0 (via 2 headers)
Internal Connectors 24-pin ATX, 8-pin 12V
1 x CPU fan, 2 x system fan
1 x M.2, 4 x SATA
1 x RGB header, front panel, audio, speaker
USB 3.2 Gen 1 header, 2 x USB 2.0 headers
TPM, serial port, chassis intrusion, Clear CMOS jumper

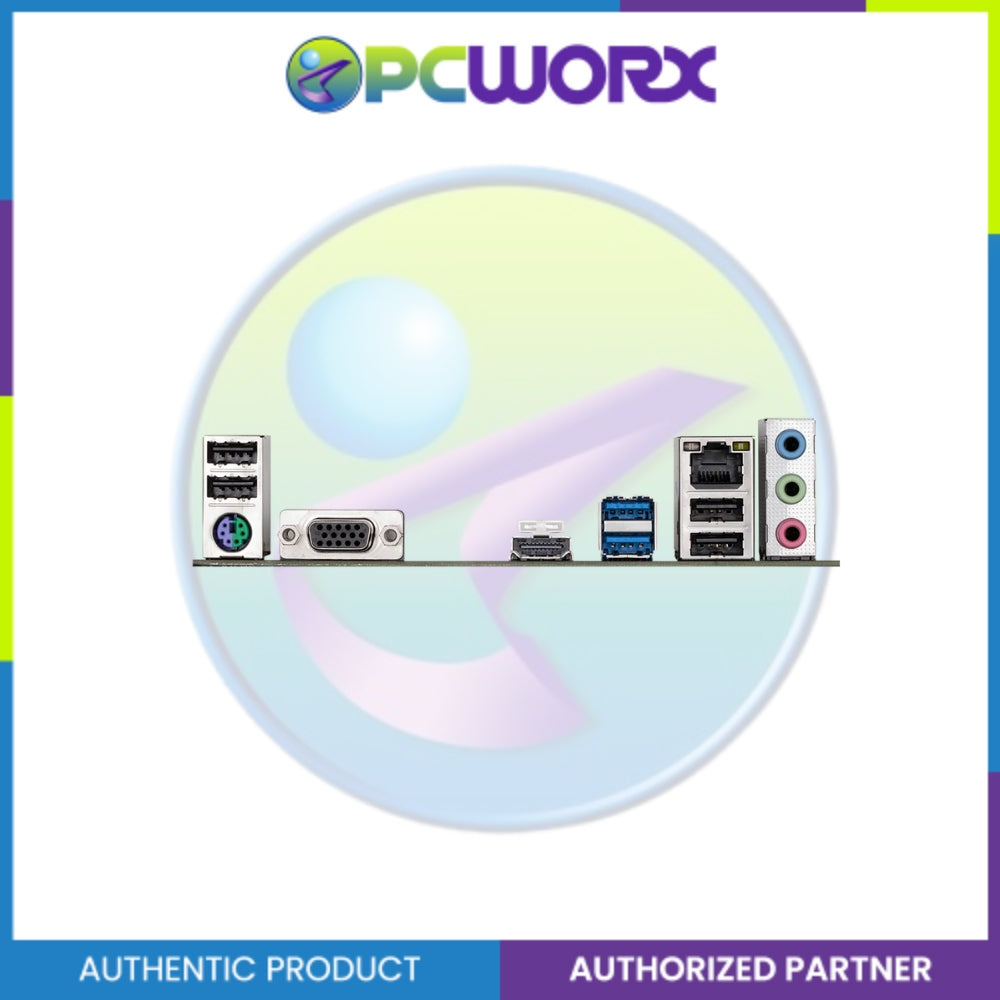

Back Panel I/O 1 x PS/2 keyboard/mouse
1 x D-Sub, 1 x HDMI
2 x USB 3.2 Gen 1, 4 x USB 2.0
1 x RJ-45, 3 x audio jacks
BIOS 128 Mbit flash, AMI UEFI BIOS
Q-Flash support
Unique Features GIGABYTE APP Center
@BIOS, EasyTune, Smart Backup, System Info Viewer
Bundled Software Norton Internet Security (OEM)
LAN bandwidth software (discontinued)
OS Support Windows 11 & 10 64-bit
Form Factor Micro ATX (22.3 x 19.6 cm)

Gigabyte GA-H610M-H-V2 DDR5 LGA1700 m-ATX Mobo

Product form

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6... Read more

Free pickup in our shop(s)

SKU: 0000072208

2 in stock

₱5,290.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description


    Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6
    • Supports Intel® Core™ 14th/ 13th /12th processors
    • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
    • 4+1+1 Hybrid Digital VRM Design
    • GbE LAN with Bandwidth Management
    • NVMe PCIe 3.0 x4 M.2
    • High Quality Audio Capacitors and Audio Noise Guard
    • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
    • GIGABYTE APP Center, Simple and Easy Use
    • Anti-Sulfur Resistors Design



    Specifications:

    CPU Support LGA1700 socket
    14th, 13th, 12th Gen Intel Core, Pentium Gold, Celeron
    L3 cache varies by CPU
    Chipset Intel H610 Express Chipset
    Memory 2 x DDR5 DIMM, up to 128GB
    Up to DDR5-5600 (depends on CPU)
    Dual channel
    Supports ECC (non-ECC mode) and non-ECC DIMMs
    XMP support
    Graphics Outputs 1 x D-Sub (1920x1200@60Hz)
    1 x HDMI (4096x2160@60Hz, HDMI 2.1)
    Graphics support varies by CPU
    Audio Realtek Audio CODEC
    2/4/5.1/7.1-channel HD Audio
    LAN Realtek GbE LAN (1Gbps)
    Expansion Slots 1 x PCIe 4.0 x16 (CPU)
    1 x PCIe 3.0 x1 (Chipset)
    Storage 1 x M.2 PCIe 3.0 x4/x2 (2280/2260)
    4 x SATA 6Gb/s
    USB Rear: 2 x USB 3.2 Gen 1, 4 x USB 2.0
    Internal: 2 x USB 3.2 Gen 1 (via header), 4 x USB 2.0 (via 2 headers)
    Internal Connectors 24-pin ATX, 8-pin 12V
    1 x CPU fan, 2 x system fan
    1 x M.2, 4 x SATA
    1 x RGB header, front panel, audio, speaker
    USB 3.2 Gen 1 header, 2 x USB 2.0 headers
    TPM, serial port, chassis intrusion, Clear CMOS jumper
    Back Panel I/O 1 x PS/2 keyboard/mouse
    1 x D-Sub, 1 x HDMI
    2 x USB 3.2 Gen 1, 4 x USB 2.0
    1 x RJ-45, 3 x audio jacks
    BIOS 128 Mbit flash, AMI UEFI BIOS
    Q-Flash support
    Unique Features GIGABYTE APP Center
    @BIOS, EasyTune, Smart Backup, System Info Viewer
    Bundled Software Norton Internet Security (OEM)
    LAN bandwidth software (discontinued)
    OS Support Windows 11 & 10 64-bit
    Form Factor Micro ATX (22.3 x 19.6 cm)
