Gigabyte GA-H510M-K-V2 LGA1200 DDR4 mATX Mother board | Mobo | Gigabyte Motherboard

Description

Specifications
Form Factor:  Micro-ATX
CPU Socket:  LGA 1200
Chipset:  Intel® H510 Express Chipset
Processor Support:  11th Gen (Core™ i9/i7/i5) and 10th Gen (Core™ i9/i7/i5/i3, Pentium®, Celeron®) Intel® processors
Memory:  2 x DDR4 DIMM sockets, supporting up to 64GB, dual-channel architecture, and speeds up to DDR4 3200 MHz (with 11th Gen)
Expansion Slots:  1 x PCI Express x16 (PCIe 3.0 x16), 1 x PCI Express x1 (PCIe 3.0 x1)

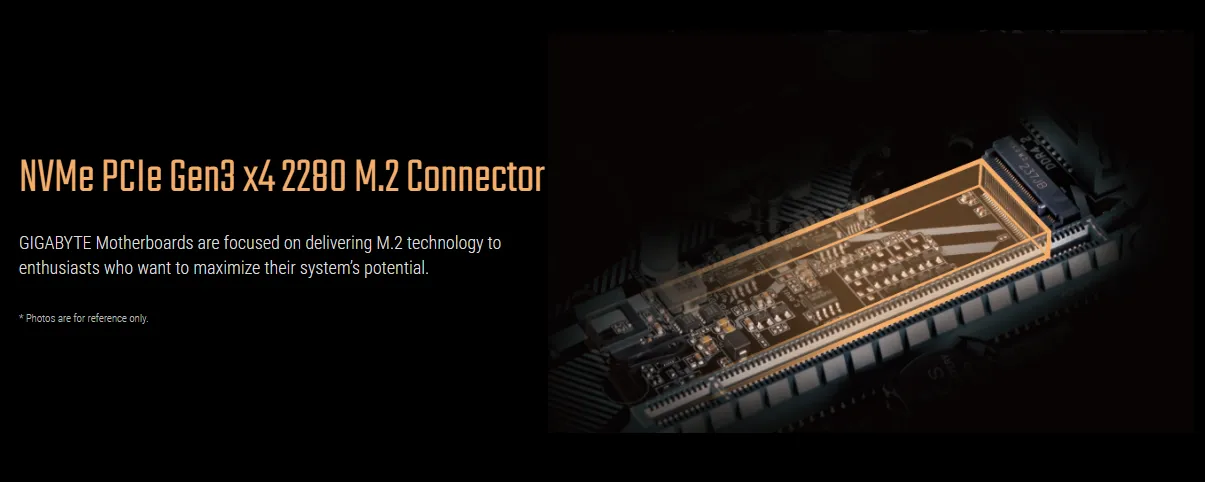

Storage:  1 x M.2 connector (SATA & PCIe Gen3 x4 SSD support)
Onboard Graphics:  Integrated Graphics Processor with Intel® HD Graphics support, 1 x HDMI port (up to 4096x2160@30 Hz)
Audio:  Realtek® 8-channel HD Audio
LAN:  Realtek® GbE LAN chip
USB Ports:  2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 ports (on back panel), with additional ports available via internal headers
Unique Features:

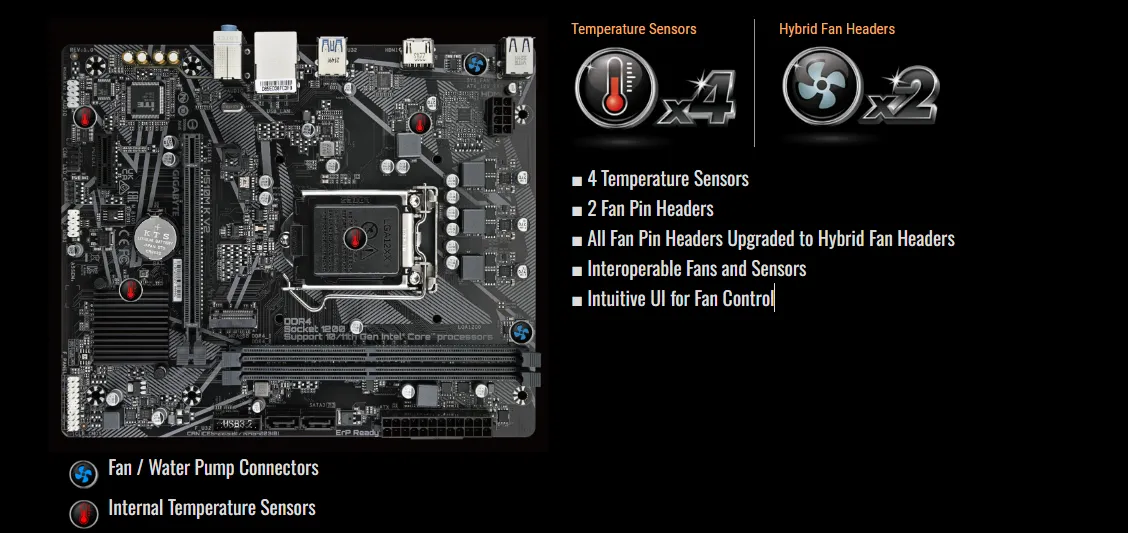

Smart Fan 5 with multiple temperature sensors and hybrid fan headers for advanced fan control
GIGABYTE APP Center for easy system management
Anti-Sulfur Resistors for enhanced protection against environmental damage









Gigabyte GA-H510M-K-V2 LGA1200 DDR4 mATX Mother board | Mobo | Gigabyte Motherboard

Product form

Specifications Form Factor:  Micro-ATX  CPU Socket:  LGA 1200  Chipset:  Intel® H510 Express Chipset  Processor Support:  11th Gen (Core™ i9/i7/i5) and... Read more

Free pickup in our shop(s)

SKU: 0000059503

2 in stock

₱4,008.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Specifications
    Form Factor:  Micro-ATX
    CPU Socket:  LGA 1200
    Chipset:  Intel® H510 Express Chipset
    Processor Support:  11th Gen (Core™ i9/i7/i5) and 10th Gen (Core™ i9/i7/i5/i3, Pentium®, Celeron®) Intel® processors
    Memory:  2 x DDR4 DIMM sockets, supporting up to 64GB, dual-channel architecture, and speeds up to DDR4 3200 MHz (with 11th Gen)
    Expansion Slots:  1 x PCI Express x16 (PCIe 3.0 x16), 1 x PCI Express x1 (PCIe 3.0 x1)
    Storage:  1 x M.2 connector (SATA & PCIe Gen3 x4 SSD support)
    Onboard Graphics:  Integrated Graphics Processor with Intel® HD Graphics support, 1 x HDMI port (up to 4096x2160@30 Hz)
    Audio:  Realtek® 8-channel HD Audio
    LAN:  Realtek® GbE LAN chip
    USB Ports:  2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 ports (on back panel), with additional ports available via internal headers
    Unique Features:
    Smart Fan 5 with multiple temperature sensors and hybrid fan headers for advanced fan control
    GIGABYTE APP Center for easy system management
    Anti-Sulfur Resistors for enhanced protection against environmental damage
