| CPU Support |
LGA1851 socket
Supports Intel Core™ Ultra Processors
L3 cache varies by CPU |
| Chipset |
Intel B860 Express Chipset |
| Memory |
4 x DDR5 DIMM, up to 256 GB
Up to DDR5-9200 (OC)
Dual channel
Supports ECC (non-ECC mode) and non-ECC DIMMs
XMP support |
| Graphics Outputs |
1 x USB4 Type-C (DP 2.1, 3840x2160@144Hz)
1 x DisplayPort (DP 2.1, 3840x2160@144Hz)
1 x HDMI (2.1, 4096x2160@60Hz)
1 x Front HDMI (1.4, 1920x1080@30Hz)
Supports up to quad-display |
| Audio |
Realtek Audio CODEC
2/4/5.1/7.1-channel HD Audio
S/PDIF Out supported |
| LAN |
Realtek 2.5GbE LAN |
| Wireless |
Realtek Wi-Fi 7 (RTL8922AE, Rev 1.0) or
MediaTek Wi-Fi 7 (MT7925, Rev 1.1)
Bluetooth 5.4
Supports 2.4/5/6 GHz bands |
| Expansion Slots |
CPU: 1 x PCIe 5.0 x16 (graphics/NVMe only)
Chipset: 2 x PCIe 4.0 x1 |
| Storage |
CPU: 1 x M.2 PCIe 5.0 x4/x2 (25110/22110/2580/2280)
Chipset: 2 x M.2 PCIe 4.0 x4/x2 (22110/2280)
4 x SATA 6Gb/s
RAID 0/1/5/10 (SATA only) |
| USB |
Rear: 1 x USB4-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0
Internal: 1 x USB-C (Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Internal Connectors |
24-pin ATX, 2 x 8-pin ATX 12V
1 x CPU fan, 1 x CPU/Water Pump
3 x system fan, 1 x sys fan/water pump
3 x ARGB Gen2 headers, 1 x RGB header
3 x M.2, 4 x SATA
Audio, TPM, HDMI, power/reset/Q-Flash Plus buttons
USB-C, USB 3.2, USB 2.0 headers |

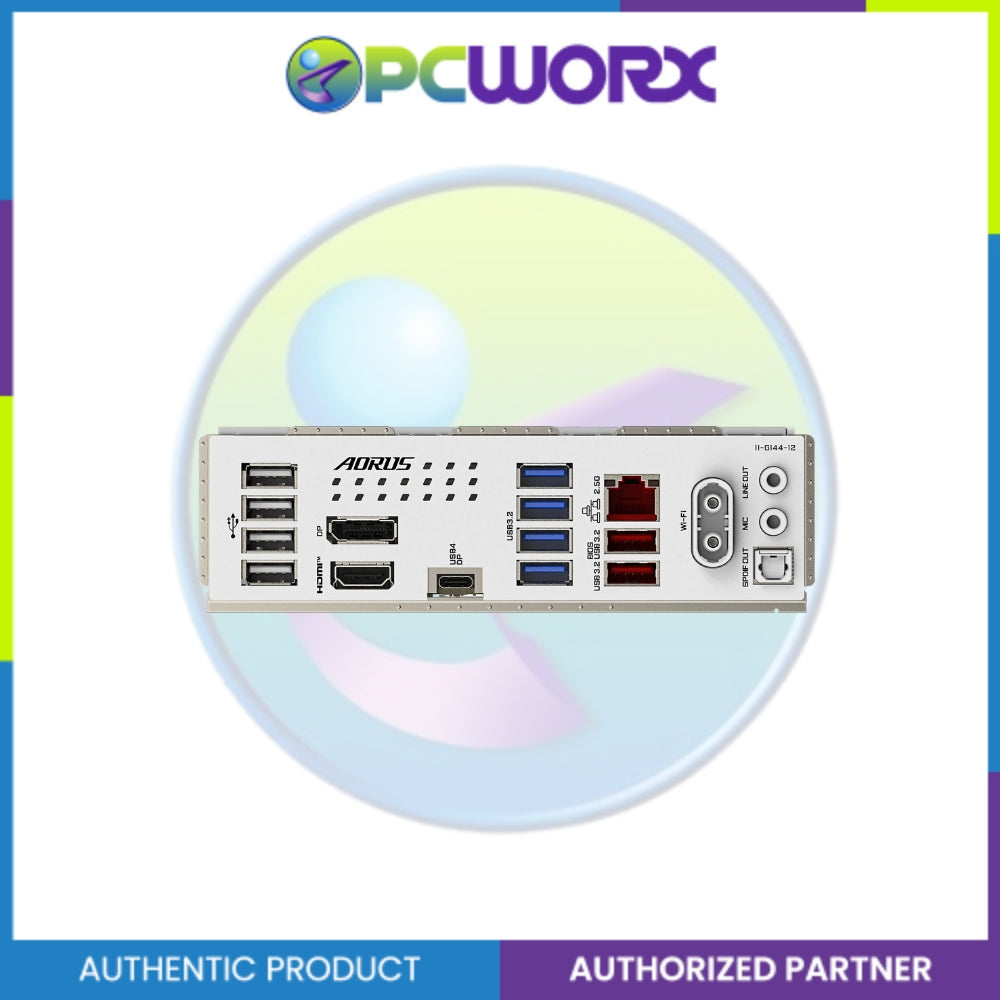

| Back Panel I/O |
1 x USB4-C, 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0
1 x DP, 1 x HDMI

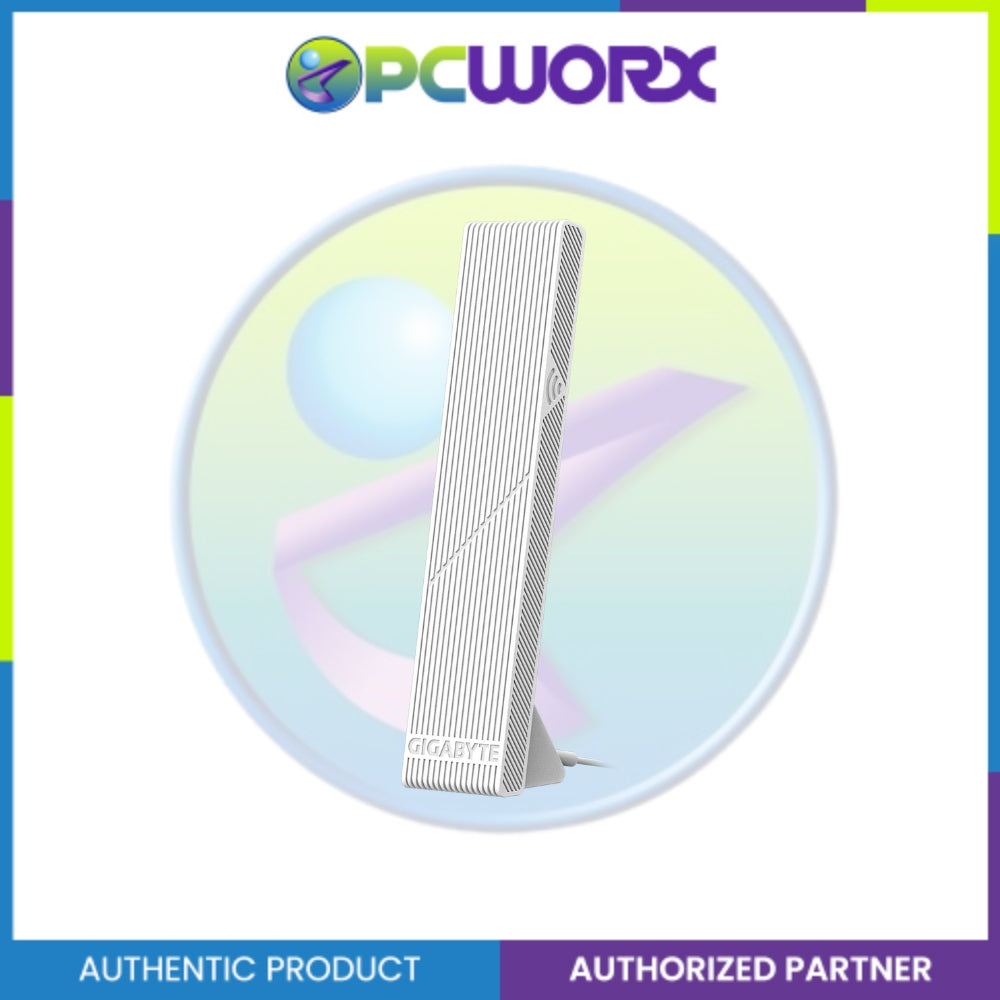

2 x antenna connectors
1 x RJ-45 (2.5GbE)
1 x Optical S/PDIF Out, 2 x audio jacks |
| BIOS |
256 Mbit Flash, AMI UEFI BIOS
Q-Flash, Q-Flash Plus, Smart Backup |
| Unique Features |
GIGABYTE Control Center support
Fan & temperature monitoring
Smart Backup |
| Bundled Software |
Norton Internet Security (OEM)
LAN bandwidth manager |
| OS Support |
Windows 11 64-bit only |
| Form Factor |
ATX (30.5 x 24.4 cm) |
