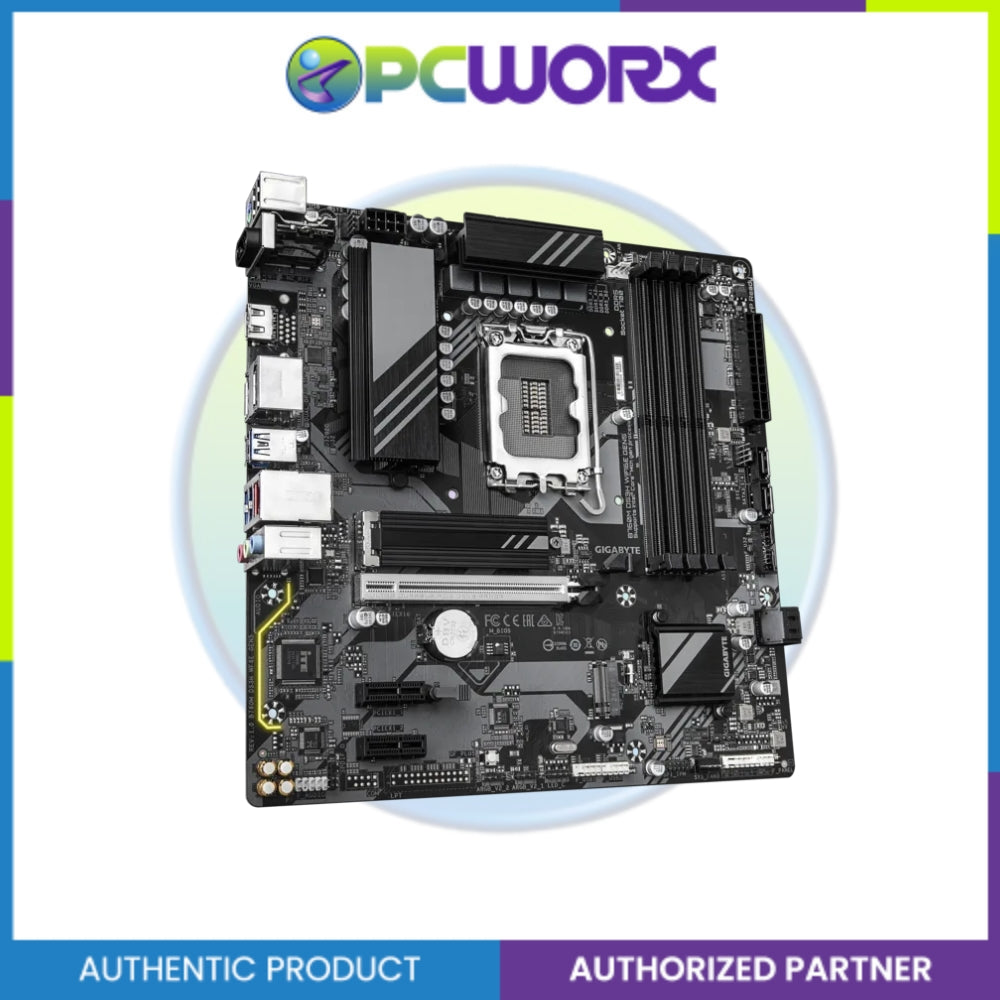

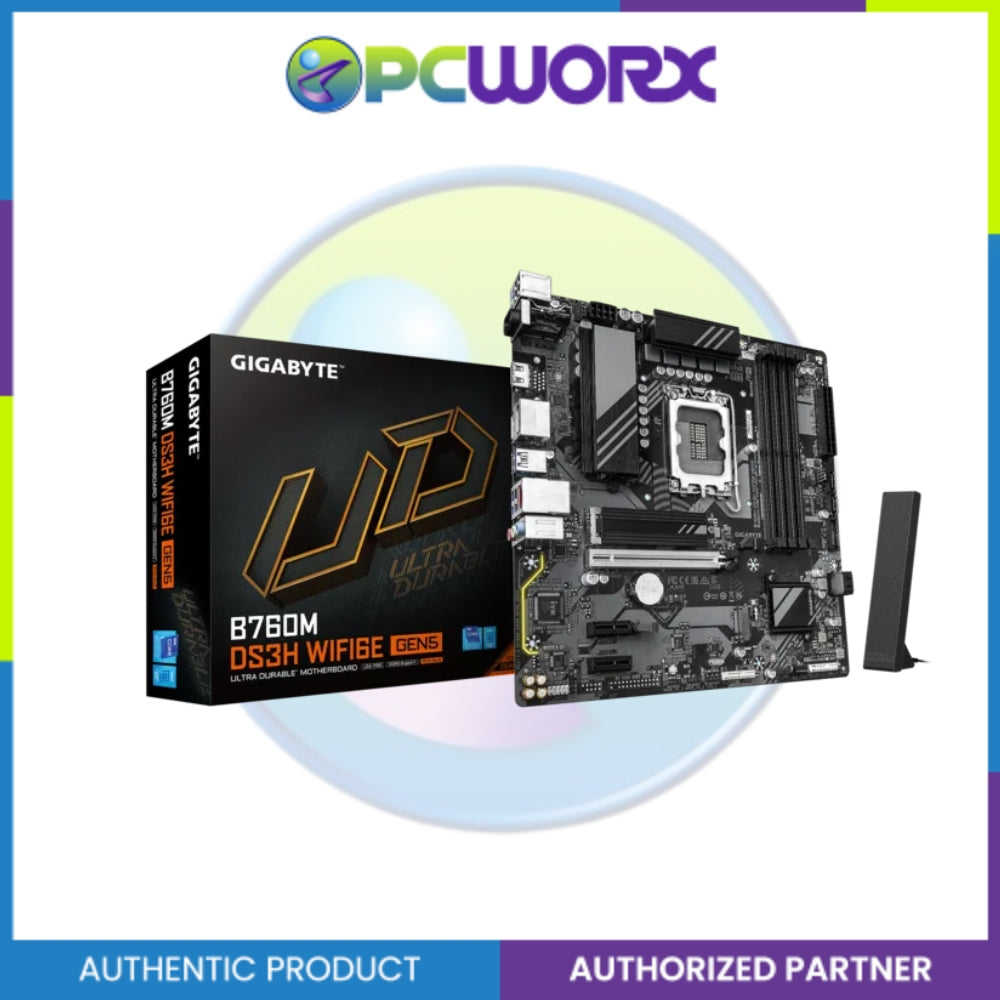

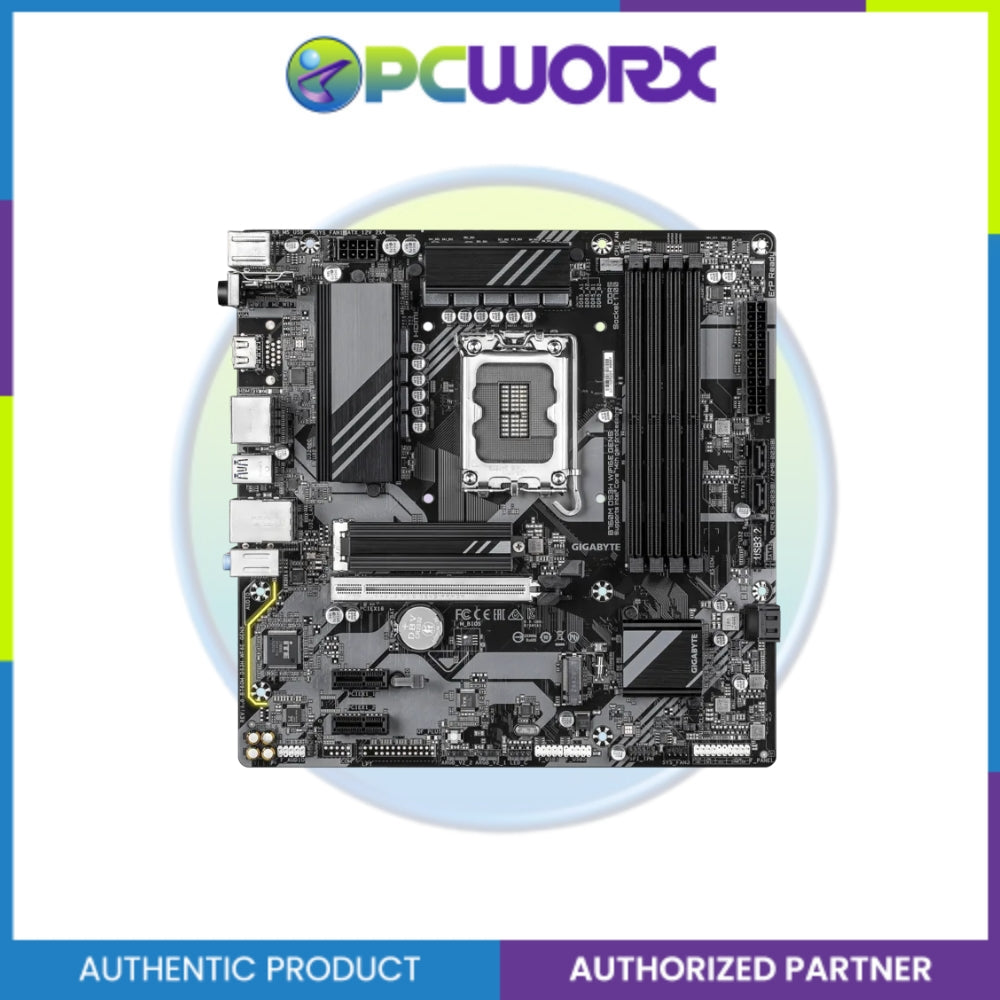

Gigabyte GA-B760M-DS3H-WF6E-GEN5 LGA1700 DDR5 m-ATX Mobo
Gigabyte GA-B760M-DS3H-WF6E-GEN5 LGA1700 DDR5 m-ATX Mobo
Gigabyte GA-B760M-DS3H-WF6E-GEN5 LGA1700 DDR5 m-ATX Mobo
Gigabyte GA-B760M-DS3H-WF6E-GEN5 LGA1700 DDR5 m-ATX Mobo

Gigabyte GA-B760M-DS3H-WF6E-GEN5 LGA1700 DDR5 m-ATX Mobo

(0)
SKU: 0000071451

₱8,724.00

Low in stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 07 and June 09.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Gigabyte GA-B760M-DS3H-WF6E-GEN5 LGA1700 DDR5 m-ATX Mobo

₱8,724.00

₱8,724.00

Authorized Seller

100% Original Authentic Product

  • PCIe Gen5 Performance : Perfect Sync to Win
  • Supports Intel® Core™ 14th/ 13th /12th processors
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
  • EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
  • PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
  • Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
  • Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
  • Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax
  • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
  • Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card



Category Specifications
CPU LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. L3 cache varies with CPU. (Check GIGABYTE's website for latest CPU support list.)
Chipset Intel® B760 Express Chipset
Memory - 14th/13th Gen Intel® Core™ i9/i7: DDR5 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600/5200/4800/4400 MT/s - 13th Gen i5/i3 & 12th Gen Core, Pentium Gold, Celeron: DDR5 4800/4400 MT/s - 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) - Dual-channel architecture - Support for ECC & non-ECC UDIMMs - XMP memory modules supported
Onboard Graphics Integrated Intel® HD Graphics support - 1 × HDMI (max 4096×2160@60 Hz, HDMI 2.1 & HDCP 2.3) - 2 × DisplayPort (max 4096×2304@60 Hz, DP 1.2) - Triple-display support (CPU dependent)
Audio Realtek® Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel S/PDIF Out support
LAN Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Intel® Wi-Fi 6E AX210 - 802.11a/b/g/n/ac/ax, 2.4/5/6 GHz - Bluetooth 5.3 - 11ax 160 MHz support
Expansion Slots CPU: 1 × PCIe 5.0 x16 Chipset: 2 × PCIe 3.0 x1
Storage Interface CPU: 1 × M.2 Socket 3 (2280, PCIe 4.0 x4/x2) Chipset: 1 × M.2 Socket 3 (2280, PCIe 4.0 x4/x2) 4 × SATA 6 Gb/s, RAID 0/1/5/10
USB Back Panel: 1 × USB Type-C (USB 3.2 Gen2), 3 × USB 3.2 Gen1, 2 × USB 2.0/1.1 Internal: 2 × USB 2.0/1.1 headers (4 ports), 1 × USB 3.2 Gen1 header (2 ports)
Internal Connectors 24-pin ATX, 8-pin CPU, 1 × CPU fan, 3 × system fan, 2 × Addressable RGB Gen2 headers, 1 × RGB LED header, 2 × M.2, 4 × SATA 6 Gb/s, front panel header, front audio, USB 3.2 Gen1 header, 2 × USB 2.0 headers, TPM header, S/PDIF Out, Q-Flash Plus button, Reset jumper, Clear CMOS jumper

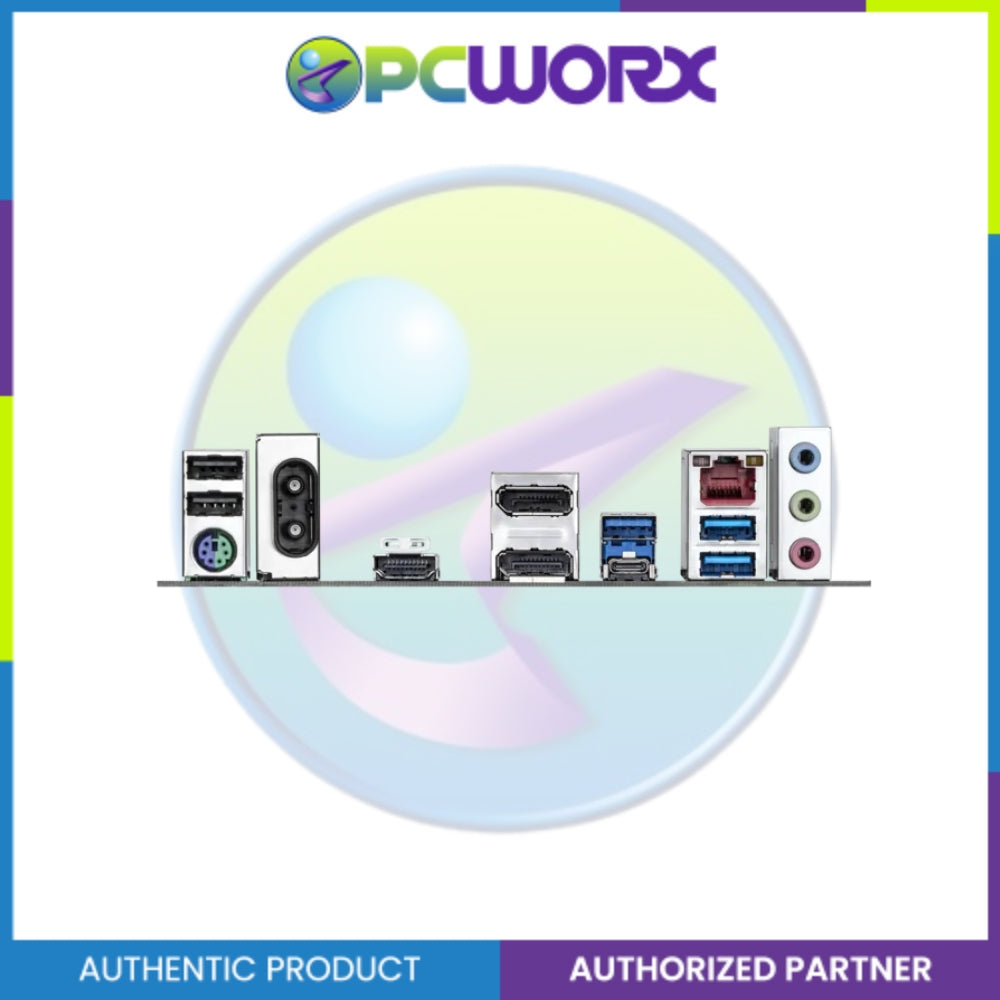

Back Panel Connectors 2 × USB 2.0/1.1, 1 × PS/2, 2 × antenna connectors, 1 × HDMI, 2 × DisplayPort, 3 × USB 3.2 Gen1, 1 × USB Type-C (USB 3.2 Gen2), 1 × RJ-45, 3 × audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control (fan dependent)
BIOS 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software Norton® Internet Security (OEM)
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor Micro ATX (24.4 cm × 24.4 cm)
