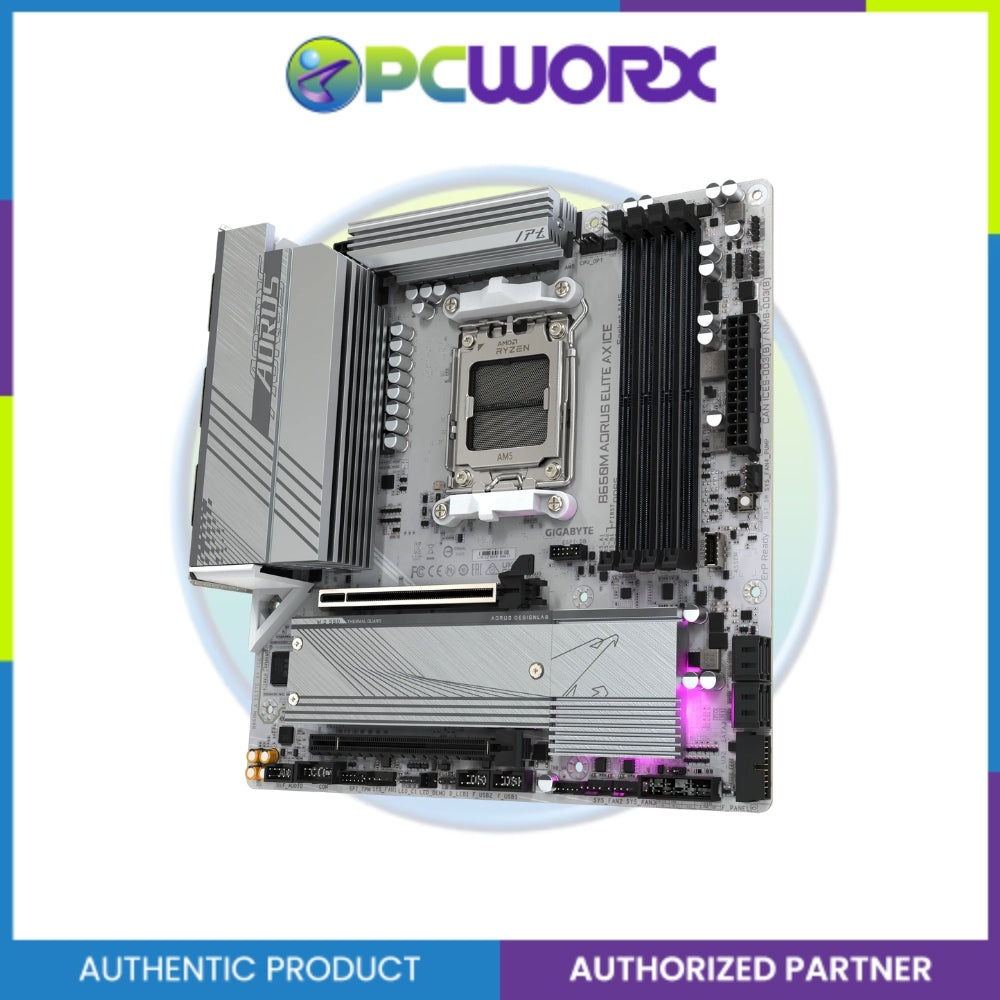

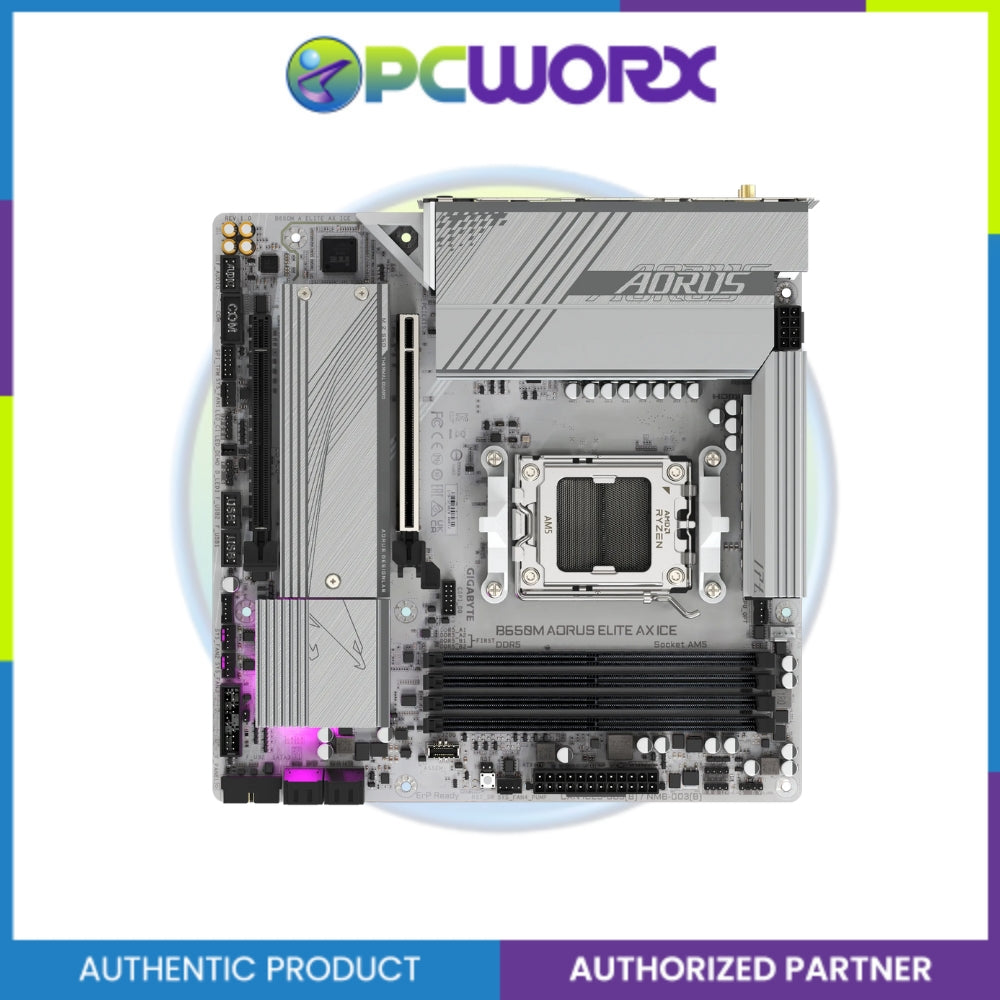

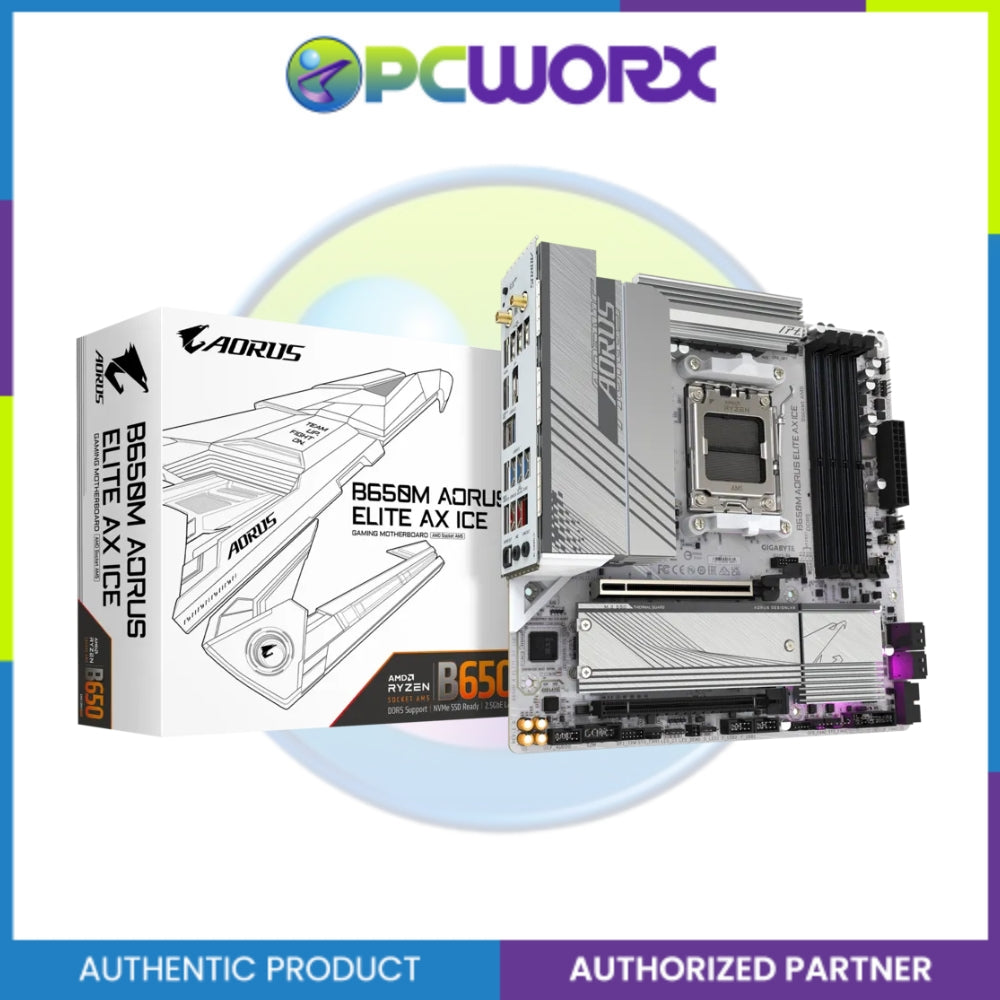

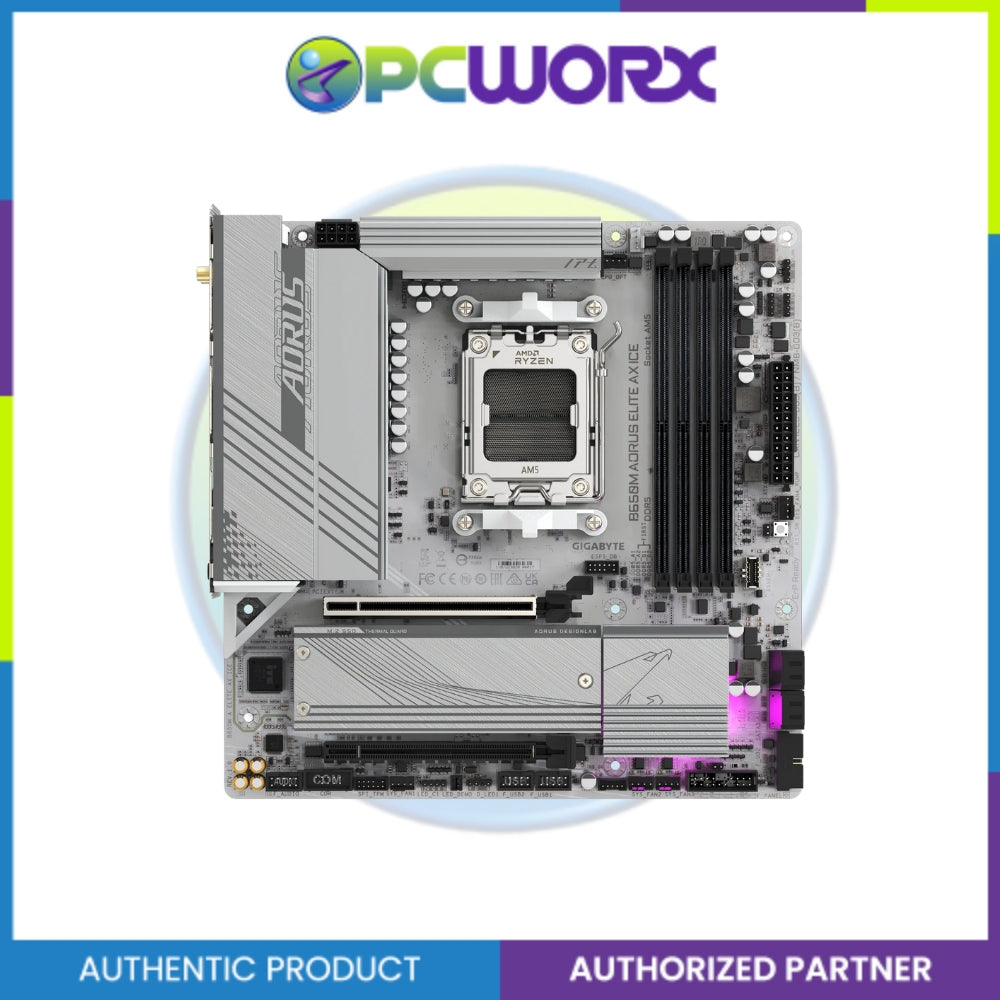

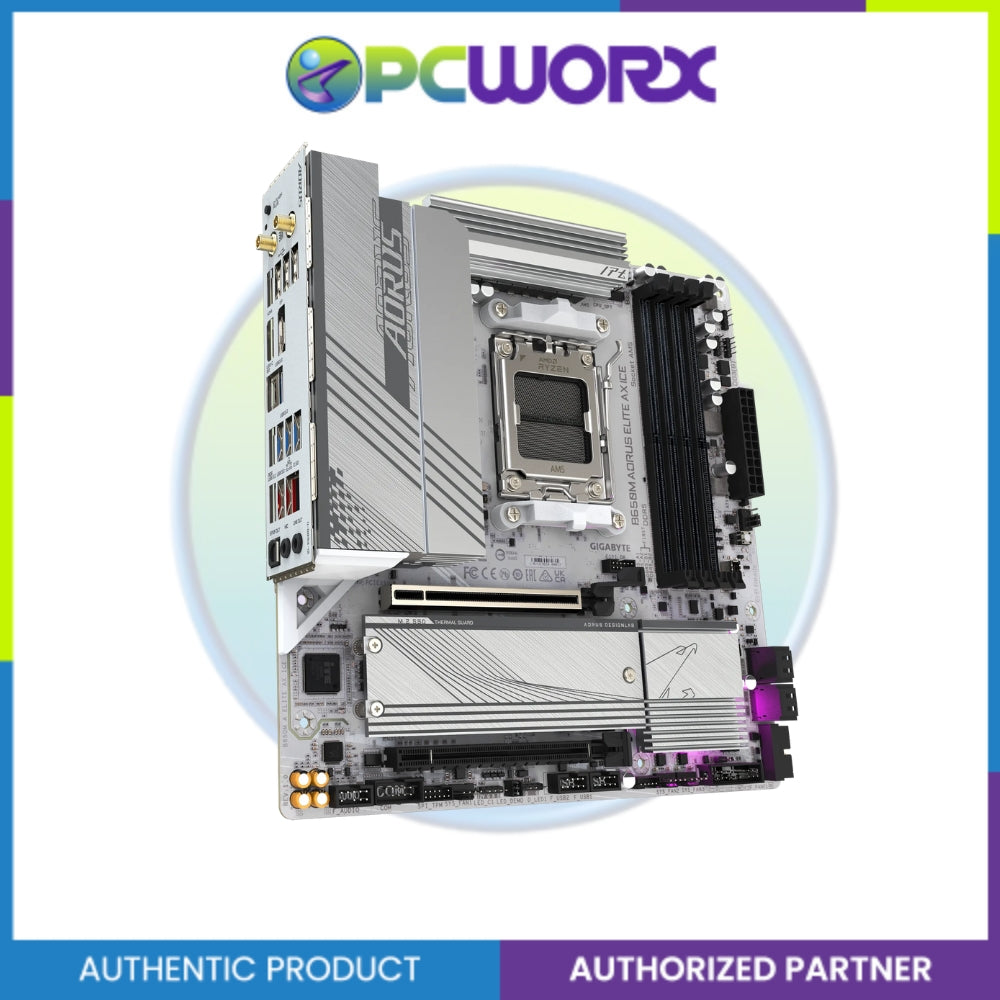

Gigabyte GA-B650M-A-ELITE-AX-ICE AM5 DDR5 m-ATX Mobo

Gigabyte GA-B650M-A-ELITE-AX-ICE AM5 DDR5 m-ATX Mobo

(0)

SKU: 0000068459

₱12,063.50

Out of stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between May 11 and May 13.

In stock and ready to ship

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm

Gigabyte GA-B650M-A-ELITE-AX-ICE AM5 DDR5 m-ATX Mobo

₱12,063.50

Authorized Seller

100% Original Authentic Product

AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E
Extended Connectivity：HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Motherboard Specifications Table

CPU Support

Item	Details
Socket	AMD AM5
Supported CPUs	AMD Ryzen™ 7000 / 8000 / 9000 Series
Notes	CPU support depends on BIOS version

Chipset

Item	Details
Chipset	AMD B650

Memory

Item	Details
Memory Type	DDR5
Slots	4 × DDR5 DIMM
Max Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual-Channel
Supported Speeds	Up to DDR5-8000 (OC), down to DDR5-4400
Memory Support	Non-ECC Un-buffered (1Rx8 / 2Rx8 / 1Rx16)
Profiles	AMD EXPO™, Intel XMP

Onboard Graphics

Port	Specification
DisplayPort	DP 1.4, up to 3840×2160 @144 Hz, HDR
HDMI	HDMI 2.1, up to 4096×2160 @60 Hz, HDCP 2.3
GPU	Integrated AMD Radeon™ Graphics (CPU-dependent)

Audio

Item	Details
Codec	Realtek® High Definition Audio
Channels	2 / 4 / 5.1 / 7.1
Digital Audio	Optical S/PDIF Out

Networking

Item	Details
LAN	Realtek® 2.5GbE
Wi-Fi (Rev. 1.0)	Realtek Wi-Fi 6E RTL8852CE
Wi-Fi (Rev. 1.1)	Intel® Wi-Fi 6E AX210
Bluetooth	Bluetooth® 5.3

Expansion Slots

Slot	Details
PCIe x16 (CPU)	PCIe 4.0 x16 / x8 / x4 (CPU-dependent)
PCIe x16 (Chipset)	PCIe 4.0 x4

Storage

Interface	Details
M.2 (M2A_CPU)	PCIe 5.0 x4 (Ryzen 7000/9000), PCIe 4.0 x4 (Ryzen 8000)
M.2 (M2B_CPU)	PCIe 4.0 x4/x2
SATA	4 × SATA 6 Gb/s
RAID	RAID 0 / 1 / 10 (NVMe & SATA)

USB Ports

Source	Ports
CPU	1 × USB-C (USB 3.2 Gen 2), 2 × USB-A (USB 3.2 Gen 2)
Chipset	USB-C (USB 3.2 Gen 2x2), USB 3.2 Gen 1, USB 2.0
Back Panel Total	USB-C, USB-A Gen 2, Gen 1, USB 2.0

Internal Connectors

Type	Quantity
ATX Power	24-pin + 8-pin CPU
Fan / Pump Headers	6
M.2 Slots	2
SATA	4
RGB / ARGB Headers	5
USB Headers	USB-C Gen 2x2, USB 3.2 Gen 1, USB 2.0
Others	TPM, Front Panel, Audio, Reset, Clear CMOS

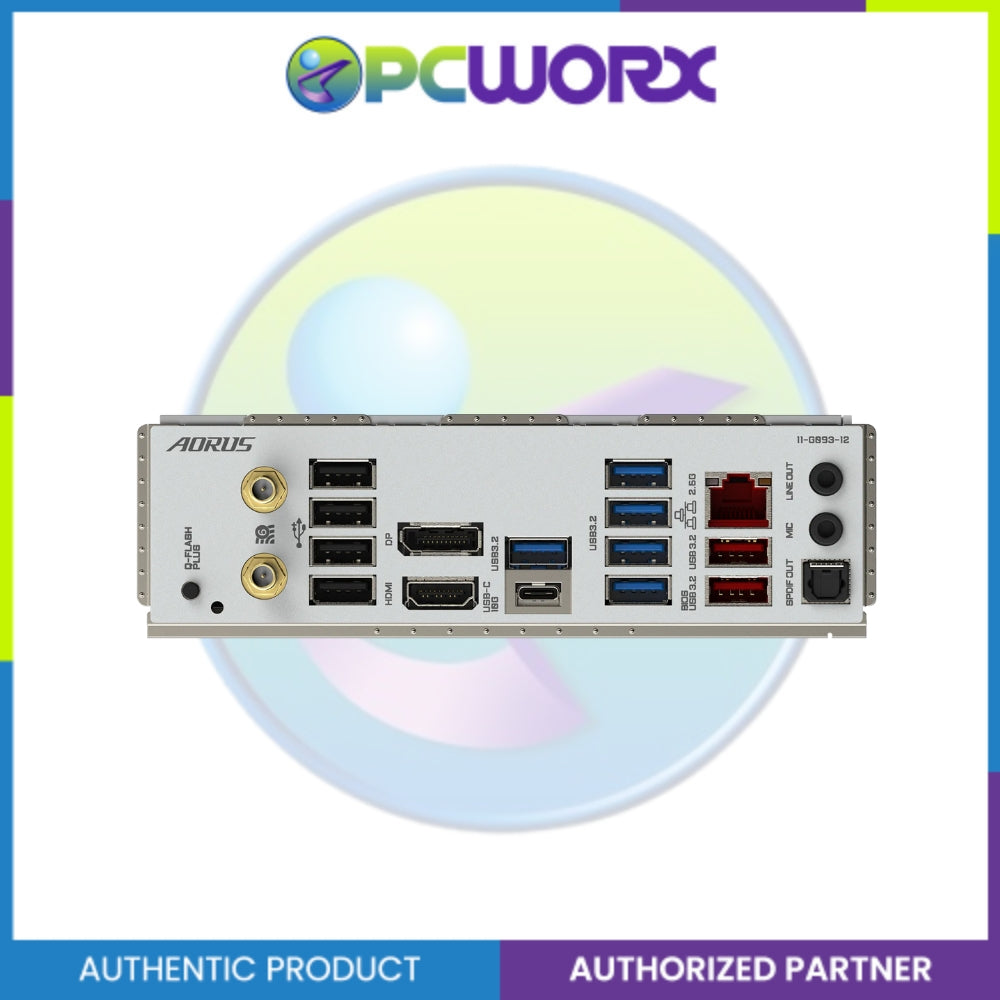

Back Panel I/O

Connector	Quantity
HDMI	1
DisplayPort	1
USB-C	1
USB-A	11 (Gen 2 / Gen 1 / USB 2.0)
LAN	1 × RJ-45
Audio	Optical S/PDIF + 2 audio jacks
Antenna	2 × SMA

BIOS & Features

Item	Details
BIOS	AMI UEFI, 256 Mbit
Flash Utilities	Q-Flash, Q-Flash Plus
Monitoring	Voltage, temp, fan & pump monitoring
Software	GIGABYTE Control Center

Operating System

OS Support
Windows 11 64-bit
Windows 10 64-bit

Form Factor

Item	Details
Form Factor	Micro-ATX
Dimensions	24.4 cm × 24.4 cm
