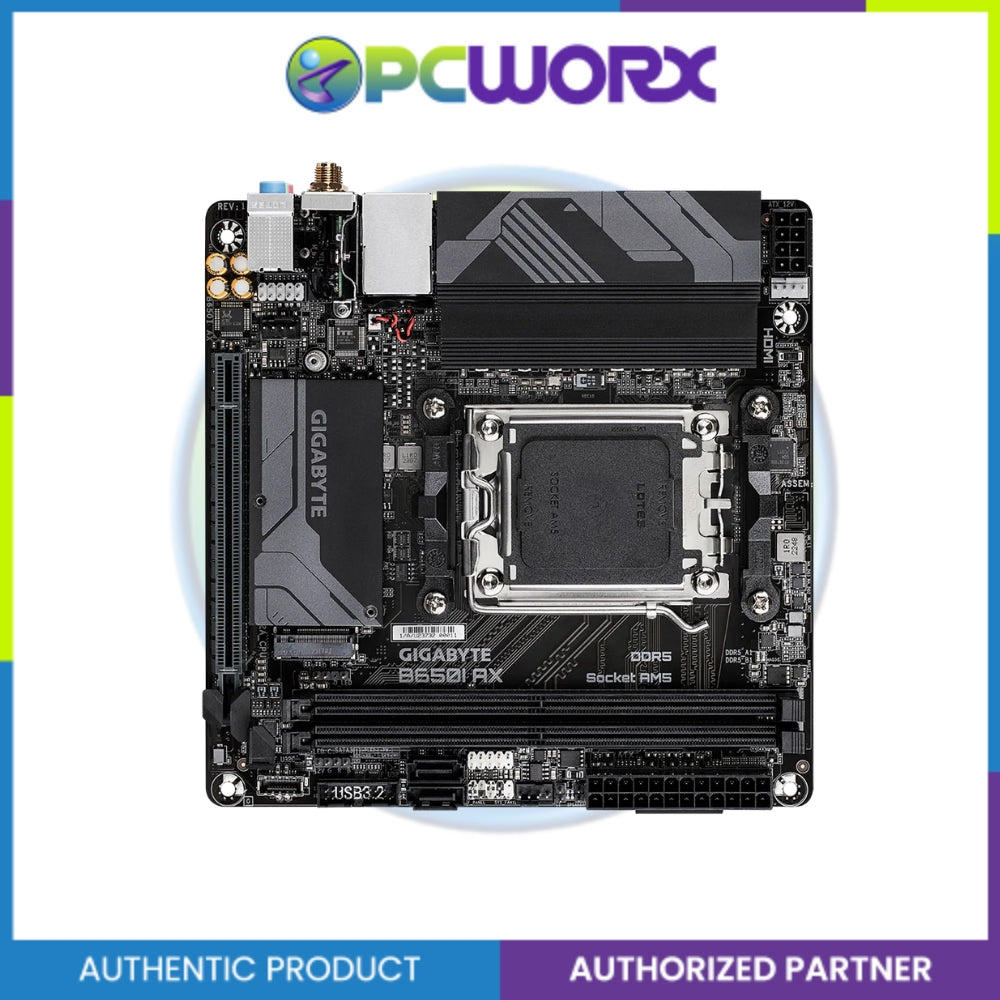

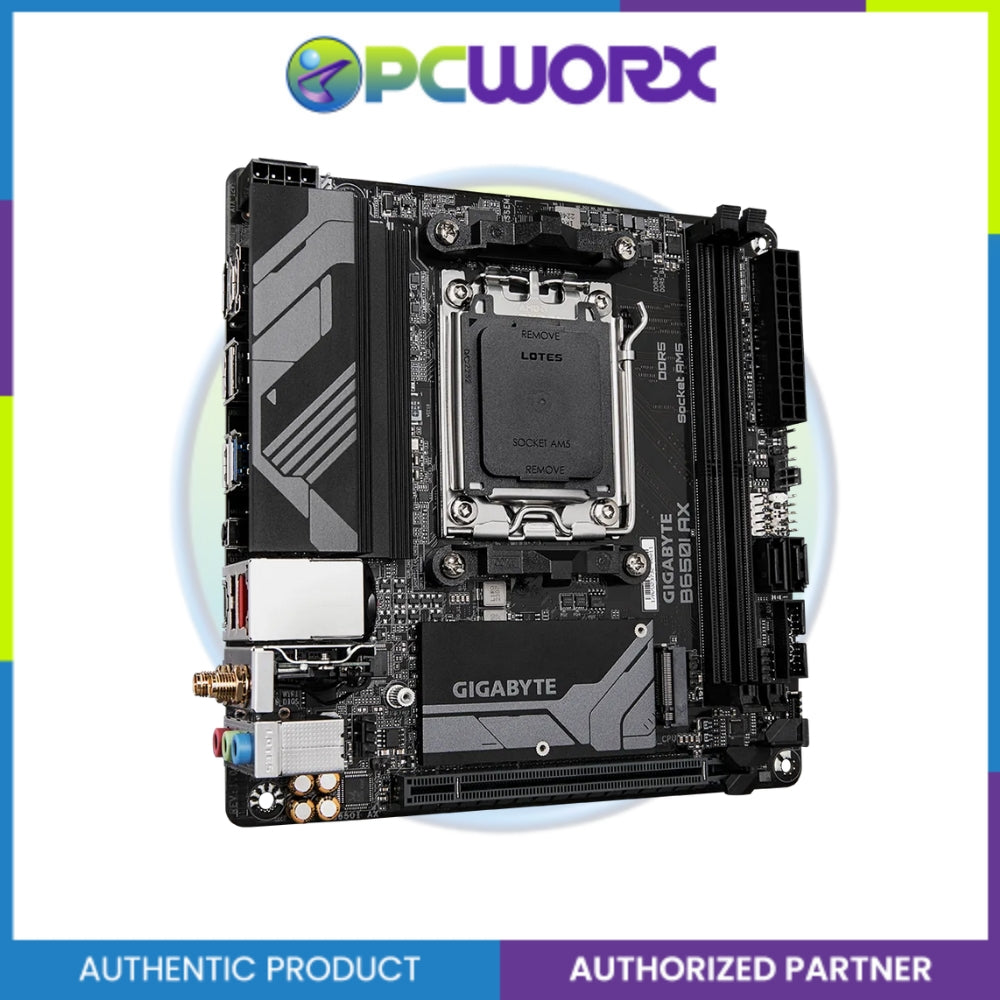

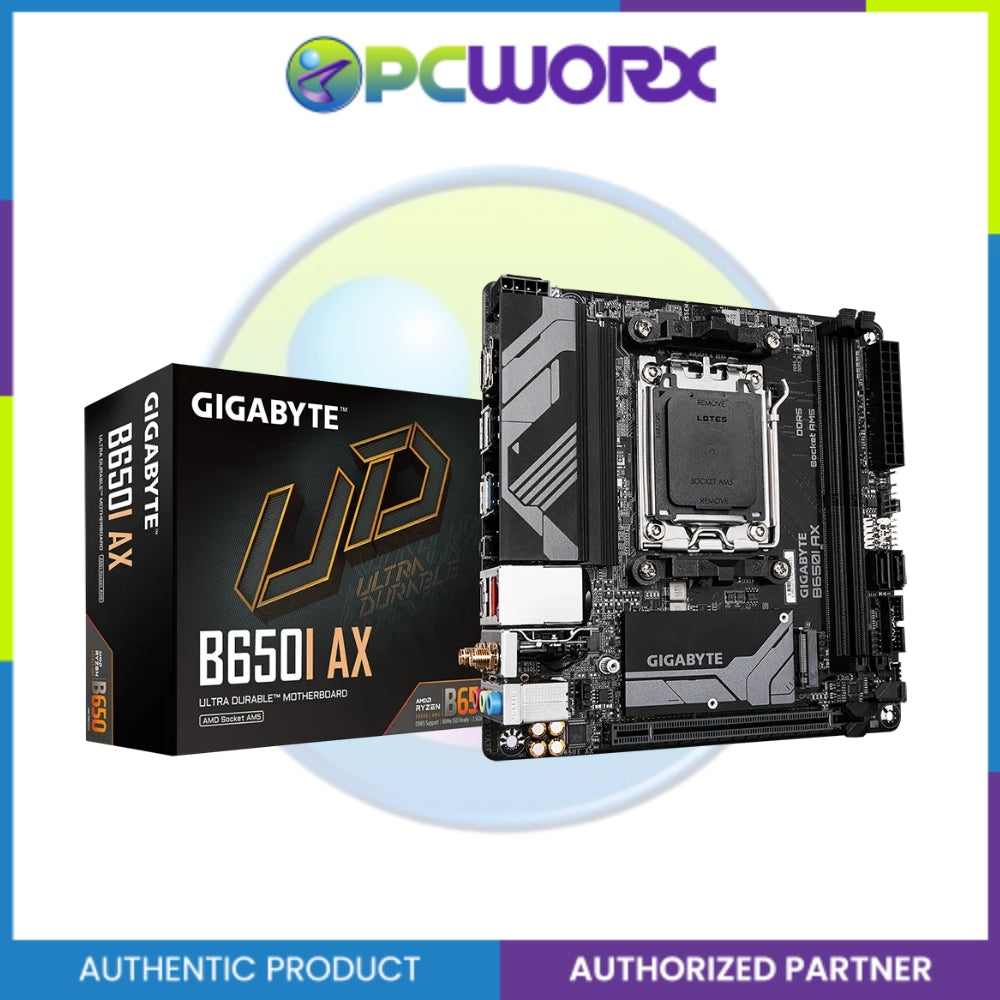

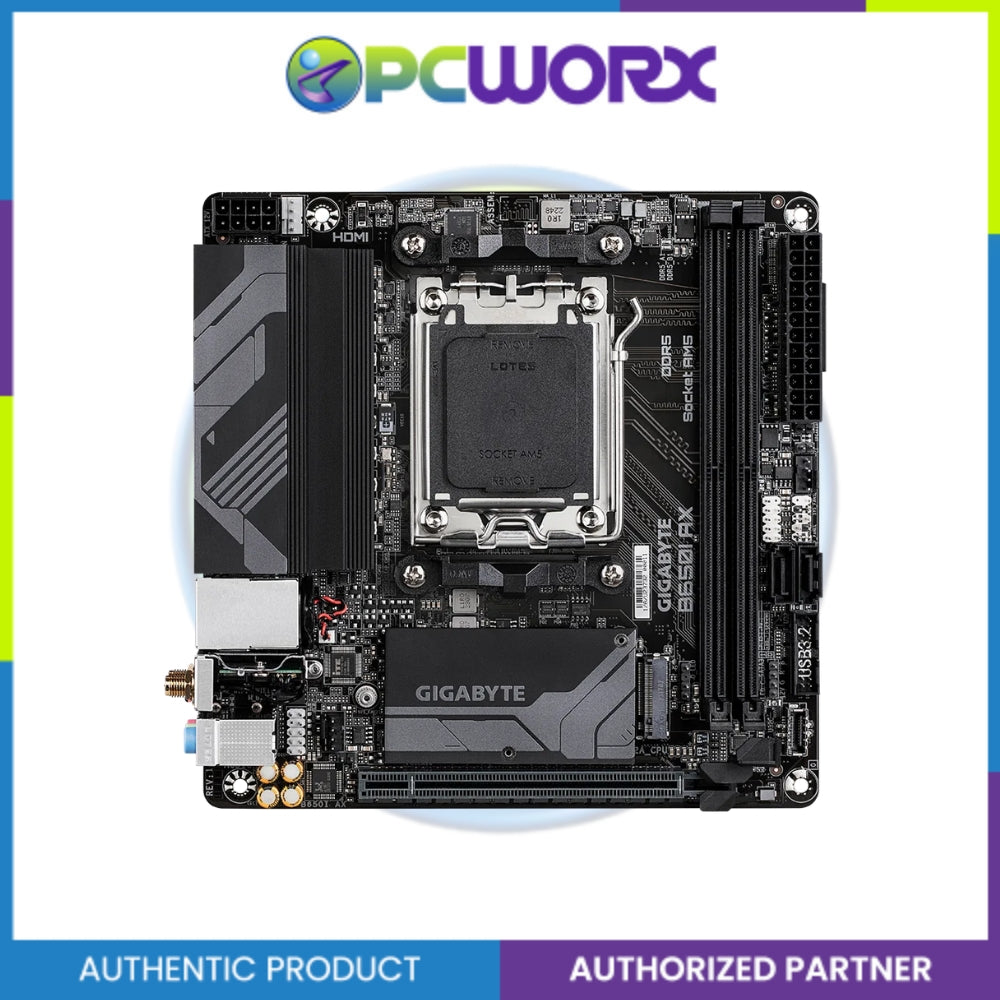

Gigabyte GA-B650I-AX DDR5 AM5 Motherboard

Description

Specification Details
CPU AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset AMD B650
Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXPO™ and XMP memory modules. (Refer "Memory Support List" for more info.)
Onboard Graphics 1 x DisplayPort, max resolution 3840x2160@144 Hz (DisplayPort 1.4); 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3). Support native HDMI 2.1 TMDS compatible ports. (Graphics specs may vary depending on CPU support.)
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel. Audio jack functionality configurable via software.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module Realtek® Wi-Fi 6E RTL8852CE; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard. (Actual data rate may vary depending on environment and equipment.)
Expansion Slots 1 x PCI Express x16 slot (integrated in CPU); Ryzen™ 7000 supports PCIe 4.0 x16; Ryzen™ 8000 Phoenix 1 supports PCIe 4.0 x8; Ryzen™ 8000 Phoenix 2 supports PCIe 4.0 x4. PCIEX16 slot supports graphics card or NVMe SSD only.
Storage Interface 1 x M.2 connector (Socket 3, M key, type 2280 SSDs), PCIe 4.0 x4/x2 supported; 2 x SATA 6Gb/s connectors; RAID 0 and RAID 1 support for NVMe and SATA storage devices.
USB CPU: 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 2 Type-A (red), 1 x USB 2.0/1.1 on back panel. Chipset: 1 x USB Type-C® (USB 3.2 Gen 1) via internal header; 3 x USB 3.2 Gen 1 (1 on back, 2 internal); 4 x USB 2.0/1.1 (2 on back, 2 internal).
Internal I/O Connectors 1 x 24-pin ATX main power; 1 x 8-pin ATX 12V power; CPU fan header; 2 system fan headers; addressable LED strip header; RGB LED strip header; M.2 Socket 3 connector; 2 SATA 6Gb/s connectors; front panel header; front panel audio header; speaker header; USB Type-C® header (USB 3.2 Gen 1); USB 3.2 Gen 1 header; USB 2.0/1.1 header; Clear CMOS jumper; chassis intrusion header.

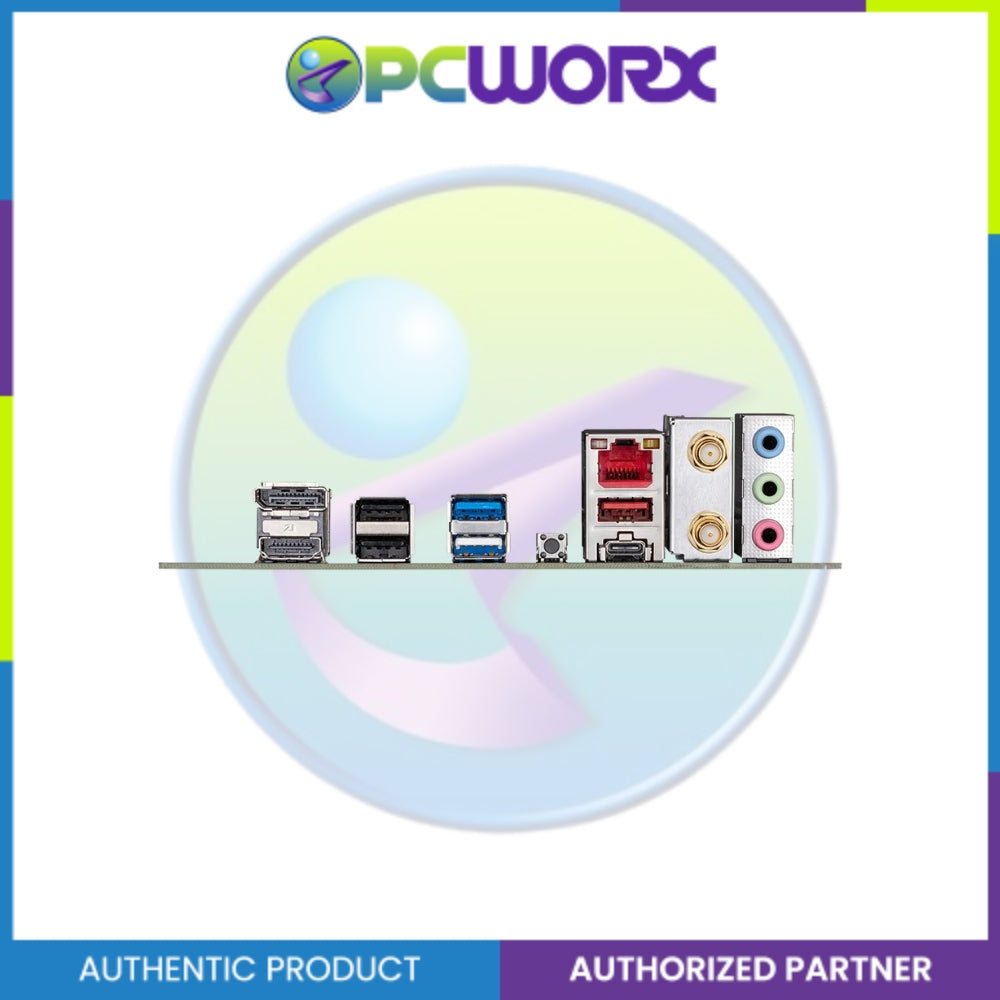

Back Panel Connectors 1 x DisplayPort; 1 x HDMI port; 1 x USB Type-C® (USB 3.2 Gen 1); 1 x USB 3.2 Gen 2 Type-A (red); 1 x USB 3.2 Gen 1; 3 x USB 2.0/1.1; 1 x Q-Flash Plus button; 1 x RJ-45 port; 2 x SMA antenna connectors (2T2R); 3 x audio jacks.
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control (dependent on installed fan).
BIOS 1 x 256 Mbit flash; licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC) (app availability and functions may vary by model); Support for Q-Flash and Q-Flash Plus.
Bundled Software Norton® Internet Security (OEM version); LAN bandwidth management software
Operating System Support for Windows 11 64-bit and Windows 10 64-bit
Form Factor Mini-ITX; 17.0cm x 17.0cm

Gigabyte GA-B650I-AX DDR5 AM5 Motherboard

Product form

Specification Details CPU AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors (Please refer "CPU Support List"... Read more

Free pickup in our shop(s)

SKU: 0000065344

1 in stock

₱10,580.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Specification Details
    CPU AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors (Please refer "CPU Support List" for more information.)
    Chipset AMD B650
    Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXPO™ and XMP memory modules. (Refer "Memory Support List" for more info.)
    Onboard Graphics 1 x DisplayPort, max resolution 3840x2160@144 Hz (DisplayPort 1.4); 1 x HDMI port, max resolution 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3). Support native HDMI 2.1 TMDS compatible ports. (Graphics specs may vary depending on CPU support.)
    Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel. Audio jack functionality configurable via software.
    LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication Module Realtek® Wi-Fi 6E RTL8852CE; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard. (Actual data rate may vary depending on environment and equipment.)
    Expansion Slots 1 x PCI Express x16 slot (integrated in CPU); Ryzen™ 7000 supports PCIe 4.0 x16; Ryzen™ 8000 Phoenix 1 supports PCIe 4.0 x8; Ryzen™ 8000 Phoenix 2 supports PCIe 4.0 x4. PCIEX16 slot supports graphics card or NVMe SSD only.
    Storage Interface 1 x M.2 connector (Socket 3, M key, type 2280 SSDs), PCIe 4.0 x4/x2 supported; 2 x SATA 6Gb/s connectors; RAID 0 and RAID 1 support for NVMe and SATA storage devices.
    USB CPU: 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 2 Type-A (red), 1 x USB 2.0/1.1 on back panel. Chipset: 1 x USB Type-C® (USB 3.2 Gen 1) via internal header; 3 x USB 3.2 Gen 1 (1 on back, 2 internal); 4 x USB 2.0/1.1 (2 on back, 2 internal).
    Internal I/O Connectors 1 x 24-pin ATX main power; 1 x 8-pin ATX 12V power; CPU fan header; 2 system fan headers; addressable LED strip header; RGB LED strip header; M.2 Socket 3 connector; 2 SATA 6Gb/s connectors; front panel header; front panel audio header; speaker header; USB Type-C® header (USB 3.2 Gen 1); USB 3.2 Gen 1 header; USB 2.0/1.1 header; Clear CMOS jumper; chassis intrusion header.
    Back Panel Connectors 1 x DisplayPort; 1 x HDMI port; 1 x USB Type-C® (USB 3.2 Gen 1); 1 x USB 3.2 Gen 2 Type-A (red); 1 x USB 3.2 Gen 1; 3 x USB 2.0/1.1; 1 x Q-Flash Plus button; 1 x RJ-45 port; 2 x SMA antenna connectors (2T2R); 3 x audio jacks.
    I/O Controller iTE® I/O Controller Chip
    H/W Monitoring Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control (dependent on installed fan).
    BIOS 1 x 256 Mbit flash; licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features Support for GIGABYTE Control Center (GCC) (app availability and functions may vary by model); Support for Q-Flash and Q-Flash Plus.
    Bundled Software Norton® Internet Security (OEM version); LAN bandwidth management software
    Operating System Support for Windows 11 64-bit and Windows 10 64-bit
    Form Factor Mini-ITX; 17.0cm x 17.0cm
