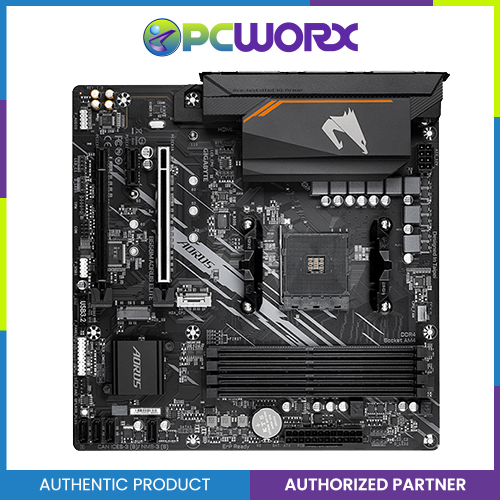

Gigabyte GA-B550M-AORUS-ELITE AM4 DDR4 m-ATX
Gigabyte GA-B550M-AORUS-ELITE AM4 DDR4 m-ATX
Gigabyte GA-B550M-AORUS-ELITE AM4 DDR4 m-ATX

Gigabyte GA-B550M-AORUS-ELITE AM4 DDR4 m-ATX

(0)
SKU: 0000061268

₱7,920.00

Brand: Gigabyte
Out of stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 05 and June 07.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Gigabyte GA-B550M-AORUS-ELITE AM4 DDR4 m-ATX

₱7,920.00

₱7,920.00

Choose option
Brand: Gigabyte - Sold out
  • Gigabyte - Sold out

Authorized Seller

100% Original Authentic Product

General specifications
Form Factor:  Micro-ATX
CPU Socket:  AM4
Chipset:  AMD B550
Supported Processors:  AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000/3000 G-Series
Memory
Slots:  4 x DDR4 DIMM
Maximum Capacity:  128GB
Memory Type:  ECC/Non-ECC Unbuffered
Speed:  Up to 4733 MHz (OC)
Storage
M.2 Slots:  Dual M.2 connectors supporting PCIe 4.0/3.0 SSDs
SATA Ports:  4 x SATA 3 ports
Expansion and Graphics
PCIe:  One PCIe 4.0 x16 slot
Onboard Graphics:
1 x DVI-D port (1920x1200@60Hz)
1 x HDMI 2.1 port (4096x2160@60Hz)
Max 16 GB shared memory
Audio
Codec:  Realtek ALC887 (7.1-channel) or Realtek ALC1200
Features:  High-Quality Audio Capacitors and Audio Noise Guard
Networking
LAN:  Realtek GbE LAN chip with Bandwidth Management

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Realtek GbE LAN, Smart Fan 5 with FAN STOP,  RGB FUSION 2.0, Q-Flash Plus


  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design

Specification



B550M AORUS ELITE (rev. 1.0/1.1/1.2)




  • CPU
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
      * ECC memory (ECC mode) support varies by CPU
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
      * Actual support may vary by AMD CPU's specification.
    2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    1. Supporting PCIe 3.0 x4 mode
    1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
    1. Supporting SATA and PCIe 3.0 x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 2 x addressable LED strip headers
    6. 2 x RGB LED strip headers
    7. 1 x CPU cooler LED strip/RGB LED strip header
    8. 2 x M.2 Socket 3 connectors
    9. 4 x SATA 6Gb/s connectors
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x USB 3.2 Gen 1 header
    13. 1 x USB 2.0/1.1 header
    14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    15. 1 x serial port header
    16. 1 x Clear CMOS jumper
    17. 1 x Q-Flash Plus button
    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
