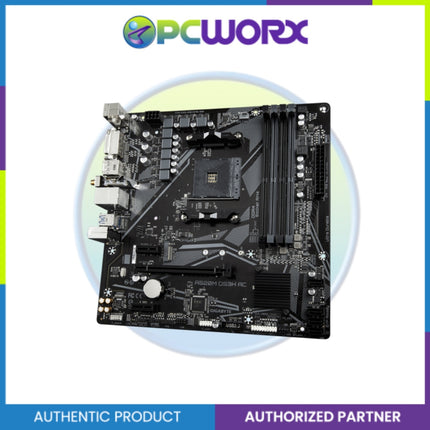

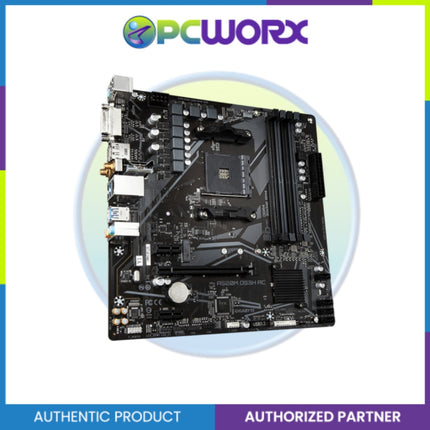

Gigabyte AMD GA-A520M-DS3H-AC AM4 DDR4 AVL mATX

Description

AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual Band 802.11ac WIFI, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus


  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D, Display Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Category Specification
CPU AMD Socket AM4, support for Ryzen™ 5000 Series / Ryzen™ 5000 G-Series / Ryzen™ 4000 G-Series / Ryzen™ 3000 / Ryzen™ 3000 G-Series Processors (Refer to CPU Support List)
Chipset AMD A520
Memory 4 x DDR4 DIMM sockets, up to 128 GB total (32 GB per DIMM); Dual channel; Supports ECC and non-ECC unbuffered memory; XMP supported
Supported Memory Speeds Up to DDR4 4733(O.C.) depending on CPU model
Onboard Graphics 1 x DVI-D (1920x1200@60Hz), 1 x DisplayPort (5120x2880@60Hz), 1 x HDMI (4096x2160@60Hz); Supports up to 3 displays
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support
LAN Realtek® GbE LAN (1 Gbps / 100 Mbps)
Wireless Communication Intel® Wireless-AC 3168 (Wi-Fi 5, Bluetooth 4.2) or Intel® Wireless-AC 9260 (Wi-Fi 5, Bluetooth 5.1) or Realtek® RTL8821CE (Wi-Fi 5, Bluetooth 5.0) depending on PCB revision
Expansion Slots 1 x PCIe 3.0 x16 slot (CPU), 2 x PCIe 3.0 x1 slots (Chipset)
Storage Interface 1 x M.2 (PCIe 3.0 x4/x2 & SATA), 4 x SATA 6Gb/s ports, supports RAID 0/1/10
USB Ports Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 2 x USB 3.2 Gen 1, 2 x USB 2.0
Internal I/O 24-pin ATX, 8-pin CPU, CPU fan, 2 system fan headers, RGB/ARGB headers, front panel audio, SATA, USB headers, TPM, serial port, Q-Flash Plus button

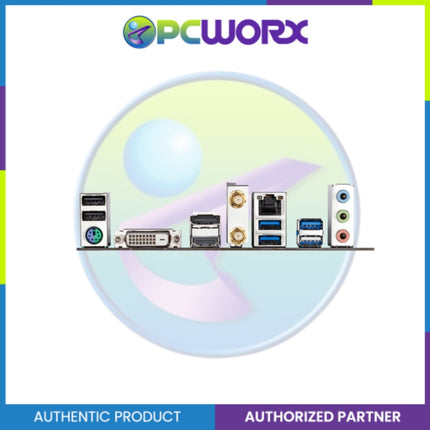

Back Panel I/O PS/2 combo, DVI-D, DisplayPort, HDMI, 2 x SMA antenna connectors, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, and fan speed detection; Fan speed and failure warnings
BIOS 128 Mbit flash, AMI UEFI BIOS, supports Q-Flash and Q-Flash Plus
Unique Features GIGABYTE APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer
Bundled Software Norton® Internet Security (OEM), LAN Bandwidth Management Software
Operating System Windows 10 64-bit, Windows 11 64-bit
Form Factor Micro ATX (24.4 cm x 24.4 cm)

Gigabyte AMD GA-A520M-DS3H-AC AM4 DDR4 AVL mATX

Product form

AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4... Read more

Free pickup in our shop(s)

SKU: 0000048442

2 in stock

₱4,439.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual Band 802.11ac WIFI, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus


    • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
    • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
    • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
    • Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
    • HDMI, DVI-D, Display Ports for Multiple Display
    • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
    • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

    Category Specification
    CPU AMD Socket AM4, support for Ryzen™ 5000 Series / Ryzen™ 5000 G-Series / Ryzen™ 4000 G-Series / Ryzen™ 3000 / Ryzen™ 3000 G-Series Processors (Refer to CPU Support List)
    Chipset AMD A520
    Memory 4 x DDR4 DIMM sockets, up to 128 GB total (32 GB per DIMM); Dual channel; Supports ECC and non-ECC unbuffered memory; XMP supported
    Supported Memory Speeds Up to DDR4 4733(O.C.) depending on CPU model
    Onboard Graphics 1 x DVI-D (1920x1200@60Hz), 1 x DisplayPort (5120x2880@60Hz), 1 x HDMI (4096x2160@60Hz); Supports up to 3 displays
    Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support
    LAN Realtek® GbE LAN (1 Gbps / 100 Mbps)
    Wireless Communication Intel® Wireless-AC 3168 (Wi-Fi 5, Bluetooth 4.2) or Intel® Wireless-AC 9260 (Wi-Fi 5, Bluetooth 5.1) or Realtek® RTL8821CE (Wi-Fi 5, Bluetooth 5.0) depending on PCB revision
    Expansion Slots 1 x PCIe 3.0 x16 slot (CPU), 2 x PCIe 3.0 x1 slots (Chipset)
    Storage Interface 1 x M.2 (PCIe 3.0 x4/x2 & SATA), 4 x SATA 6Gb/s ports, supports RAID 0/1/10
    USB Ports Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 2 x USB 3.2 Gen 1, 2 x USB 2.0
    Internal I/O 24-pin ATX, 8-pin CPU, CPU fan, 2 system fan headers, RGB/ARGB headers, front panel audio, SATA, USB headers, TPM, serial port, Q-Flash Plus button
    Back Panel I/O PS/2 combo, DVI-D, DisplayPort, HDMI, 2 x SMA antenna connectors, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x audio jacks
    I/O Controller iTE® I/O Controller Chip
    H/W Monitoring Voltage, temperature, and fan speed detection; Fan speed and failure warnings
    BIOS 128 Mbit flash, AMI UEFI BIOS, supports Q-Flash and Q-Flash Plus
    Unique Features GIGABYTE APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer
    Bundled Software Norton® Internet Security (OEM), LAN Bandwidth Management Software
    Operating System Windows 10 64-bit, Windows 11 64-bit
    Form Factor Micro ATX (24.4 cm x 24.4 cm)
