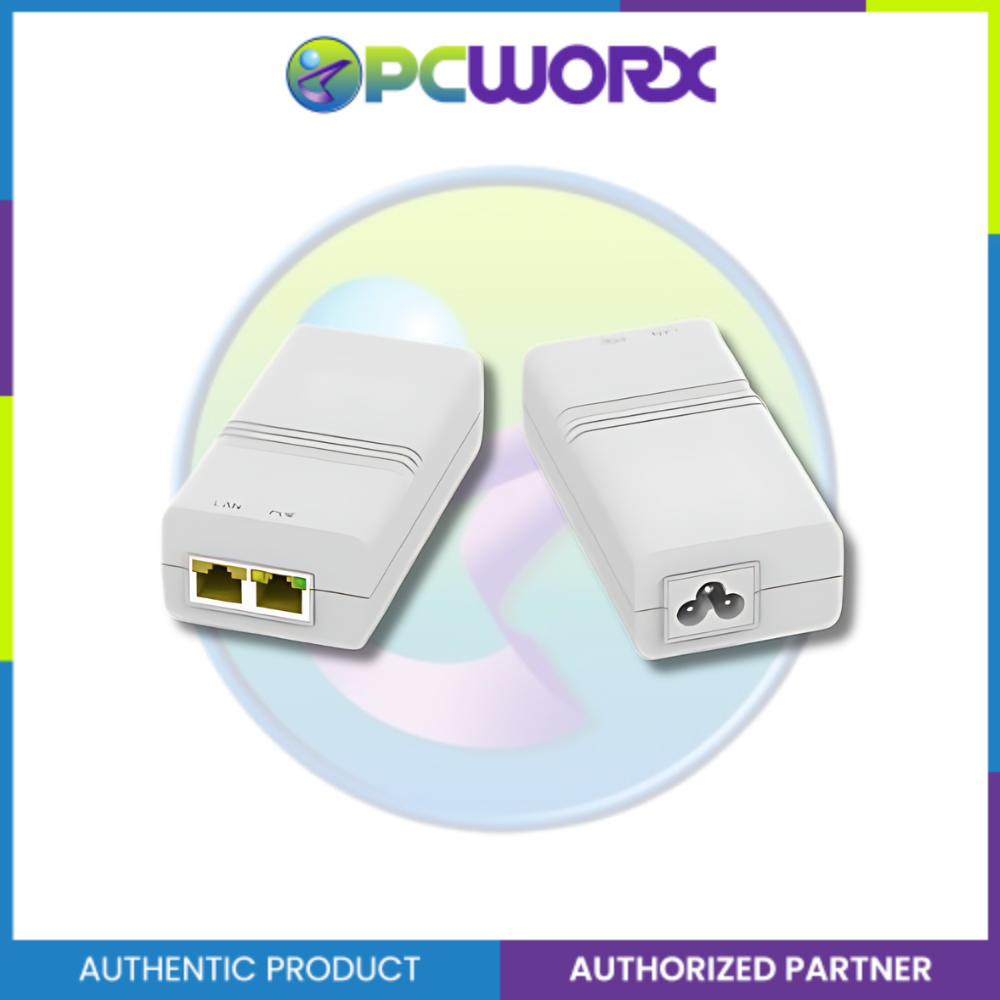

EWPAM1HPOE 55V/30W Single port POE Injector,Overseas Version

by PCWORX
Original price ₱1,719.04 - Original price ₱1,719.04
Original price
₱1,719.04
₱1,719.04 - ₱1,719.04
Current price ₱1,719.04
Item  Specification
Dimensions(L,W,H) 107.3mm X 56.0mm X 34.5mm
Weight 157g
AC Power Cord  80cm, deliver according to country or area
Input  100-240Vac, 1.0A, 50/60Hz
POE Output  30.25W, 55V±2% @0.55A
Power Pins  4, 5 (+) and 7, 8 (-)
Connectors  Shielded RJ-45, EIA 568A and 568B
Data Rates  100/1000/2500Mbps
Operating Temperature  -10℃ to 45℃
Operating Humidity  10% to 90%, non-condensation
Storage Temperature  -40℃ to 85℃
Reliability  MTBF: 200,000 hrs @ 25ºC
Operating Altitude  Up to 5000 meters
Surge Protection (both PoE port and Power port)  EN61000-4-5 Perfomance B Common Mode 4KV Difference Mode 2KV
Weather Rating  IP41
Inrush Current  30A MAX, at 115Vac, Cold Start 60A MAX, at 230Vac, Cold Start
Average active efficiency  ≥85% (230Vac)
No-load power consumption  0.5W
Output Ripple <200mV
AC Connector  IEC-320 C6
Certifications  CE, CB, FCC, CCC
