Description
LS520

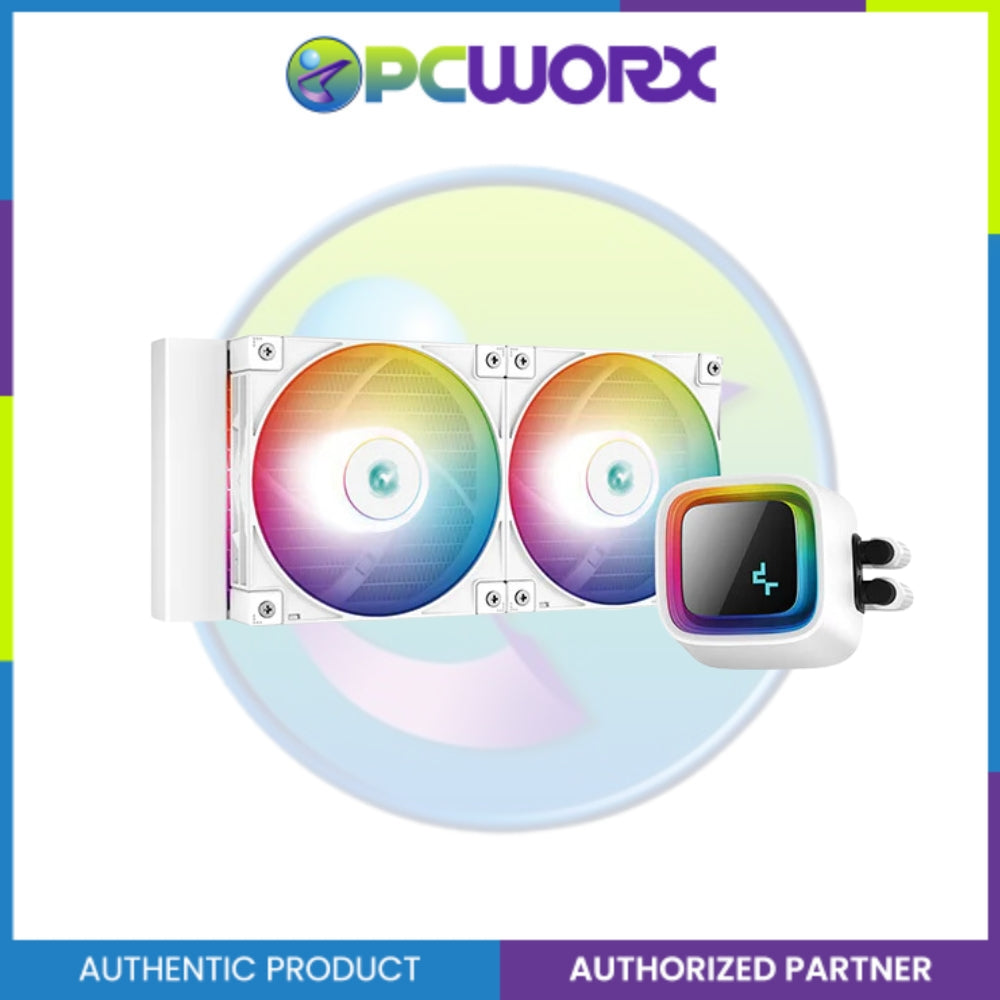

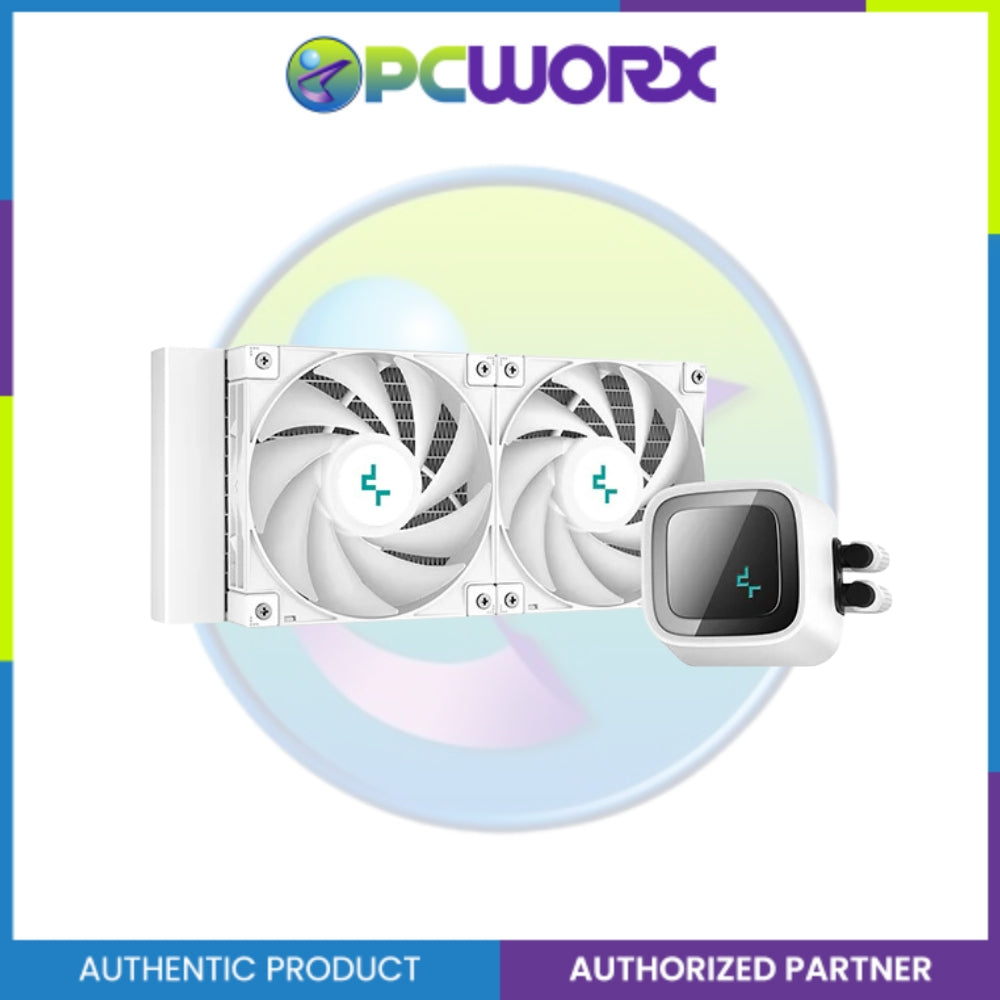

The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
LS520 Elite performance
The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
A New Era of DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
- Improved microchannel design ensures optimal coolant flow.
- Powerful three-phase drive motor up to 3100 RPM.
- Thick solid copper base with a seamless match.

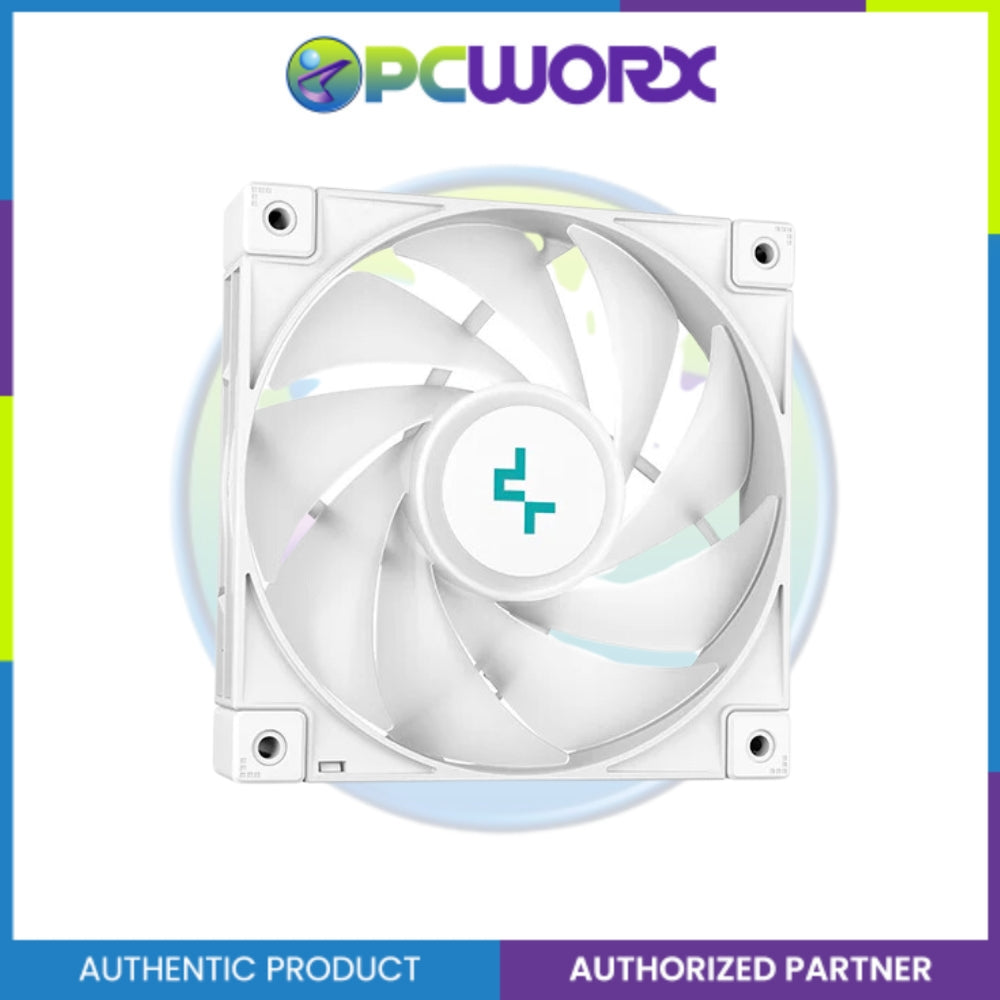

Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearing.
Supreme Airflow
TECHNICAL SPECIFICATIONS:
| Net Weight |
1305 g |

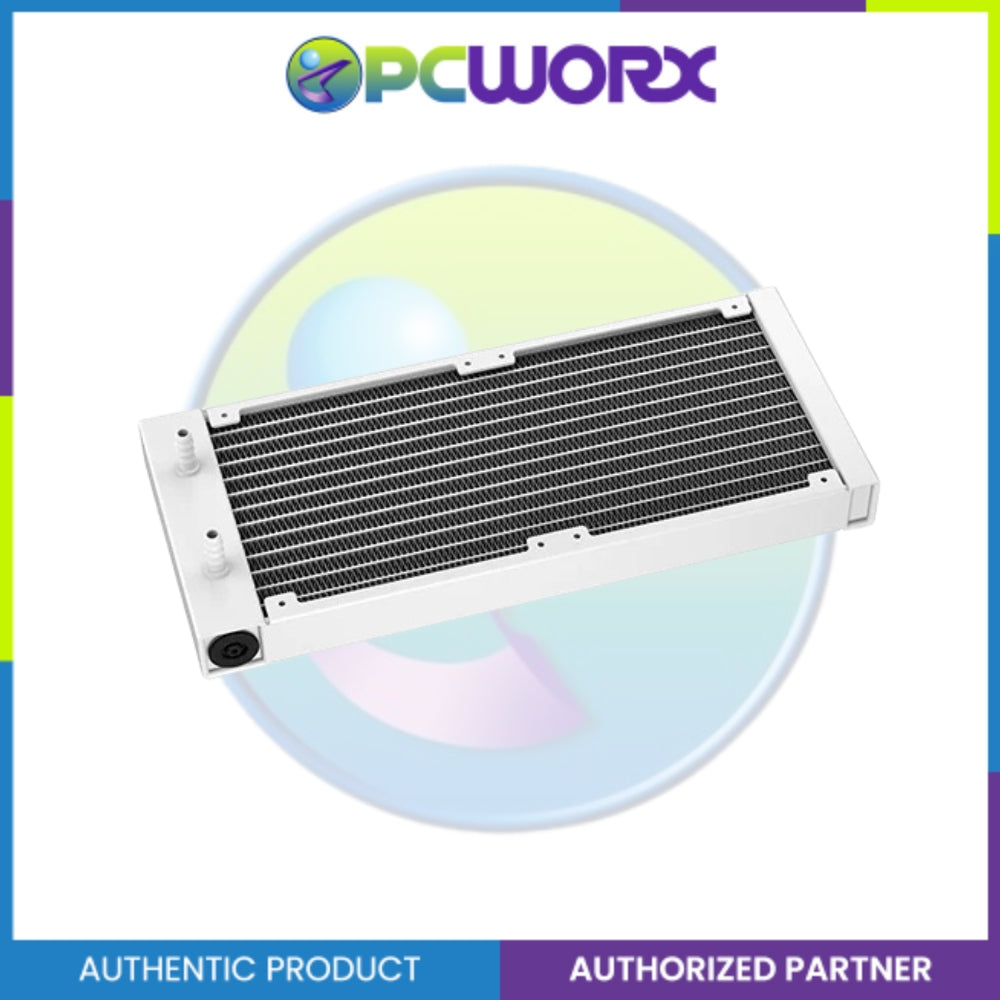

| Radiator Dimensions |
282×120×27 mm(L×W×H) |
| Radiator Material |
Aluminum |
| Tube length |
410 mm(L×W×H) |
| Pump Dimensions |
86×74×57 mm(L×W×H) |
| Pump Speed |
3100 RPM±10% |
| Pump Noise |
19 dB(A) |
| Pump Connector |
3-pin |
| Pump Rated Voltage |
12 VDC |
| Pump Rated Current |
0.47 A |
| Pump Power Consumption |
5.64 W |
| Fan Dimensions |
120×120×25 mm(L×W×H) |
| Fan Speed |
500~2250 RPM±10% |
| Fan Airflow |
85.85 CFM |
| Fan Air Pressure |
3.27 mmAq |
| Fan Noise |
≤32.9 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Fluid Dynamic Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.29 A |
| Fan Power Consumption |
3.48 W |
| LED Type |
Addressable RGB LED |
| LED Connector |
3-pin(+5V-D-G) |
| LED Rated Voltage |
5 VDC |
| LED Power Consumption |
2.2 W（PUMP）/ 3.6 W（FAN×2） |
| EAN |
6933412727484 |
| P/N |
R-LS520-BKAMNT-G-1 |
