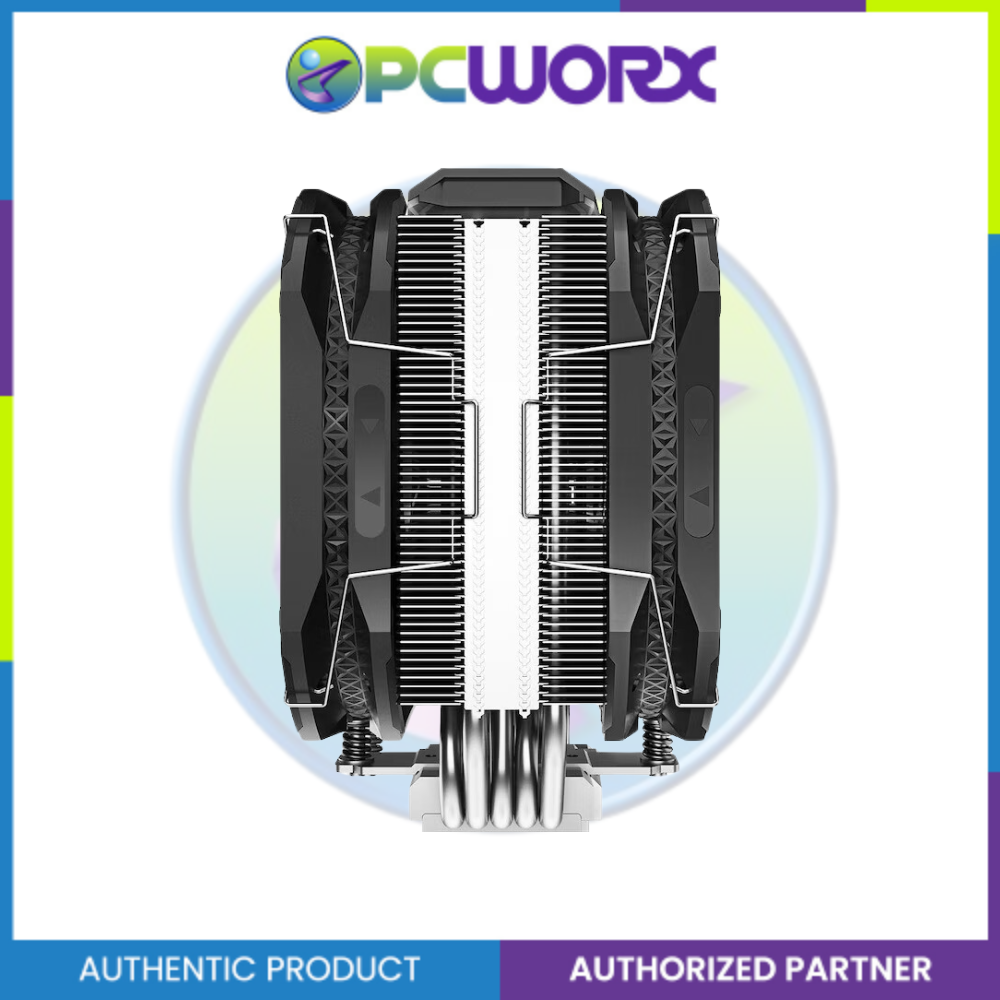

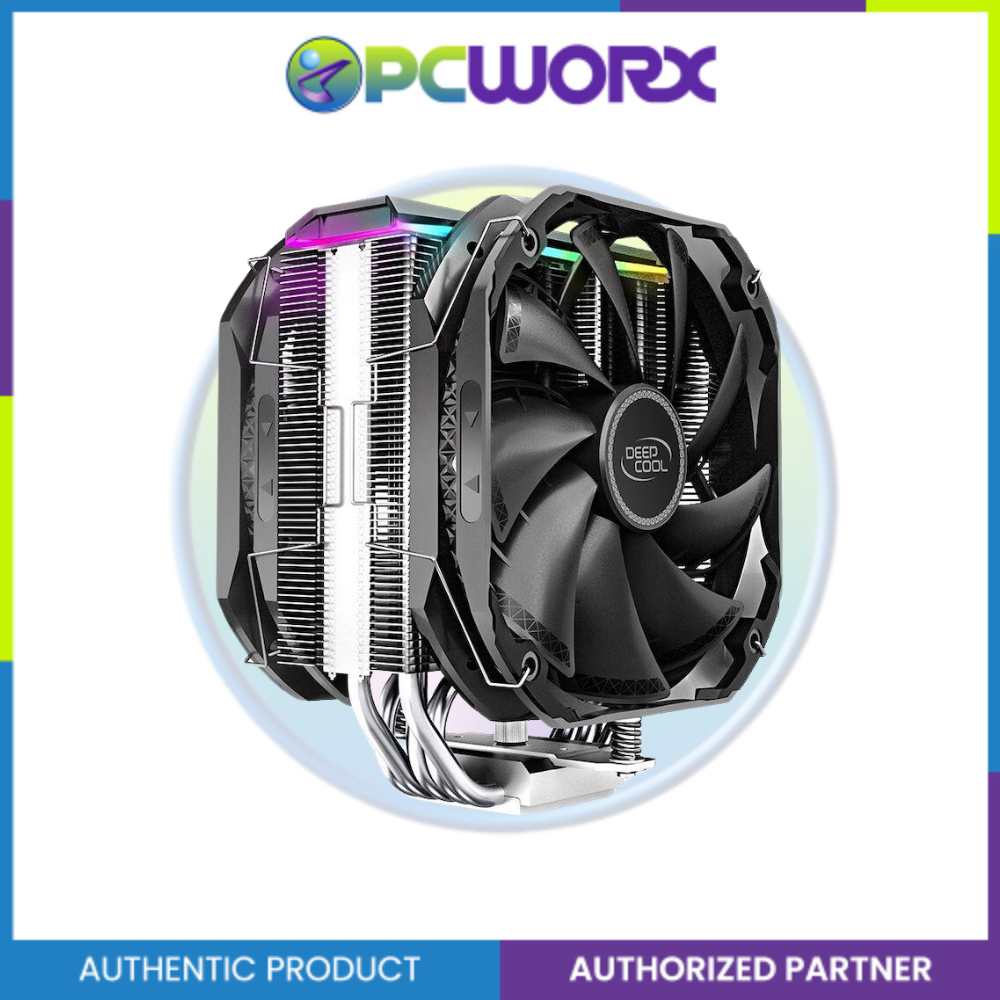

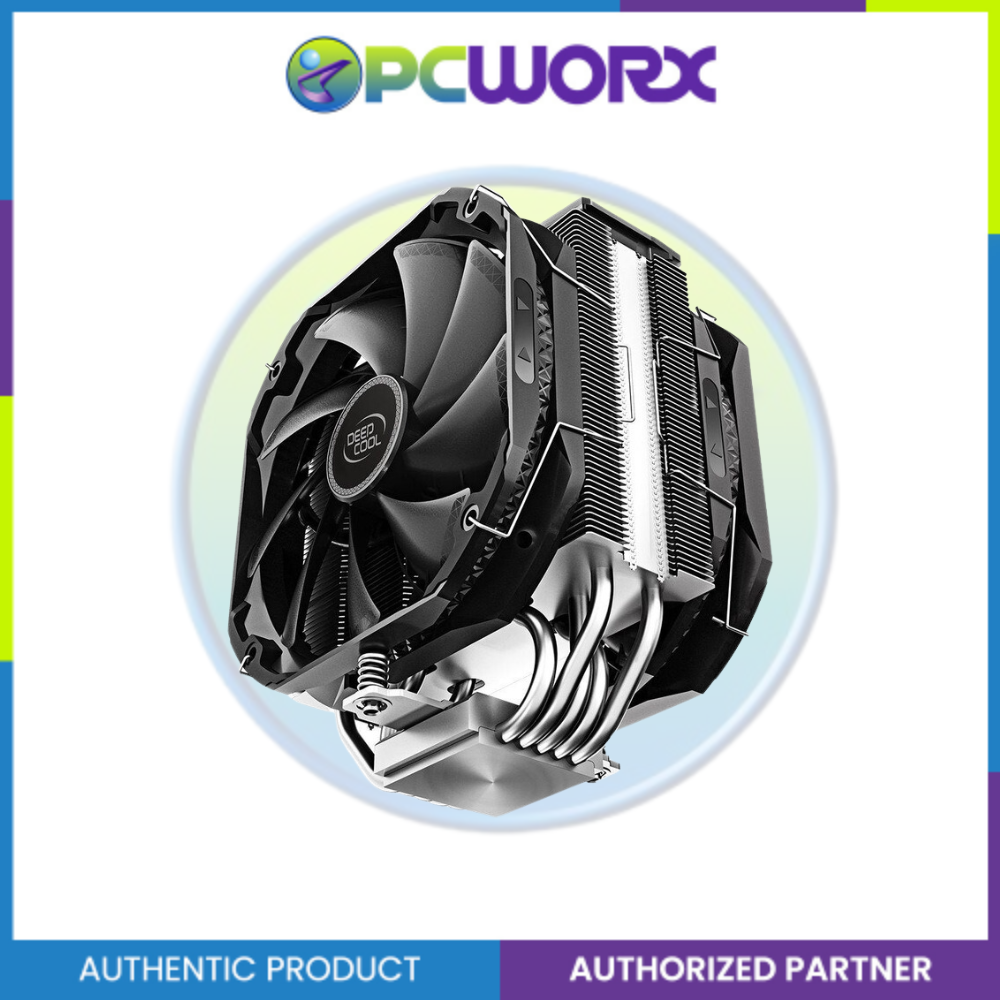

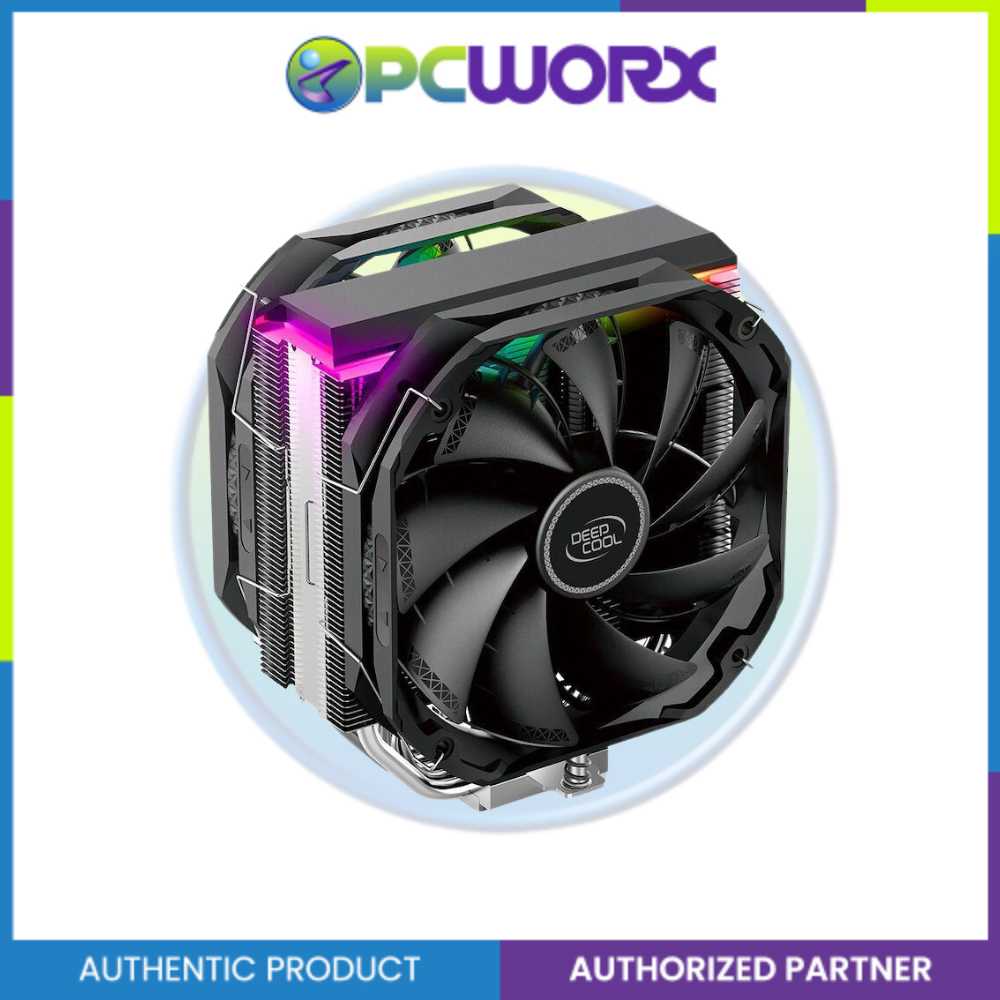

AS500 PLUS
The Deep Cool AS500 PLUS single tower CPU cooler boasts a five heat pipe design with two 140mm PWM fans for great performance in a slim profile.
ELEVATED COOLING PERFORMANCE

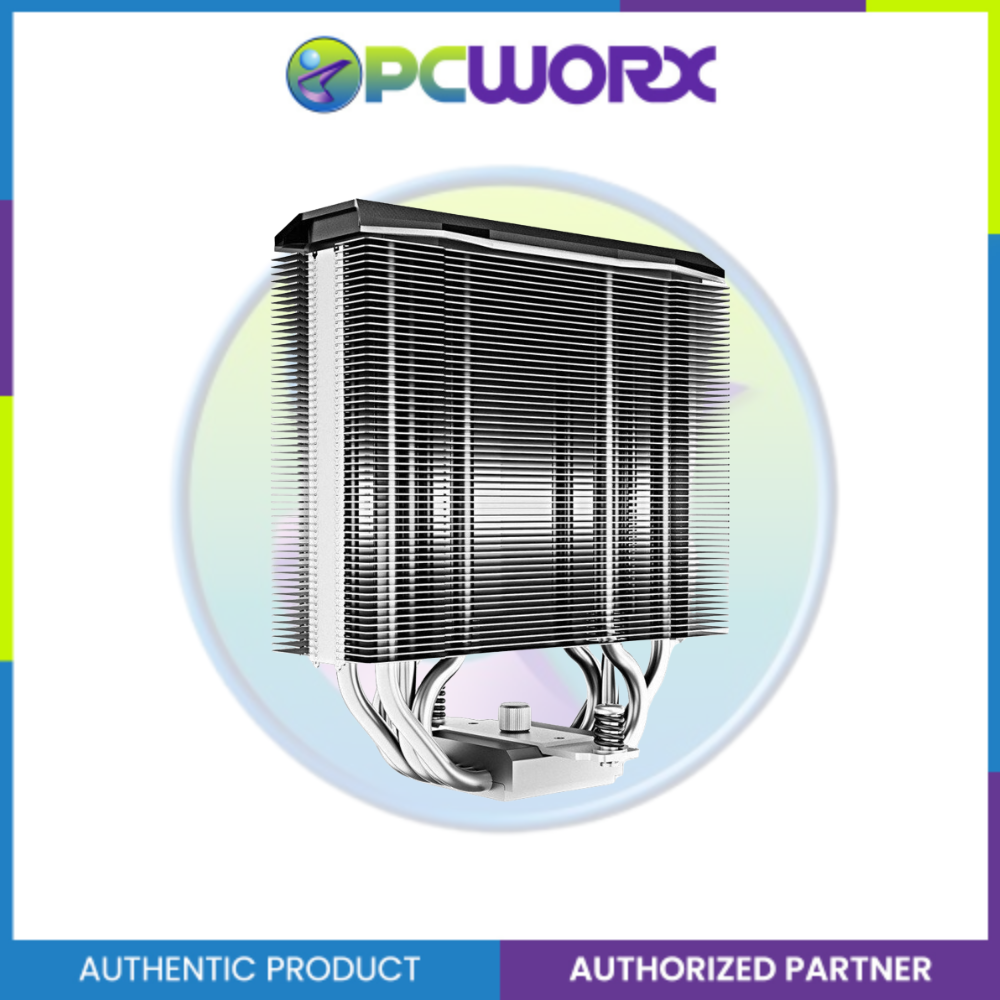

Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance 140mm PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.
A-RGB LED CONTROLLER
An included wired controller allows for a quick and easy way to adjust lighting effects without installing additional software.
Appropriate A-RGB connector cables for motherboard control are also provided.
Specifications:
| Product Dimensions |
142×102×164 mm |
| Heatsink Dimensions |
140×49×159 mm |
| Net Weight |
1198 g |
| Heatpipe |
Ø6 mm×5 pcs |
| Fan Dimensions |
140×140×25 mm |
| Fan Speed |
500~1200 RPM±10% |
| Fan Airflow |
70.81 CFM |
| Fan Air Pressure |
1.14 mmAq |
| Fan Noise |
≤29.2dB(A) |
| Overall Noise |
≤31.5 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Fluid Dynamic Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.11 A |
| Fan Power Consumption |
1.32 W |
| LED Type |
Addressable RGB LED |
| LED Connector |
3-pin(+5V-D-G) |
| LED Rated Voltage |
5 VDC |
| LED Power Consumption |
1.4 W |
