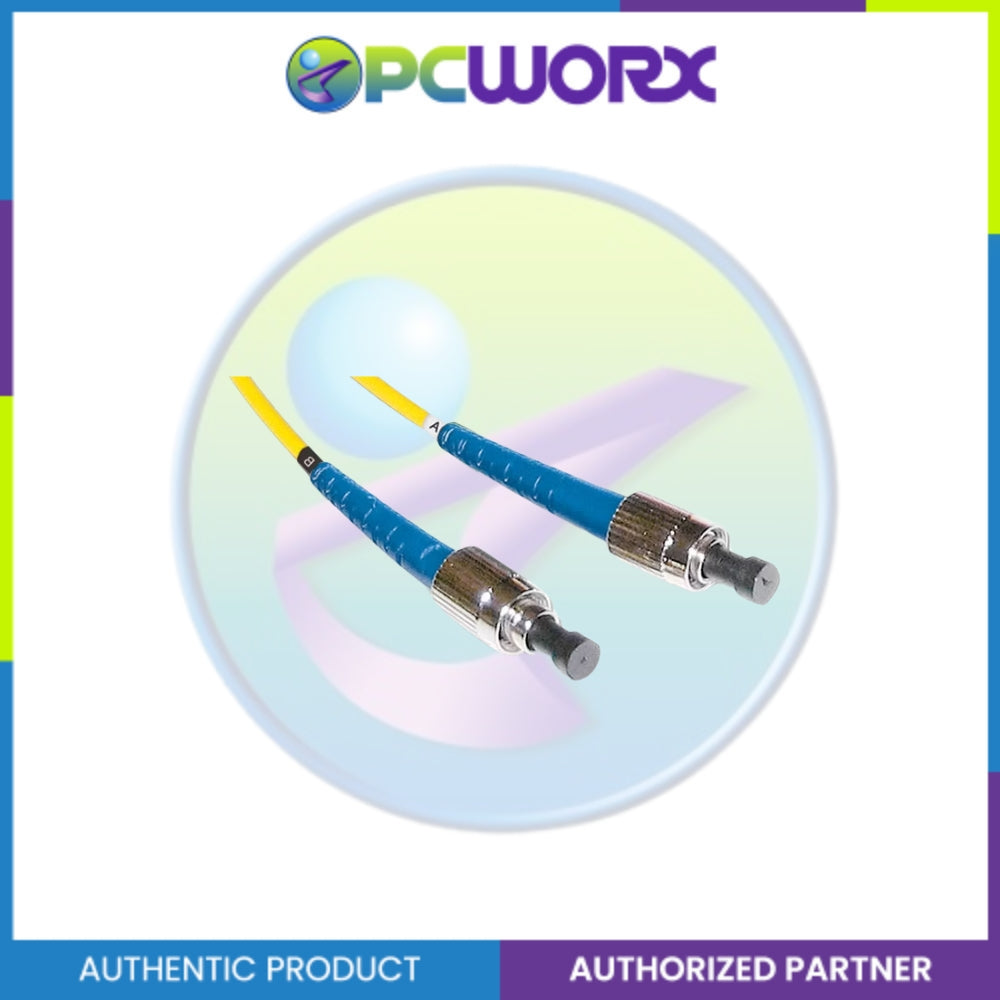

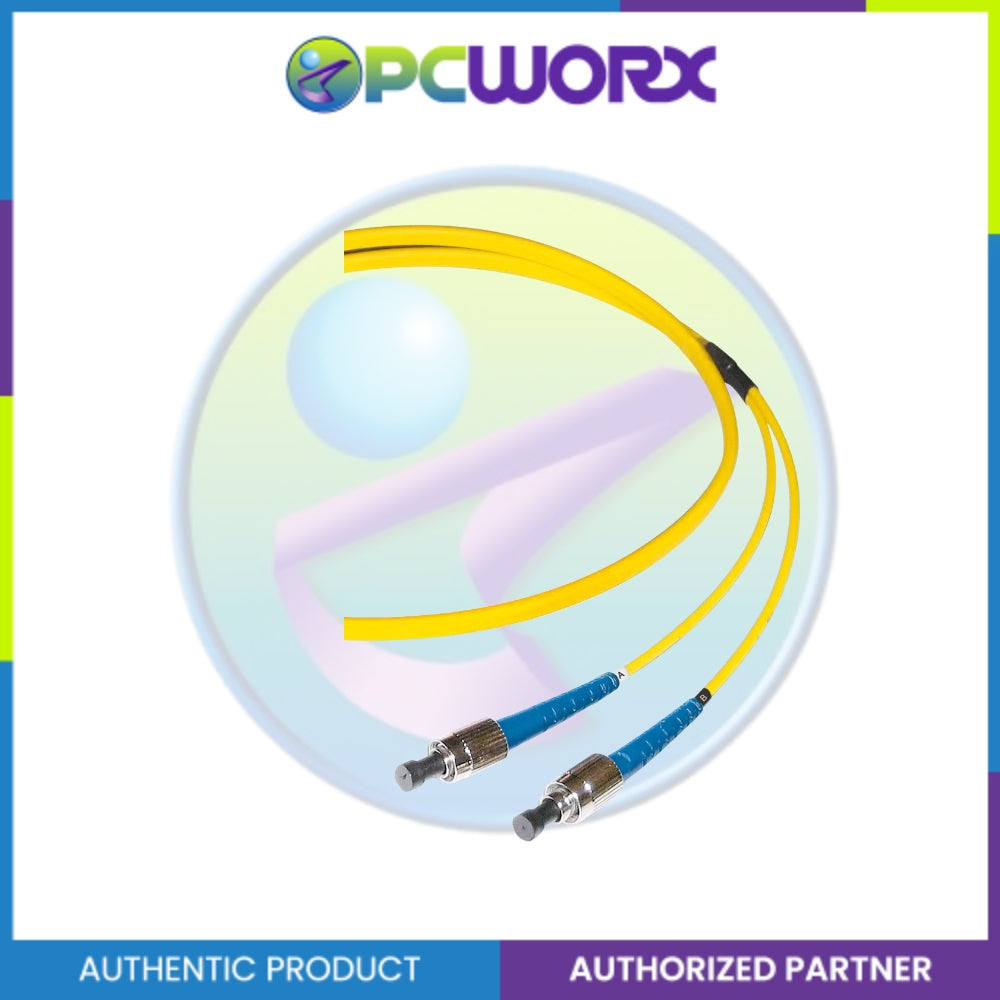

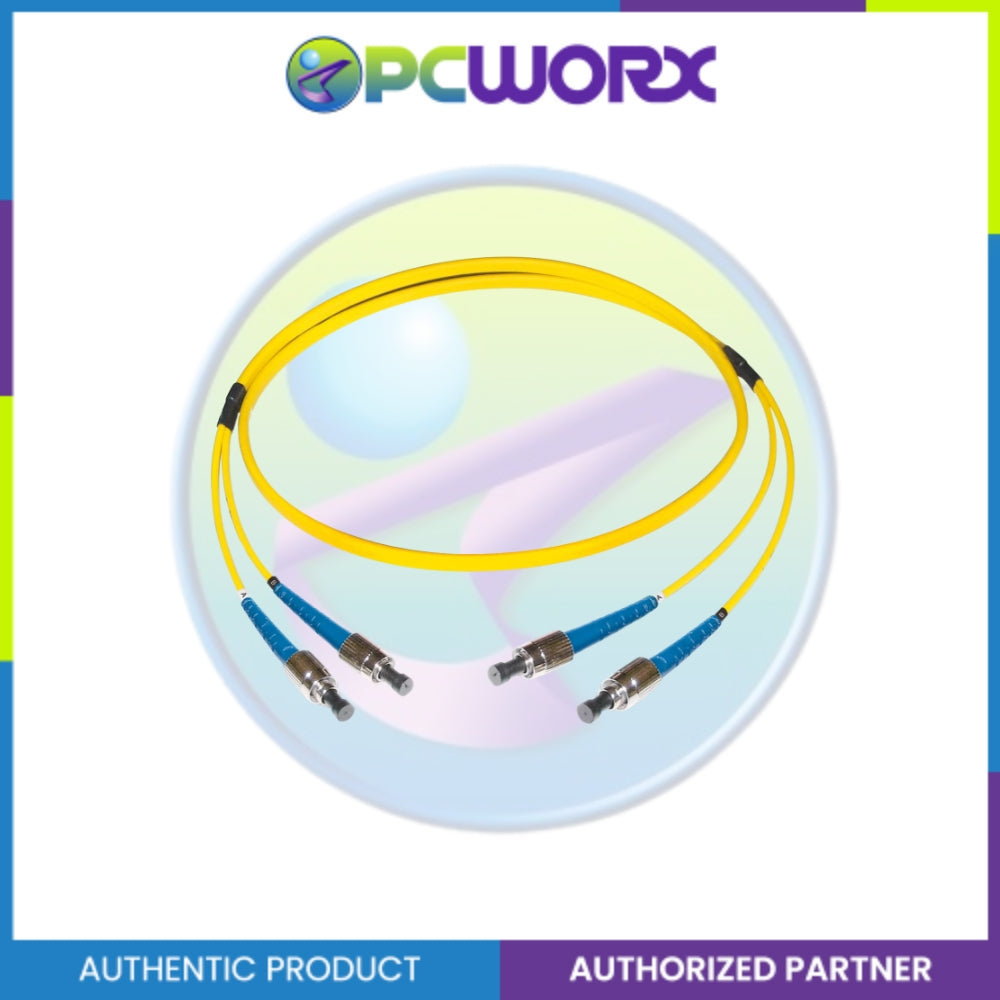

Datwyler Duplex Patch Cord ST-ST E09/125 3meters PN: 390086 Yellow

Description

Description

Description

Datwyler offers a broad range of terminated connectors for individual customer needs.

Specifications

Mechanical Properties
Tensile load (IEC 60794-1-21 E1 0,33% reversible fiber elongation): 200 N
Connector cable retention: 100
Torsion (IEC 60794-1-21 E7, reversible fiber attenuation): ≤ 0,1 dB
Bending (IEC 60794-1-21 E11, reversible fiber attenuation): ≤ 0,5 dB
Crush resistance (IEC 60794-1-21 E3, reversible fiber attenuation): ≤ 0,2 dB
Minimum bending radius: 50 mm
Optical Properties
Lifetime: 1000 connections with stable attenuation values
Reproducibility of the IL: a maximum of +/- 0.1dB
Fiber type: E9/125 G.652.D BLO
Ferrule material: Zirconia
Connector type side A: ST/PC
IL maximal, connector A: 0.25 dB
IL typical, connector A: 0.12 dB
RL minimal, connector A: 50 dB
RL typical, connector A: 55 dB
Grade IEC61755, connector A (better than): B2
Standard connector A: IEC 61754-2
Connector type side B: ST/PC
IL maximal, connector B: 0.25 dB
IL typical, connector B: 0.12 dB
RL minimal, connector B: 50 dB
RL typical, connector B: 55 dB
Grade IEC61755, connector B (better than): B2
Standard connector B: IEC 61754-2
Constuction:
Cable: Duplex Fig. 0
Cable construction: I-V(ZN)HH (5.0x3.0mm)
Outer sheath material: LSZH
Outer sheath color: yellow
Standard:
Impact: IEC 60794-1-21 E4
Repeated bending: IEC 60794-1-21 E6
General Properties:
Operating temperature: -10 °C - +60 °C

Datwyler Duplex Patch Cord ST-ST E09/125 3meters PN: 390086 Yellow

Product form

Description  Datwyler offers a broad range of terminated connectors for individual customer needs. Specifications  Mechanical Properties  Tensile load (IEC 60794-1-21... Read more

Free pickup in our shop(s)

SKU: 0000021024

₱720.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.
    Description

    Description

    Description

    Datwyler offers a broad range of terminated connectors for individual customer needs.

    Specifications

    Mechanical Properties
    Tensile load (IEC 60794-1-21 E1 0,33% reversible fiber elongation): 200 N
    Connector cable retention: 100
    Torsion (IEC 60794-1-21 E7, reversible fiber attenuation): ≤ 0,1 dB
    Bending (IEC 60794-1-21 E11, reversible fiber attenuation): ≤ 0,5 dB
    Crush resistance (IEC 60794-1-21 E3, reversible fiber attenuation): ≤ 0,2 dB
    Minimum bending radius: 50 mm
    Optical Properties
    Lifetime: 1000 connections with stable attenuation values
    Reproducibility of the IL: a maximum of +/- 0.1dB
    Fiber type: E9/125 G.652.D BLO
    Ferrule material: Zirconia
    Connector type side A: ST/PC
    IL maximal, connector A: 0.25 dB
    IL typical, connector A: 0.12 dB
    RL minimal, connector A: 50 dB
    RL typical, connector A: 55 dB
    Grade IEC61755, connector A (better than): B2
    Standard connector A: IEC 61754-2
    Connector type side B: ST/PC
    IL maximal, connector B: 0.25 dB
    IL typical, connector B: 0.12 dB
    RL minimal, connector B: 50 dB
    RL typical, connector B: 55 dB
    Grade IEC61755, connector B (better than): B2
    Standard connector B: IEC 61754-2
    Constuction:
    Cable: Duplex Fig. 0
    Cable construction: I-V(ZN)HH (5.0x3.0mm)
    Outer sheath material: LSZH
    Outer sheath color: yellow
    Standard:
    Impact: IEC 60794-1-21 E4
    Repeated bending: IEC 60794-1-21 E6
    General Properties:
    Operating temperature: -10 °C - +60 °C
