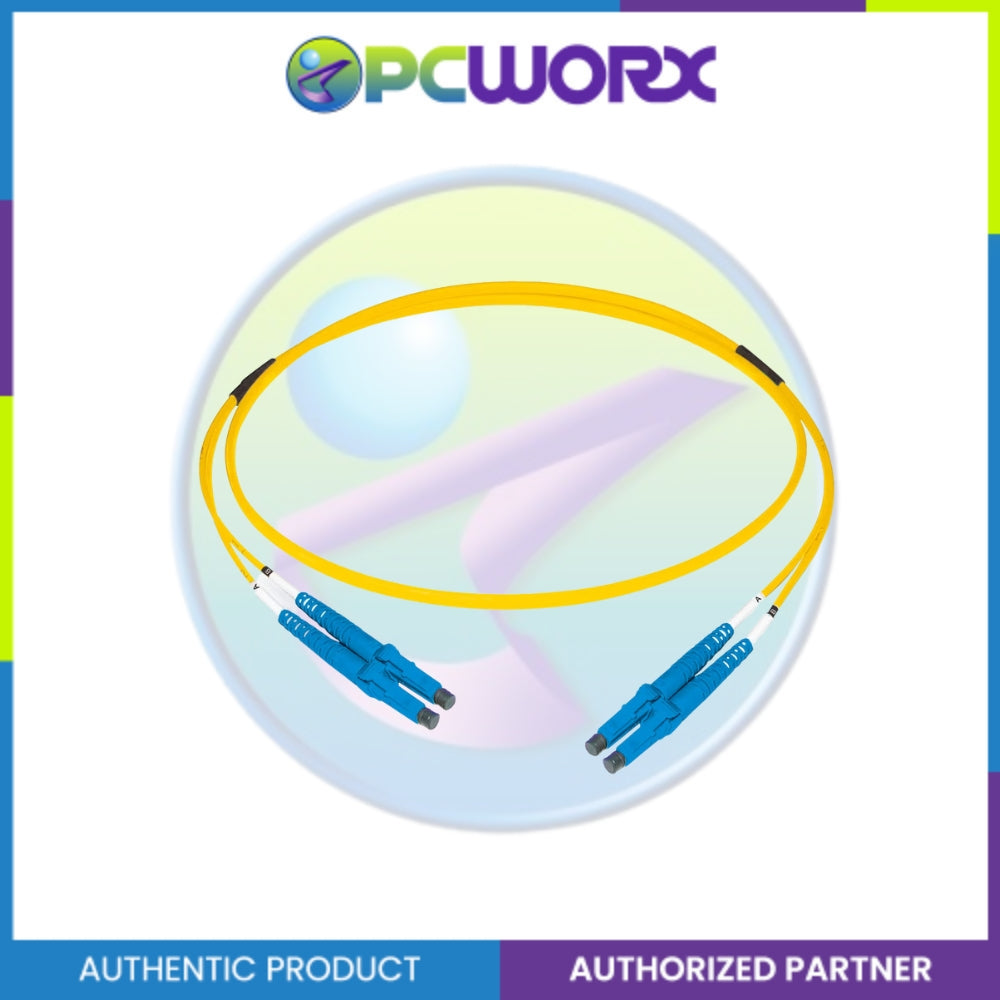

Datwyler Duplex Patch Cord LC-LC E09/125 3meters PN: 390226 Yellow
by PCWORX
Original price
₱1,200.00
-
Original price
₱1,200.00
Original price
₱1,200.00
₱1,200.00
-
₱1,200.00
Current price
₱1,200.00
Description
Datwyler offers a broad range of terminated connectors for individual customer needs.
Specifications
| Mechanical Properties | |
| Tensile load (IEC 60794-1-21 E1 0,33% reversible fiber elongation): | 200 N |
| Connector cable retention: | 100 |
| Torsion (IEC 60794-1-21 E7, reversible fiber attenuation): | ≤ 0,1 dB |
| Bending (IEC 60794-1-21 E11, reversible fiber attenuation): | ≤ 0,5 dB |
| Crush resistance (IEC 60794-1-21 E3, reversible fiber attenuation): | ≤ 0,2 dB |
| Minimum bending radius: | 50 mm |
| Optical Properties | |
| Lifetime: | 1000 connections with stable attenuation values |
| Reproducibility of the IL: | a maximum of +/- 0.1dB |
| Fiber type: | E9/125 G.652.D BLO |
| Ferrule material: | Zirconia |

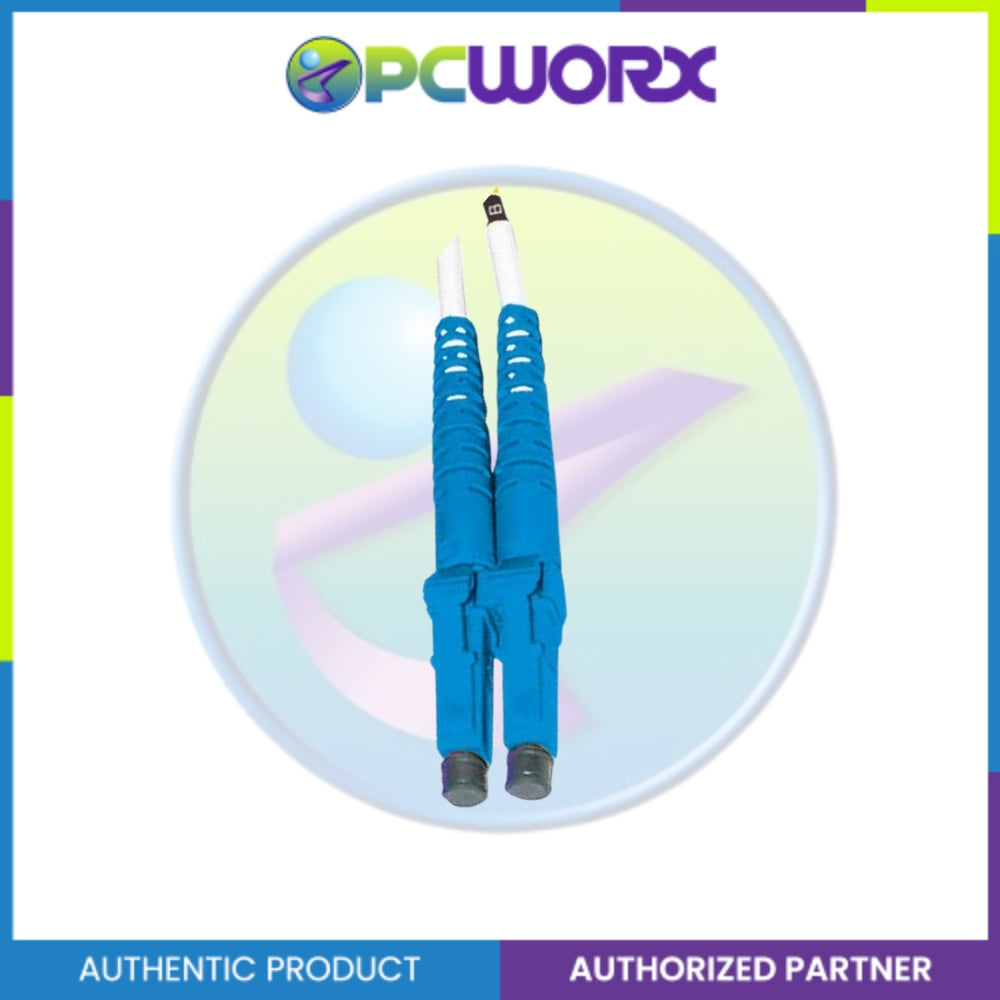

| Connector type side A: | LCD/PC |
| IL maximal, connector A: | 0.25 dB |
| IL typical, connector A: | 0.12 dB |
| RL minimal, connector A: | 50 dB |
| RL typical, connector A: | 55 dB |
| Grade IEC61755, connector A (better than): | B2 |
| Standard connector A: | IEC 61754-20 |
| Connector type side B: | LCD/PC |
| IL maximal, connector B: | 0.25 dB |
| IL typical, connector B: | 0.12 dB |
| RL minimal, connector B: | 50 dB |
| RL typical, connector B: | 55 dB |
| Grade IEC61755, connector B (better than): | B2 |
| Standard connector B: | IEC 61754-20 |
| Constuction | |
| Cable: | Duplex Fig. 0 |
| Cable construction: | I-V(ZN)HH (5.0x3.0mm) |
| Outer sheath material: | LSZH |
| Outer sheath color: | yellow |
| Standard: | |
| Impact: | IEC 60794-1-21 E4 |
| Repeated bending: | IEC 60794-1-21 E6 |
| Operating temperature: | -10 °C - +60 °C |
