₱2,000.00

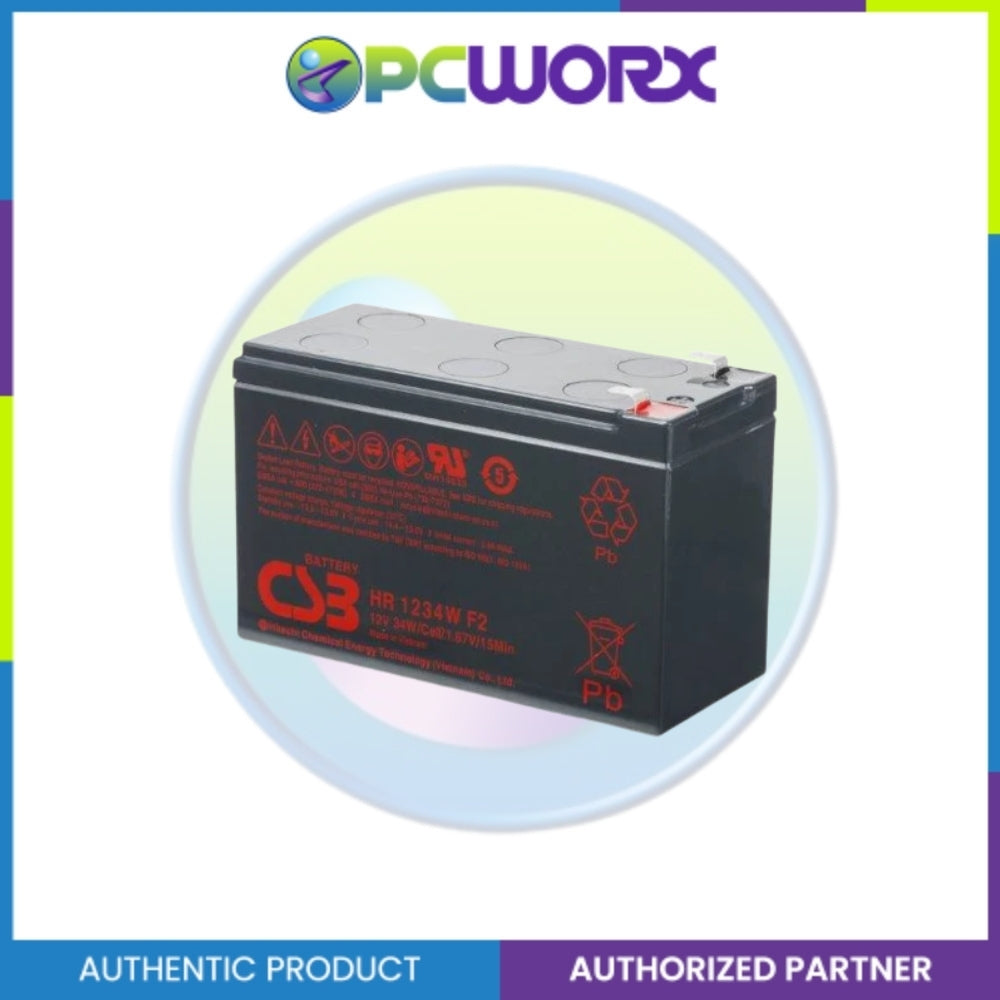

The CSB HR1234W F2 is a high-rate, maintenance-free VRLA-AGM sealed lead-acid battery designed primarily for UPS and standby-power applications. CSB's datasheet specifies the battery as a 12V unit with six cells and a 15-minute high-rate rating of 34W at 25°C.
| Specification | Details |
|---|---|
| Brand | CSB |
| Series | HR Series |
| Model | HR1234W |
| Variant | HR1234W F2 |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Technology | Absorbent Glass Mat (AGM) |
| Battery Construction | Sealed, maintenance-free |
| Nominal Voltage | 12 VDC |
| Number of Cells | 6 cells |
| Nominal Capacity | 9 Ah |
| High-Rate Capacity | 34 W @ 15-minute rate, to 1.67 V/cell at 25°C |
| Watts per Cell — 5 min | 73.0 W/cell |
| Watts per Cell — 15 min | 34.3 W/cell |
| Maximum Charging Current | 3.4 A |
| Maximum Discharge Current | 130 A for 5 seconds |
| Short-Circuit Current | 349 A |
| Internal Resistance | Approx. 19.0 mΩ |
| Terminal Type | F2 — Faston Tab 250 |
| Terminal Size | 0.250 in / 6.35 mm |
| Float Charging Voltage | 13.5–13.8 VDC per battery @ 25°C |
| Equalization / Cycle Voltage | 14.4–15.0 VDC per battery @ 25°C |
| Recommended Maximum Charge Current | 3.4 A |
| Operating Temperature — Discharge | -15°C to 50°C (5°F to 122°F) |
| Operating Temperature — Charge/Storage | -15°C to 40°C (5°F to 104°F) |
| Nominal Operating Temperature | 25°C (77°F) |
| Self-Discharge | Less than 10% after 90 days |
| Storage at 25°C | Up to approximately 6 months before recharge is required |
| Length | 150.9 ± 2.0 mm |
| Width | 64.8 ± 1.0 mm |
| Container Height | 94.3 ± 1.0 mm |
| Overall Height | 98.6 ± 1.0 mm |
| Length (inches) | 5.94 ± 0.08 in |
| Width (inches) | 2.55 ± 0.04 in |
| Overall Height (inches) | 3.88 ± 0.04 in |
| Weight | Approx. 2.50 kg / 5.51 lb |
| Case Material | ABS, UL94-HB; flame-retardant UL94-V0 available |
| Gas Recombination | Up to 99% |
| Design Life | Up to 5 years in standby service at 25°C |
| Eurobat Classification | 3–5 years, Standard Commercial at 20°C |
| Primary Application | High-rate UPS and standby power |
| Other Applications | Emergency/backup power and float-service systems |
| Standards | IEC 61056-1/2:2012 |
| UL Recognition | UL1989, MH14533 |
| Maintenance | Maintenance-free |
| Polarity/Terminal Style | Top-terminal F2 configuration |
