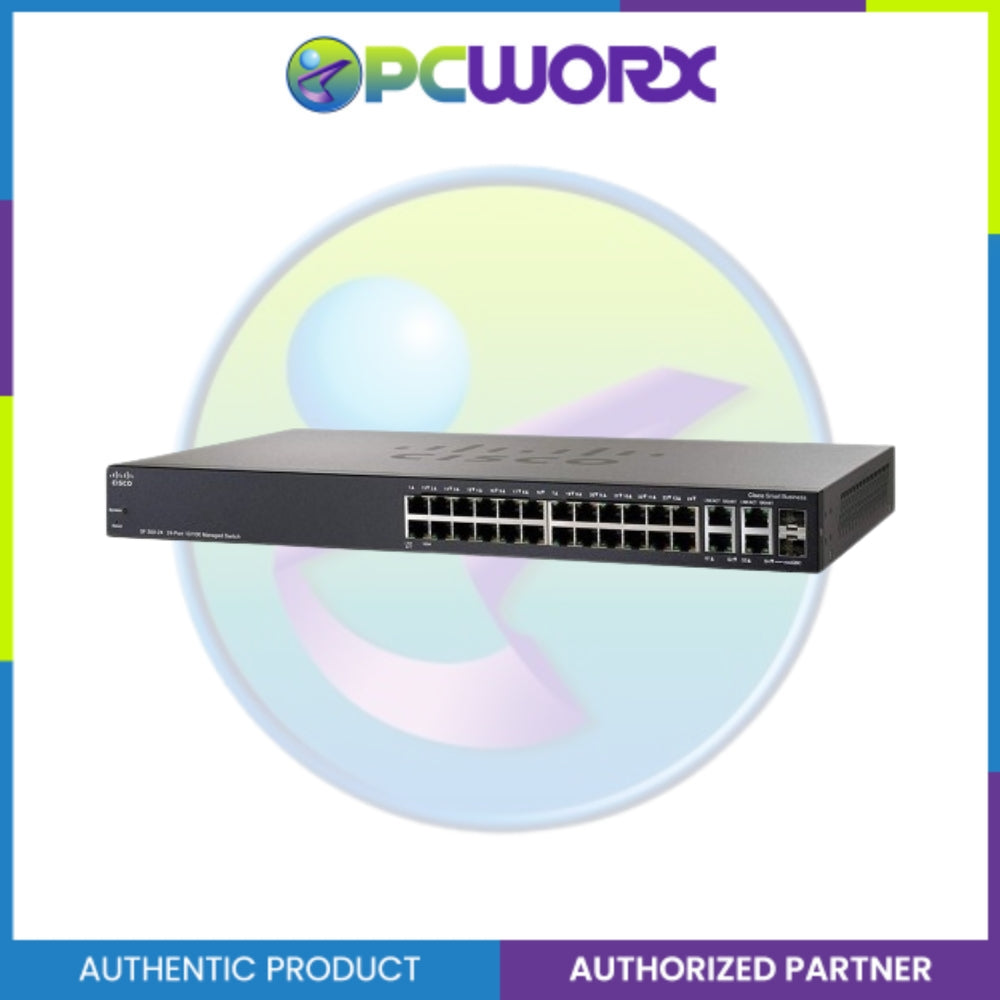

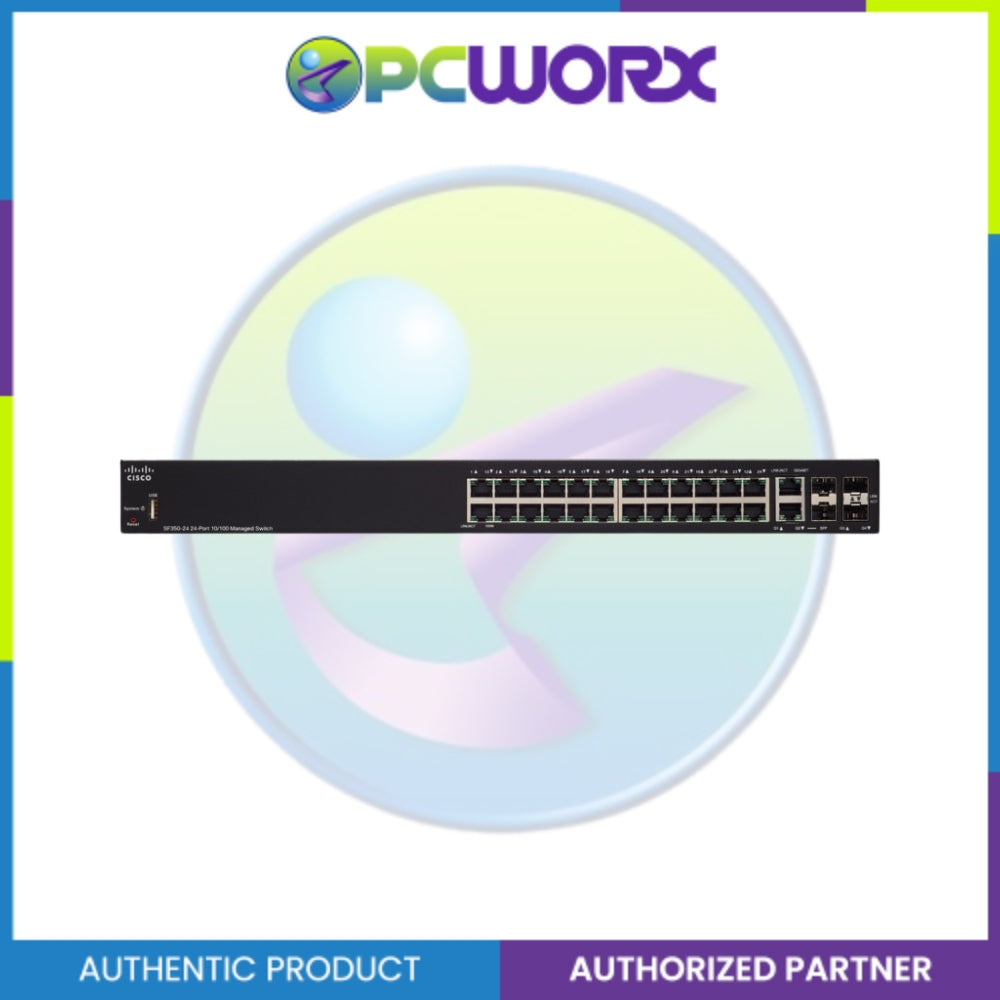

| Brand Name: CISCO |
| Part Number: |
SF350-24-K9-EU |
| GENERAL |
|
| Enclosure:
|
Type Rack-mountable 1U |
| Subtype:
|
Fast Ethernet |
| Ports:
|
24 x 10/100 10/100/1000 + 2 x combo Gigabit SFP |
| PowerOver:
|
Ethernet |
| Jumbo Frame Support:
|
9216 bytes |
| Authentication Method:
|
RADIUS, Secure Shell (SSH), TACACS+ |
| MAC Address Table Size:
|
16K entries |
| Authentication Method:
|
Secure Shell (SSH), RADIUS, TACACS+ |
| Power Over Ethernet |
| Status Indicators: |
Link/activity |
| Encryption Algorithm:
|
SSL |
| Routing Protocol:
|
Static IPv4 routing, CIDR |
| Jumbo Frame Support:
|
9216 bytes |
| PoE Budget:
|
185 W |
| Manufacturer:
|
Cisco |
| CAMERA |
|
| Installed Size: |
256 MB |
| POWER DEVICE |
| Nominal Voltage:
|
AC 120/230 V |
| Frequency Required:
|
50/60 Hz |
| Type: |
internal power supply |
| NETWORKING |
| MAC Address Table Size:
|
16K entries |
| Subcategory:
|
network hubs and switches |
| Subtype:
|
Fast Ethernet |
| Form Factor:
|
rack-mountable |
| Type:
|
Switch |
| Advanced Switching: |
Layer 3 |
|
|
| Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Jumbo Frame Support: |
9216 bytes |
| Ports Qty: 24 |
| Manageable:
|
Yes |
| Routing Protocol:
|
CIDR, static IPv4 routing |
| PoE Budget:
|
185 Watt |
| Remote Management Protocol:
|
CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet |
| Power Over Ethernet |
| MISCELLANEOUS |
| Encryption Algorithm:
|
SSL |
| MTBF 293029 hour(s) |
| Height (Rack Units): |
1 m |
| Color Category:
|
black |
| MTBF:
|
293,029 hours |
| INTERFACE PROVIDED |
| Qty: 1, 2, 24 |
| PoE Power: |
185 Watt |
| Comments:
|
PoE+, management |
| ENVIRONMENTAL PARAMETERS |
| Humidity Range Storage: |
10 – 90% (non-condensing) |
| Min Storage Temperature:
|
-4 °F |
| Max Storage Temperature: |
158 °F |
| Min Operating Temperature:
|
32 °F |
| Max Operating Temperature: |
122 °F |
| Humidity Range Operating:
|
10 – 90% (non-condensing) |
| HEADER |
|
| Brand:
|
Cisco |
| Product Line Cisco Small Business |
| Model:
|
SF350-24P |
| Country:
|
Kits North America |
| Packaged Quantity:
|
1 |
| DIMENSIONS & WEIGHT |
| Width 17.3 in |
| Depth 10.1 in |
| Height 1.7 in |
| Weight 8.99 lbs |
| Warranty: |
Limited Lifetime |
