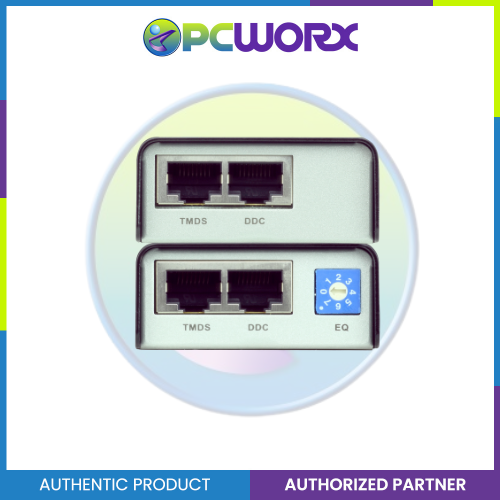

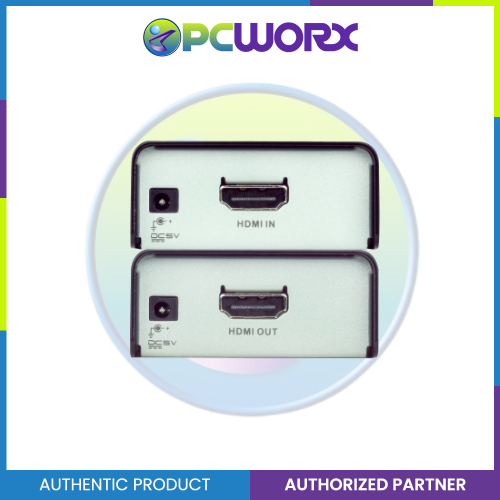

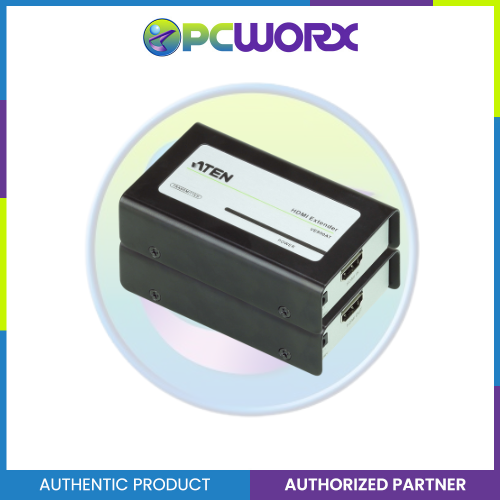

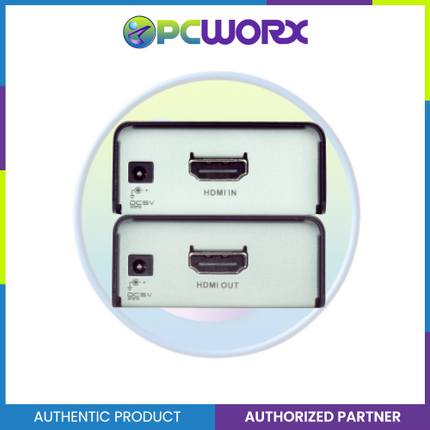

Aten VE800A HDMI Cat 5 Extender (1080p@40m)

Product form

Function VE800AT Video Output Interfaces N/A Impedance N/A Max. Distance N/A Video Input Impedance 100 Ω Interfaces 1 x HDMI... Read more

SKU: 0000053350

Out of stock

₱6,900.00 Excl. VAT

You may also like

Function	VE800AT
Video Output
Interfaces	N/A
Impedance	N/A
Max. Distance	N/A
Video Input
Impedance	100 Ω
Interfaces	1 x HDMI Type A Female (Black)
Max. Distance	3 m
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color)
Compliance	HDCP Compatible
Max. Resolutions / Distance	Up to 1080p@40m; 1080i@60m
Audio
Output	N/A
Input	1 x HDMI Type A Female (Black)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.9W:4BTU/h

	Note:
	● The measurement in Watts indicates the typical power consumption of the device with no external loading.
	● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.16 kg ( 0.35 lb )
Dimensions (L x W x H)	9.00 x 5.50 x 2.20 cm
Dimensions (L x W x H)	(3.54 x 2.17 x 0.87 in.)
Carton Lot	5 pcs
