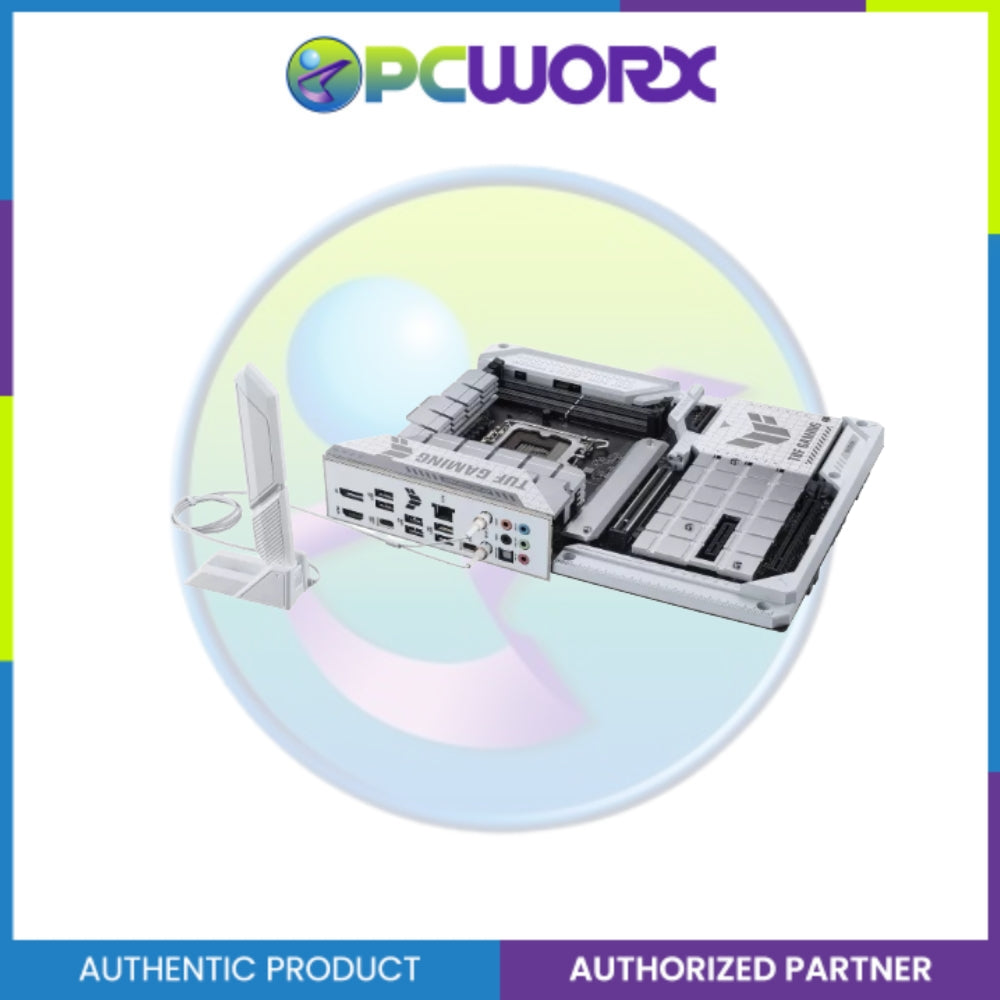

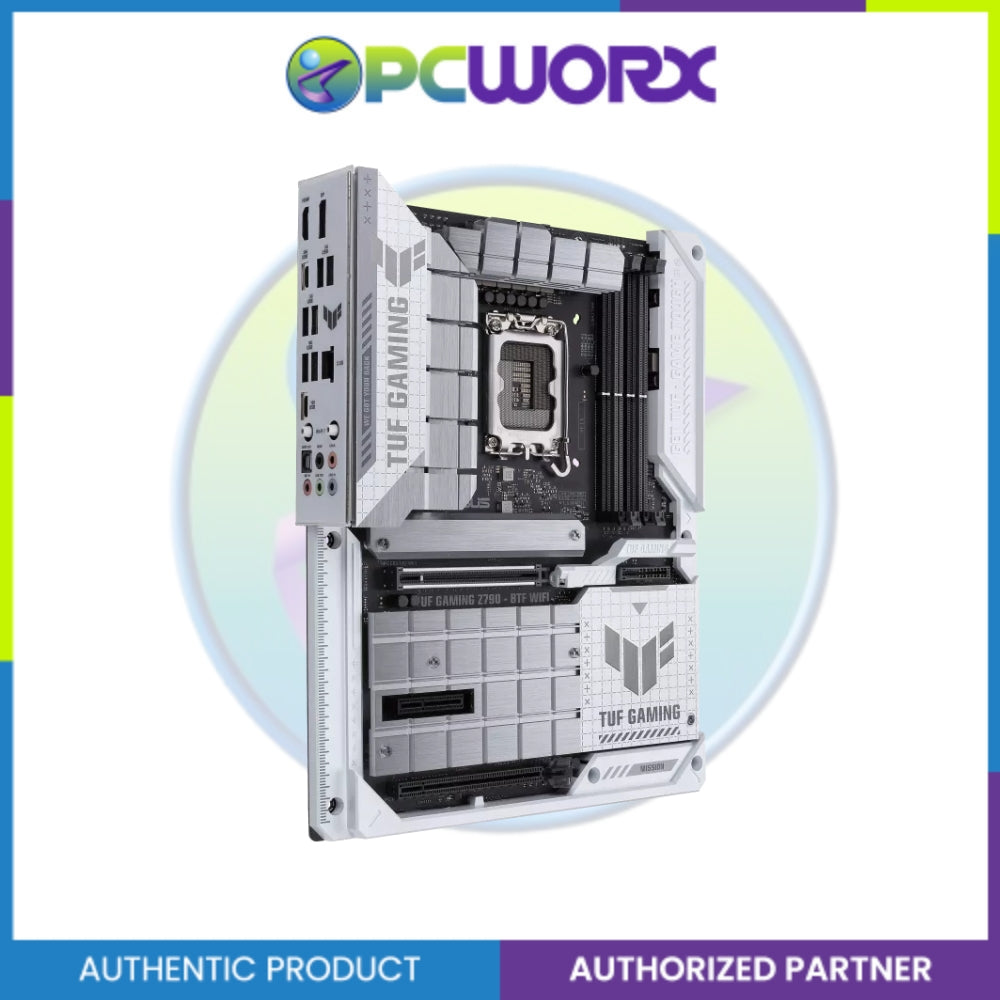

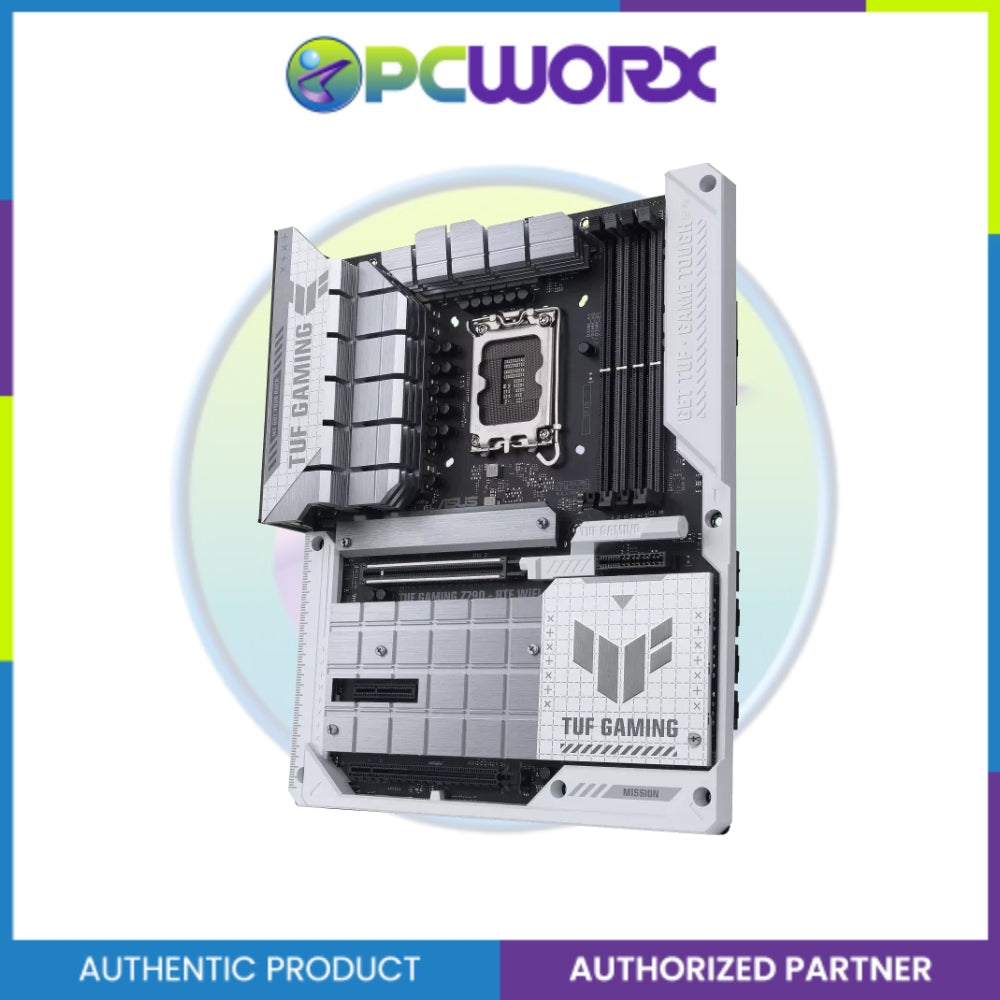

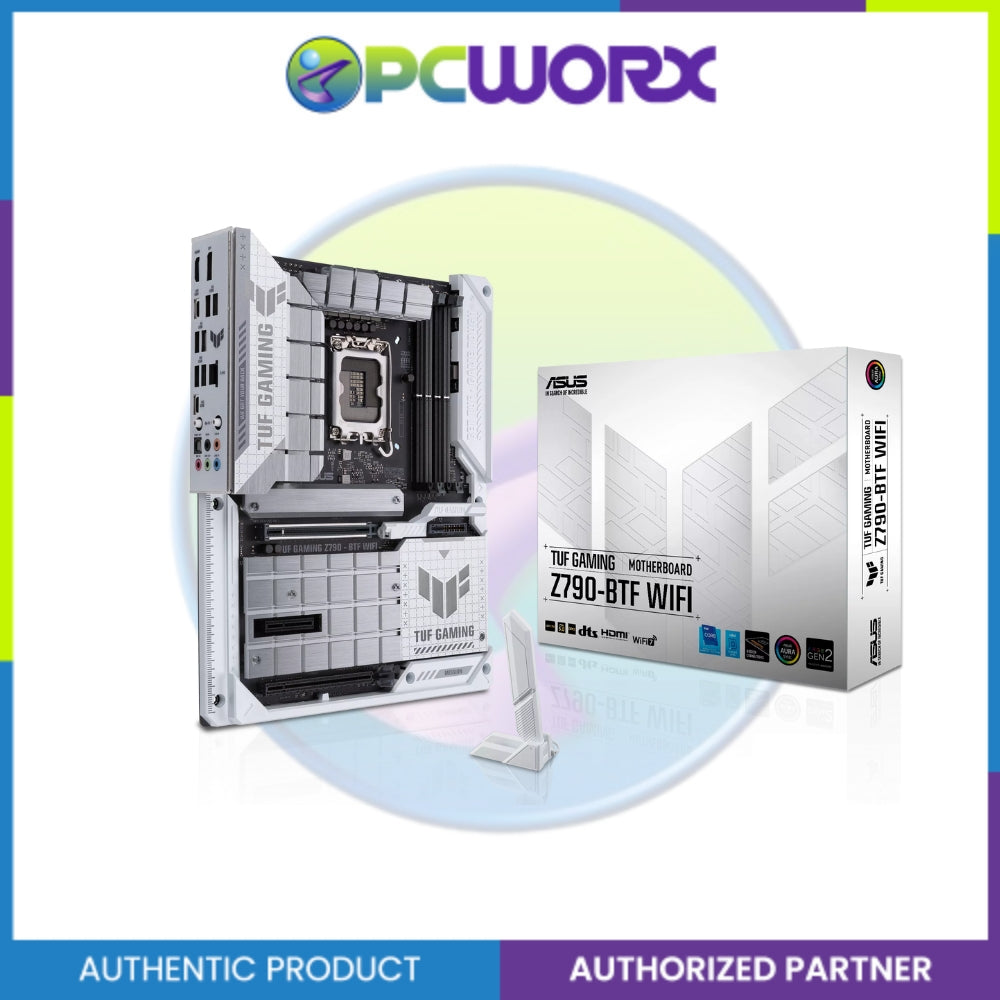

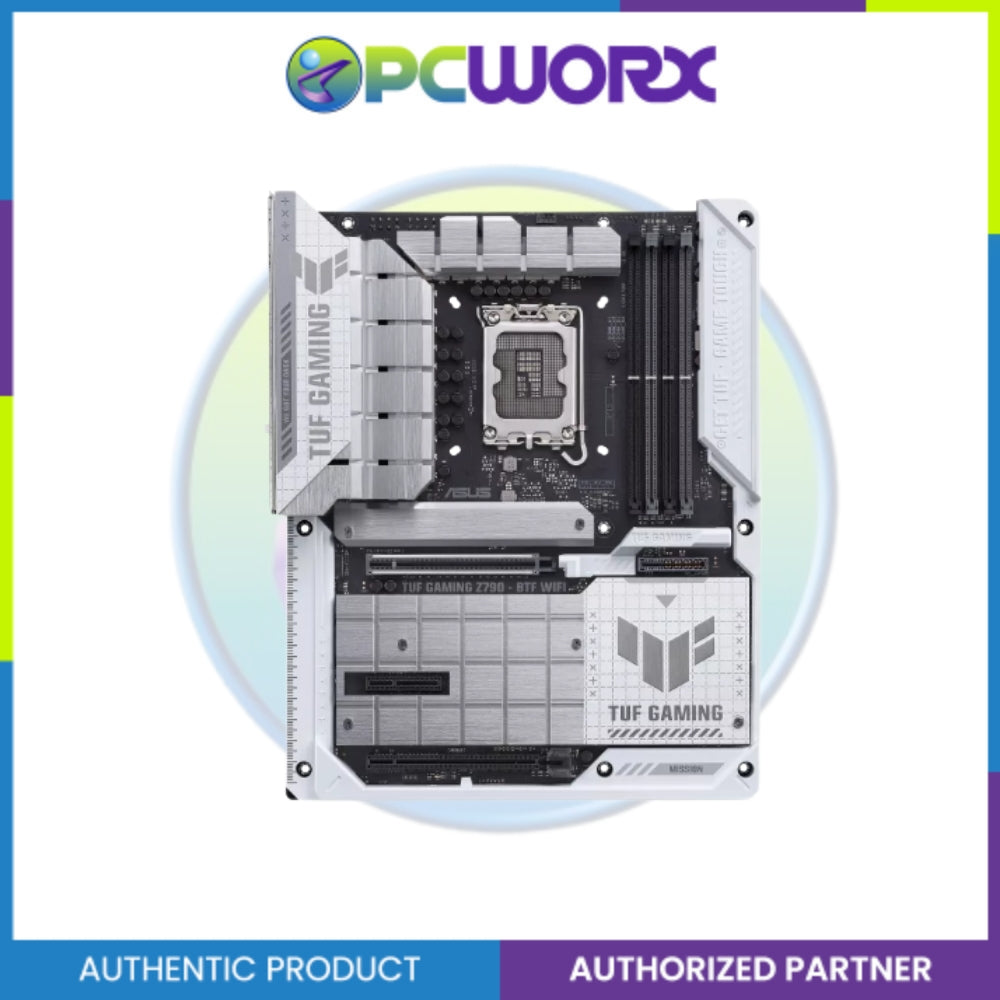

Asus TUF GAMING Z790-BTF WIFI DDR5 LGA1700 ATX Mobo

Asus TUF GAMING Z790-BTF WIFI DDR5 LGA1700 ATX Mobo

(0)

SKU: 0000068770

₱13,800.00

Out of stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 05 and June 07.

In stock and ready to ship

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm

Asus TUF GAMING Z790-BTF WIFI DDR5 LGA1700 ATX Mobo

₱13,800.00

Authorized Seller

100% Original Authentic Product

Intel^® Z790 (LGA1700) ATX Gaming motherboard, 16+1+1 power stages, PCIe^® 5.0, DDR5 memory, four M.2 slots, WiFi 7 and Intel 2.5 Gb Ethernet, HDMI™, DisplayPort™, front USB 10Gbps, SATA 6 Gbps, Thunderbolt™ 4 header and Aura Sync RGB lighting

Intel^® LGA 1700 Socket: Ready for Intel^® Core™ 14^th & 13^th Gen Intel^® Core™ processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors
Premium Power Solution: 16+1+1 power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power deliver
Hidden Connector Design: Delivers an unprecedented level of cable management to PC DIY enthusiasts
Graphics Card High-Power Slot: Compatible with the PCIe high-power connector on the graphics card, delivering up to 600 watts through the motherboard
Exclusive AI & Memory Technology: AI Cooling II, Two-Way AI Noise Cancelation and ASUS Enhanced Memory Profile II
PC DIY Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED, Q-Antenna and SafeSlot
Next-Gen Connectivity: PCIe^® 5.0, USB 20Gbps, front USB 10Gbps and Thunderbolt™ 4 header
Made for Online Gaming: WiFi 7 with white ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet with TUF LANGuard
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive Cooling: Enlarged M.2 and VRM heatsinks, hybrid fan headers and the Fan Xpert 4 utility in Armoury Crate
Aura Sync RGB Effects: Addressable RGB headers and RGB strip header support.

TUF GAMING Z790-BTF WIFI

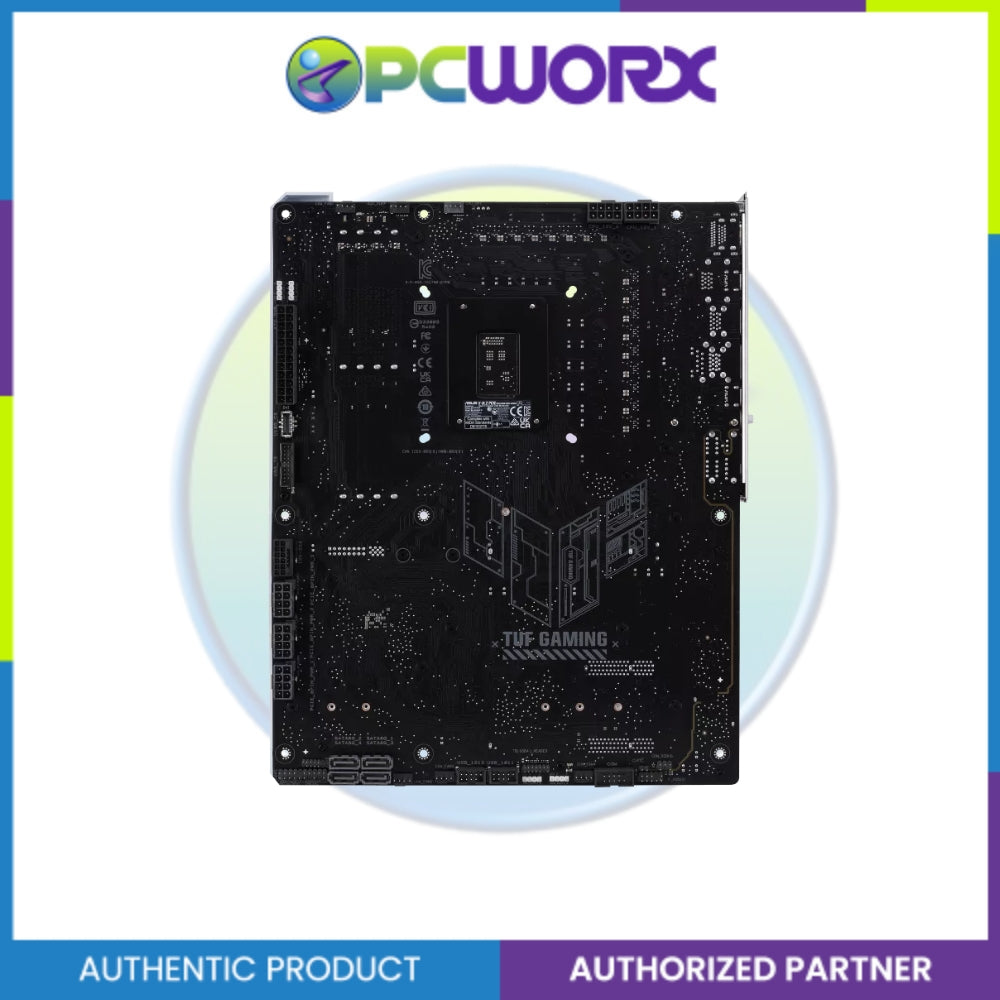

TUF GAMING Z790-BTF WIFI takes all the essential elements of the latest Intel^® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance.

SPECIFICATIONS

Model	TUF GAMING Z790-BTF WIFI
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
	Refer to www.asus.com for CPU support list.
	Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z790 Chipset
Memory	4 x DIMM slots, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports Intel® Extreme Memory Profile (XMP) memory module
	ASUS Enhanced Memory Profile II (AEMP II)

Graphics	1 x DisplayPort
	1 x HDMI™ port
	Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	Supports 4K@60Hz as specified in HDMI 2.1.
	VGA resolution support depends on processors' or graphic cards' resolution.
	VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel® Core™ Processors (14th & 13th & 12th Gen)*
	1 x PCIe 5.0 x16 slot
	Intel® Z790 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x4 slot
	* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
	- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel® Core™ Processors (14th & 13th & 12th Gen)*
	M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
	Intel® Z790 Chipset
	M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet	VGA resolution support depends on processors' or graphic cards' resolution.
	TUF LANGuard
Wireless & Bluetooth	Intel® Wi-Fi 7
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band
	Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
	Bluetooth® v5.4
	Compatible with Windows 11 or later.
	Wi-Fi 7 MLO (Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
	Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 8 ports)
	1 x USB 20Gbps port (1 x USB Type-C®)
	3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
	4 x USB 5Gbps ports (4 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 10Gbps connector (supports USB Type-C®)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
	Impedance sense for front and rear headphone outputs
	Internal audio Amplifier To enhance the highest quality sound for headphone and speakers
	Supports: Jack-detection, Multi-streaming, front Panel Jack-retasking
	High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	Supports up to 32-Bit/192 kHz playback*
Audio Features	audio Shielding
	rear optical S/PDIF out port
	Dedicated audio PCB layers
	audio Cover
	Unique de-pop circuit
	Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

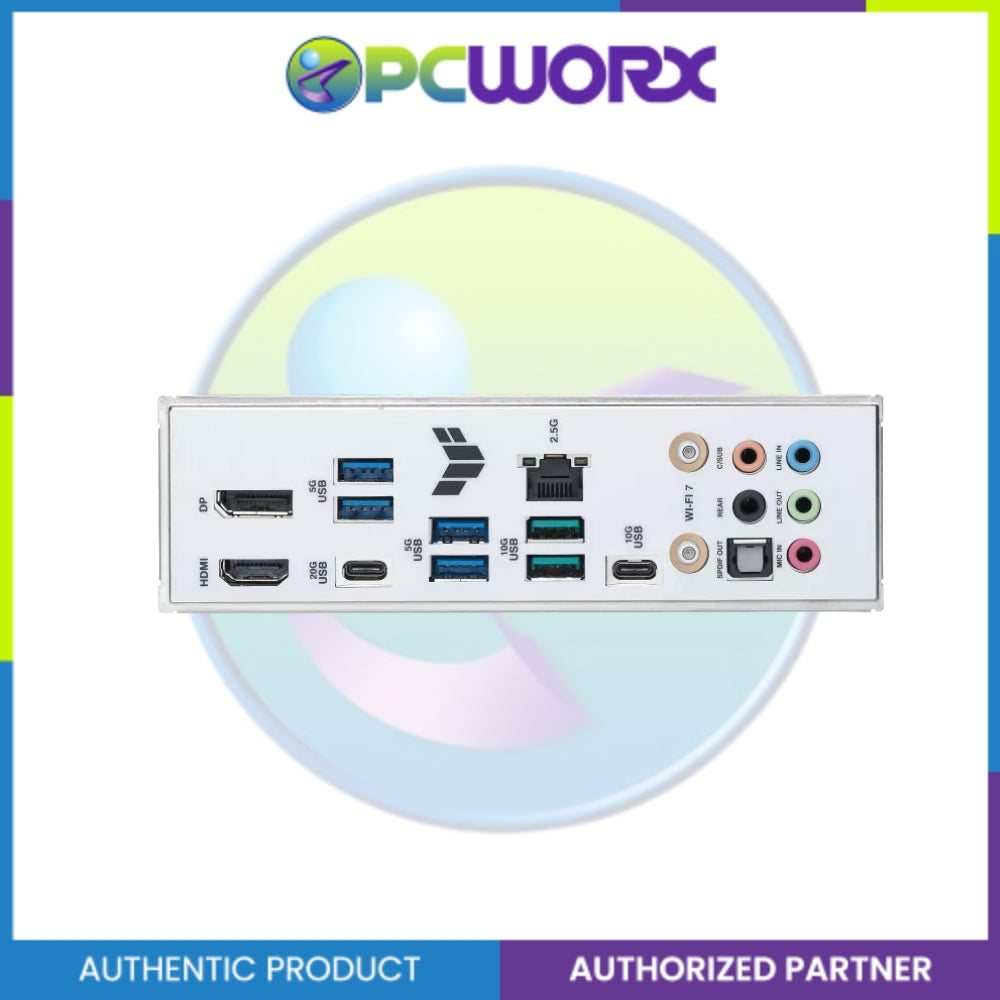

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C®)
	3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
	4 x USB 5Gbps ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI™ port
	1 x Wi-Fi module
	1 x Intel® 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
Power Related	1 x 24-pin Main Power connector
	2 x 8-pin +12V Power connectors
	1 x Graphics Card High-Power slot
	1 x 12V-2X6 Auxiliary Power connector
	3 x 8-pin PCIe Power connectors
Storage Related	4 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
USB	1 x USB 10Gbps connector (supports USB Type-C®)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous	3 x Addressable Gen 2 headers
	1 x Aura RGB header
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x 20-3 pin System Panel header with chassis intrusion function
	1 x Thunderbolt™ (USB4®) header
ASUS TUF PROTECTION	- DIGI+ VRM (- Digital power design with DrMOS)
	ESD Guards
	TUF LANGuard
	Overvoltage protection
	SafeSlot
