Description
Product Description:

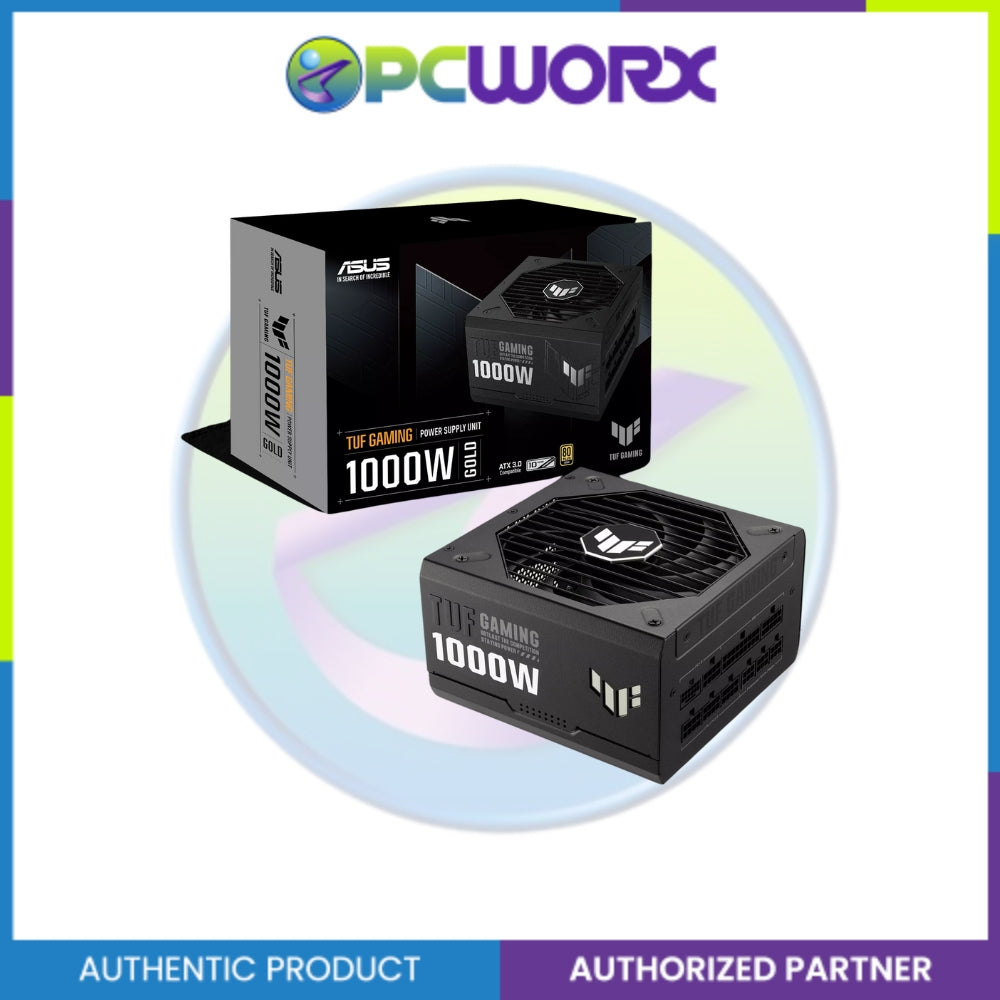

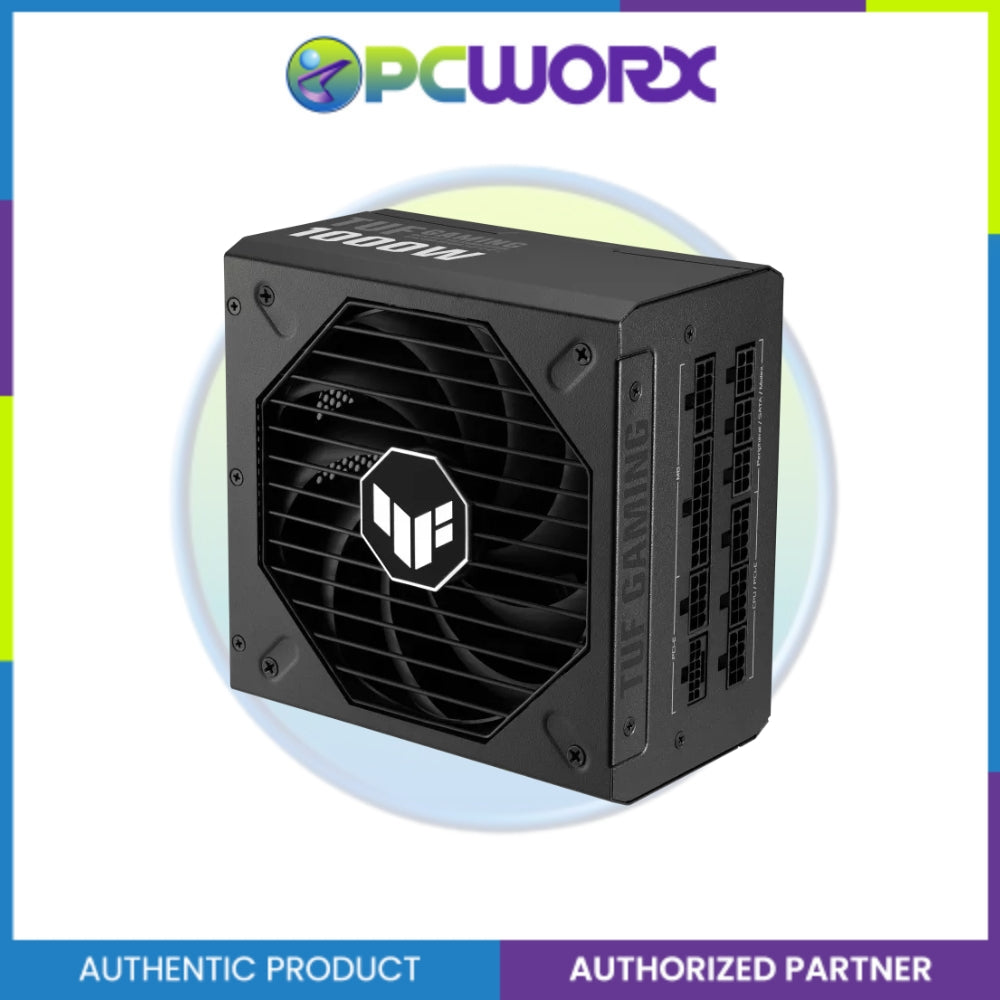

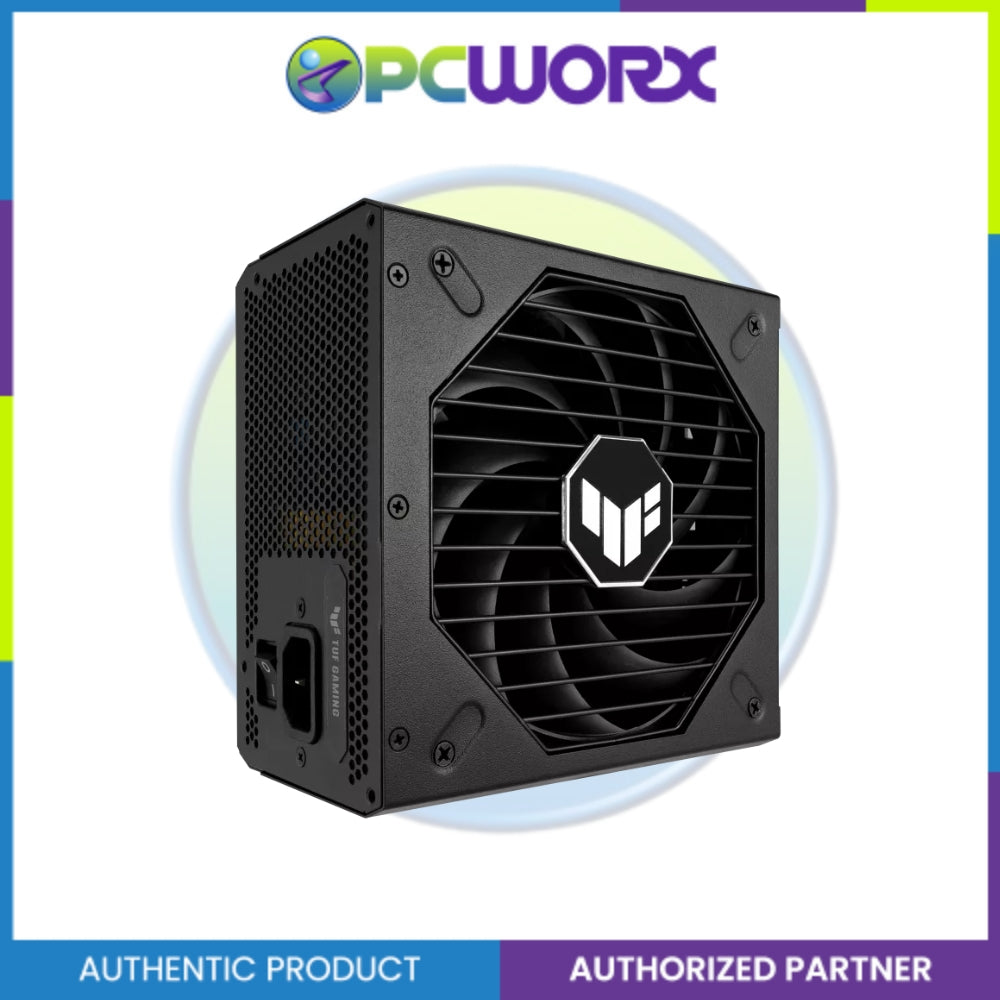

Product Name: ASUS TUF Gaming 1000W 80+ Gold ATX Fully Modular PSU (TUF Gaming 1000W)
Key Feature
• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• A protective PCB coating protects against moisture, dust, and extreme temperatures.
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• Fully modular etched cables keep your rig neat and tidy.
Cable Connectors:
• MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1 (both PSU & component side)
• PCI-E 8-pin x 4
• SATA x 5
• PERIPHERAL x 4
Package Contents:
• Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (650mm)
• PCI-E Gen 5 16-pin Cable x 1 (675mm)
• PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
• PCI-E 1-to-1 Cable x 2 (675mm)
• SATA 1-to-2 Cable x 1 (400+120mm)
• SATA 1-to-3 Cable x 1 (400+120+120mm)
• Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
• TUF Gaming Cable Tie x 3
• User Manual x 1
Specifications:
| Model: |
TUF Gaming 1000W Gold |
| Intel Form Factor:
|
ATX12V |
| PFC Type:
|
Active PFC |
| ATX 3.0:
|
Yes |
| Dimensions: |
150 x 150 x 86 mm |
| Efficiency:
|
80Plus Gold |
| Protection Features:
|
OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials: |
ROHS |
|
AC Input Range:
|
100-240Vac |
| DC Output Voltage:
|
+3.3V +5V +12V -12V +5Vsb |
|
Maximum Load:
|
25A25A83.3A 0.8A 3A |
|
Combined Load:
|
130W 1000W 9.6W 15W |
| Total Output:
|
1000W |
| Weight:
|
2.48kg (single PSU) |
