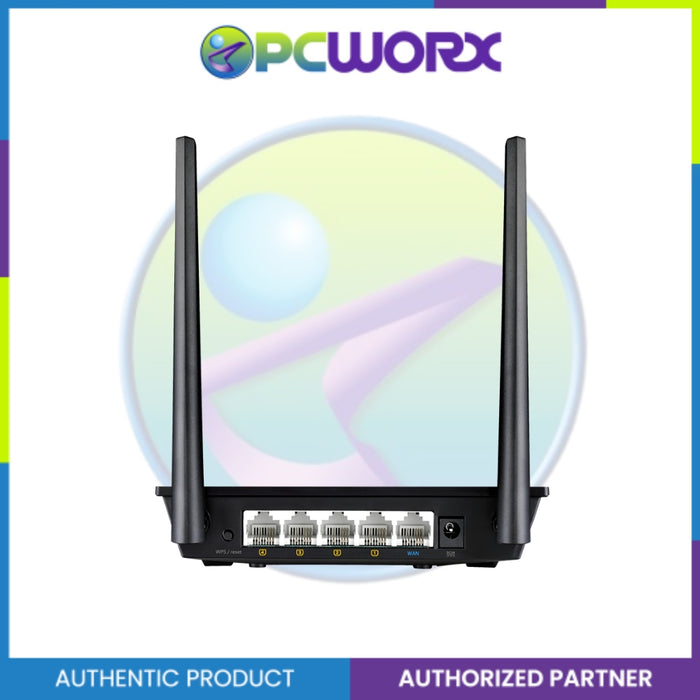

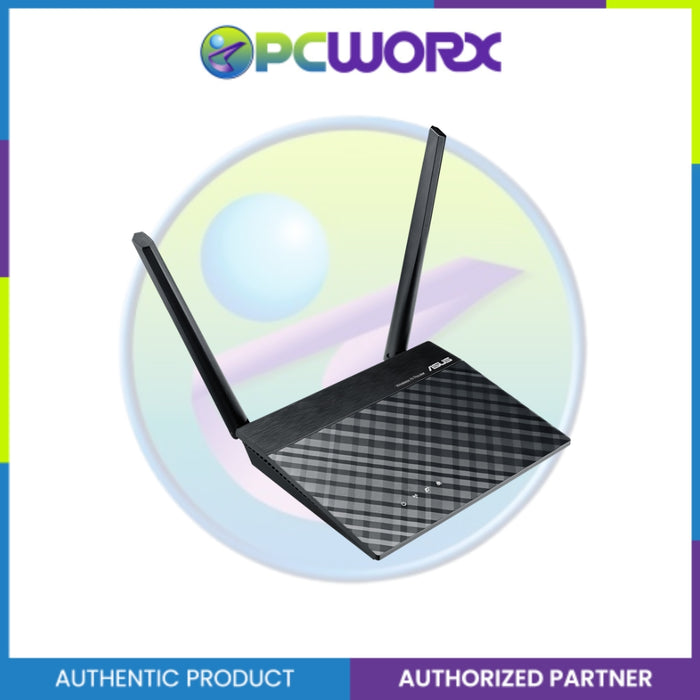

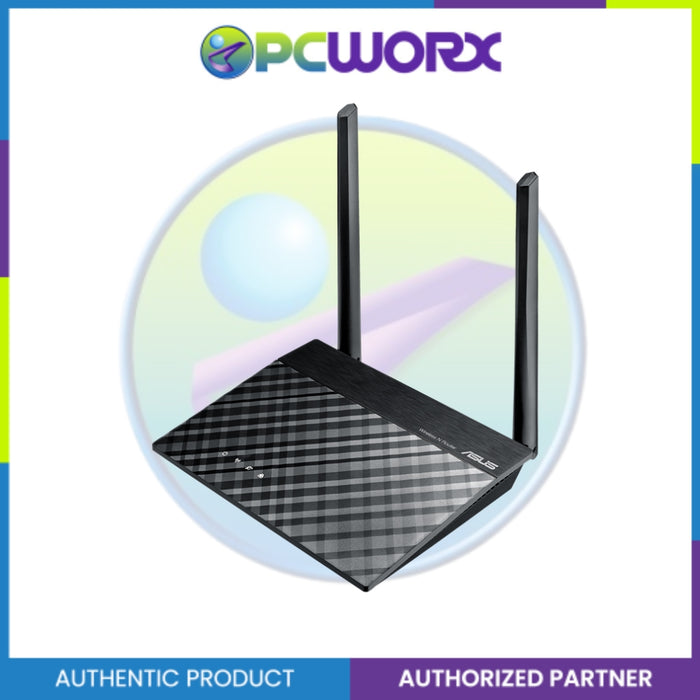

Asus RT-N12+ 300MBPS 5DBI WL Router

Save ₱304.80 Save ₱304.80
Original price ₱1,191.80
Original price ₱1,191.80 - Original price ₱1,191.80
Original price ₱1,191.80
Current price ₱887.00
₱887.00 - ₱887.00
Current price ₱887.00
Model
RT-N12+ B1
Network Standard
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
IPv4
IPv6
WiFi Data Rate
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
Antenna
Fixed antenna x 2
Transmit / Receive
MIMO technology
2.4GHz 2x2
Memory
8 MB Flash, 32 MB RAM
Operating Frequency
2.4G Hz
Operating Mode
Accesspoint, Router
I/O Ports
RJ45 for 10/100 BaseT for WAN x 1, RJ45 for 10/100 BaseT for LAN x 4
Buttons
WPS Button, Reset Button
LED Indicator
Power x 1
Wi-Fi x 1
WAN x 1
LAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current
Package Content
RT-N12+ B1 Router x 1
Warranty Card x 1
Power Supply x 1
*Package content varies according to local requirements of each country
Product Weight (g)
168.9 g
Product Dimensions
146 x 111 x 28 ~ mm (WxDxH)
Parental Control
"Allow you to block access to unwanted websites and apps."
Customized Internet Schedule
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2-Personal
Security
Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
WPS
SSH
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
VPN
VPN Client L2TP
VPN Client PPTP
VPN Server PPTP
Traffic Control
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
RADIUS Client
USB application
File System : No
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
