₱3,082.00

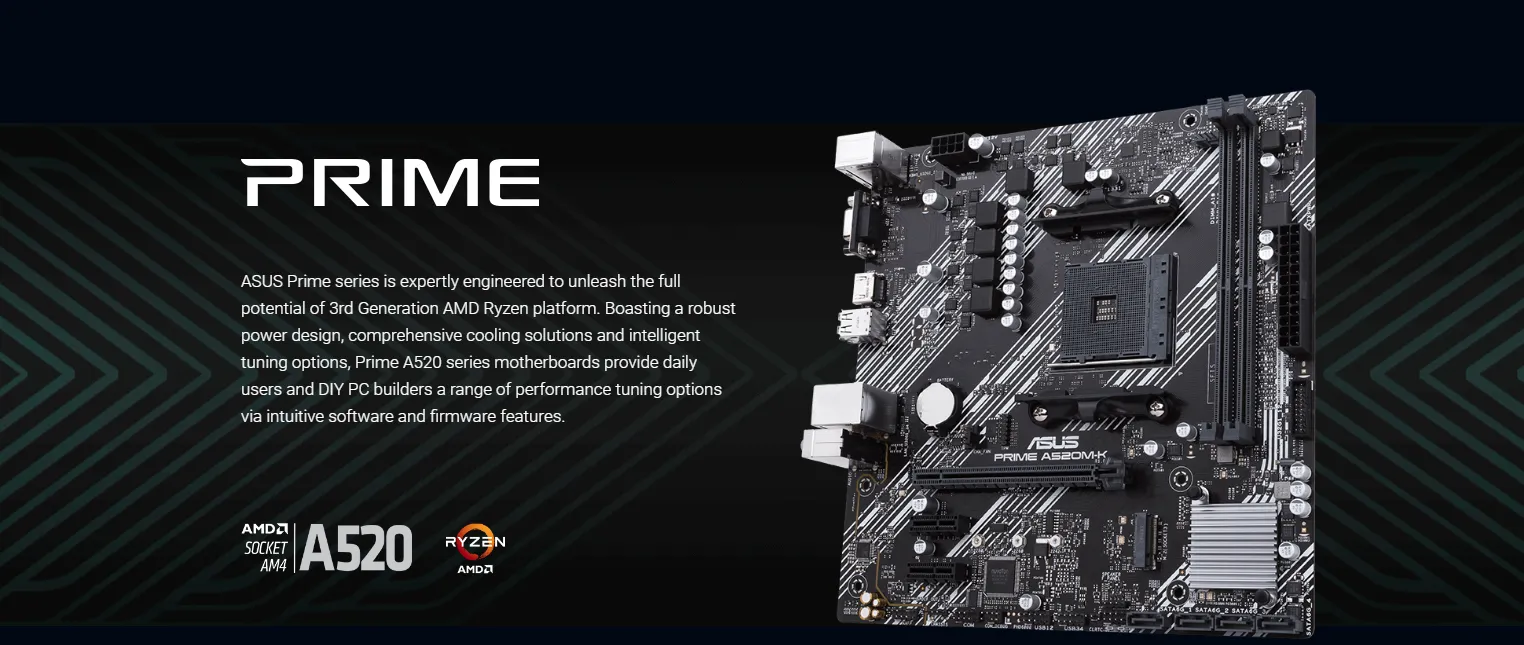

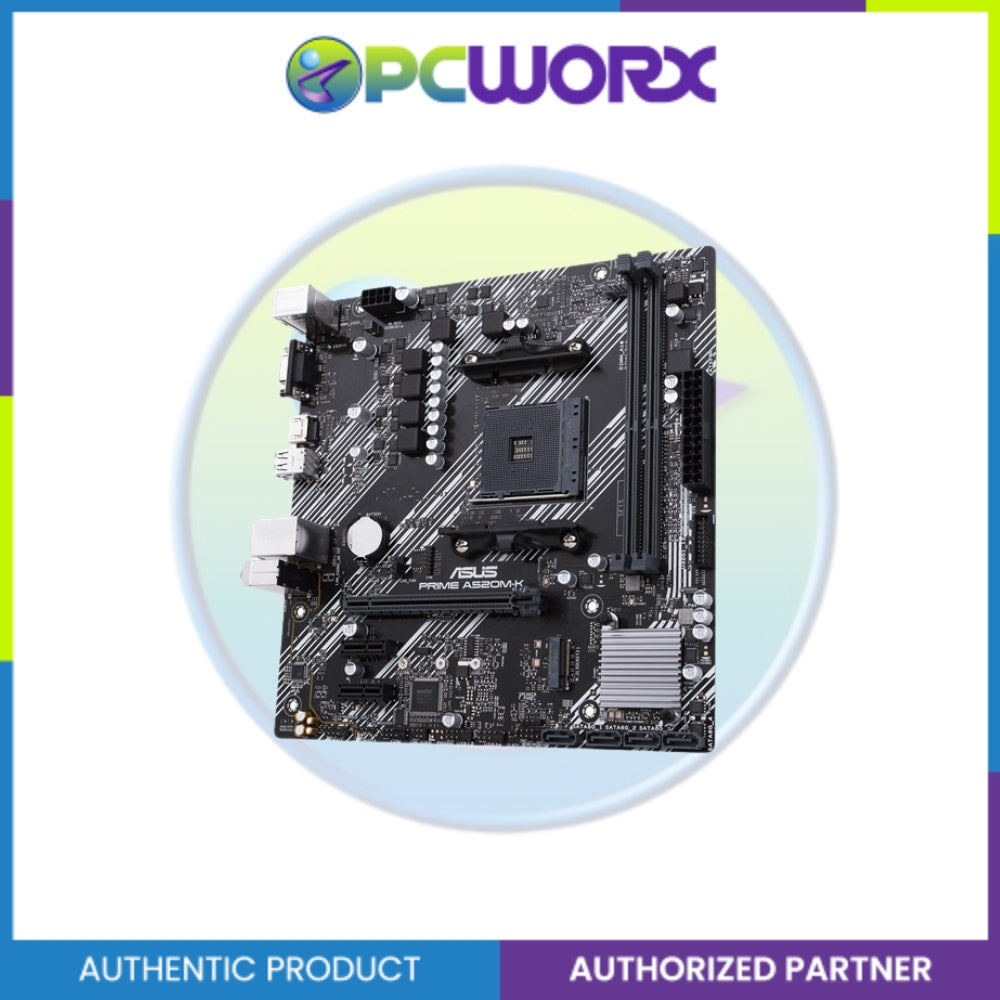

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
| Category | Specification |
|---|---|

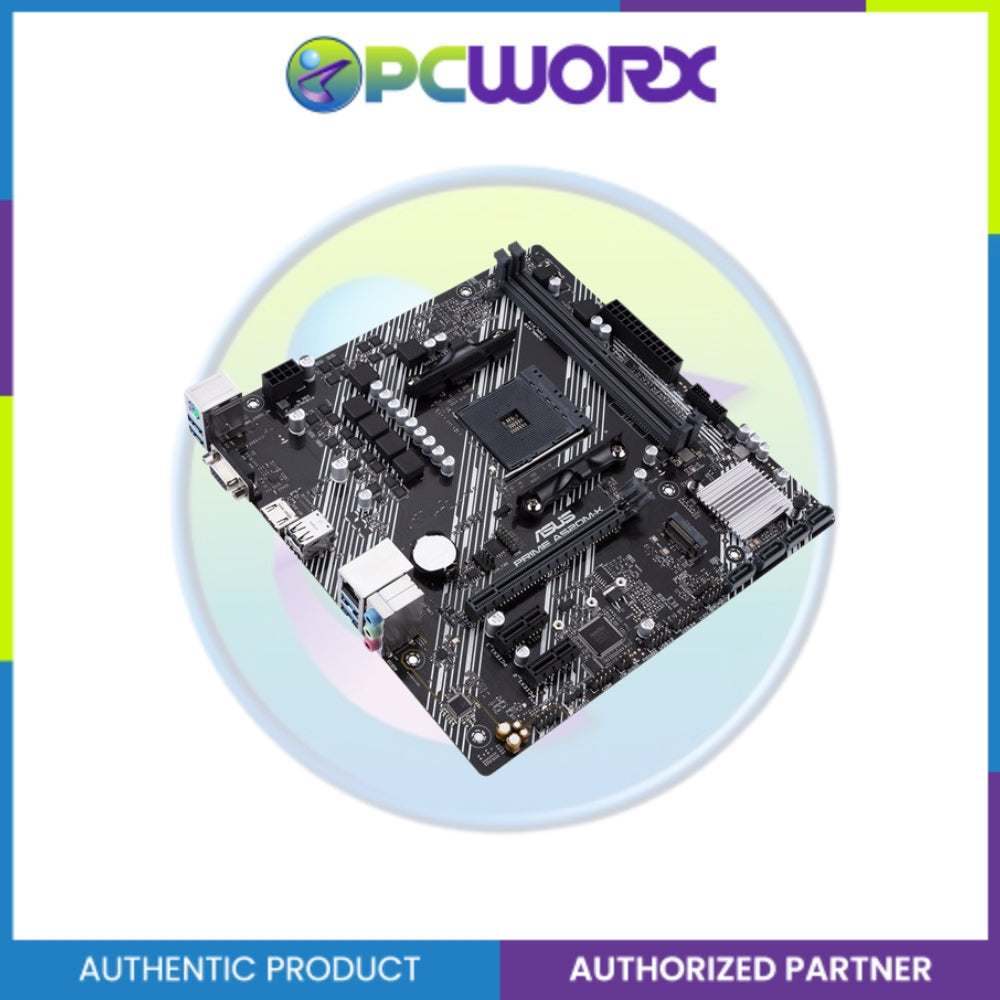

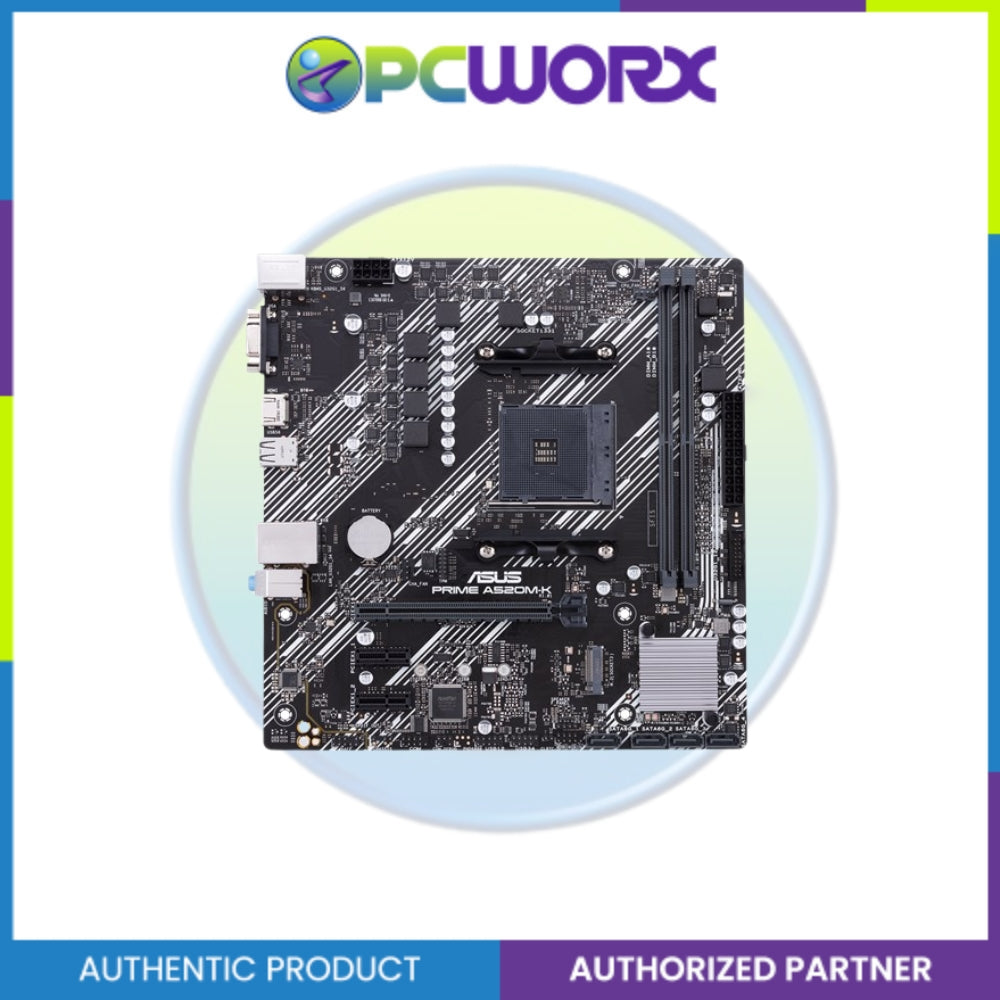

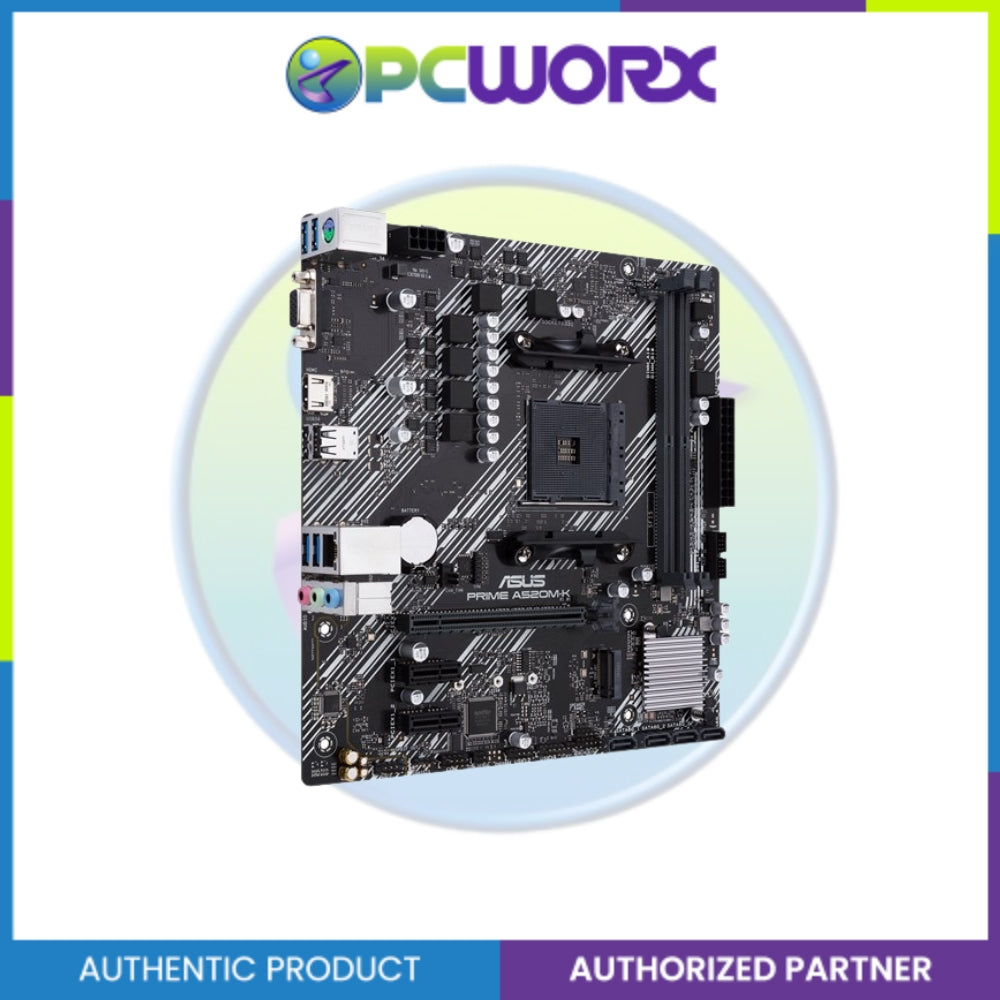

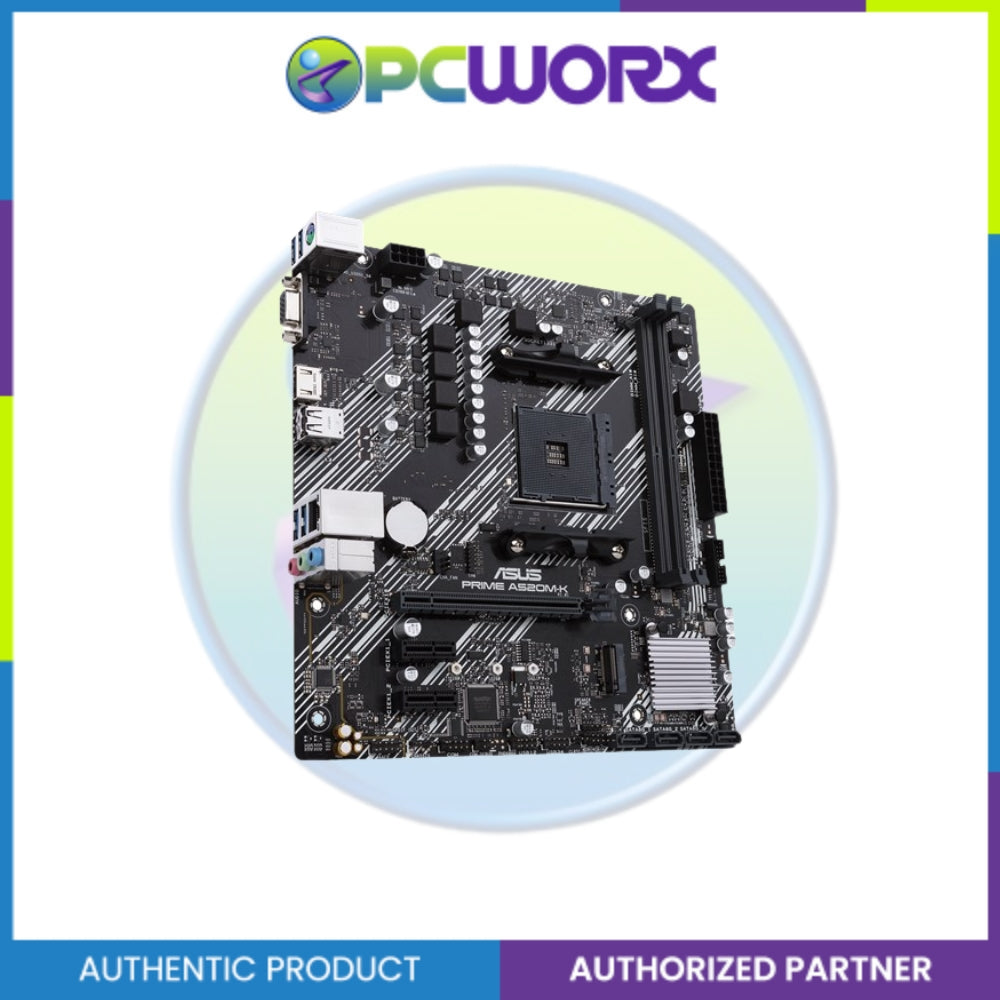

| Model | ASUS PRIME A520M-K |
| Chipset | AMD A520 |
| CPU Socket | AM4 (Supports AMD Ryzen™ 5000/5000 G-Series/4000 G-Series/3000/3000 G-Series Desktop Processors) |
| Form Factor | Micro-ATX (8.9" x 8.7" / 22.6cm x 22.1cm) |
| Memory | 2 × DIMM slots, Max 64GB, DDR4 up to 4866(O.C) MHz, Dual Channel, ECC support (varies by CPU) |
| Graphics Output | 1 × D-Sub, 1 × HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 1 × PCIe 3.0 x16 (x16 mode), 2 × PCIe 3.0 x1 |

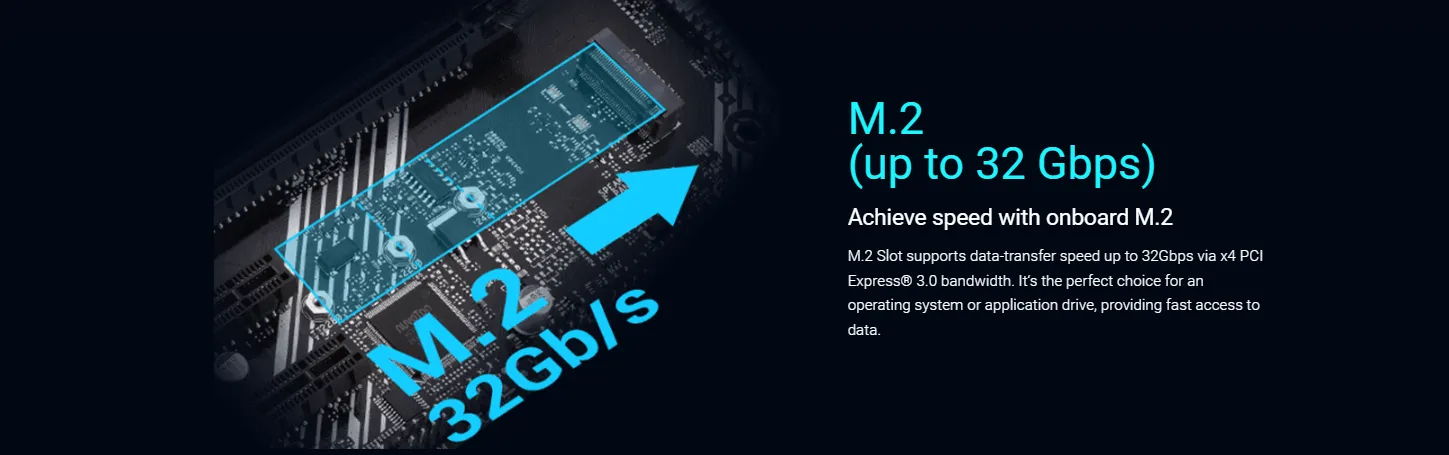

| Storage | 1 × M.2 Socket 3 (PCIe 3.0 x4 / SATA), 4 × SATA 6Gb/s ports, RAID 0/1/10 support |
| LAN | Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard |
| Audio | Realtek ALC887/897 7.1 HD Audio, Audio Shielding, Dedicated audio PCB layers |
| Rear USB Ports | 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A |
| Front USB Ports | 2 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0 Type-A |

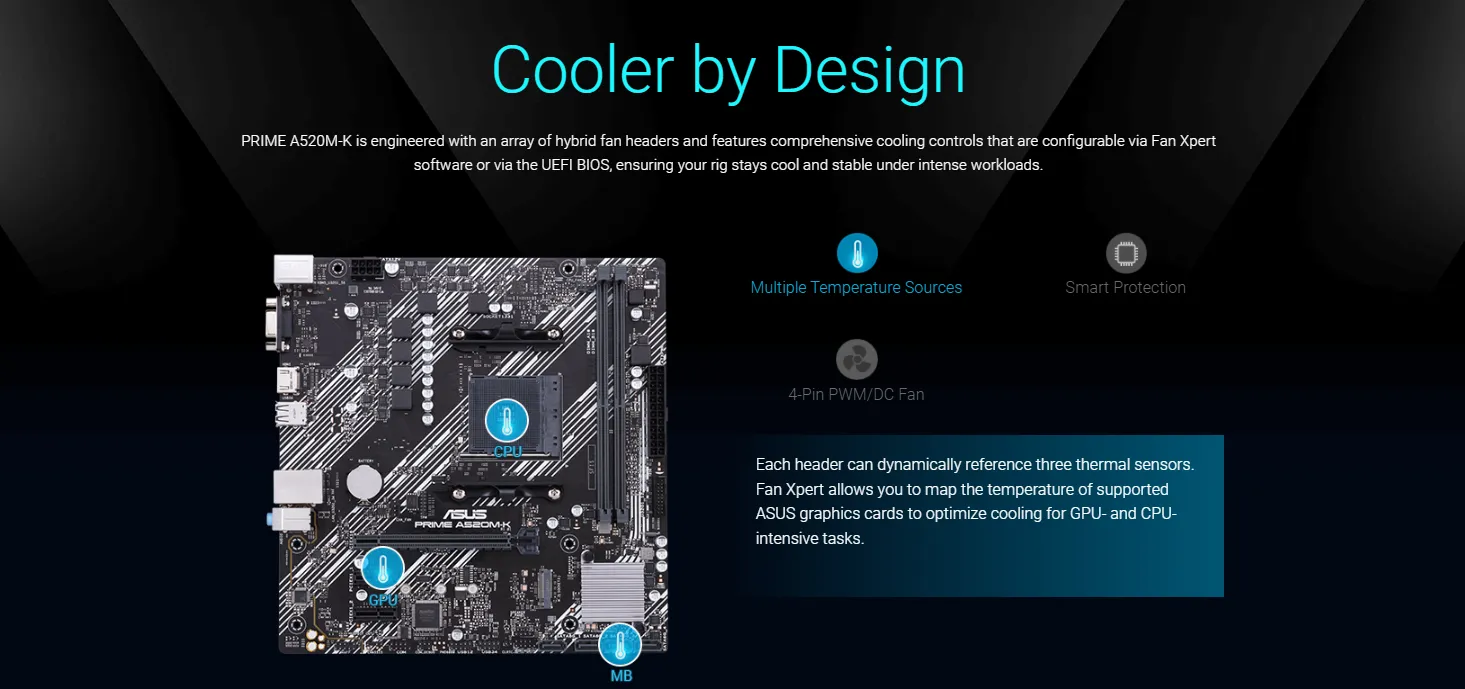

| Internal I/O Ports | CPU Fan connector, Chassis Fan connector, USB 3.2 Gen 1 and USB 2.0 headers, M.2 Socket 3, SPI TPM header, SATA connectors, S/PDIF out, 24-pin EATX power, 8-pin 12V power, Front Panel Audio, Clear CMOS jumper, System panel connector, COM port header, Speaker connector |

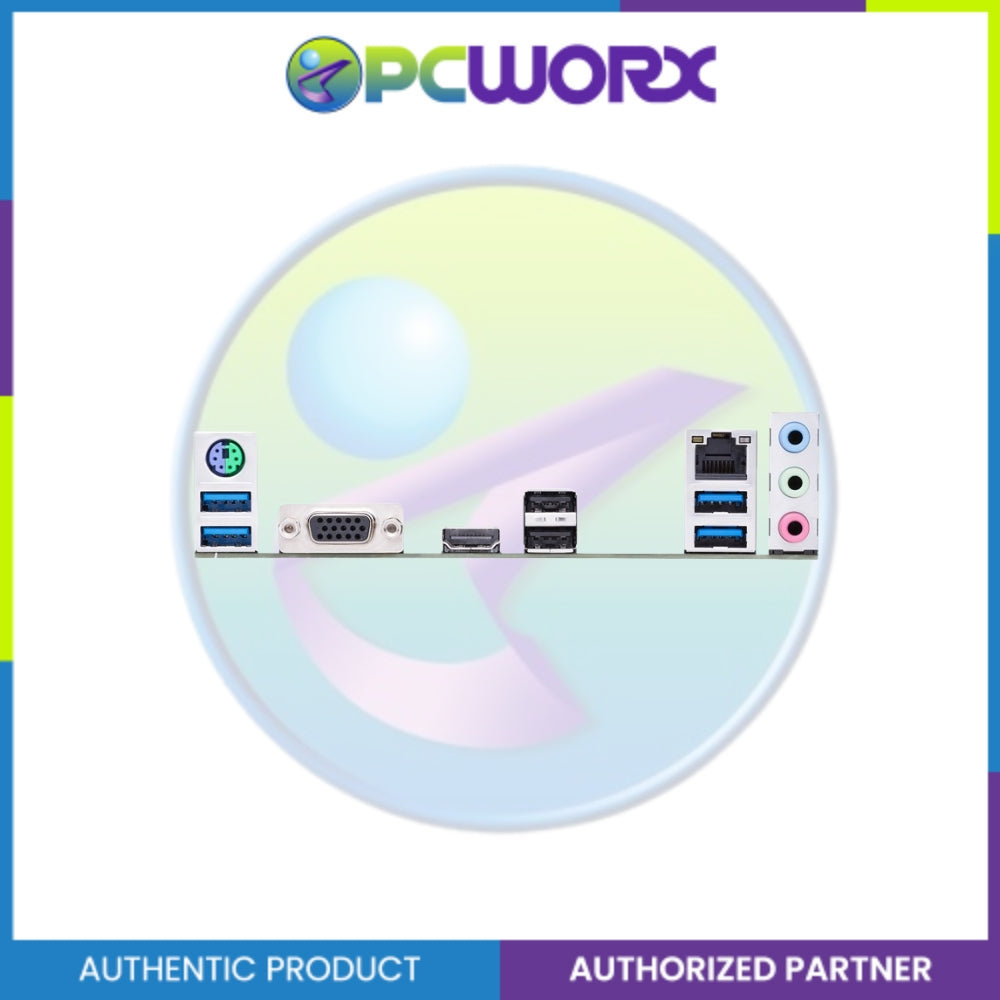

| Back I/O Ports | PS/2 keyboard/mouse combo, D-Sub, HDMI, LAN (RJ45), 4 × USB 3.2 Gen 1, 2 × USB 2.0, 3 × Audio jacks |

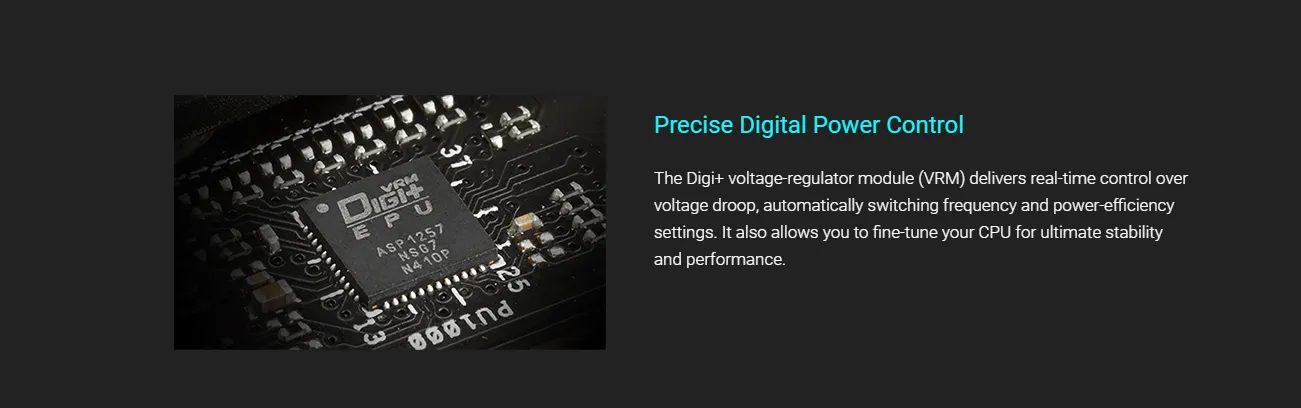

| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-Slot), Aluminum Heatsink |
| Software Features | Armoury Crate, AI Suite 3, TurboV EVO, EPU, Digi+ VRM, Fan Xpert, EZ Update, ASUS CPU-Z, AI Charger, DAEMON Tools, Norton Antivirus Trial, WinRAR |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode |

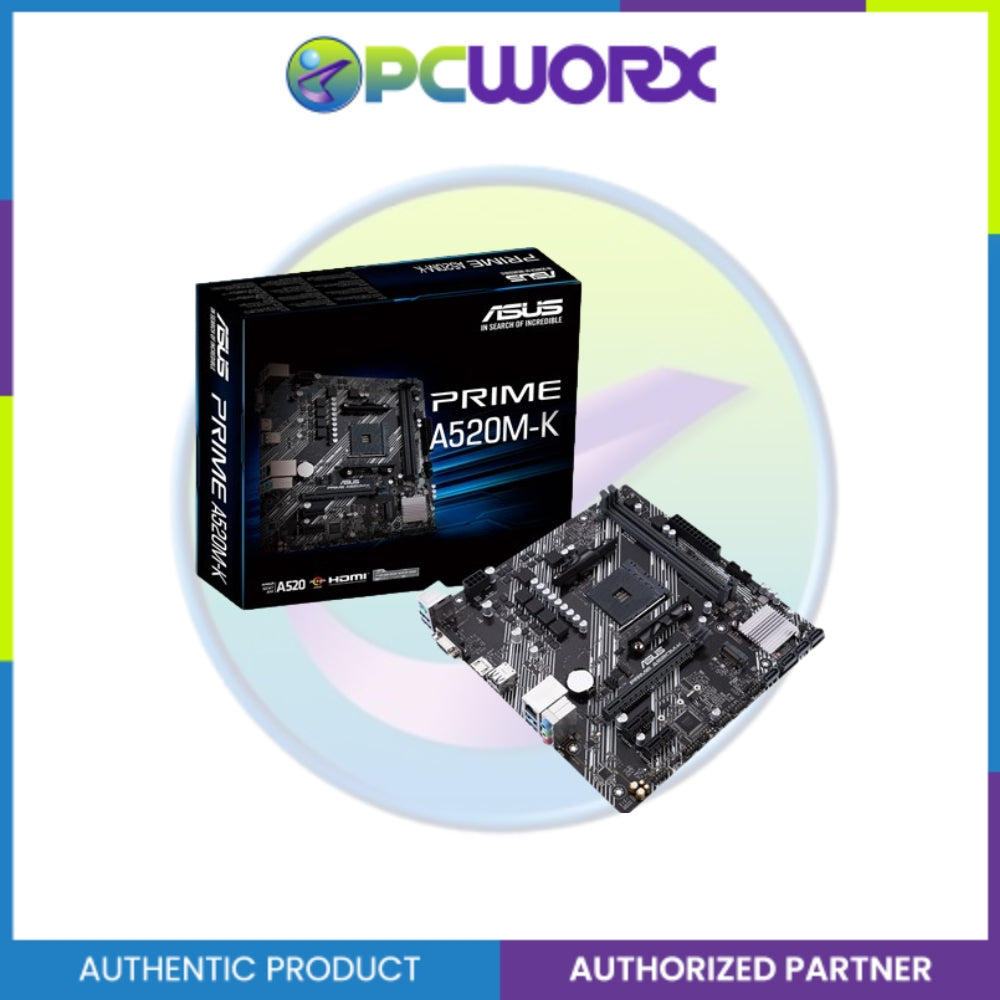

| Accessories | User manual, I/O shield, 2 × SATA cables, Supporting DVD, M.2 SSD screw pack |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
₱3,082.00
Estimated delivery between May 06 and May 08.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱3,082.00
₱3,082.00
Authorized Seller
100% Original Authentic Product
ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
| Category | Specification |
|---|---|
| Model | ASUS PRIME A520M-K |
| Chipset | AMD A520 |
| CPU Socket | AM4 (Supports AMD Ryzen™ 5000/5000 G-Series/4000 G-Series/3000/3000 G-Series Desktop Processors) |
| Form Factor | Micro-ATX (8.9" x 8.7" / 22.6cm x 22.1cm) |
| Memory | 2 × DIMM slots, Max 64GB, DDR4 up to 4866(O.C) MHz, Dual Channel, ECC support (varies by CPU) |
| Graphics Output | 1 × D-Sub, 1 × HDMI 2.1 (4K@60Hz) |
| Expansion Slots | 1 × PCIe 3.0 x16 (x16 mode), 2 × PCIe 3.0 x1 |
| Storage | 1 × M.2 Socket 3 (PCIe 3.0 x4 / SATA), 4 × SATA 6Gb/s ports, RAID 0/1/10 support |
| LAN | Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard |
| Audio | Realtek ALC887/897 7.1 HD Audio, Audio Shielding, Dedicated audio PCB layers |
| Rear USB Ports | 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A |
| Front USB Ports | 2 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0 Type-A |
| Internal I/O Ports | CPU Fan connector, Chassis Fan connector, USB 3.2 Gen 1 and USB 2.0 headers, M.2 Socket 3, SPI TPM header, SATA connectors, S/PDIF out, 24-pin EATX power, 8-pin 12V power, Front Panel Audio, Clear CMOS jumper, System panel connector, COM port header, Speaker connector |
| Back I/O Ports | PS/2 keyboard/mouse combo, D-Sub, HDMI, LAN (RJ45), 4 × USB 3.2 Gen 1, 2 × USB 2.0, 3 × Audio jacks |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-Slot), Aluminum Heatsink |
| Software Features | Armoury Crate, AI Suite 3, TurboV EVO, EPU, Digi+ VRM, Fan Xpert, EZ Update, ASUS CPU-Z, AI Charger, DAEMON Tools, Norton Antivirus Trial, WinRAR |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode |
| Accessories | User manual, I/O shield, 2 × SATA cables, Supporting DVD, M.2 SSD screw pack |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
