Description
Sleek and portable design
ASUS ZenScreen™ MB166B is ideal for life on the road. This sleek portable display weighs just 0.78kg and has an 11.8 mm slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.
One cable is all you need
ZenScreen™ MB166B portable USB-powered monitor needs just one USB cable for both its video signal* and power, to be fully compatible with almost any laptop.
Work in comfort

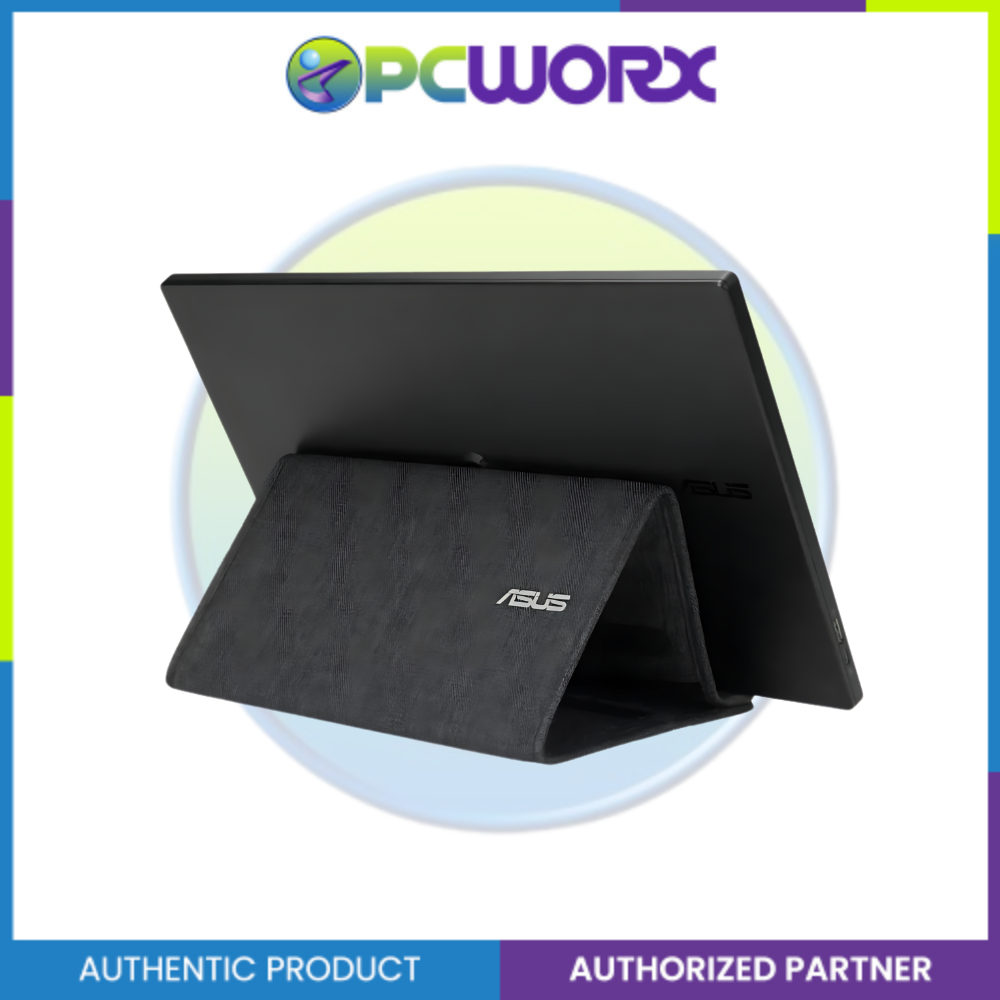

A ¼”-threaded hole at the rear of the monitor lets you to attach ZenScreen MB166B to a conventional tripod* or table-mount easily.

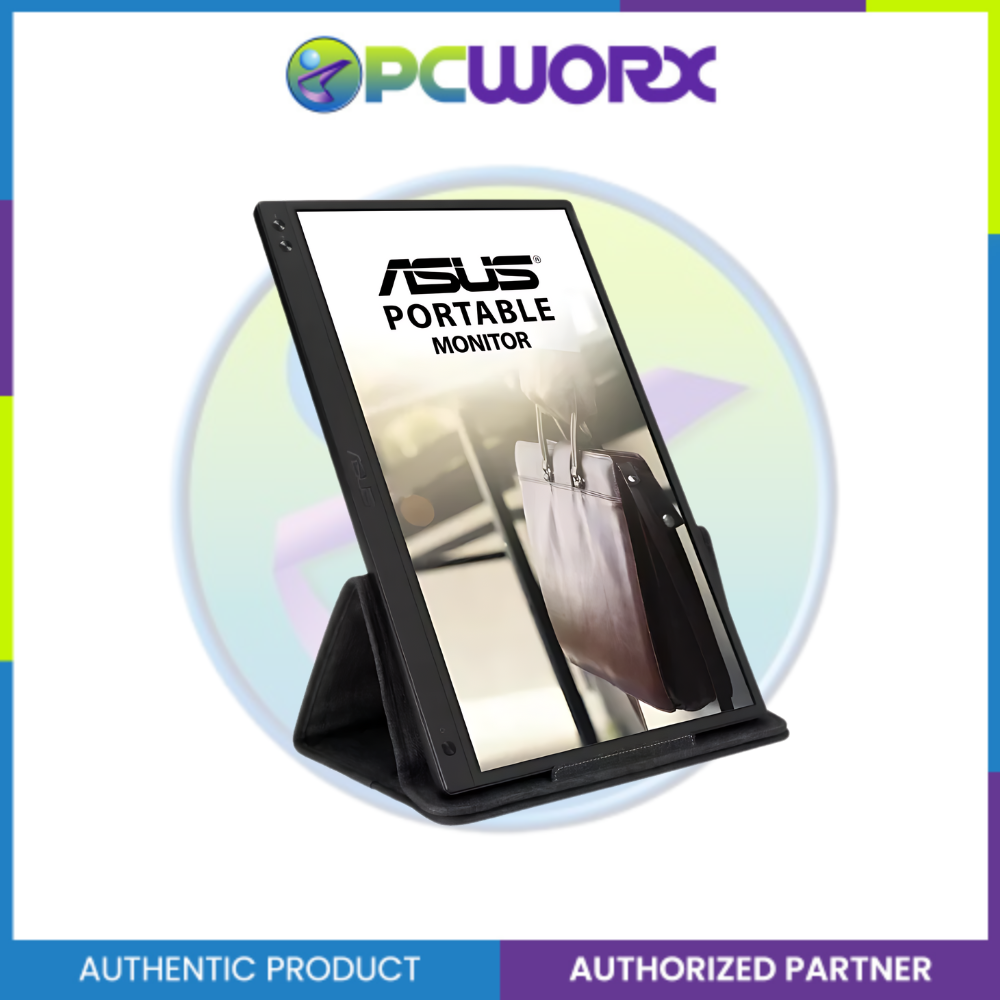

Work efficiently in portrait and landscape modes
With ASUS DisplayWidget software*, ZenScreen MB166B can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your laptop. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
Extend your workspace
The FHD (1920 x 1080) IPS panel delivers stunning visuals and 178° viewing angles, ensuring you get superb color and contrast even when viewing the screen from off-center positions.
SPECIFICATIONS
| MODEL |
ZenScreen MB166B |
| DISPLAY
|
Panel Size (inch): 15.6
Aspect Ratio: 16:9
Display Viewing Area (H x V) : 344.16*193.59mm
Display Surface: Anti-Glare
Backlight Type: LED
Panel Type: IPS
Viewing Angle (CR≧10, H/V): 178°/ 178°
Pixel Pitch: 0.179mm
Resolution: 1920x1080
Brightness (Typ.): 250cd/㎡
Contrast Ratio (Typ.): 1000:1
Display Colors: 262K
Response Time: 25ms (Tr+Tf)
Refresh Rate (Max): 60Hz
|
| AUDIO
|
Speaker: No |
| I/O PORTS |
USB 3.2 (Signal): x 1 |
| SIGNAL FREQUENCY |
Digital Signal Frequency: USB: 60Hz |
| POWER CONSUMPTION |
Power Consumption: 5 W
Power Saving Mode: <0.5W
Power Off Mode: <0.3W
Voltage: DC: 5V, 3A
|
| MECHANICAL DESIGN |
Height Adjustment: No
1/4" Tripod Socket: Yes
|
| DIMENSIONS
|
Phys. Dimension without Stand (W x H x D): 36.01 x 22.56 x 1.18 cm (14.18" x 8.88" x 0.46")
Box Dimension (W x H x D): 43.40 x 29.00 x 7.60 cm (17.09" x 11.42" x 2.99")
|
| WEIGHT
|
Net Weight without Stand: 0.78 kg (1.72 lbs)
Gross Weight: 1.65 kg (3.64 lbs)
|
| ACCESSORIES |
Quick start guide
USB 3.2 cable
Warranty Card
ZenScreen sleeve
|
