| Part No |
90NR0JU7-M00350 |
| Model Name |
FA506NFR-HN005W |
| EAN Code |
4711387656792 |
| UPC Code |
197105656796 |
| WEEE |
2.33 |
| BASE UNIT |
VSNR0JU7-BU1000 |
| |
|
| Marketing Name |

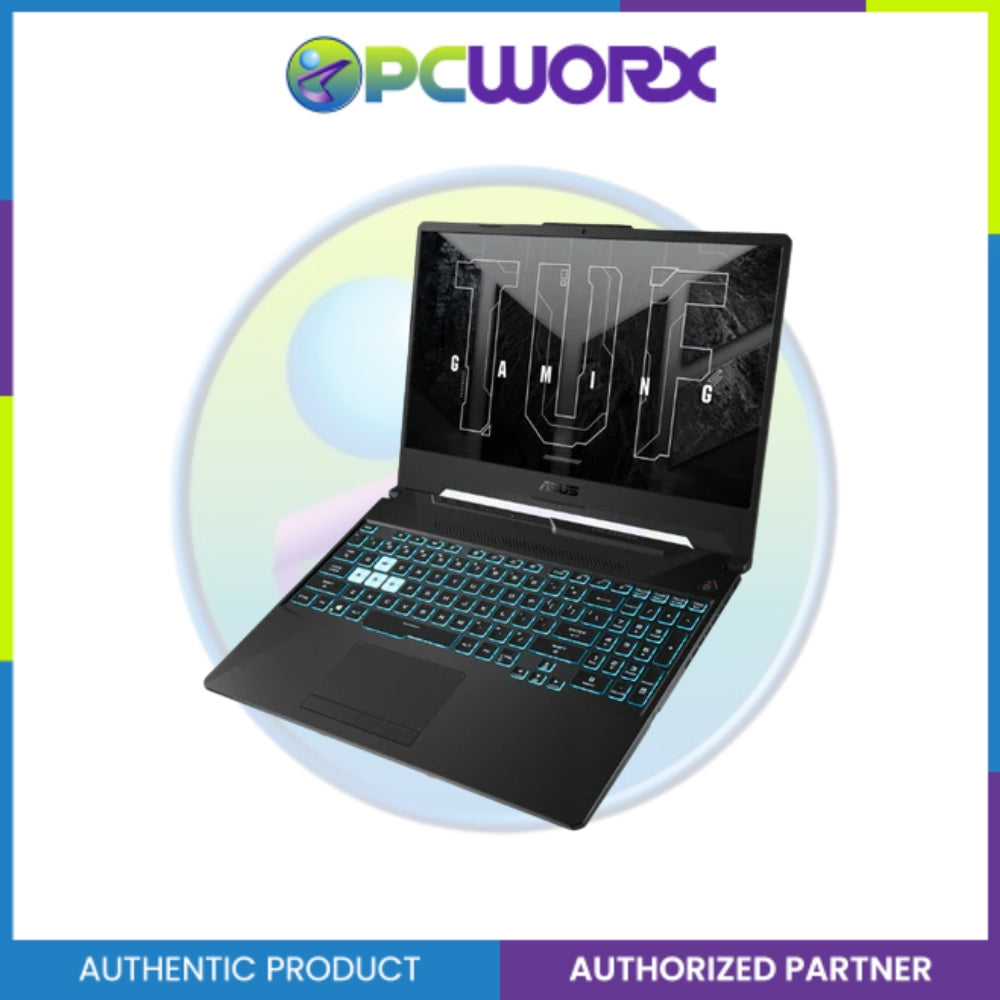

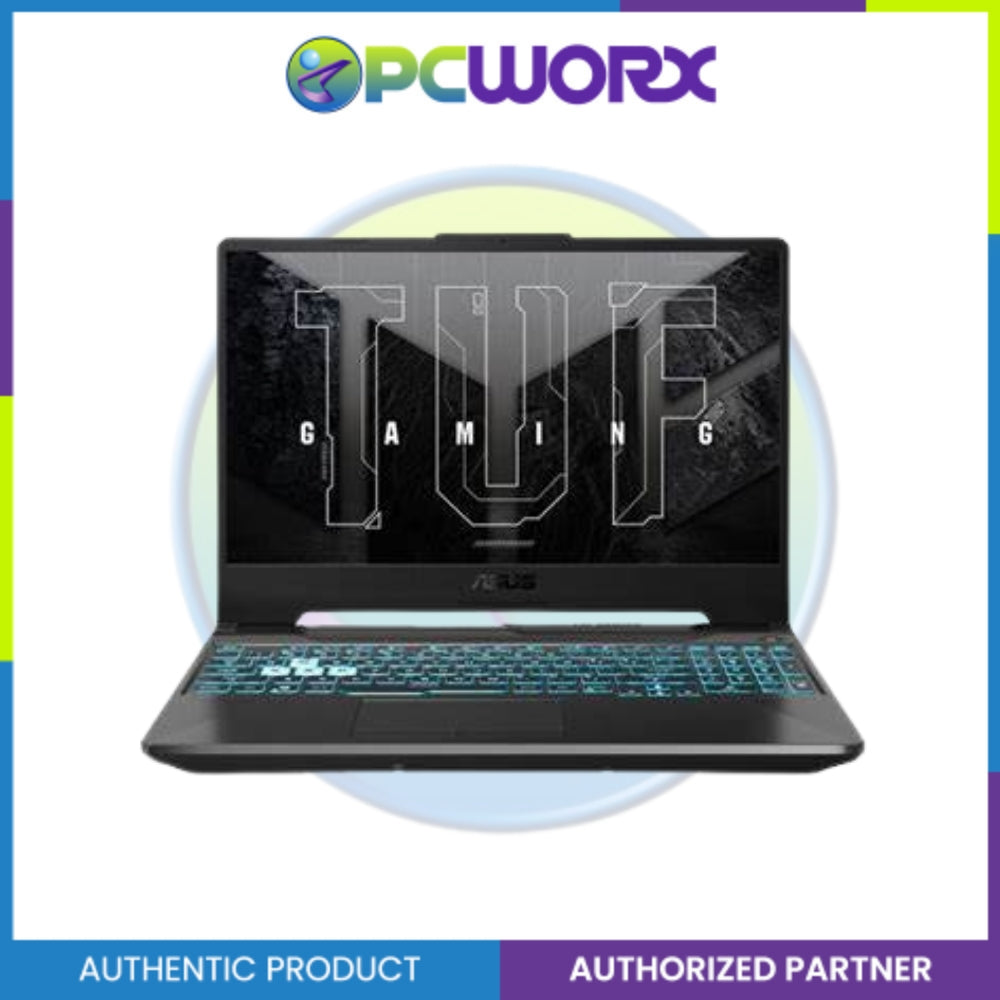

ASUS TUF Gaming A15 |
| Operating System |
Windows 11 Home |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Color |
Graphite Black |
| Dimension (W x D x H) |
35.9 x 25.6 x 2.28 ~ 2.45 cm (14.13" x 10.08" x 0.90" ~ 0.96") |
| Weight |
2.30 Kg (5.07 lbs) |
| Processor |
AMD Ryzen™ 7 7435HS Mobile Processor 3.1GHz (20MB Cache, up to 4.5 GHz, 8 cores, 16 Threads) |
| Chipset |
TBD |
| Intergrated GPU |
AMD Radeon™ Graphics |
| Discrete/Optimus |
Discrete |
| Graphic |
NVIDIA® GeForce RTX™ 2050 Laptop GPU |
| Graphic Wattage |
Up to 1670MHz at 60W (70W with Dynamic Boost) |
| Graphic Memory |
4GB GDDR6 |
| Panel Size |
15.6-inch |
| Resolution |
FHD (1920 x 1080) 16:9 |
| Refresh Rate |
144Hz |
| Viewing Angle |
85/85/85/85 |
| Panel Tech |
Value IPS-level |
| Brightness |
250nits |
| Contrast Ratio |
1000:1 |
| NTSC % |
45% |
| SRGB % |
62.5% |
| Adobe % |
47.34% |
| DCI-P3 % |
N/A |
| Glare |
Anti-glare display |
| Adaptive-Sync technology |
Adaptive-Sync |
| Pantone |
N/A |
| Support Dolby Vision HDR |
N/A |
| On board memory |
N/A |
| DIMM Memory |
8GB DDR5-5600 SO-DIMM |
| Total System Memory |
DDR5 8GB |
| Memory Slot |
2x SO-DIMM slots |
| Memory Max. |
32GB |
| Storage |
512GB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
M.2 512GB G4x4 PCIe SSD
M.2 1TB G4x4 PCIe SSD |
| Expansion Slot (includes used) |
2x DDR5 SO-DIMM slots
2x M.2 PCIe |
| LAN |
10/100/1000 Mbps |
| Wireless |
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |
| I/O Ports |
1x RJ45 LAN port
1x USB 3.2 Gen 2 Type-C support DisplayPort™
3x USB 3.2 Gen 1 Type-A |
| Display output |
1x HDMI 2.1 TMDS |
| Camera |
720P HD camera |
| Mic |
Built-in 3-microphone array |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB |
| Aura Sync |
N/A |
| Touchpad |
Touchpad
N/A |
| Speakers |
2-speaker system |
| Audio |
1x 3.5mm Combo Audio Jack
Built-in 3-microphone array |
| Audio Tech |
AI noise-canceling technology
DTS software
Hi-Res certification (for headphone) |
| Security |
BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM) |
| Antivirus |
McAfee® 30 days free trial |
| Battery |
48WHrs, 3S1P, 3-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Power |
ø6.0, 150W AC Adapter, Output: 20V DC, 7.5A, 150W, Input: 100~240V AC, 50/60Hz universal |
| Xbox Game Pass |
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Ecolabels & Compliances |
N/A |
