₱8,160.00
| Model | B650M-AYW WIFI |
| News & Updates: Please visit our GLOBAL website to check and download the latest updates. | |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset: AMD B650 Chipset | |
| Memory | 2 x DIMM slots, max. 96GB, DDR5 Supports up to 8000+MT/s (OC) |
| Dual Channel Memory Architecture | |
| Supports AMD EXPO™ (Overclocking) | |
| OptiMem II | |
| * Memory support depends on CPU; visit ASUS support site for details. | |
| Graphics | 1 x HDMI™ port (4K@60Hz, HDMI 2.1)** |
| * Specs may vary based on CPU used. | |
| Expansion Slots | Ryzen™ 9000 & 7000: 1 x PCIe 4.0 x16 (x16 mode) |
| Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4 mode)** | |
| B650 Chipset: 1 x PCIe 4.0 x16 (x4 mode) | |
| * See bifurcation table for full info. | |
| Storage | Supports 2 x M.2 and 4 x SATA 6Gb/s |
| Ryzen™ 9000/7000: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4) | |
| Ryzen™ 8000: M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2)** | |
| 4 x SATA 6Gb/s ports | |
| * Supports PCIe/SATA RAID 0/1/10 (RAIDXpert2) | |
| ** Specs vary by CPU. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5GHz |
| Bluetooth v5.3* (*Check Wi-Fi module specs) | |
| USB | Rear: 2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0 (Type-A) |
| Front: 1 x USB-C 5Gbps, 1 x header for 2 x USB 5Gbps, 2 x headers for 4 x USB 2.0 | |
| Total: 8 rear, 7 front USB ports | |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC |
| Audio shielding, premium capacitors, 24-Bit/192kHz support | |

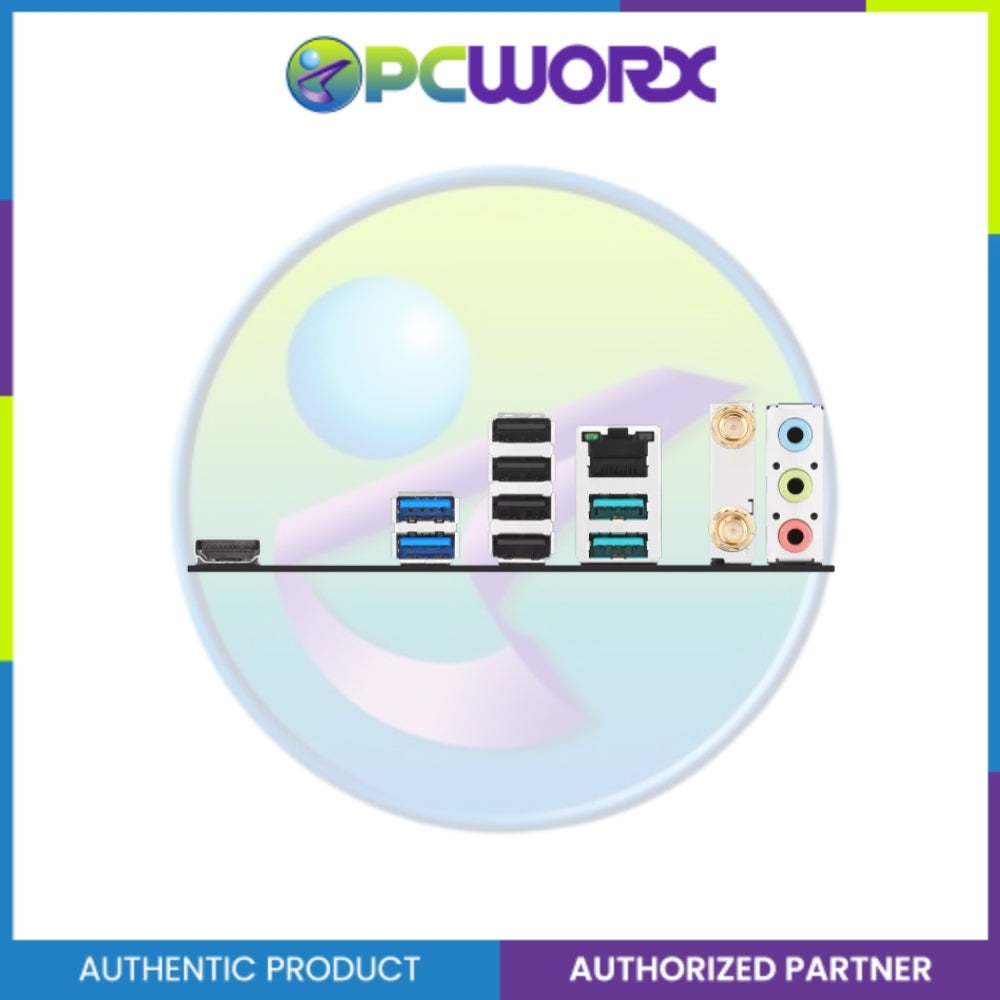

| Back Panel I/O | 2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0, HDMI, Wi-Fi Module, Ethernet, 3 x Audio jacks |
| Internal I/O | Cooling: 1 x CPU Fan, 2 x Chassis Fan |
| Power, USB, M.2, SATA, ARGB, Audio, Clear CMOS, etc. | |
| Special Features | 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, SS I/O |
| Q-Design: Q-DIMM, Q-LED Core, Q-Slot, M.2 Q-Latch | |
| Thermal: VRM & M.2 heatsinks | |
| Aura Sync with Gen 2 ARGB headers | |
| Software | Armoury Crate: Aura, Fan Xpert 2+, AI Noise Cancel, Power Save |
| AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner | |
| Also: ASUS CPU-Z, Norton 360 (60d), WinRAR (40d) | |
| BIOS | 256 Mb UEFI AMI BIOS |
| EZ DIY: CrashFree BIOS 3, EZ Flash 3, EZ Mode | |
| Manageability | WOL by PME, PXE |

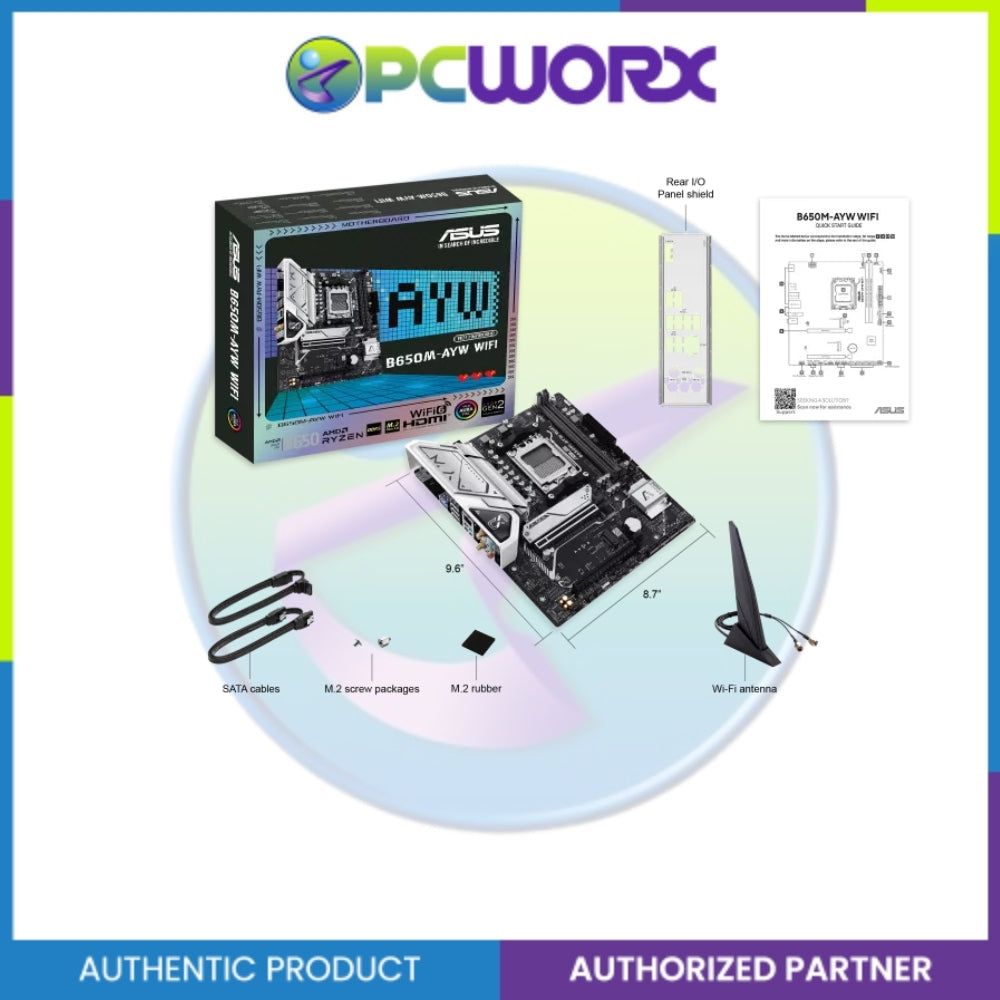

| Accessories | 2 x SATA Cables, Wi-Fi Antenna, I/O Shield, M.2 Rubber & Screw Package |
| Quick Start Guide | |
| Operating System | Windows 11 / 10 (64-bit) |
| Form Factor | micro-ATX (9.6" x 8.7" / 24.4 cm x 22.1 cm) |
₱8,160.00
Estimated delivery between June 07 and June 09.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱8,160.00
₱8,160.00
Authorized Seller
100% Original Authentic Product
