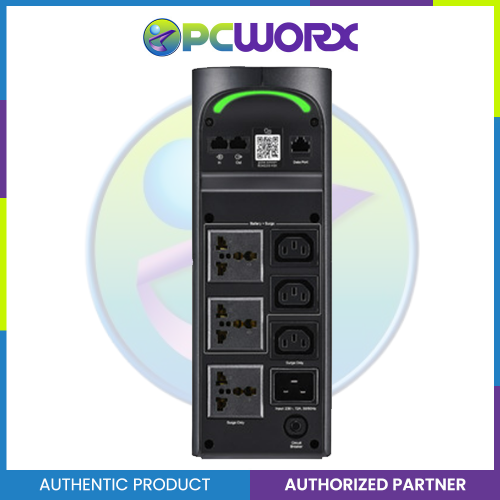

- Rear LEDs illuminate outlets, so you see exactly where you're plugging in your gaming gear
Description

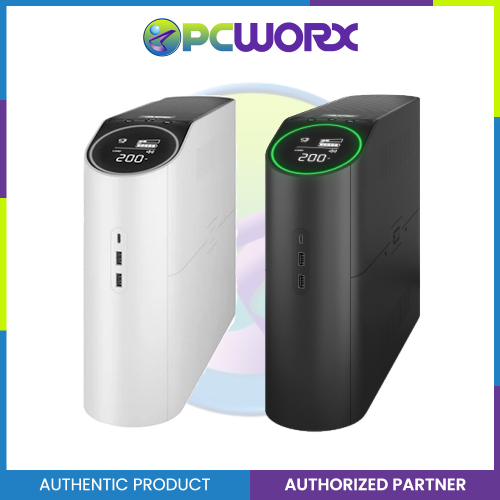

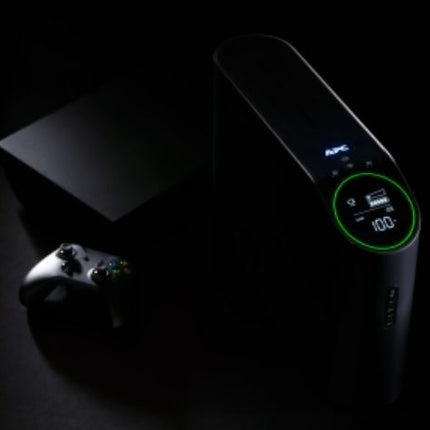

This APC Back-UPS Pro offers premium power protection for high performance gaming consoles and PC, routers/modems, and gaming accessories. The 2200VA/1320W tower UPS has 6 total outlets, 4 of which are battery backup and surge protection, and 2 that are surge protection only. It has a surge energy rating of 1080 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. It comes with PowerChute Serial Shutdown, an easy-to-use safe system shutdown software with power and energy management features. This UPS has a 2-year repair or replace warranty. It has 3 USB ports (Type A + C) for smart charging of personal devices.
Specifications
Overview
Lead time
Usually in Stock
Main
Run time for load
1320
W
Min-max: 132-1320 W
0min 28s
Max. Capacity Used
100 %
Main Input Voltage
230 V AC 1 phase
Other Input Voltage
230 V
Main Output Voltage
230 V 1 phase
Rated power in W
1320 W
Rated power in VA
2200 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
C19/C21
output connection type
3 IEC 60320 C13 surge
3 universal surge
Cable length
1.5 m
Number of cables
1
Battery type
Lead-acid battery
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Number of battery filled slots
1
Number of battery free slots
0
Battery recharge time
16 h
Number of battery replacement quantity
1
Battery voltage
24 V
Overcurrent protection
15 A
Battery charger power
12 W rated
Battery life
3…5 year(s)
General
Provided equipment
safety guide
USB cable
2, power cable
1, power adapter
product web sub-family
Gaming performance
Number preinstalled power module
0
Number of power module free slots
0
Redundant
No
Physical
Colour
White
Height
292.1 mm
Width
104.1 mm
Depth
408.9 mm
Net weight
12.24 kg
Mounting support
Floor
Mounting preference
No preference
Mounting mode
Not rack-mountable
Two post mountable
0
USB compatible
Yes
Mounting position
Vertical
Input
Network frequency
50/60 Hz +/- 3 Hz
Plug standard
C19/C21
Input voltage limits
168...302 V
Maximum input current
12 A
Switching current capacity
15 A
Input harmonic distortion
Less than 3 % for full load
Input protection type
Circuit breaker
Output
Maximum configurable power in W
1320 W
Output frequency
50/60 Hz +/- 3 Hz sync to mains
UPS type
Line interactive
Wave type
Sine wave
Full load runtime
00:30:00
Half load runtime
00:04:19
Maximum configurable power in VA
2200 VA
Transfer time
8 ms typical : 10 ms maximum
Conformance
Product certifications
CE
CB
Equipment protection policy
Lifetime : $150000
Environmental
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 %
Operating altitude
0...10000 ft
Ambient air temperature for storage
-15…40 °C
Storage Relative Humidity
0…95 %
Storage altitude
0.0000000000…3048.0000000000 m
Acoustic level
45 dBA
IP degree of protection
IP20
Communications & Management
Free slots
0
control panel

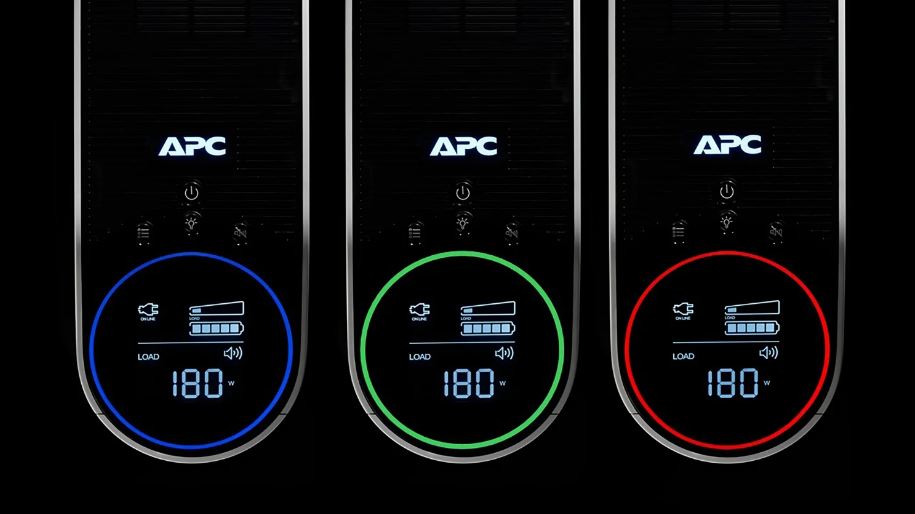

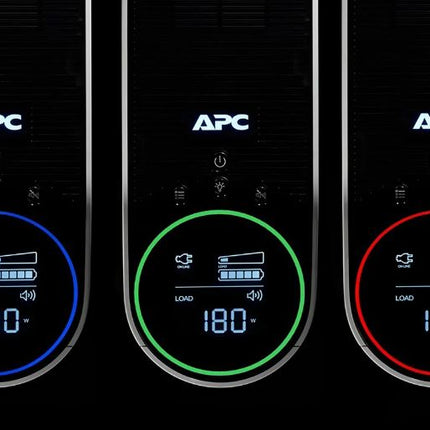

Multifunction LCD status and control console
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate
1080 J
Noise suppression
Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
15.5 cm
Package 1 Width
35.5 cm
Package 1 Length
48 cm
Package 1 Weight
14.82 kg
SCC14
20731304634830
Contractual warranty
Warranty
2 years repair or replace
