Description
DEFENDER PRO
TOWER DEFENSE
XPG DEFENDER PRO offers full-size E-ATX dimension with MESH front panel design and ARGB Strips lighting effects. Available in black and white colors with x3 included XPG VENTO 120 ARGB fans.
E-ATX Dimension Chassis with MESH Panel Design
XPG DEFENDER PRO is a full-size E-ATX dimension chassis, premium for its spacious layout design and its MESH gaming front panel style with the ARGB Strips lighting subtly shine behind the MESH panel.

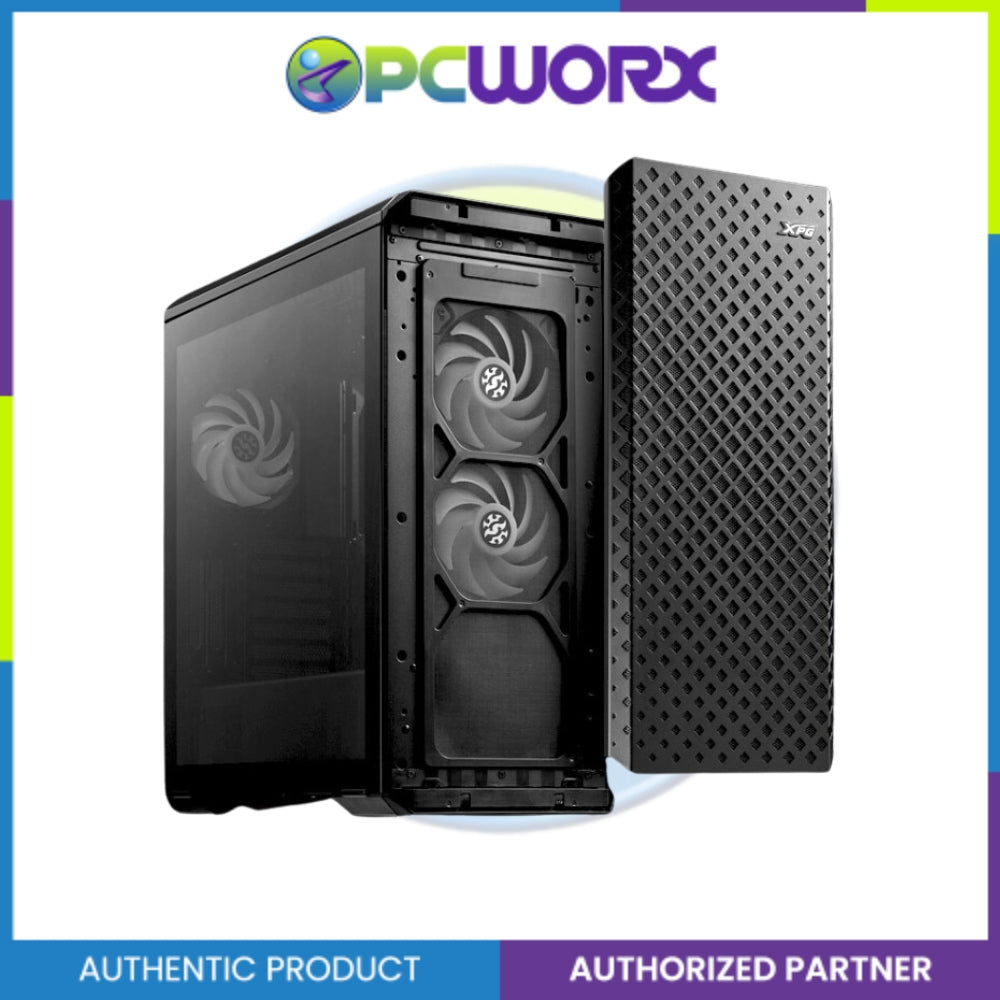

Magnetic MESH Front Panel Design with Detachable Dust Filter
Magnetic front panel acts as a frontier dust filter, preventing and protecting any other internal components. Its removable dust filter further blocks out unwanted dusts and ashes.
Efficient Airflow Design
XPG DEFENDER PRO’s efficient airflow design begins with the MESH front panel, its x3 XPG VENTO 120 ARGB included fans, and supports up 360mm Radiator (front) and 280mm Radiator (top).
Perforated Cooling PSU Chamber
PSU is also cooled with perforated PSU chamber with a removable dust filter.

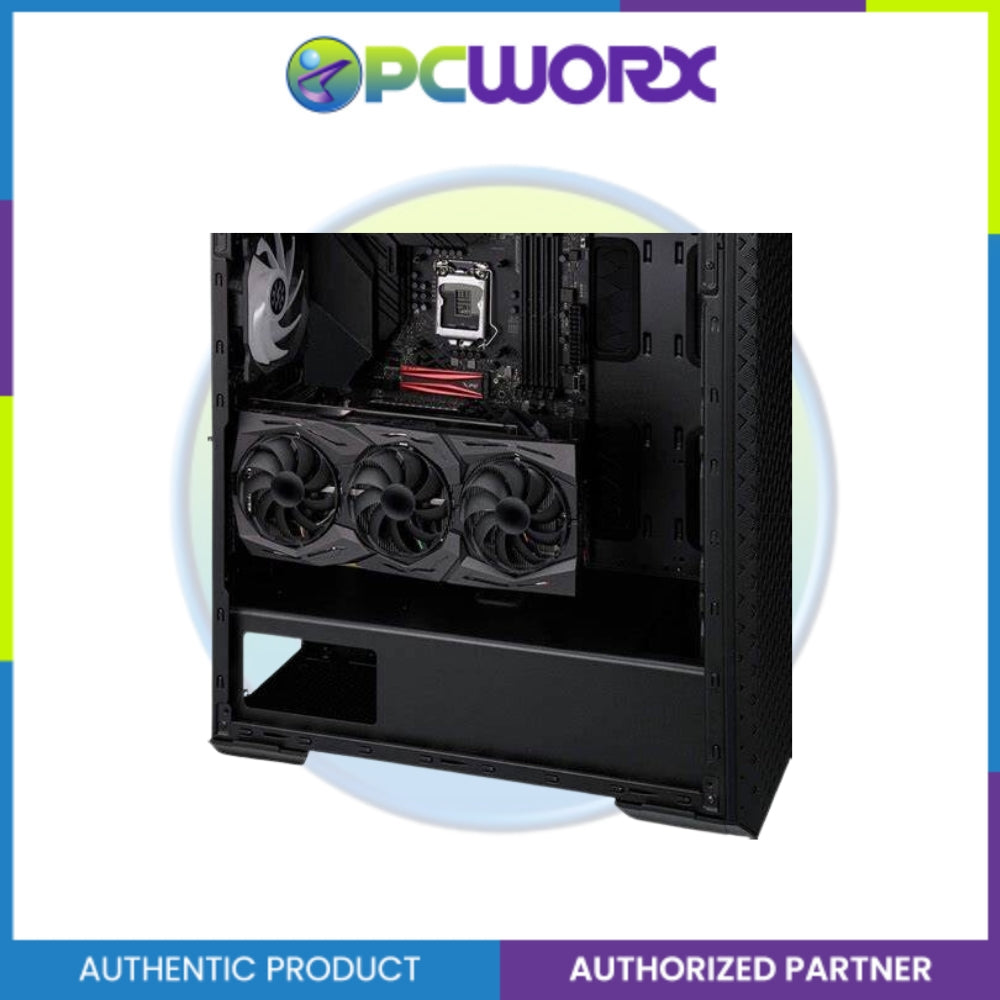

Support Vertical VGA Installation
XPG DEFENDER PRO supports vertical VGA installation. Exhibit graphic card and other components with lighting effects.
Storage Options
Supports up to x2 2.5” HDD/SSD at the back of the chassis, and x2 2.5”/3.5” Combo Drive at storage bays.

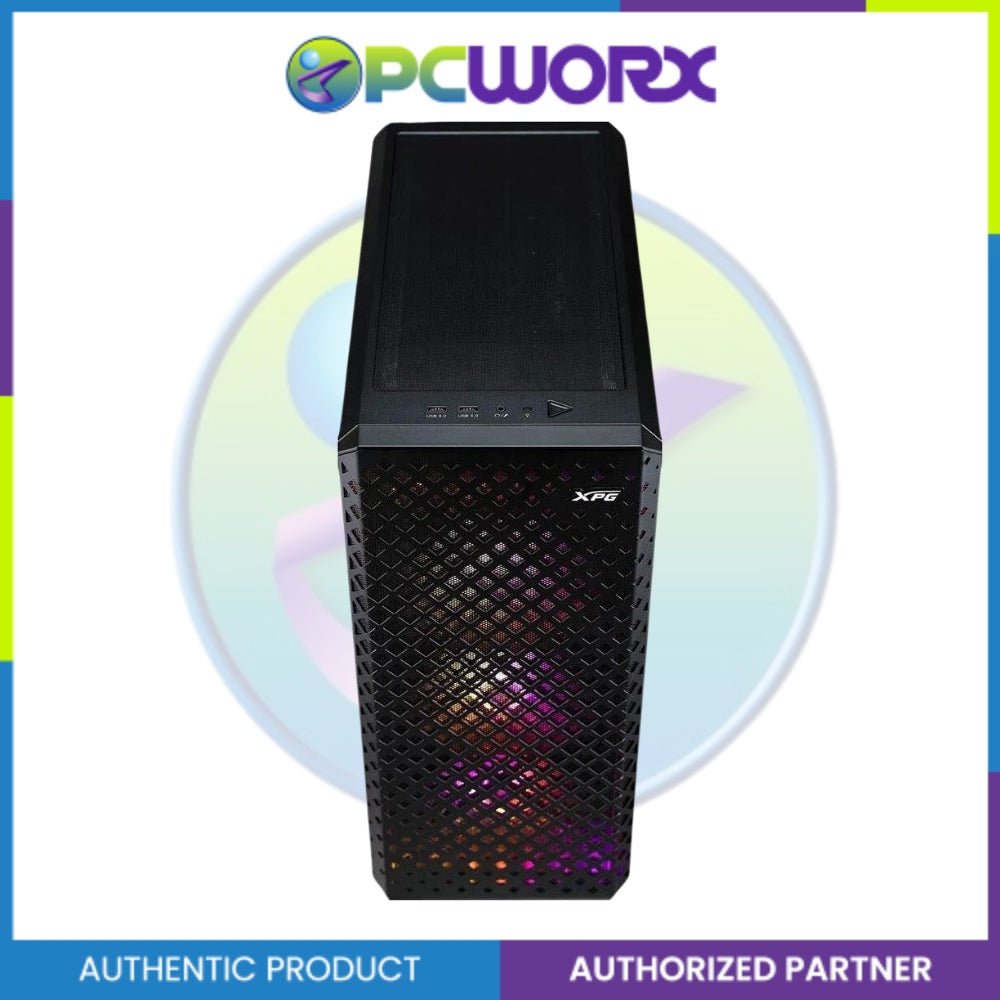

Versatile I/O Port
I/O Ports are also versatile, with x2 USB 3.0 ports, a hybrid audio port and a LED button to switch between lighting effects.
Dimensions and Form Factor
XPG DEFENDER PRO supports E-ATX motherboards with dimensions (H x W x D) of 492 x 220 x 441(mm).
Graphic Card Length Support：up to 380mm
CPU Cooler Height Support：up to 170mm
PSU Length Support：up to 220mm
SPECIFICATIONS:
| Dimension (H*W*D): |
492 x 220 x 441mm (19.37 x 8.66 x 17.36 inch) |
| Color: |
Exterior & Interior: Black / White |
| Material: |
SGCC |
| Side Panels: |
3mm Tempered Glass Side Panel |
| Motherboard Support: |
Mini-ITX, Micro-ATX, ATX, E-ATX, CEB, EEB |
| 3.5" HDD/HDD Tray: |
2 |
| 2.5" HDD/SSD Tray: |
2+2 (Combo 3.5”/2.5”) |
| I/O Port: |
x2 USB 3.0, x1 Hybrid Audio Port, x1 LED Control Button |
| Fan Included: |
Front: 2 x XPG VENTO ARGB 120mm Fan |
|
Rear: 1 x XPG VENTO ARGB 120mm Fan |
| Fan Support: |
Front: 120mm x3, 140mm x2 |
|
Top: 120mm x2, 140mm x2 |
|
Rear: 120mm x1 |
| Radiator Support: |
Front: 360 / 280 / 240mm x1 |
|
Top: 280 / 240 / 120mm x1 |
|
Rear: 120mm x1 |
| Clearance: |
Graphic Card Length: 400mm |
|
380mm (with pre-installed fans) |
|
Graphic Card Vertical Installation Height: 27.3mm |
|
CPU Cooler Height: 170mm |
|
PSU Length: 220mm |
| Weight: |
Product: 7.37 kg (16.3lb) ±5% |
|
with Package: 9.53kg (21.0lb) ±5% |
