Adata AD-AD5U56008G-S 8GB 5600Mhz DDR5 Memory Dimm RAM | Memory Card

Description

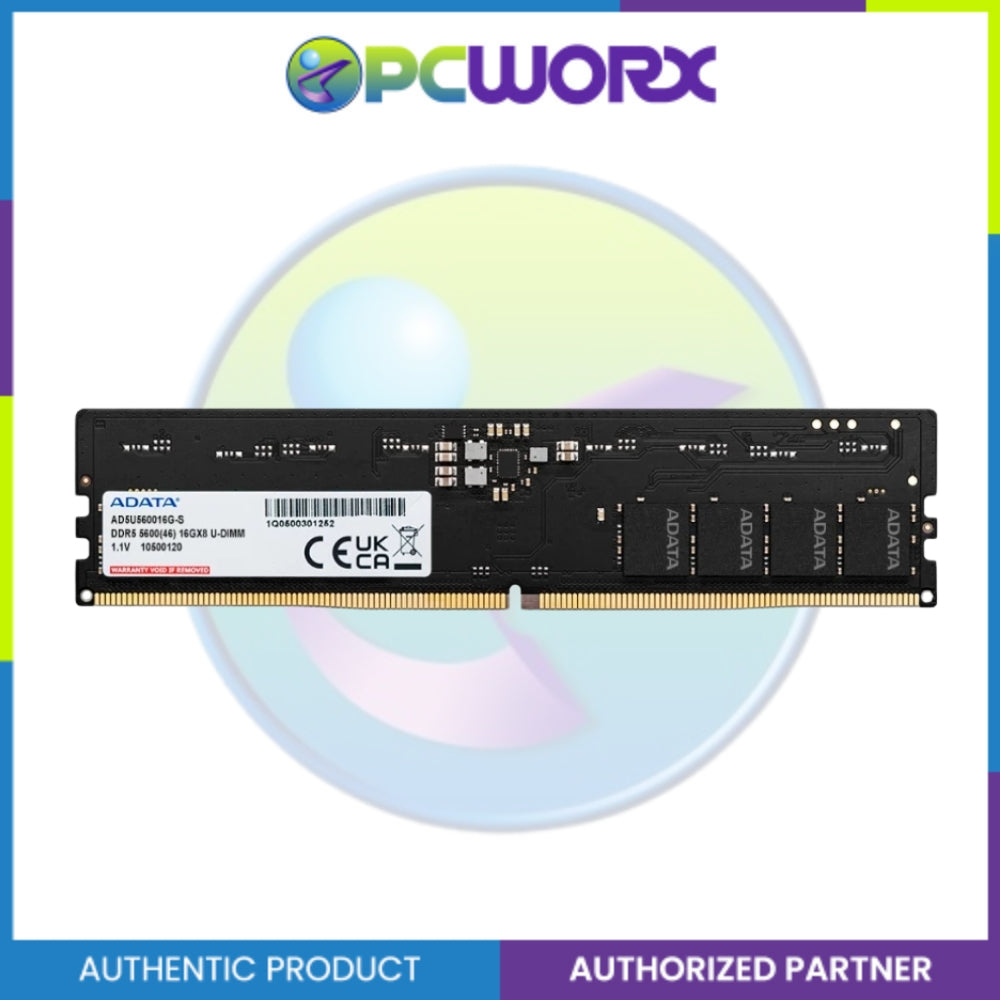

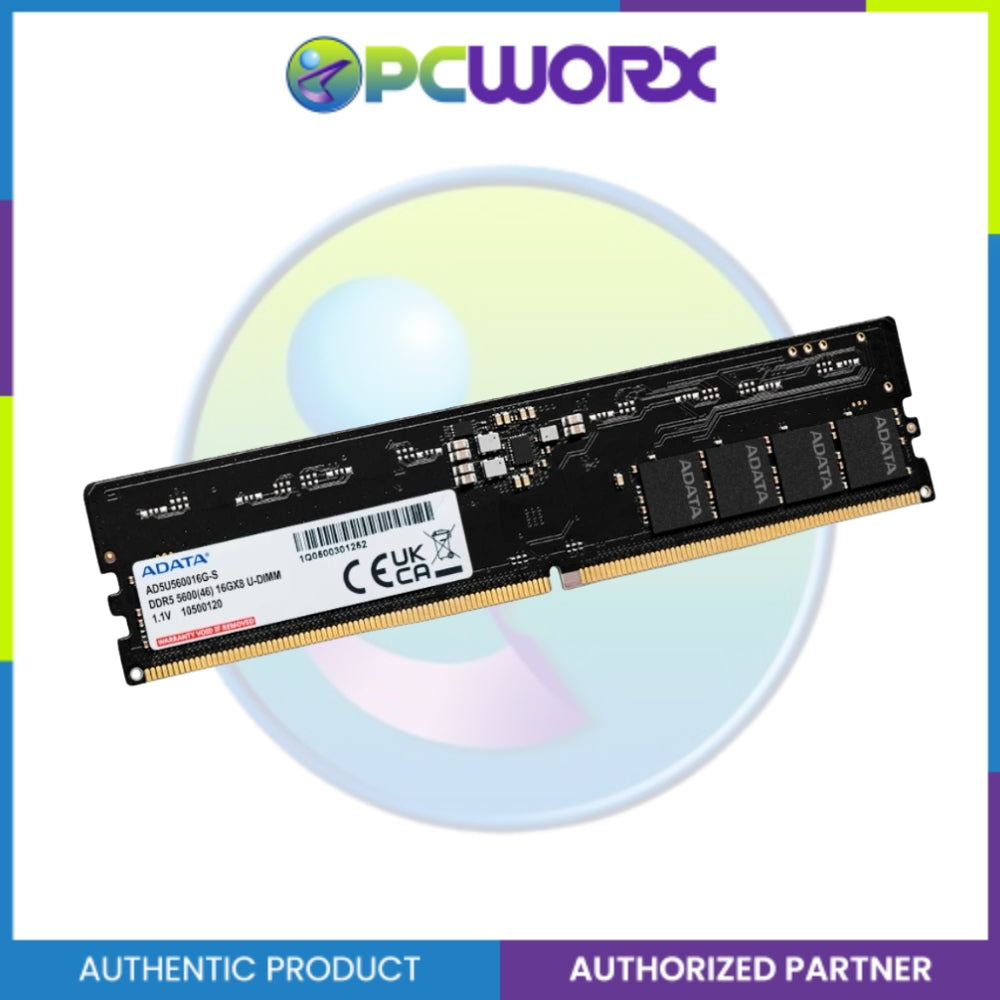

DDR5 5600 U-DIMM Memory Module(Global)

ADVANCING FORWARD

Key specifications
Memory Type:  DDR5
Capacity:  8GB
Speed:  5600MHz (or 5600 MT/s)
Form Factor:  U-DIMM (standard desktop memory)
CAS Latency:  CL46
Operating Voltage:  1.1V
Additional details
This module is intended for desktop systems due to its U-DIMM form factor.
The 8GB capacity can be paired with other modules to increase the total system memory, and using two modules can enable dual-channel performance.
DDR5 technology provides improved performance, higher speeds, and better power efficiency compared to DDR4.
The lower operating voltage of 1.1V helps with energy efficiency.
DDR5 5600 U-DIMM Memory Module




Higher Frequencies

Higher Frequencies

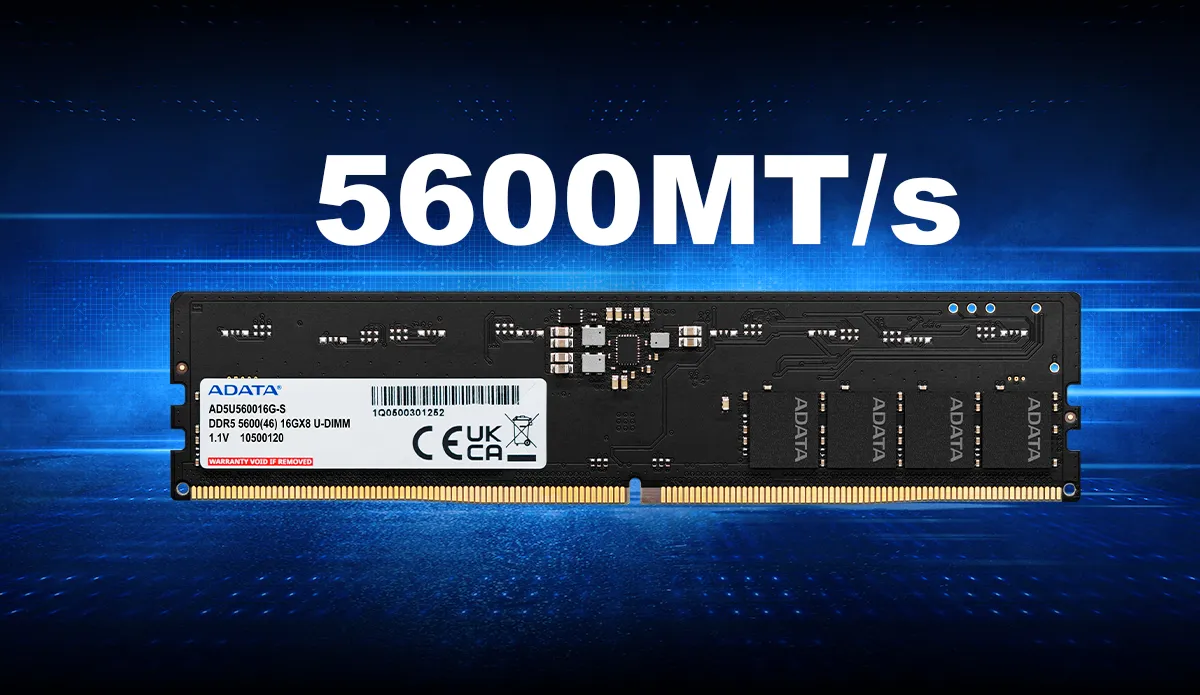

The DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).

More Energy-Efficient

This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.

More Energy-Efficient
Capacity Doubled

Capacity Doubled

This memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.

Improved Stability

With error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.

Improved Stability
QuikTips: DDR5 vs DDR4 - Appearance

QuikTips: DDR5 vs DDR4 - Appearance

DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.

QuikTips: DDR5 vs DDR4 - Chip Architecture

DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.

QuikTips: DDR5 vs DDR4 - Chip Architecture
QuikTips: DDR5 vs DDR4 - Performance

QuikTips: DDR5 vs DDR4 - Performance

The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.

QuikTips: DDR5 vs DDR4 - Comparison Table

This specification comparison table shows the advantages of DDR5.





Specifications:

Memory Type DDR5
Form Factor SO-DIMM
Capacity 8GB
Speeds 5600
CAS Latencies 46
Operating Voltage 1.1V
Operating temperature 0°C to 85°C

Adata AD-AD5U56008G-S 8GB 5600Mhz DDR5 Memory Dimm RAM | Memory Card

Product form

DDR5 5600 U-DIMM Memory Module(Global) ADVANCING FORWARD Key specifications Memory Type:  DDR5 Capacity:  8GB Speed:  5600MHz (or 5600 MT/s) Form... Read more

Free pickup in our shop(s)

SKU: 0000062466

5 in stock

₱3,900.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    DDR5 5600 U-DIMM Memory Module(Global)

    ADVANCING FORWARD

    Key specifications
    Memory Type:  DDR5
    Capacity:  8GB
    Speed:  5600MHz (or 5600 MT/s)
    Form Factor:  U-DIMM (standard desktop memory)
    CAS Latency:  CL46
    Operating Voltage:  1.1V
    Additional details
    This module is intended for desktop systems due to its U-DIMM form factor.
    The 8GB capacity can be paired with other modules to increase the total system memory, and using two modules can enable dual-channel performance.
    DDR5 technology provides improved performance, higher speeds, and better power efficiency compared to DDR4.
    The lower operating voltage of 1.1V helps with energy efficiency.
    DDR5 5600 U-DIMM Memory Module




    Higher Frequencies

    Higher Frequencies

    The DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).

    More Energy-Efficient

    This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.

    More Energy-Efficient
    Capacity Doubled

    Capacity Doubled

    This memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.

    Improved Stability

    With error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.

    Improved Stability
    QuikTips: DDR5 vs DDR4 - Appearance

    QuikTips: DDR5 vs DDR4 - Appearance

    DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.

    QuikTips: DDR5 vs DDR4 - Chip Architecture

    DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.

    QuikTips: DDR5 vs DDR4 - Chip Architecture
    QuikTips: DDR5 vs DDR4 - Performance

    QuikTips: DDR5 vs DDR4 - Performance

    The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.

    QuikTips: DDR5 vs DDR4 - Comparison Table

    This specification comparison table shows the advantages of DDR5.





    Specifications:

    Memory Type DDR5
    Form Factor SO-DIMM
    Capacity 8GB
    Speeds 5600
    CAS Latencies 46
    Operating Voltage 1.1V
    Operating temperature 0°C to 85°C
