Key specifications
Specification
Details
Graphic Engine
NVIDIA® GeForce RTX™ 5060 Ti
AI Performance
785 TOPs
Bus Standard
PCI Express 5.0
Video Memory
16GB GDDR7
Engine Clock (OC Mode)
2692MHz
CUDA Core
4608
Memory Speed
28 Gbps
Memory Interface
128-bit
Digital Max Resolution
7680 x 4320
Video Output
1 x HDMI 2.1b, 3 x DisplayPort 2.1b
Maximum Displays
4
Power Connectors
1 x 16-pin
Recommended PSU
550W (for a fully overclocked system)

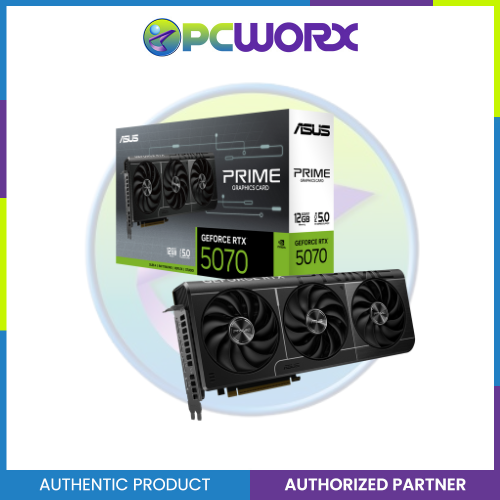

Specification
Details
GPU
NVIDIA® GeForce RTX™ 5070
Memory
12GB GDDR7
CUDA Cores
6144
Memory Interface
192-bit
Memory Speed
28 Gbps
Engine Clock
OC Mode: 2587 MHz; Default Mode: 2557 MHz (Boost Clock)
Max Resolution
7680 x 4320 (Digital)
Display Outputs
1 x HDMI 2.1b, 3 x DisplayPort 2.1b
Bus Standard
PCI Express 5.0
Recommended PSU
750W
Supported Technologies
HDCP 2.3, AI Performance of up to 1005 TOPs (OC Edition)
Dimensions
304 x 126 x 50 mm (2.5-slot)
Software
ASUS GPU Tweak III, GeForce Game Ready Driver & Studio Driver
Model
PRIME-RTX5070TI-O16G
Graphic Engine
NVIDIA® GeForce RTX™ 5070 Ti
AI Performance
1432 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
OC mode: 2527MHz
Default mode: 2497MHz (Boost Clock)
OC mode: 2527MHz
Default mode: 2497MHz (Boost Clock)
CUDA Core
8960
Memory Speed
28 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card
1 x Adapter Cable (1 to 3)
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver:
please download all software from the support site.
Dimensions
304 x 126 x 50 mm
12 x 5 x 2 inch
304 x 126 x 50 mm
12 x 5 x 2 inch
Recommended PSU
750W
Power Connectors
1 x 16-pin
Slot
2.5 Slot
SFF Ready
Compatible
