Key specifications
Video:
1080p Full HD (1920 x 1080)
Video Compression:
H.264
Frame Rate:
Up to 15 fps
Image Sensor:
1/2.8" Progressive Scan CMOS
Lens:
Focal Length:
4.0mm
Aperture:
F/2.0
Field of View:
93° (Diagonal), 83° (Horizontal), 40° (Vertical)
Motion:
Pan:
340° mechanical, 360° coverage
Tilt:
70° mechanical, 114° coverage
Night Vision:
850 nm IR LED up to 30 ft (9 m)
Audio:
Communication:
2-way audio
Input/Output:
Built-in microphone and speaker
Connectivity:
Wireless:
2.4 GHz Wi-Fi
Security:
WPA/WPA2-PSK
Storage:
Local:
MicroSD card slot up to 512 GB
Cloud:
Tapo Care cloud storage (subscription required)
AI Detection:
Motion Detection, Person Detection, BabyCry Detection
Physical:
Dimensions:
3.4 x 3.3 x 4.6 in. (86.6 x 85 x 117.7 mm)
Power:
Input:
100-240VAC, 50/60Hz
Output:
9.0V/0.6A
Pan/Tilt Home Security Wi-Fi Camera
High-Definition Video: The Tapo C200C features 1080p high-definition video, providing users with clear and detailed footage. The up to 9x digital zoom allows users to see sharper views of areas of interest.
Pan and Tilt: The device offers 360° horizontal and 114° vertical range, enabling complete coverage of the area.
Night Vision: With advanced night vision up to 40 feet, the Tapo C200C allows users to monitor their homes around the clock.
Motion Detection and Alerts: The device uses smart motion detection technology to send instant notifications to your phone whenever movement is detected.
Two-Way Audio: The Tapo C200C comes equipped with a built-in microphone and speaker, allowing users to communicate with family, pets, or warn off intruders.
Local Storage: The device supports microSD cards up to 512GB for local storage, providing a secure and cost-effective way to store footage.
Privacy Mode: Users can enable Privacy Mode to stop recording and control when the camera is monitoring and when it's not.
Easy Setup and Management: With the Tapo app, users can easily set up and manage their Tapo C200C, and access live streaming and other controls.
Voice Control: The Tapo C200C is compatible with Google Assistant and Amazon Alexa, offering hands-free control for users.
Secure Encryption: The device uses advanced encryption and wireless protocols to ensure data privacy and secure communication between your phone and the device.
CAMERA - C110
Image Sensor
1/2.8’’
Lens
F/NO: 2.0, Focal Length: 3.3 mm
Night Vision
850 nm IR LED (up to 30 ft)
Resolution
3MP(2304 x 1296)
VIDEO
Video Streaming
3MP
Video Compression
H.264
AUDIO
Audio Communication
Two-Way Audio
Audio Input & Output:
Microphone and Speaker
NETWORK
Wireless Rate
11 Mbps (802.11 b)54 Mbps (802.11 g)72.2Mbps (802.11n)
Wireless Security
WPA, WPA2-PSK
Security
128 Bit AES Encryption with SSL/TLS
Frequency
2.4 GHz
POWER
Camera input
3 Meter Power Cable
ACTIVITY NOTIFICATIONS
Input Trigger
Motion Detection
Output Notification
Push Notification
SYSTEM
Regulatory Certification
CE, NCC
System Requirements
iOS 10+, Android 5.0+
ENVIRONMENT
Operating Temperature
0-40 °C (32-104 °F)
Storage Temperature
-40-70 °C (-40-158 °F)
Operating Humidity
10-90% RH Non-Condensing
Storage Humidity
5-90% RH Non-Condensing
PACKAGE CONTENTS
Package Contents
Tapo C110DC Power AdapterQuick Start GuideMounting ScrewsMounting Template
HARDWARE
Button
Reset Button
Indicator LED
System LED
Adapter Input
100-240V, AC, 50/60 Hz, 0.3 A
Adapter Output
9.0 V / 0.6 A
Dimensions (W x D x H)
2.7 x 2.1 x 3.9 in (67.6 x 54.8 x 98.9 mm)
Category
Details
Product Type
Pan/Tilt Home Security Wi-Fi Camera
Video Resolution
2K (3MP) High-Definition
Pan/Tilt Range
360° horizontal
Night Vision
Advanced night vision up to 30 ft
Motion Detection
Sends notifications through Tapo App
Sound & Light Alarm
Built-in light and sound alerts to deter intruders
Two-Way Audio
Built-in microphone and speaker for communication
Storage
Supports microSD card up to 256GB (up to 512 hours / 21 days of footage, lab-tested)
Voice Control
Works with Google Assistant & Amazon Alexa (availability varies by region/language)
_____________________________________________________ Warranty Information: • Item compatibility is buyer’s responsibility. • For security purposes: Kindly secure unboxing video incase wrong item and defective upon received. • Check all items upon receipt. • All items/claims for warranty are carry-in. • Tampered warranty sticker voids the warranty. • Overclocking may void the warranty. • Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt. • Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
Network and connectivity
Ports:
1 Gigabit WAN Port, 3 Gigabit WAN/LAN Ports, 1 Gigabit LAN Port
WAN Options:
Supports multiple broadband connections, including a USB WAN port for a 4G/3G modem
Load Balancing:
Distributes data across multiple WAN ports to increase utilization
Networking Standards:
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
VPN and security
VPN Tunnels:
20 IPsec VPN Tunnels (LAN-to-LAN)
16 OpenVPN Tunnels
16 L2TP VPN Tunnels
16 PPTP VPN Tunnels
Security Features:
Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and IP-MAC binding
Simplified VPN:
One-click auto IPSec VPN function for easier setup
Management
Omada SDN Integration:
Supports centralized management via the Omada SDN Controller and Zero-Touch Provisioning
Management Tools:
Centralized management via cloud access or the Omada app
Designed for Remote Office or Small Office: Supports one of the tunnel type; 20× LAN-to-LAN IPsec, 16× OpenVPN***, 16× L2TP, and 16× PPTP VPN connections.
Reliable and Flexible: Up to 4 WAN connections connecting to 4 different Internet service providers and private links. Bandwidth based, app-based, or automatic line backup allow flexible and reliable use of your wide-area links.**
Gigabit Router: All (5) gigabit connecting ports provide high-speed wired connectivity.
Built-in Firewall: Built-in firewall and ACS filtering for easy penetration and blocking settings
VLAN and VLAN routing: Works with standard 802.1Q switches for multiple subnet separation and communication. Multi-Nets NAT for direct Internet access from any VLAN
Secured Router: Advanced ACS policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Centralized Management**: Work with center control Omada SDN controller enables cloud access for easy management and deployment.
Omada Cloud-based SDN: Zero-Touch Provisioning (ZTP)‡ eliminates the installation and maintenance truckloads.

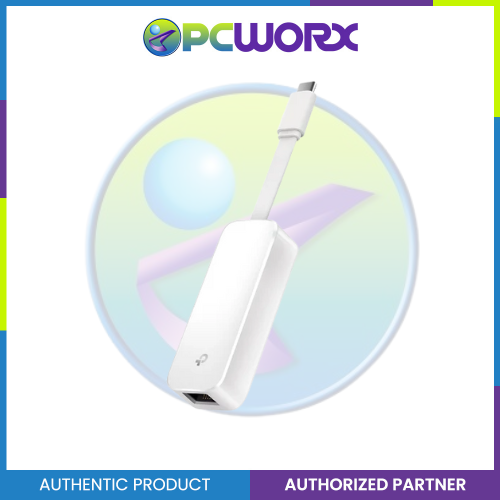

SPECIFICATIONS - UE300C
Dimensions
2.8 x 1.0 x 0.6 in. (71 x 26 x 16.2mm)
Output Interface
1 10/100/1000Mbps RJ45 Ethernet Port
Input Interface
1 USB 3.0 Type-C Port
Chipset
AX88179A
Supported Systems
Windows 11/10/8.1/8/7macOS10.6 and later versionsiPadOSChrome OSLinux OS (Ubuntu)
Package contents
· USB Type-C to RJ45 Gigabit Ethernet Network Adapter· Quick Installation Guide
CAMERA - C320WS
Image Sensor
1/3" Progressive Scan CMOS Starlight Sensor
Lens
Focal Length: 3.18 mmAperture: F1.61Field of View: 113°(Diagonal), 97°(Horizontal), 54°(Vertical)
Night Vision
850 nm IR LED (98 ft / 29.9 m)Full-Color Night Vision
Lighting
2× Built-in Spotlights
Interface & Button
1× Ethernet Port1× RESET Button1× MicroSD Card Slot (Up to 512 GB)
VIDEO & AUDIO
Maximum Resolution
2560 × 1440 px
Frame Rate
15 fps
Digital Zoom
12×
Video Compression
H.264
Live View
Yes
Image Enhancement
3DNRWDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
91 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)General Information about using MicroSD Cards >
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
DETECTION AND NOTIFICATIONS
AI Detection
Motion DetectionPerson DetectionIntrusion DetectionVehicle DetectionLine-Crossing DetectionTamper Detection
Activity Zones
Yes
Output Notification
System NotificationSystem Notification with Snapshot (Tapo Care Services)
NETWORK
Network Connectivity
Connect via Wi-Fi or Ethernet
Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Ethernet Port
1× 10/100 Mbps RJ45 Port on Camera
RTSP
Yes
ONVIF
Yes
SECURITY
Security
On-Device Machine Learning128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK
POWER
Power Source
9V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz
Output Voltage
9 V, 0.6 A (DC Power)
GENERAL
Smart Integration
Google Assistant, Amazon Alexa
Weather Resistance
IP66
System Requirements
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options
Wall-Mounted
Operating Temperature
-20℃~45℃
Storage Temperature
-20℃~60℃
Operating Humidity
10%~90%RH, Non-condensing
Storage Humidity
0~90%RH, Non-condensing
Dimensions
5.6 × 4.07 × 2.53 in (142.3 × 103.4 × 64.3mm)
Package Contents
Tapo C320WS CameraPower AdapterMounting TemplateAnchors and ScrewsWaterproof SealWaterproof Cable AttachmentsQuick Start Guide
Certifications
CE, FCC, RoHS, RCM
WIRELESS - Archer AX55
Standards
Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX30005 GHz: 2402 Mbps (802.11ax, HE160)2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
3 Bedroom Houses4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi rangeHigh-Power FEMImproves transmission power to strengthen signal coverage
WiFi Capacity
HighDual-BandAllocate devices to different bands for optimal performanceOFDMASimultaneously communicates with multiple Wi-Fi 6 clientsAirtime FairnessImproves network efficiency by limiting excessive occupationDFSAccess an extra band to reduce congestion4 StreamsConnect your devices to more bandwidth
Working Modes
Router ModeAccess Point Mode
SECURITY
Network Security
SPI FirewallAccess ControlIP & MAC BindingApplication Layer GatewayHomeShield SecurityReal-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner
Guest Network
1× 5 GHz Guest Network1× 2.4 GHz Guest Network
VPN Server
OpenVPNPPTP
VPN Client
• Open VPN Client• PPTP VPN Client• L2TP VPN Client
WiFi Encryption
WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor
Dual-Core CPU
Ethernet Ports
1× Gigabit WAN Port4× Gigabit LAN Ports
USB Support
1× USB 3.0 PortSupported Partition Formats:NTFS, exFAT, HFS+, FAT32Supported Functions:Apple Time MachineFTP ServerMedia ServerSamba Server
Buttons
Wi-Fi/WPS ButtonPower On/Off ButtonReset Button
Power
12 V ⎓ 2 A
SOFTWARE
Protocols
IPv4IPv6
Service Kits
HomeShieldLearn More>
OneMesh™
OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.Learn More>All OneMesh Products>
EasyMesh
Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.Learn More>
Parental Controls
HomeShield Parental ControlsCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports
WAN Types
Dynamic IPStatic IPPPPoEPPTPL2TP
Quality of Service
QoS by Device
Cloud Service
Auto Firmware UpgradeOTA Firmware UpgradeTP-Link IDDDNS
NAT Forwarding
Virtual ServersPort ForwardingPort TriggeringDMZUPnP
IPTV
IGMP ProxyIGMP SnoopingBridgeTag VLAN
DHCP
Address ReservationDHCP Client ListServer
DDNS
TP-LinkNO-IPDynDNS
Management
Tether AppWebpageCheck Web Emulator>
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power
CE:<20dBm(2.4GHz)<23dBm(5.15GHz~5.35GHz)<30dBm(5.47GHz~5.725GHz)FCC:<30dBm(2.4GHz & 5.15GHz~5.825GHz)
WiFi Reception Sensitivity
5GHz:11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm2.4GHz:11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm
PHYSICAL
Dimensions (W×D×H)
10.2 × 5.3 × 1.5 in(261.1 × 134.5 × 41.0 mm)
Package Contents
Wi-Fi Router Archer AX55Power AdapterRJ45 Ethernet CableQuick Installation Guide
Wire-Free, Installs Almost Anywhere!
This battery-powered Wi-Fi camera provides 100% wire-free installation. From heavy rain to fine dust, it is ready for the outdoors with its robust IP66 weatherproofing.
Go Magnetic, Snap Anywhere!
Use the magnetic base to lock on to any metal surface or mount it on the wall with wire-free versatility. Adjusting the camera angle is just as easy to get the picture you need.
Always Keep an Eye on What Matters
Enhances security by revealing bright, full-color images and vivid details even in low-light conditions with its built-in spotlights and starlight sensor.
Vivid Colors, Even in Low Light
Enhances your security by revealing brighter, full-color images and vivid details even in low-light conditions with built-in spotlights and the starlight sensor.
Multiple AI Detection, All for Free!
Smart AI accurately identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.
SPECIFICATION
CAMERA
Image Sensor:
1/3" Progressive Scan CMOS Starlight Sensor
Lens:
Focal Length: 2.1 mm
Aperture: F2.1
Field of View: 150° (Diagonal), 134°(Horizontal), 77°(Vertical)
Night Vision:
850 nm IR LED (49 ft / 15 m)
Full-Color Night Vision
Lighting:
4× Built-in Spotlights
Interface & Button:
1× RESET Button
1× POWER Button
VIDEO AND AUDIO
Maximum Resolution:
2K QHD 4MP (2560 × 1440 px)
Frame Rate:
15/20/(25/30)fps
Digital Zoom:
12×
Video Compression:
H.264
Live View:
Yes
Image Enhancement:
3DNR
WDR
Audio Input & Output:
Built-in Microphone and Speaker
Audio Communication:
Two-Way Audio with Noise Cancellation
Siren Volume:
94 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage:
Supports microSD Card (Up to 512GB)
(Purchase Separately)
Cloud Storage:
Tapo Care Cloud Storage Services (Subscription required)
DETECTION AND NOTIFICATIONS
Sensor:
Single Motion Sensor (FOV: 130° horizontal)
Single Ambient Light Sensors
AI Detection:
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Activity Zones:
Yes
Output Notification:
System Notification
System Notification with Snapshot (Tapo Care Services)
NETWORK
Network Connectivity:
Connect via Wi-Fi
Wireless Connectivity:
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
SECURITY
Security:
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK
POWER
Power Source
10000 mAh Built-in Rechargeable Lithium-ion Battery
Optional Solar Panel:
Tapo A200 (Sold separately)
Input Voltage:
Adapter Input: 100-240 V, 50/60 Hz
Output Voltage:
Adapter Output: 5.0 V, 2.0 A
GENERAL
Smart Integration:
Google Assistant, Amazon Alexa
Weather Resistance:
IP66
System Requirements:
Tapo App: iOS 11.0 or higher, Android 5.0 or higher
Mounting Options:
Tabletop
Ceiling-Mounted
Wall-Mounted
Operating Temperature:
-20℃~45℃
Storage Temperature:
-20℃~45℃
Operating Humidity:
10%~90% RH, Non-condensing
Storage Humidity:
5%~90% RH, Non-condensing
Charging Temperature:
0-45℃
Dimensions:
Camera Dimensions: 4.57 × 2.55 × 2.55 in (116.2 × 64.8 × 64.8mm)
Package Contents:
Tapo C425 Camera
USB Adapter
USB Adapter Cable
Mounting Template
Magnetic Base
Mounting Screws
Mounting Anchors
Metal Plate
3M Adhesive
Quick Start Guide
Certifications:
CE, FCC, RoHS, RCM
