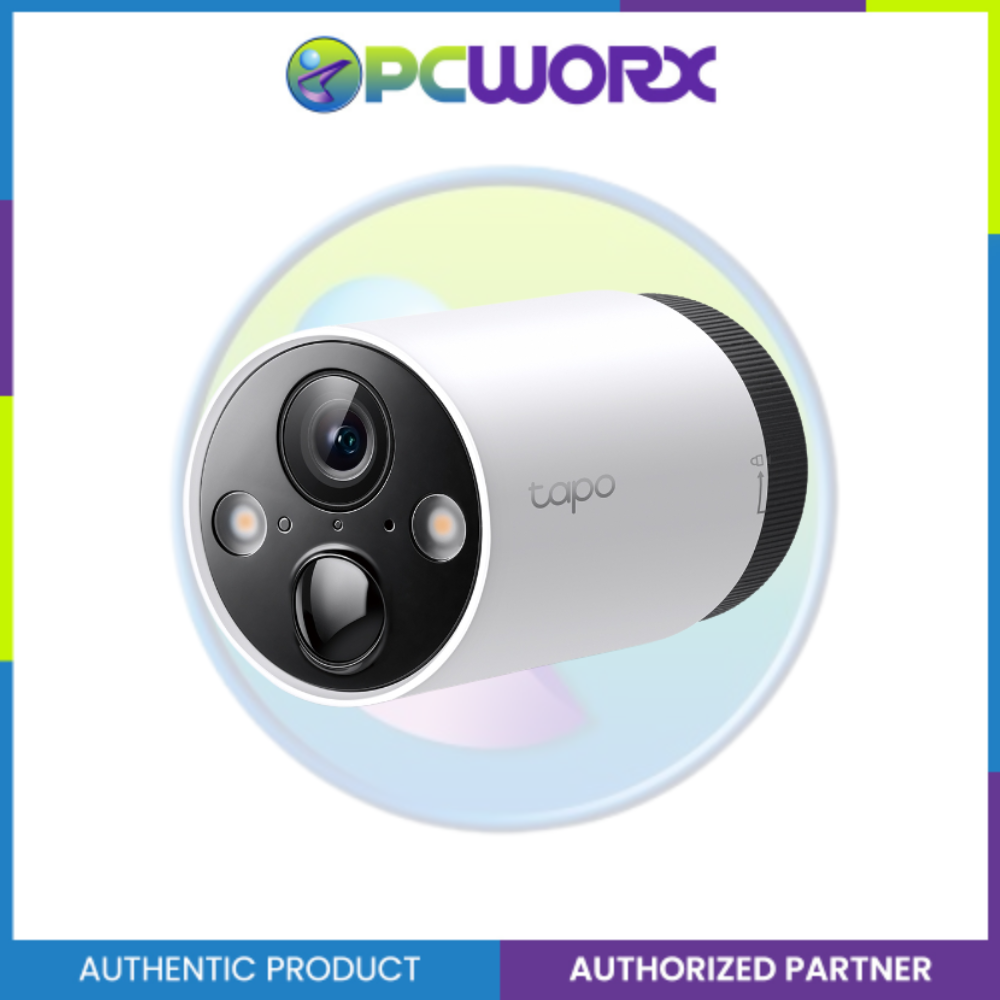

| CAMERA |
|
| Image Sensor: |
1/3“ |
| Lens: |
F/NO: 1.61±10%; Focal Length: 3.18mm±5% |
| Night Vision: |
850 nm IR LED up to 49 ft/15m |
| Lighting: |
2× Built-in Spotlights |
| Interface & Button: |
1× SYNC/RESET Button |
| Hub Compatibility: |
Compatible with Tapo H200(Sold separately) |
| Viewing Angle: |
113° |
| Resolution: |
2K QHD (2560 × 1440 px) |
|
|
| VIDEO & AUDIO |
|
| Maximum Resolution: |
2K QHD 4MP (2560 × 1440 px) |
| Frame Rate: |
15 fps / 20 fps |
| Digital Zoom: |
12× |
| Video Compression: |
H.264 |
| Live View: |
Yes |
| Image Enhancement: |
3DNR |
|
WDR |
| Audio Input & Output: |
Built-in Microphone and Speaker |
| Audio Communication: |
Two-Way Audio with Noise Cancellation |
| Siren Volume: |
Camera: |
|
92 dB (Level measured at 4-inch/10-cm distance) |
|
Hub: |
|
100 dB (Level measured at 4-inch/10-cm distance) |
|
|
| STORAGE |
|
| Local Storage: |
MicroSD Card Slot on Hub (Up to 512 GB) |
|
*Hub sold separately. |
|
General Information about using MicroSD Cards > |
| Cloud Storage: |
Tapo Care Cloud Storage Services (Subscription required) |
|
|
| DETECTION and NOTIFICATIONS |
|
| Sensor: |
Single Motion Sensor (FOV: 110° horizontal) |
|
Single Ambient Light Sensors |
| AI Detection: |
Motion Detection |
|
Person Detection |
|
Pet Detection |
|
Vehicle Detection |
| Activity Zones: |
Yes |
| Output Notification: |
System Notification |
|
System Notification with Snapshot (Tapo Care Services) |
|
|
| AUDIO |
|
| Audio Communication: |
2-way audio |
| Audio Input & Output: |
Built-in microphone and speaker |
|
|
| NETWORK |
|
| Network Connectivity: |
Connect via Wi-Fi or Ethernet |
| Wireless Connectivity: |
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
|
Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub) |
| Protocol |
TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Ethernet Port |
1× 10/100 Mbps RJ45 Port on Hub |
|
*Hub sold separately. |
| Wireless Security: |
WPA/WPA2-PSK |
| Wi-Fi Protocol: |
IEEE 802.11b/g/n, 2.4 GHz |
| Frequency: |
2.4 GHz |
|
|
| SECURITY |
|
| Security: |
128-bit AES Encryption with SSL/TLS |
|
WPA/WPA2-PSK |
| POWER |
|
| Power Source: |
Camera: |
|
6700 mAh Removable Rechargeable Lithium-ion Battery |
|
Optional Solar Panel: Tapo A200 (Sold separately) |
| Input Voltage: |
Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
| Output Voltage: |
Camera Battery Pack Adapter Output: 5.0 V, 1.0 A |
|
|
| GENERAL |
|
| Weather Resistance: |
Camera: IP65 |
| System Requirements: |
Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher |
| Mounting Options: |
Tabletop |
|
Ceiling-Mounted |
|
Wall-Mounted |
| Operating Temperature: |
Camera: -20℃~45℃ |
| Storage Temperature: |
-20℃~60℃ |
| Operating Humidity: |
10%~90% RH, Non-condensing |
| Storage Humidity: |
5%~90% RH, Non-condensing |
| Charging Temperature: |
0-55℃ |
| Dimensions: |
Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm) |
| Package Contents: |
Tapo C420 Camera |
|
Tapo A100 Battery |
|
USB Adapter |
|
USB Adapter Cable |
|
Mounting Anchors |
|
Mounting Screws |
|
Mounting Template |
|
Camera Bracket |
|
Quick Start Guide |
| Certifications: |
CE, FCC, RoHS, RCM |
|
|
| ACTIVITY NOTIFICATIONS |
|
| Input Trigger: |
Motion detection, Person |
|
detection, Pet detection, Vehicle detection. |
| Output Notification: |
Notification,Snapshot(Tapo care), Clips(Tapo |
|
|
| ENVIRONMENT |
|
| Operating Temperature: |
-20℃~45℃ (-4°F ~113 °F) |
| Storage Temperature: |
-20℃~60℃ (-4°F~140°F) |
| Operating Humidity: |
10%~90%RH, Non-condensing |
| Storage Humidity: |
5%~90%RH, Non-condensing |
|
|
| PACKAGE CONTENTS |
|
| Package Contents: |
Tapo C420 Cameras (Battery Included) |
|
USB Adapter |
|
USB Adapter Cable |
|
Mounting Screws |
|
Mounting Templates |
|
Camera Brackets |
|
Quick Start Guide |
|
|
| HARDWARE |
|
| Button |
Camera Button: Reset/SYNC Button |
| Indicator LED |
Camera Indicator LED: System LED |
| Adapter Input |
Camera Adapter Input: 100-240V, 50/60Hz |
| Adapter Output |
Camera Adapter Output: 5.0V, 1.0A |
| Dimensions (W x D x H) |
Camera Dimensions: 4.35 x 2.52 x 2.52in. |
|
(110.6*64.2*64.2mm) |
|
|
| VIDEO/IMAGE |
|
| Video Compression |
H.264 |
| Frame Rate & Resolutions |
15/20 fps |
| Video Streaming |
2K QHD |
