₱6,900.00
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE |
| • 12 V DC | |
| Max. Power Consumption | • EU: 12 W |
| • US: 13.5 W | |
| Dimensions ( W x D x H ) | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) |
| Antenna | Internal Omni |
| • 2.4 GHz: 2× 4 dBi | |
| • 5 GHz: 2× 5 dBi | |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 1201 Mbps |
| 2.4 GHz: Up to 574 Mbps | |
| Wireless Functions | • 1024-QAM |
| • 4× Longer OFDM Symbol | |
| • OFDMA | |
| • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| • Enable/Disable Wireless Radio | |
| • Automatic Channel Assignment | |
| • Transmit Power Control (Adjust Transmit Power on dBm) | |
| • QoS(WMM) | |
| • MU-MIMO | |
| • Seamless Roaming | |
| • Band Steering | |
| • Load Balance | |
| • Airtime Fairness | |
| • Beamforming | |
| • Rate Limit | |
| • Reboot Schedule | |
| • Wireless Schedule | |
| • Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | • Captive Portal Authentication |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • SSID to VLAN Mapping | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | • CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, EIRP) | |
| • FCC: | |
| <25 dBm (2.4 GHz) | |
| <25 dBm (5 GHz) | |
| Management Features | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |

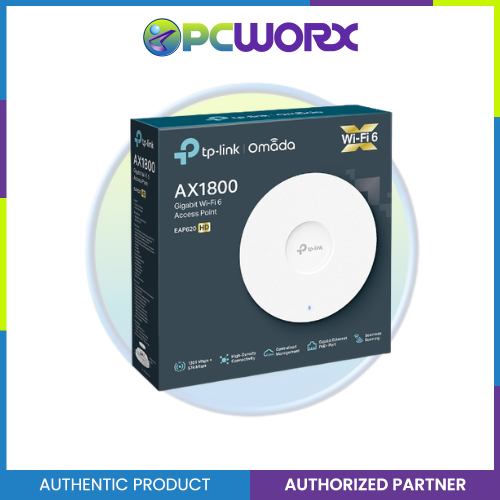

| Package Content | • EAP620 HD |
| • Power Adapter | |
| • Ceiling/Wall Mounting Kits | |
| • Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) |
| • Storage Temperature: -40–70 ? (-40–158 ?) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
₱6,900.00
Estimated delivery between March 15 and March 17.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱6,900.00
₱6,900.00
Authorized Seller
100% Original Authentic Product
