Specifications Main Range AvatarOn A Product or component type Switched socket Device application Power supply Device presentation Complete product Colour tint White Complementary Socket number 2 Outlet standard description 3 pins Outlet standard deviation Universal Switch function 1-way Number of gangs 2 gangs Connections - terminals Push-in Number of terminals 3 Clamping connection capacity 2 x 1.5...2 x 4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s) Wire stripping length 13 mm Material Polycarbonate Surface finish Glossy Glossy and matt Glossy Device mounting Flush fixing mode By 2 screws Height 70 mm Width 120 mm Depth 30.3 mm Embedding depth 19.3 mm Net weight 0.118 kg Rated current 16 A at 250 V AC 50...60 Hz Environment IP degree of protection IP20 Ambient air temperature for operation -5…45 °C Ambient air temperature for storage -5…60 °C Relative humidity 0…95 % Standards IEC 60884-2-3 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.6 cm Package 1 Width 7 cm Package 1 Length 12 cm Package 1 Weight 118 g Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Height 8.8 cm Package 2 Width 18.5 cm Package 2 Length 26.5 cm Package 2 Weight 1.516 kg Unit Type of Package 3 S03 Number of Units in Package 3 72 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 9.746 kg

Read more less

Category Parameter Specification Main Range AvatarOn A Product or component type Switched socket Device application Power supply Device presentation Complete product Colour tint Black Complementary Socket number 2 Outlet standard description 3 pins Outlet standard deviation Universal Switch function 1-way Number of gangs 2 gangs Connections – terminals Push-in Number of terminals 3 Clamping connection capacity Solid cable: 2 × 1.5…2 × 4 mm² Stranded cable: 2 × 1.5…2 × 4 mm² Wire stripping length 13 mm Material Polycarbonate Surface finish Glossy / Matt Device mounting Flush Fixing mode By 2 screws Dimensions & Weight Height 70 mm Width 120 mm Depth 30.3 mm Embedding depth 19.3 mm Net weight 0.118 kg Electrical Rated current 16 A at 250 V AC 50/60 Hz Environment IP degree of protection IP20 Operating temperature -5…45 °C Storage temperature -5…60 °C Relative humidity 0…95 % Standards IEC 60884-2-3 Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 3.6 cm Package 1 width 7 cm Package 1 length 12 cm Package 1 weight 117 g

Read more less

Category Parameter Specification Main Range AvatarOn A Product or component type Switched socket Device application Power supply Device presentation Complete product Colour tint Grey Complementary Socket number 2 Outlet standard description 3 pins Outlet standard deviation Universal Switch function 1-way Number of gangs 2 gangs Connections – terminals Push-in Number of terminals 3 Clamping connection capacity Solid cable: 2 × 1.5…2 × 4 mm² Stranded cable: 2 × 1.5…2 × 4 mm² Wire stripping length 13 mm Material Polycarbonate Surface finish Glossy / Matt Device mounting Flush Fixing mode By 2 screws Dimensions & Weight Height 70 mm Width 120 mm Depth 30.3 mm Embedding depth 19.3 mm Net weight 0.118 kg Electrical Rated current 16 A at 250 V AC 50/60 Hz Environment IP degree of protection IP20 Operating temperature -5…45 °C Storage temperature -5…60 °C Relative humidity 0…95 % Standards IEC 60884-2-3 Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 3.6 cm Package 1 width 7 cm Package 1 length 12 cm Package 1 weight 117 g

Read more less

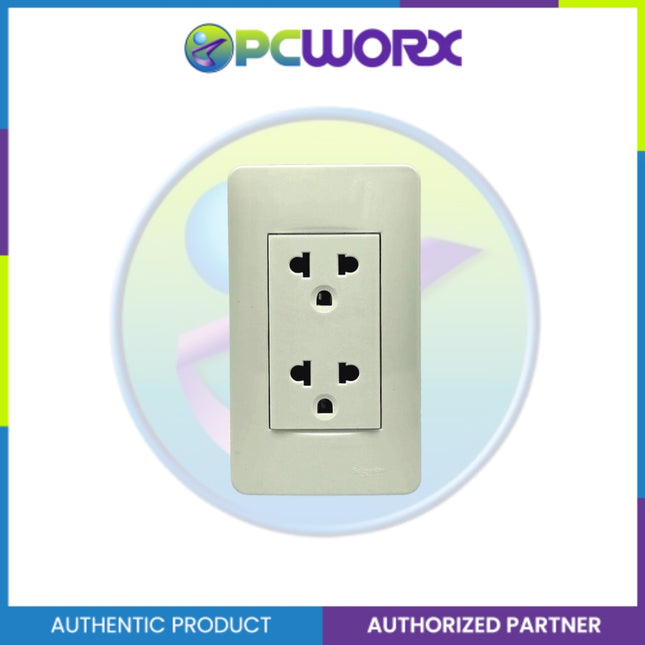

SPECIFICATION 𝗠𝗮𝗶𝗻 Range Concept Product or component type Socket-outlet Device presentation Complete product Outlet poles configuration 2 x 2P + E with shutters Provided equipment Socket-outlet Colour tint White Type of packing Plastic bag Quantity per set 1 𝗖𝗼𝗺𝗽𝗹𝗲𝗺𝗲𝗻𝘁𝗮𝗿𝘆 Number of power socket outlets 2 Device mounting Wall  Range compatibility Concept Number of modules 2 modules Fixing mode By screws Surface finish Glossy Surface treatment Untreated Rated current 16 A at 250 V AC 50/60 Hz Electrical durability 5000 cycles Connections - terminals 6 folded terminal Number of cables 3 Clamping connection capacity:    1.5...4 mm² for rigid cable(s)   1.5...4 mm² for stranded cable(s) Wire stripping length: 12 mm Height: 117 mm Width: 70 mm Depth: 38 mm Embedding depth: 28 mm 𝗘𝗻𝘃𝗶𝗿𝗼𝗻𝗺𝗲𝗻𝘁 Ambient air temperature for operation:  -5…40 °C  Relative humidity: 0…95 % Standards: IEC  Relative humidity:  0…95 % 𝗢𝗳𝗳𝗲𝗿 𝗦𝘂𝘀𝘁𝗮𝗶𝗻𝗮𝗯𝗶𝗹𝗶𝘁𝘆 Sustainable offer status:  Green Premium product REACh Regulation: REACh Declaration:  REACh Declaration REACh free of SVHC:   Yes EU RoHS Directive:   Yes REACh free of SVHC:   Yes Compliant  EU RoHS Declaration: Toxic heavy metal free:  Yes Mercury free:  Yes RoHS exemption information:  Yes 𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦 𝗣𝗮𝗰𝗸𝗶𝗻𝗴 𝗨𝗻𝗶𝘁 Height: 117 mm Width: 70 mm Depth: 38 mm

Read more less

Sleek Design: functionality look stylish. The combination of classic white colour and streamline design is a testimonial of simple elegance. Better still, S-Flexi with FlexiFix helps you put up as many or as less wall plates as the interior design calls for. FlexiFix Module Mounting Design: That is the qunique design for the grid plate to allows you to position the modules anywhere along the inner slots of thegrid plate. This, together with the standardised sizing of the modules, gives you an interchangeable modular system with insurmountable flexibility to create your switches and sockets the way you want them. Made with high quality Polycarbonate (PC) materials: S-Flexi switches and sockets are virtually unbreakable. They are tested to comply with the IEC safety standards, ensuring maximum safety and reliability. Various Function and equipment size: With a range of switch and socket modules of various functions , this range also have international socket to support customer. S- Flexi created in such standard sizes as Large (L), Medium (M), Small (S) and Extra Small (XS), S-Flexi enables you to optimise your needs and fully utilise every inch of every wall plate. Benefits S-Flexi is that right tool for you. Engineered to deliver the highest level of versatility in installation and combination of modules, S-Flexi is just another masterpiece by Schneider Electric demonstrating a perfect blend of the functional and aesthetic elements in electrical accessories for the contemporary homes. S-Flexi is easy to install due to the special design of grid plate,S-Flexi is also safe and durable because of high quality material.      Applications Residential, commercial applications. Flush- or surface-mounted installations.  S-Flexi also prepared for any kind of residential living and all non-residential applications like schools or gymnasium. Category Specification Brand Schneider Electric SKU 3606470745_PH-18717948424 Type of Plugs Universal Plug Powerpoint Type Double GPO What’s in the Box 1x Schneider Electric S-Flexi 16A 250V 2 Gang 3-Pin Universal Socket Set (Assembled) Qualification License Type PH_DTI_PS_ICC License Code Not specified

Read more less

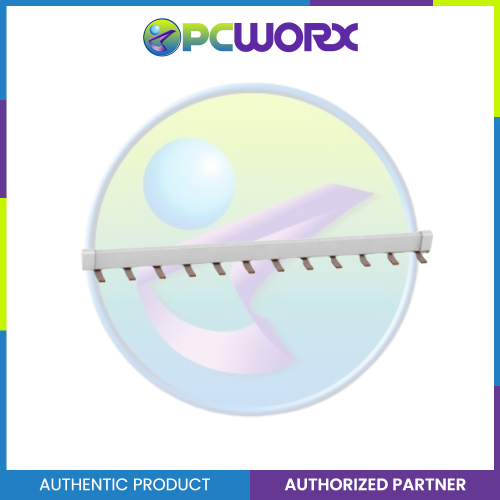

Specifications Main Range Easy9 Product or component type Comb busbar Mounting mode Horizontal Accessory / separate part category Connection accessory Lines description 1L Length in 18 mm modules 12 Standards IEC 60439-1 IEC 60664 Complementary Number of ways 12 ways 1 L Poles configuration for 1 way 1 x 1P Connection pitch 18 mm Connector type Tooth Distance between way 18 mm Insulation Insulated Device presentation Cuttable Provided equipment 2 end piece [Ie] rated operational current 63 A at 40 °C [Ue] rated operational voltage 230 V AC 50 Hz Ph/N [Ui] rated insulation voltage 500 V AC conforming to IEC 61439-1 Mounting location Top on tunnel type terminals 9 mm pitches 24 Width 220 mm Colour Light grey (RAL 7035) Range compatibility Easy9 Easy9 XP Environment Fire resistance 850 °C ( 30 s ) conforming to IEC 60695-2-1 Pollution degree 2 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 1.500 cm Package 1 Width 1.500 cm Package 1 Length 21.500 cm Package 1 Weight 35.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 15 Package 2 Height 5.900 cm Package 2 Width 8.500 cm Package 2 Length 24.800 cm Package 2 Weight 583.000 g Unit Type of Package 3 S03 Number of Units in Package 3 270 Package 3 Height 30.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 10.835 kg

Read more less

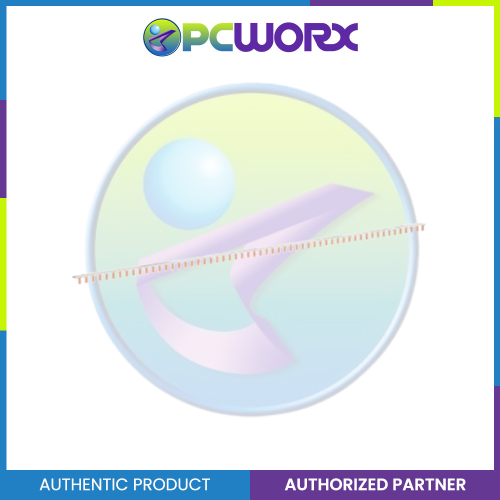

Specifications Main Range Easy9 Product or component type Comb busbar Mounting mode Horizontal Accessory / separate part category Connection accessory Lines description 1L Length in 18 mm modules 57 Standards IEC 60439-1 IEC 60664 Complementary Number of ways 57 ways 1 L Poles configuration for 1 way 1 x 1P Connection pitch 18 mm Connector type Tooth Distance between way 18 mm Insulation Insulated Device presentation Cuttable Provided equipment 2 end piece [Ie] rated operational current 63 A at 40 °C [Ue] rated operational voltage 230 V AC 50 Hz Ph/N [Ui] rated insulation voltage 500 V AC conforming to IEC 61439-1 Mounting location Top on tunnel type terminals 9 mm pitches 114 Width 1000 mm Colour Light grey (RAL 7035) Range compatibility Easy9 Easy9 XP Environment Fire resistance 850 °C ( 30 s ) conforming to IEC 60695-2-1 Pollution degree 2 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 1.500 cm Package 1 Width 1.500 cm Package 1 Length 101.500 cm Package 1 Weight 170.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 5.200 cm Package 2 Width 8.800 cm Package 2 Length 106.500 cm Package 2 Weight 1.916 kg Unit Type of Package 3 P12 Number of Units in Package 3 270 Package 3 Height 75.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 50.500 kg

Read more less

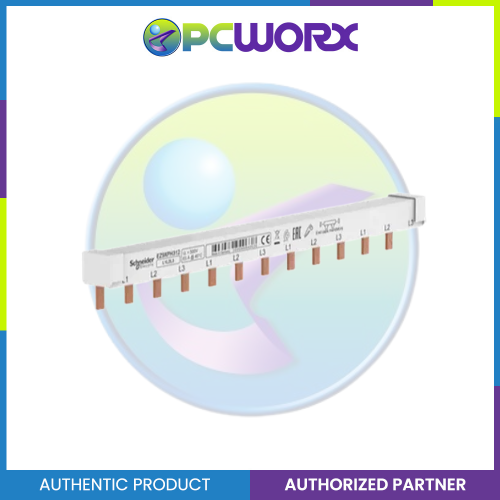

Specifications Main Range Easy9 Product or component type Comb busbar Mounting mode Horizontal Accessory / separate part category Connection accessory Lines description 3L Length in 18 mm modules 12 Standards IEC 60439-1 IEC 60664 Complementary Number of ways 4 ways 3 L Poles configuration for 1 way 1 x 3P Connection pitch 18 mm Connector type Tooth Distance between way 54 mm Insulation Insulated Device presentation Cuttable Provided equipment 2 end piece [Ie] rated operational current 63 A at 40 °C [Ue] rated operational voltage 230 V AC 50 Hz Ph/N 400 V AC 50 Hz Ph/Ph [Ui] rated insulation voltage 500 V AC conforming to IEC 61439-1 Mounting location Top on tunnel type terminals 9 mm pitches 24 Width 220 mm Colour Light grey (RAL 7035) Range compatibility Easy9 Easy9 XP Environment Fire resistance 850 °C ( 30 s ) conforming to IEC 60695-2-1 Pollution degree 2 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 1.700 cm Package 1 Width 2.500 cm Package 1 Length 21.600 cm Package 1 Weight 80.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 5.700 cm Package 2 Width 8.500 cm Package 2 Length 24.700 cm Package 2 Weight 878.000 g Unit Type of Package 3 S02 Number of Units in Package 3 80 Package 3 Height 15.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 7.338 kg

Read more less

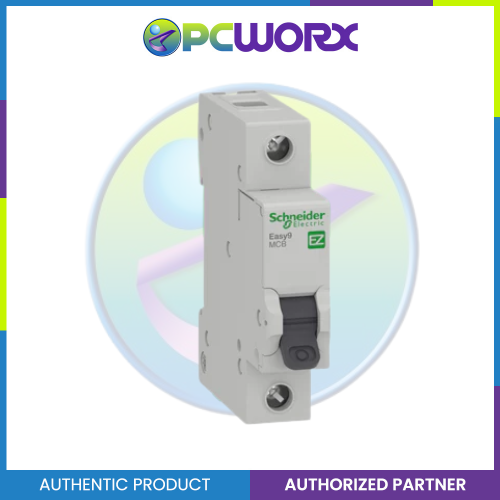

Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 [In] rated current 50 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz [Ue] rated operational voltage 230 V AC 50 Hz 127 V AC 50 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 2 Height 81 mm Width 18 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² rigid Tightening torque 3.5 N.m top or bottom Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications VDE CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.500 cm Package 1 Width 1.800 cm Package 1 Length 8.500 cm Package 1 Weight 119.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Height 8.000 cm Package 2 Width 9.000 cm Package 2 Length 23.000 cm Package 2 Weight 1.502 kg Unit Type of Package 3 S03 Number of Units in Package 3 144 Package 3 Height 30.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 18.652 kg

Read more less

Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 [In] rated current 63 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz [Ue] rated operational voltage 230 V AC 50 Hz 127 V AC 50 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 2 Height 81 mm Width 18 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² rigid Tightening torque 3.5 N.m top or bottom Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications VDE CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.500 cm Package 1 Width 1.800 cm Package 1 Length 8.500 cm Package 1 Weight 122.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Height 8.300 cm Package 2 Width 9.200 cm Package 2 Length 23.000 cm Package 2 Weight 1.525 kg Unit Type of Package 3 S03 Number of Units in Package 3 144 Package 3 Height 30.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 18.946 kg

Read more less

Category Parameter Specification Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 Rated current [In] 20 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1) 10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 230 V AC 50/60 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity [Ics] 7.5 kA (75% Icn) at 230 V AC 50/60 Hz Limitation class Class 3 (IEC 60898-1) Rated insulation voltage [Ui] 500 V AC 50/60 Hz Rated impulse withstand voltage [Uimp] 4 kV Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail Number of 9 mm pitches 2 Dimensions Height 81 mm Width 18 mm Depth 66.5 mm Physical Colour Grey (RAL 7035) Mechanical durability 20,000 cycles Electrical durability 4,000 cycles Connections Terminal type Tunnel type (top or bottom) Rigid conductor size 1…25 mm² Flexible conductor size 1…16 mm² Wire stripping length 14 mm Tightening torque 2 N·m Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at -5…60 °C Operating temperature -5…60 °C Storage temperature -40…85 °C Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 7.4 cm Package 1 width 1.8 cm Package 1 length 8.5 cm Package 1 weight 106 g

Read more less

Category Specification Details Main Range Easy9 Device Application Distribution Product / Component Type Miniature Circuit-Breaker Device Short Name Easy9 MCB Electrical Poles 1P Number of Protected Poles 1 Rated Current (In) 32 A Network Type AC Network Frequency 50/60 Hz Rated Operational Voltage (Ue) 230 V AC 50/60 Hz Trip Unit Technology Thermal-magnetic Curve Code C Magnetic Tripping Limit 5…10 × In Breaking Capacity Breaking Capacity (Icn) 10,000 A at 230 V AC 50/60 Hz (IEC 60898-1) 10,000 A at 400 V AC 50/60 Hz (IEC 60898-1) Rated Service Breaking Capacity (Ics) 7,500 A (75% of Icn) at 230 V AC Limitation Class 3 (IEC 60898-1) Insulation Rated Insulation Voltage (Ui) 500 V AC 50/60 Hz Rated Impulse Withstand Voltage (Uimp) 4 kV Compliance & Safety Suitability for Isolation Yes (IEC 60898-1) Earth-Leakage Protection Without Standards IEC 60898-1 Product Certification CE IP Degree of Protection IP20 (IEC 60529) Mechanical Control Type Toggle Contact Position Indicator Yes Local Signalling Without Mounting Mode Clip-on Mounting Support DIN Rail 9 mm Pitches 2 Colour Grey (RAL 7035) Dimensions Height 81 mm Width 18 mm Depth 66.5 mm Durability Mechanical Durability 20,000 cycles Electrical Durability 4,000 cycles Connections Terminal Type Tunnel type (top or bottom) Flexible Cable Size 1…25 mm² Rigid Cable Size 1…35 mm² Wire Stripping Length 14 mm Tightening Torque 3.5 N·m Environmental Pollution Degree 2 Tropicalisation 2 Relative Humidity 95% at -5…60 °C Operating Temperature -5…60 °C Storage Temperature -40…85 °C Packaging Unit Type of Package 1 PCE Units per Package 1 1 Package 1 Height 7.4 cm Package 1 Width 1.8 cm Package 1 Length 8.5 cm Package 1 Weight 118 g
