PCWORX

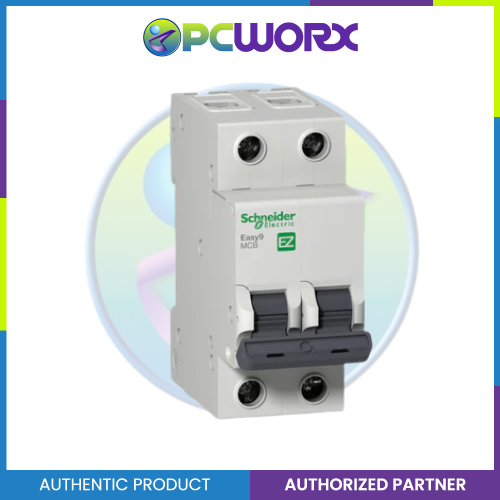

Schneider Easy9 IEC 2P 10A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51210)

(0)

₱418.00

Specification	Details
Range	Easy9
Device application	Distribution
Product or component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	2P
Number of protected poles	2
[In] rated current	10:00 AM
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation	Yes conforming to IEC 60898-1
Network frequency	50/60 Hz
[Ue] rated operational voltage	400 V AC 50/60 Hz
Magnetic tripping limit	5...10 x In
[Ics] rated service breaking capacity	7500 A 75 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60898-1
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10000 cycles
Electrical durability	4000 cycles
Connections - terminals	Tunnel type terminal (top or bottom) 1…25 mm² rigid; 1…16 mm² flexible
Tightening torque	2 N.m top or bottom
Earth-leakage protection	Without
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 conforming to IEC 60529
Pollution degree	2
Tropicalisation	2
Relative humidity	95 % at -5…60 °C
Ambient air temperature for operation	-5…60 °C
Ambient air temperature for storage	-40…85 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.6 cm
Package 1 Width	3.6 cm
Package 1 Length	8.5 cm
Package 1 Weight	211.0 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 10A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC (EZ9F56210)

(0)

₱306.60

Category	Specification	Details
Main	Range	Easy9
	Device application	Distribution
	Product / component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	2P
	Number of protected poles	2
	Rated current [In]	10 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10,000 A Icn at 220 V AC 50/60 Hz (IEC 60898-1)
		6,000 A Icn at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes (IEC 60898-1)
Complementary	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	220 V AC / 400 V AC
	Magnetic tripping limit	5…10 × In
	Service breaking capacity [Ics]	6 kA at 230 V AC (100% Icn)
	Rated insulation voltage [Ui]	500 V AC
	Rated impulse withstand voltage [Uimp]	4 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	9 mm pitches	4
	Height	81 mm
	Width	36 mm
	Depth	66.5 mm
	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
	Terminal type	Tunnel terminal (top/bottom)
	Terminal capacity (rigid)	1–25 mm²
	Terminal capacity (flexible)	1–16 mm²
	Tightening torque	2 N·m (top or bottom)
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Certifications	CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at −5…60°C
	Operating temperature	−5…60°C
	Storage temperature	−40…85°C
Packing Units	Unit type	PCE
	Units per package	1
	Package height	7.0 cm
	Package width	8.0 cm
	Package length	4.0 cm
	Package weight	198 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51216)

(0)

₱588.00

Category	Parameter	Specification
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	2P
	Number of protected poles	2
	Rated current [In]	16 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes (IEC 60898-1)
Complementary	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	400 V AC 50/60 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity [Ics]	7.5 kA (75% Icn) at 400 V AC
	Rated insulation voltage [Ui]	500 V AC 50/60 Hz
	Rated impulse withstand voltage [Uimp]	4 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	9 mm pitches	4
	Height	81 mm
	Width	36 mm
	Depth	66.5 mm
	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
	Connections – rigid cable	1…25 mm²
	Connections – flexible cable	1…16 mm²
	Tightening torque	2 N·m
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Product certifications	CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Operating temperature	-5…60 °C
	Storage temperature	-40…85 °C
Packing	Unit type of package 1	PCE
	Number of units in package 1	1
	Package 1 height	7.6 cm
	Package 1 width	3.6 cm
	Package 1 length	8.5 cm
	Package 1 weight	211 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC (EZ9F56216)

(0)

₱288.00

Category	Parameter	Specification
Main	Range	Easy9
	Device Application	Distribution
	Product or Component Type	Miniature Circuit-Breaker
	Device Short Name	Easy9 MCB
	Poles	2P
	Number of Protected Poles	2
	Rated Current [In]	16 A
	Network Type	AC
	Trip Unit Technology	Thermal-magnetic
	Curve Code	C
	Breaking Capacity	10 kA Icn at 220 V AC 50/60 Hz (IEC 60898-1)6 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for Isolation	Yes, conforming to IEC 60898-1
Complementary	Network Frequency	50/60 Hz
	Rated Operational Voltage [Ue]	220 V AC 50/60 Hz400 V AC 50/60 Hz
	Magnetic Tripping Limit	5…10 × In
	Rated Service Breaking Capacity [Ics]	6 kA (100% × Icn) at 230 V AC 50/60 Hz (IEC 60898-1)
	Rated Insulation Voltage [Ui]	500 V AC 50/60 Hz (IEC 60898-1)
	Rated Impulse Withstand Voltage [Uimp]	4 kV (IEC 60898-1)
	Contact Position Indicator	Yes
	Control Type	Toggle
	Local Signalling	Without
	Mounting Mode	Clip-on
	Mounting Support

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 220/400V 10kAIC EZ9F56220

(0)

₱331.20

Category	Specification
Main
Range	Easy9
Device application	Distribution
Product / component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	2P
Number of protected poles	2
Rated current [In]	20 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10,000 A Icn @ 220 V AC 50/60 Hz (IEC 60898-1) 6,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation	Yes (IEC 60898-1)
Complementary
Network frequency	50/60 Hz
Rated operational voltage [Ue]	220 V AC 50/60 Hz 400 V AC 50/60 Hz
Magnetic tripping limit	5…10 × In
Service breaking capacity [Ics]	6 kA (100% × Icn) @ 230 V AC 50/60 Hz (IEC 60898-1)
Rated insulation voltage [Ui]	500 V AC 50/60 Hz (IEC 60898-1)
Rated impulse withstand voltage [Uimp]	4 kV (IEC 60898-1)
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10,000 cycles
Electrical durability	4,000 cycles
Connections – terminals	Tunnel terminal (top/bottom) 1–25 mm² rigid Tunnel terminal (top/bottom) 1–16 mm² flexible
Tightening torque	2 N·m (top/bottom)
Earth-leakage protection	Without
Environment
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at –5…60 °C
Ambient temperature (operation)	–5…60 °C
Ambient temperature (storage)	–40…85 °C
Packing Units
Package type 1	PCE
Units per package 1	1
Package 1 (H × W × L)	7.500 cm × 3.000 cm × 8.300 cm
Package 1 weight	193 g

In stock

Receives in 6 days.

Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51220)

PCWORX

Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51220)

(0)

₱516.00

Category	Specification
Main
Range	Easy9
Device application	Distribution
Product / component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	2P
Number of protected poles	2
Rated current [In]	20 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation	Yes (IEC 60898-1)
Complementary
Network frequency	50/60 Hz
Rated operational voltage [Ue]	400 V AC 50/60 Hz
Magnetic tripping limit	5…10 × In
Service breaking capacity [Ics]	7,500 A (75% × Icn) @ 400 V AC 50/60 Hz (IEC 60898-1)
Rated insulation voltage [Ui]	500 V AC 50/60 Hz (IEC 60898-1)
Rated impulse withstand voltage [Uimp]	4 kV (IEC 60898-1)
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10,000 cycles
Electrical durability	4,000 cycles
Connections – terminals	Tunnel terminal (top/bottom) 1–25 mm² rigid Tunnel terminal (top/bottom) 1–16 mm² flexible
Tightening torque	2 N·m (top/bottom)
Earth-leakage protection	Without
Environment
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at –5…60 °C
Ambient temperature (operation)	–5…60 °C
Ambient temperature (storage)	–40…85 °C
Packing Units
Package type 1	PCE
Units per package 1	1
Package 1 (H × W × L)	7.6 cm × 3.6 cm × 8.5 cm
Package 1 weight	211 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 32A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51232)

(0)

₱618.00

Category	Specification
Range	Easy9
Device Application	Distribution
Product / Component Type	Miniature circuit-breaker
Device Short Name	Easy9 MCB
Poles	2P
Number of Protected Poles	2
Rated Current (In)	32 A
Network Type	AC
Trip Unit Technology	Thermal-magnetic
Curve Code	C
Breaking Capacity	10,000 A (Icn) at 400 V AC 50/60 Hz, IEC 60898-1
Suitability for Isolation	Yes, IEC 60898-1 compliant
Network Frequency	50/60 Hz
Rated Operational Voltage (Ue)	400 V AC 50/60 Hz
Magnetic Tripping Limit	5…10 × In
Rated Service Breaking Capacity (Ics)	7,500 A (75 % × Icn) at 400 V AC 50/60 Hz
Rated Insulation Voltage (Ui)	500 V AC 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)	4 kV
Contact Position Indicator	Yes
Control Type	Toggle
Local Signalling	Without
Mounting Mode	Clip-on
Mounting Support	DIN rail
9 mm Pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical Durability	10,000 cycles
Electrical Durability	4,000 cycles
Connections – Terminals	Tunnel terminal (top/bottom): 1–25 mm² flexible; 1–35 mm² rigid
Tightening Torque	3.5 N·m (top or bottom)
Earth-leakage Protection	Without
Standards	IEC 60898-1
Product Certifications	CE
IP Degree of Protection	IP20 (IEC 60529)
Pollution Degree	2
Tropicalisation	2
Relative Humidity	95 % at −5…60 °C
Ambient Temperature (Operation)	−5…60 °C
Ambient Temperature (Storage)	−40…85 °C

Package	Unit Type	Units per Package	Height	Width	Length	Weight
Package 1	PCE	1	7.6 cm	3.6 cm	8.5 cm	220 g
Package 2	BB1	6	8.8 cm	7.8 cm	22.6 cm	1.428 kg
Package 3	S03	72	30 cm	30 cm	40 cm	15.84 kg

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 32A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC EZ9F56232

(0)

₱365.47

Category	Specification
Main
Range	Easy9
Device application	Distribution
Product / component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	2P
Number of protected poles	2
Rated current [In]	32 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10,000 A Icn @ 220 V AC 50/60 Hz (IEC 60898-1) 6,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation	Yes (IEC 60898-1)
Complementary
Network frequency	50/60 Hz
Rated operational voltage [Ue]	220 V AC 50/60 Hz 400 V AC 50/60 Hz
Magnetic tripping limit	5…10 × In
Service breaking capacity [Ics]	6 kA (100% × Icn) @ 230 V AC 50/60 Hz (IEC 60898-1)
Rated insulation voltage [Ui]	500 V AC 50/60 Hz (IEC 60898-1)
Rated impulse withstand voltage [Uimp]	4 kV (IEC 60898-1)
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10,000 cycles
Electrical durability	4,000 cycles
Connections – terminals	Tunnel terminal (top/bottom) 1–25 mm² flexible Tunnel terminal (top/bottom) 1–35 mm² rigid
Tightening torque	3.5 N·m (top/bottom)
Earth-leakage protection	Without
Environment
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at –5…60 °C
Ambient temperature (operation)	–5…60 °C
Ambient temperature (storage)	–40…85 °C
Packing Units
Unit Type Package 1	PCE
Units in Package 1	1
Package 1 (H × W × L)	3.600 cm × 8.500 cm × 7.600 cm
Package 1 Weight	198 g

In stock

Receives in 6 days.

PCWORX

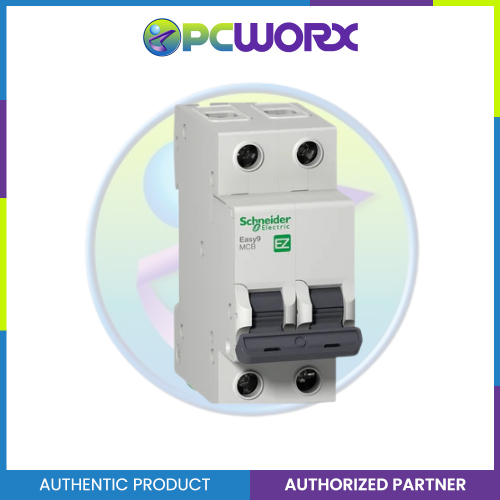

Schneider Easy9 IEC 2P 40A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51240)

(0)

₱580.44

Easy9 Miniature Circuit Breaker – Specifications

Section	Parameter	Value
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	2P
	Number of protected poles	2
	Rated current (In)	40 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10,000 A Icn at 400 V AC, 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes, conforming to IEC 60898-1
Complementary	Network frequency	50/60 Hz
	Rated operational voltage (Ue)	400 V AC, 50/60 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity (Ics)	7,500 A (75% × Icn) at 400 V AC, 50/60 Hz (IEC 60898-1)
	Rated insulation voltage (Ui)	500 V AC, 50/60 Hz (IEC 60898-1)
	Rated impulse withstand voltage (Uimp)	4 kV (IEC 60898-1)
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	9 mm pitches	4
	Height	81 mm
	Width	36 mm
	Depth	66.5 mm
	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
	Connections – terminals	Tunnel type terminal (top/bottom), 1–25 mm² flexible Tunnel type terminal (top/bottom), 1–35 mm² rigid
	Wire stripping length	14 mm (top or bottom connection)
	Tightening torque	3.5 N·m (top or bottom)
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Product certifications	CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Ambient air temperature (operation)	-5…60 °C
	Ambient air temperature (storage)	-40…85 °C
Packing Units	Unit type – Package 1	PCE
	Units per Package 1	1
	Package 1 dimensions (H × W × L)	7.6 × 3.6 × 8.5 cm
	Package 1 weight	238 g

Out of stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 40A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC EZ9F56240

(0)

₱420.84

Category	Specification
Main
Range	Easy9
Device application	Distribution
Product or component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	2P
Number of protected poles	2
Rated current [In]	40 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10000 A Icn at 220 V AC 50/60 Hz (IEC 60898-1) 6000 A Icn at 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation	Yes (IEC 60898-1)
Complementary
Network frequency	50/60 Hz
Rated operational voltage [Ue]	220 V AC 50/60 Hz 400 V AC 50/60 Hz
Magnetic tripping limit	5…10 × In
Rated service breaking capacity [Ics]	6 kA (100% × Icn) at 230 V AC (IEC 60898-1)
Rated insulation voltage [Ui]	500 V AC (IEC 60898-1)
Rated impulse withstand voltage [Uimp]	4 kV (IEC 60898-1)
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	81 mm
Width	36 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10,000 cycles
Electrical durability	4,000 cycles
Connections – terminals	Tunnel type (top or bottom) 1–25 mm² flexible Tunnel type (top or bottom) 1–35 mm² rigid
Tightening torque	3.5 N·m (top or bottom)
Earth-leakage protection	Without
Environment
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at −5…60 °C
Ambient air temperature (operation)	−5…60 °C
Ambient air temperature (storage)	−40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.600 cm
Package 1 Width	7.600 cm
Package 1 Length	8.500 cm
Package 1 Weight	240 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 50A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC EZ9F56250

(0)

₱488.40

Easy9 Miniature Circuit Breaker – Specifications Table

Section	Parameter	Value
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	2P
	Number of protected poles	2
	Rated current (In)	50 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10,000 A Icn at 220 V AC, 50/60 Hz (IEC 60898-1) 6,000 A Icn at 400 V AC, 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes, conforming to IEC 60898-1
Complementary	Network frequency	50/60 Hz
	Rated operational voltage (Ue)	220 V AC, 50/60 Hz 400 V AC, 50/60 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity (Ics)	6 kA, 100% × Icn at 230 V AC, 50/60 Hz (IEC 60898-1)
	Rated insulation voltage (Ui)	500 V AC, 50/60 Hz (IEC 60898-1)
	Rated impulse withstand voltage (Uimp)	4 kV (IEC 60898-1)
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	9 mm pitches	4
	Height	81 mm
	Width	36 mm
	Depth	66.5 mm
	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
	Connections – terminals	Tunnel type terminal (top or bottom), 1–25 mm² flexible Tunnel type terminal (top or bottom), 1–35 mm² rigid
	Tightening torque	3.5 N·m (top or bottom)
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Product certifications	CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Ambient air temperature (operation)	-5…60 °C
	Ambient air temperature (storage)	-40…85 °C
Packing Units	Unit type – Package 1	PCE
	Units per Package 1	1
	Package 1 dimensions (H × W × L)	4.0 × 8.0 × 8.0 cm
	Package 1 weight	241 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 2P 63A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC EZ9F56263

(0)

₱420.84

Specifications
Main
Range
Easy9
Device application
Distribution
Product or component type
Miniature circuit-breaker
Device short name
Easy9 MCB
Poles
2P
Number of protected poles
2
[In] rated current
63 A
Network type
AC
Trip unit technology
Thermal-magnetic
Curve code
C
Breaking capacity
10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation
Yes conforming to IEC 60898-1
Complementary
Network frequency
50/60 Hz
[Ue] rated operational voltage
220 V AC 50/60 Hz
400 V AC 50/60 Hz
Magnetic tripping limit
5...10 x In
[Ics] rated service breaking capacity
6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage
500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60898-1
Contact position indicator
Yes
Control type
Toggle
Local signalling
Without
Mounting mode
Clip-on
Mounting support
DIN rail
9 mm pitches
4
Height
81 mm
Width
36 mm
Depth
66.5 mm
Colour
Grey (RAL 7035)
Mechanical durability
10000 cycles
Electrical durability
4000 cycles
Connections - terminals
Tunnel type terminal (top or bottom) 1…25 mm² flexible
Tunnel type terminal (top or bottom) 1…35 mm² rigid
Tightening torque
3.5 N.m top or bottom
Earth-leakage protection
Without
Environment
Standards
IEC 60898-1
Product certifications
CE
IP degree of protection
IP20 conforming to IEC 60529
Pollution degree
2
Tropicalisation
2
Relative humidity
95 % at -5…60 °C
Ambient air temperature for operation
-5…60 °C
Ambient air temperature for storage
-40…85 °C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.500 cm
Package 1 Width
3.500 cm
Package 1 Length
8.500 cm
Package 1 Weight
246.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
6
Package 2 Height
8.000 cm
Package 2 Width
9.000 cm
Package 2 Length
22.500 cm
Package 2 Weight
1.545 kg
Unit Type of Package 3
S03
Number of Units in Package 3
72
Package 3 Height
30.000 cm
Package 3 Width
30.000 cm
Package 3 Length
40.000 cm
Package 3 Weight
19.166 kg

In stock

Receives in 6 days.

PCWORX

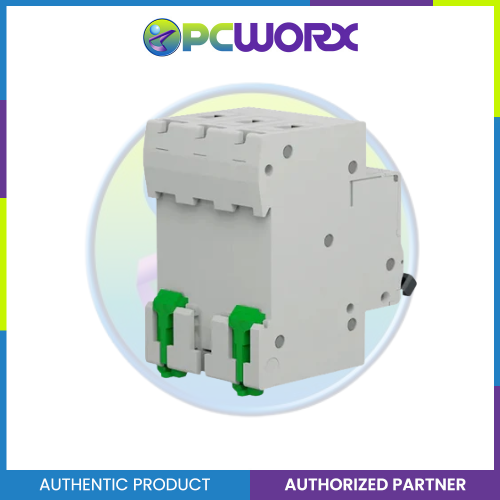

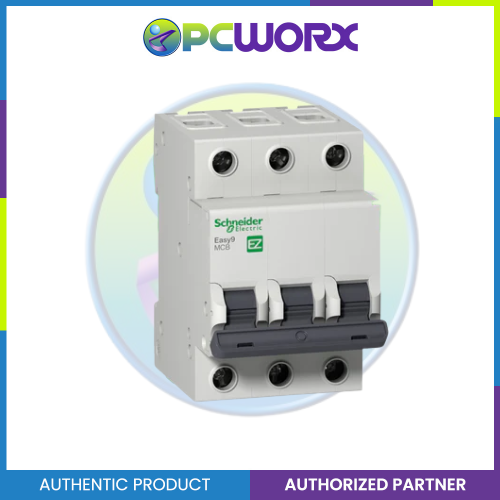

Schneider Easy9 IEC 3P 20A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC EZ9F56320

(0)

₱562.28

Category	Parameter	Specification
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	3P
	Number of protected poles	3
	Rated current [In]	20 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10 kA Icn at 220 V AC 50/60 Hz (IEC 60898-1)
		6 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes (IEC 60898-1)
Complementary	Network frequency	50 Hz
	Rated operational voltage [Ue]	220 V AC 50/60 Hz
		400 V AC 50/60 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity [Ics]	6 kA (100% Icn) at 400 V AC 50/60 Hz
	Rated insulation voltage [Ui]	500 V AC 50/60 Hz
	Rated impulse withstand voltage [Uimp]	4 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	Number of 9 mm pitches	6
Dimensions	Height	81 mm
	Width	54 mm
	Depth	66.5 mm
Physical	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
Connections	Terminal type	Tunnel type (top or bottom)
	Rigid conductor size	1…25 mm²
	Flexible conductor size	1…16 mm²
	Tightening torque	2 N·m
Environment	Standards	IEC 60898-1
	Product certifications	CE, VDE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Operating temperature	-5…60 °C
	Storage temperature	-40…85 °C
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	7.5 cm
	Package 1 width	5.5 cm
	Package 1 length	8.2 cm
	Package 1 weight	290 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 3P 25A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC EZ9F56325

(0)

₱530.04

Specifications


Range	Easy9
Device application	Distribution
Product or component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	3P
Number of protected poles	3
[In] rated current	25 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation	Yes conforming to IEC 60898-1

Complementary
Network frequency	50 Hz
[Ue] rated operational voltage	220 V AC 50/60 Hz 400 V AC 50/60 Hz
Magnetic tripping limit	5...10 x In
[Ics] rated service breaking capacity	6 kA 100 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60898-1
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	6
Height	81 mm
Width	54 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	10000 cycles
Electrical durability	4000 cycles
Connections - terminals	Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible
Tightening torque	2 N.m top or bottom

Environment
Standards	IEC 60898-1
Product certifications	VDE CE
IP degree of protection	IP20 conforming to IEC 60529
Pollution degree	2
Tropicalisation	2
Relative humidity	95 % at -5…60 °C
Ambient air temperature for operation	-5…60 °C
Ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.000 cm
Package 1 Width	8.000 cm
Package 1 Length	5.000 cm
Package 1 Weight	280.000 g

Out of stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 3P 32A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC EZ9F56332

(0)

₱788.00

Easy9 Miniature Circuit Breaker – Specifications

Section	Parameter	Value
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	3P
	Number of protected poles	3
	Rated current (In)	32 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10,000 A Icn at 220 V AC, 50/60 Hz (IEC 60898-1) 6,000 A Icn at 400 V AC, 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes, conforming to IEC 60898-1
Complementary	Network frequency	50 Hz
	Rated operational voltage (Ue)	220 V AC, 50/60 Hz 400 V AC, 50/60 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity (Ics)	6 kA, 100% × Icn at 400 V AC, 50/60 Hz (IEC 60898-1)
	Rated insulation voltage (Ui)	500 V AC, 50/60 Hz (IEC 60898-1)
	Rated impulse withstand voltage (Uimp)	4 kV (IEC 60898-1)
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	9 mm pitches	6
	Height	81 mm
	Width	54 mm
	Depth	66.5 mm
	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
	Connections – terminals	Tunnel type terminal (top/bottom), 1–25 mm² flexible Tunnel type terminal (top/bottom), 1–35 mm² rigid
	Tightening torque	3.5 N·m (top or bottom)
Environment	Standards	IEC 60898-1
	Product certifications	VDE CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Ambient air temperature (operation)	-5…60 °C
	Ambient air temperature (storage)	-40…85 °C
Packing Units	Unit type – Package 1	PCE
	Units per Package 1	1
	Package 1 dimensions (H × W × L)	7.5 × 5.5 × 8.5 cm
	Package 1 weight	297 g

In stock

Receives in 6 days.

PCWORX

Schneider Easy9 IEC 3P 40A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC (EZ9F56340)

(0)

₱959.00

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 40A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 220VAC conforming to IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 220VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 66.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

Main Specifications

Parameter	Value
Range	Easy9
Device application	Distribution
Product or component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	3P
Number of protected poles	3
Rated current $[In]$	40 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Suitability for isolation	Yes (IEC 60898-1)

Breaking Capacity

Voltage	Breaking Capacity
220 V AC 50/60 Hz	10,000 A Icn
400 V AC 50/60 Hz	6,000 A Icn
Standard	IEC 60898-1

Electrical Characteristics

Parameter	Value
Network frequency	50/60 Hz
Rated operational voltage $[Ue]$	220 V AC / 400 V AC
Magnetic tripping limit	5…10 × In
Rated service breaking capacity $[Ics]$	6 kA (100% Icn) at 400 V
Rated insulation voltage $[Ui]$	500 V AC
Rated impulse withstand voltage $[Uimp]$	4 kV

Mechanical & Functional Characteristics

Parameter	Value
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	6
Earth-leakage protection	Without

Dimensions & Appearance

Parameter	Value
Height	81 mm
Width	54 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)

Durability

Parameter	Value
Mechanical durability	10,000 cycles
Electrical durability	4,000 cycles

Connections

Parameter	Value
Terminal type	Tunnel type (top or bottom)
Flexible conductor	1…25 mm²
Rigid conductor	1…35 mm²
Tightening torque	3.5 N·m

Environmental Specifications

Parameter	Value
Standards	IEC 60898-1
Certifications	CE, VDE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at -5…60 °C
Operating temperature	-5…60 °C
Storage temperature	-40…85 °C

Packing Units

Package 1

Parameter	Value
Unit type	PCE
Units per package	1
Dimensions (H×W×L)	7.5 × 5.5 × 8.5 cm
Weight	353 g

In stock

Receives in 6 days.

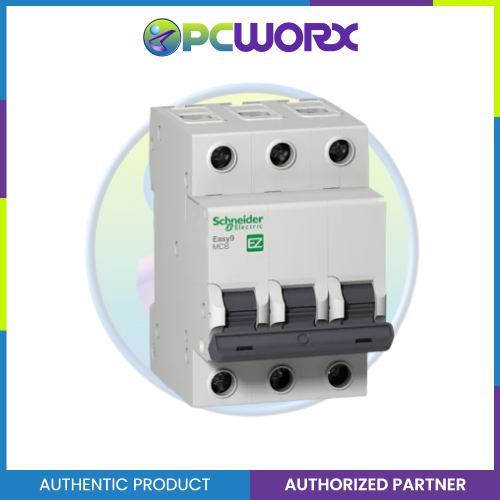

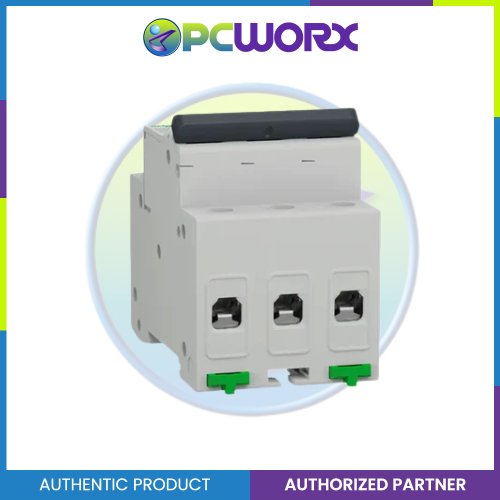

Schneider Easy9 IEC 3P 50A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC (EZ9F56350)

PCWORX

Schneider Easy9 IEC 3P 50A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC (EZ9F56350)

(0)

₱959.00

Category	Parameter	Specification
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	3P
	Number of protected poles	3
	Rated current [In]	50 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	10 kA at 220 V AC 50/60 Hz (IEC 60898-1)
		6 kA at 400 V AC 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes (IEC 60898-1)
Complementary	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	220 V AC 50/60 Hz
		400 V AC 50/60 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity [Ics]	6 kA (100% Icn) at 400 V AC 50/60 Hz
	Rated insulation voltage [Ui]	500 V AC 50/60 Hz
	Rated impulse withstand voltage [Uimp]	4 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	Number of 9 mm pitches	6
Dimensions	Height	81 mm
	Width	54 mm
	Depth	66.5 mm
Physical	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
Connections	Terminal type	Tunnel type (top or bottom)
	Flexible conductor size	1…25 mm²
	Rigid conductor size	1…35 mm²
	Tightening torque	3.5 N·m
Protection	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Product certifications	VDE, CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Operating temperature	-5…60 °C
	Storage temperature	-40…85 °C
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	8.0 cm
	Package 1 width	9.0 cm
	Package 1 length	2.5 cm
	Package 1 weight	358 g

In stock

Receives in 6 days.

Schneider Easy9 MCB 1P 16A C 6000A 230V (EZ9F56116) Circuit Breaker

PCWORX

Schneider Easy9 MCB 1P 16A C 6000A 230V (EZ9F56116) Circuit Breaker

(0)

₱221.00

Specifications
Main
Range
Easy9
Device application
Distribution
Product or component type
Miniature circuit-breaker
Device short name
Easy9 MCB
Poles
1P
Number of protected poles
1
[In] rated current
16 A
Network type
AC
Trip unit technology
Thermal-magnetic
Curve code
C
Breaking capacity
6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation
Yes conforming to IEC 60898-1
Complementary
Network frequency
50 Hz
[Ue] rated operational voltage
230 V AC 50 Hz
127 V AC 50 Hz
Magnetic tripping limit
5...10 x In
[Ics] rated service breaking capacity
6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage
500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60898-1
Contact position indicator
Yes
Control type
Toggle
Local signalling
Without
Mounting mode
Clip-on
Mounting support
DIN rail
9 mm pitches
2
Height
81 mm
Width
18 mm
Depth
66.5 mm
Colour
Grey (RAL 7035)
Mechanical durability
10000 cycles
Electrical durability
4000 cycles
Connections - terminals
Tunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
Tightening torque
2 N.m top or bottom
Environment
Standards
IEC 60898-1
Product certifications
CE
VDE
IP degree of protection
IP20 conforming to IEC 60529
Pollution degree
2
Tropicalisation
2
Relative humidity
95 % at -5…60 °C
Ambient air temperature for operation
-5…60 °C
Ambient air temperature for storage
-40…85 °C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.300 cm
Package 1 Width
1.800 cm
Package 1 Length
8.500 cm
Package 1 Weight
95.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
12
Package 2 Height
8.500 cm
Package 2 Width
9.200 cm
Package 2 Length
22.300 cm
Package 2 Weight
1.195 kg
Unit Type of Package 3
S03
Number of Units in Package 3
144
Package 3 Height
30.000 cm
Package 3 Width
30.000 cm
Package 3 Length
40.000 cm
Package 3 Weight
14.887 kg

In stock

Receives in 6 days.

Schneider Easy9 MCB 1P 32A C 6000A 230V Miniature Circuit-Breaker (EZ9F56132)

PCWORX

Schneider Easy9 MCB 1P 32A C 6000A 230V Miniature Circuit-Breaker (EZ9F56132)

(0)

₱242.00

Parameter	Specification
Range	Easy9
Device application	Distribution
Product or component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	1P
Number of protected poles	1
Rated current [In]	32 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	6 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1)
	10 kA Icn at 127 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation	Yes (IEC 60898-1)

In stock

Receives in 6 days.

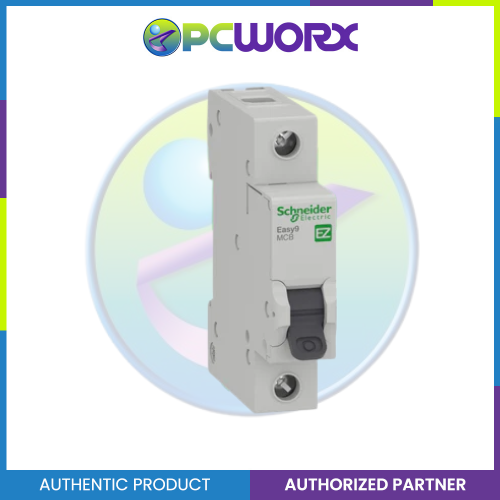

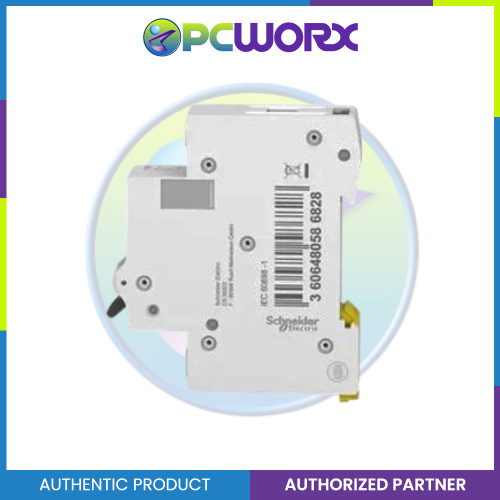

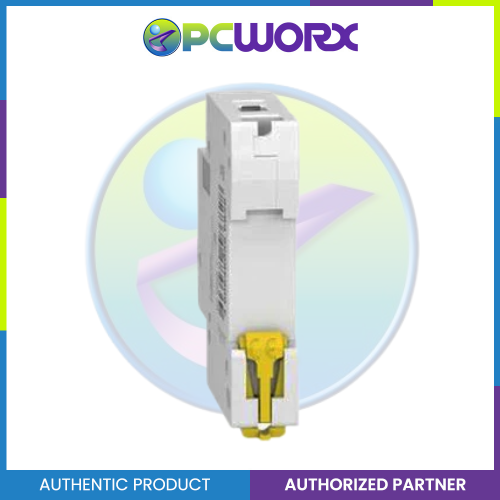

Schneider Easy9 MCB 1P 40A C 6000A 230V Miniature Circuit-Breaker (EZ9F56140)

PCWORX

Schneider Easy9 MCB 1P 40A C 6000A 230V Miniature Circuit-Breaker (EZ9F56140)

(0)

₱302.00

Category	Parameter	Specification
Main	Range	Easy9
	Device application	Distribution
	Product or component type	Miniature circuit-breaker
	Device short name	Easy9 MCB
	Poles	1P
	Number of protected poles	1
	Rated current [In]	40 A
	Network type	AC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	6 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1)
		10 kA Icn at 127 V AC 50/60 Hz (IEC 60898-1)
	Suitability for isolation	Yes (IEC 60898-1)
Complementary	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	230 V AC 50 Hz
		127 V AC 50 Hz
	Magnetic tripping limit	5…10 × In
	Rated service breaking capacity [Ics]	6 kA (100% Icn) at 230 V AC 50/60 Hz
	Rated insulation voltage [Ui]	500 V AC 50/60 Hz
	Rated impulse withstand voltage [Uimp]	4 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Without
	Mounting mode	Clip-on
	Mounting support	DIN rail
	Number of 9 mm pitches	2
Dimensions	Height	81 mm
	Width	18 mm
	Depth	66.5 mm
Physical	Colour	Grey (RAL 7035)
	Mechanical durability	10,000 cycles
	Electrical durability	4,000 cycles
Connections	Terminal type	Tunnel type (top or bottom)
	Flexible conductor size	1…25 mm²
	Rigid conductor size	1…35 mm²
	Tightening torque	3.5 N·m
	Earth-leakage protection	Without
Environment	Standards	IEC 60898-1
	Product certifications	VDE, CE
	IP degree of protection	IP20 (IEC 60529)
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at -5…60 °C
	Operating temperature	-5…60 °C
	Storage temperature	-40…85 °C
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	7.5 cm
	Package 1 width	1.8 cm
	Package 1 length	8.5 cm
	Package 1 weight	119 g

In stock

Receives in 6 days.

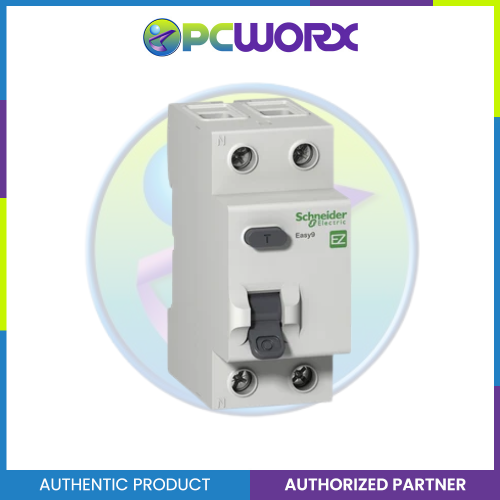

Schneider Easy9 RCCB 2P 25A 30MA AC-type 230V EZ9R36225 Residual Current Circuit Breaker

PCWORX

Schneider Easy9 RCCB 2P 25A 30MA AC-type 230V EZ9R36225 Residual Current Circuit Breaker

(0)

₱1,959.72

Category	Parameter	Specification
Main	Range of product	Easy9
	Product or component type	Residual current circuit breaker (RCCB)
	Device short name	Easy9 RCCB
	Poles	2P
	Neutral position	Left
	Rated current [In]	25 A
	Network type	AC
	Earth-leakage sensitivity	30 mA
	Earth-leakage protection time delay	Instantaneous
	Earth-leakage protection class	Type AC
	Rated breaking and making capacity	500 A
	Rated conditional short-circuit current	6000 A with Easy9 MCB (25 A)
Complementary	Device location in system	Outgoer
	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	230 V AC 50/60 Hz
	Residual current tripping technology	Voltage independent
	Rated insulation voltage [Ui]	440 V AC
	Rated impulse withstand voltage [Uimp]	4 kV
	Surge current	250 A
	Contact position indicator	Yes
	Control type	Toggle
	Mounting mode	Clip-on
	Mounting support	DIN rail
	Comb busbar compatibility	Top: Yes
	Connection pitch	18 mm between phases
	Number of 9 mm pitches	4
Dimensions	Height	82 mm
	Width	36 mm
	Depth	72 mm
Physical	Colour	Grey (RAL 7035)
	Mechanical durability	5,000 cycles
	Electrical durability	2,000 cycles at 230 V AC 50/60 Hz
Connections	Terminal type	Tunnel type (top or bottom)
	Rigid conductor size	1…35 mm²
	Flexible conductor size	1…25 mm²
	Tightening torque	3.5 N·m
Environment	Standards	IEC 61008-1
	Product certifications	CE
	IP degree of protection	IP20
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at 55 °C
	Operating temperature	-5…60 °C
	Storage temperature	-40…85 °C
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	8.5 cm
	Package 1 width	4.0 cm
	Package 1 length	9.0 cm
	Package 1 weight	200 g

Out of stock

Receives in 6 days.

Schneider Easy9 RCCB 2P 63A 30MA AC-type 230V EZ9R36263 Residual Current Circuit Breaker

PCWORX

Schneider Easy9 RCCB 2P 63A 30MA AC-type 230V EZ9R36263 Residual Current Circuit Breaker

(0)

₱2,708.16

Category	Parameter	Specification
Main	Range of product	Easy9
	Product or component type	Residual current circuit breaker (RCCB)
	Device short name	Easy9 RCCB
	Poles	2P
	Neutral position	Left
	Rated current [In]	63 A
	Network type	AC
	Earth-leakage sensitivity	30 mA
	Earth-leakage protection time delay	Instantaneous
	Earth-leakage protection class	Type AC
	Rated breaking and making capacity	500 A
	Rated conditional short-circuit current	6000 A with Easy9 MCB (63 A)
Complementary	Device location in system	Outgoer
	Network frequency	50/60 Hz
	Rated operational voltage [Ue]	230 V AC 50/60 Hz
	Residual current tripping technology	Voltage independent
	Rated insulation voltage [Ui]	440 V AC
	Rated impulse withstand voltage [Uimp]	4 kV
	Surge current	250 A
	Contact position indicator	Yes
	Control type	Toggle
	Mounting mode	Clip-on
	Mounting support	DIN rail
	Comb busbar compatibility	Top: Yes
	Connection pitch	18 mm between phases / 9 mm pitches
	Number of 9 mm pitches	4
Dimensions	Height	82 mm
	Width	36 mm
	Depth	72 mm
Physical	Colour	Grey (RAL 7035)
	Mechanical durability	5000 cycles
	Electrical durability	2000 cycles at 230 V AC 50/60 Hz
Connections	Terminal type	Tunnel type (top or bottom)
	Rigid conductor size	1…35 mm²
	Flexible conductor size	1…25 mm²
	Tightening torque	3.5 N·m (top or bottom)
Environment	Standards	IEC 61008-1
	Product certification	CE
	IP degree of protection	IP20
	Pollution degree	2
	Tropicalisation	2
	Relative humidity	95% at 55 °C
	Operating temperature	-5…60 °C
	Storage temperature	-40…85 °C
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	4.0 cm
	Package 1 width	8.5 cm
	Package 1 length	9.0 cm
	Package 1 weight	211 g

Out of stock

Receives in 6 days.

PCWORX

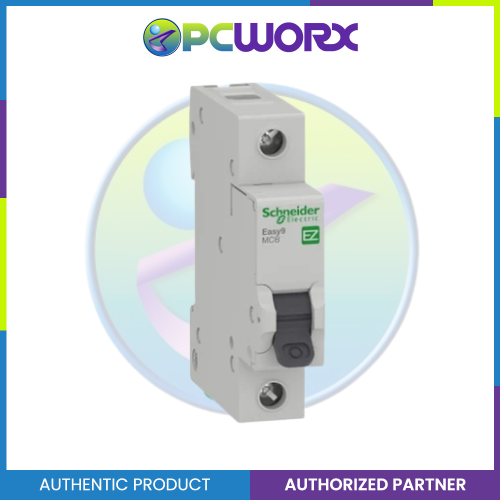

Schneider Electric Easy9 IEC, 1-Pole 40A DIN-Rail Type Circuit Breaker 220/400V 10 KAIC (EZ9F51140)

(0)

₱252.84

Parameter	Specification
Range	Easy9
Device application	Distribution
Product or component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	1P
Number of protected poles	1
Rated current [In]	40 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10,000 A Icn at 230 V AC / 400 V AC conforming to IEC 60898-1
Suitability for isolation	Yes, conforming to IEC 60898-1

Parameter	Specification
Network frequency	50/60 Hz
Rated operational voltage [Ue]	230 V AC 50/60 Hz
Magnetic tripping limit	5…10 × In
Rated service breaking capacity [Ics]	7,500 A (75% × Icn) at 230 V AC
Limitation class	3, IEC 60898-1
Rated insulation voltage [Ui]	500 V AC
Rated impulse withstand voltage [Uimp]	4 kV
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without

Parameter	Specification
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	2
Height	81 mm
Width	18 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)
Mechanical durability	20,000 cycles
Electrical durability	4,000 cycles

Parameter	Specification
Terminals	Tunnel type terminal (top or bottom) 1–25 mm² flexible, 1–35 mm² rigid
Wire stripping length	14 mm (top or bottom)
Tightening torque	3.5 N.m (top or bottom)
Earth-leakage protection	Without

Parameter	Specification
Standards	IEC 60898-1
Product certifications	CE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at -5…60 °C
Ambient air temperature for operation	-5…60 °C
Ambient air temperature for storage	-40…85 °C

Unit Type	Number of Units	Dimensions (H × W × L)	Weight
PCE	1	7.4 cm × 1.8 cm × 8.5 cm	120 g
BB1	12	8.8 cm × 7.8 cm × 22.6 cm	1.44 kg
S03	144	30 cm × 30 cm × 40 cm	17.28 kg

Out of stock

Receives in 6 days.

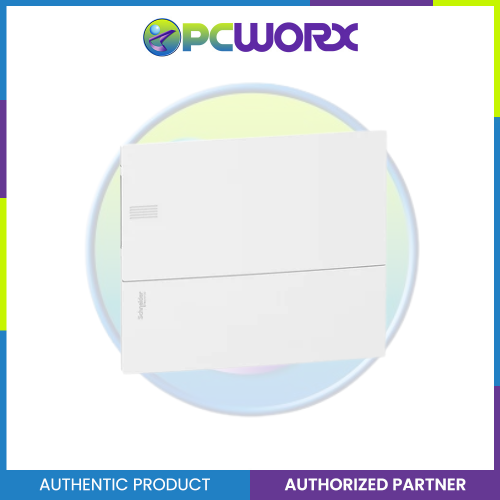

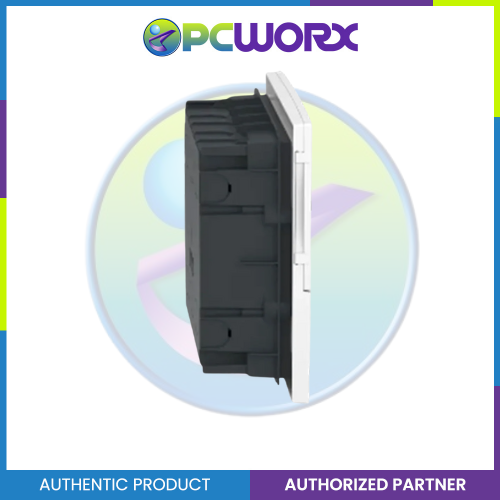

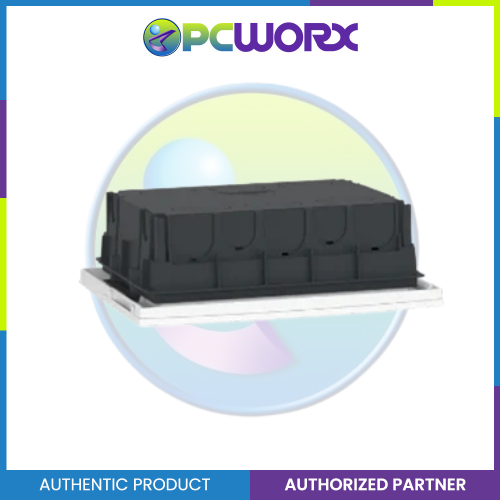

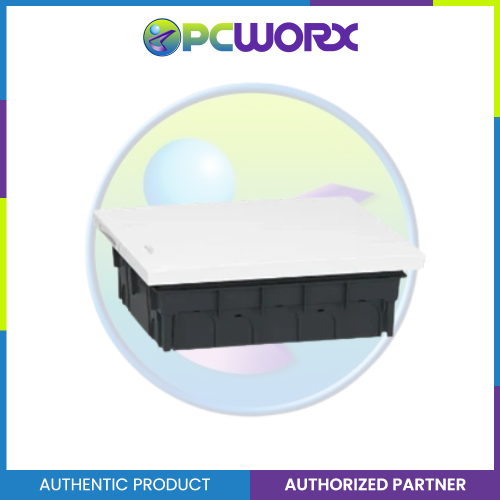

Schneider Enclosure Resi9 MP Flush Mounting 1 Row of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22112

PCWORX

Schneider Enclosure Resi9 MP Flush Mounting 1 Row of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22112

(0)

₱1,176.00

Product Overview

Category	Specification
Main Range	Resi9
Product Name	Resi9 MP
Product / Component Type	Enclosure
Enclosure Type	Modular enclosure
Market Segment	Residential, Small commercial

Configuration

Specification	Value
Nb of 18 mm modules per row	12
Nb of horizontal rows	1
Total number of 18 mm modules	12
9 mm pitches	24
Type of door	Plain
Enclosure mounting	Flush
Type of rail	35 mm asymmetrical rail
Mounting plate	Without mounting plate
Cable entry	Pre-cutted holes
Internal depth	76 mm

Electrical Characteristics

Specification	Value
Rated current [In]	63 A
Terminal block function	Earth / Neutral
Number of terminal blocks	1 earth (screwed) with 8 outgoers 1 neutral (screwed) with 8 outgoers
Distribution block outgoers	1 × 16 mm² (earth) 1 × 16 mm² (neutral) 3 × 6 mm² (earth) 3 × 6 mm² (neutral) 4 × 10 mm² (earth) 4 × 10 mm² (neutral)

Dimensions

Dimension Type	Measurement
Width (Wall)	270 mm
Width (Outside)	294 mm
Height (Wall)	228 mm
Height (Outside)	252 mm
Depth (Outside)	18 mm
Depth (Wall)	80 mm
Total Depth	98 mm

Material & Colour

Specification	Value
Enclosure Material	Back part: technoplastic Door: technoplastic Front face: technoplastic
Colour	Door: white (RAL 9003) Front face: white (RAL 9003)

Standards & Protection

Specification	Value
Standards	IEC 60670-1 IEC 60670-24
Quality Labels	IMQ
Fire Resistance	Door: 650 °C Back part: 650 °C Front face: 650 °C
IP Degree of Protection	IP40
IK Degree of Protection	IK07
Ambient Temperature (operation)	-25…60 °C

Packaging Information

Specification	Value
Unit Type	PCE
Units per Package	1
Package Height	9.800 cm
Package Width	29.400 cm
Package Length	25.200 cm
Package Weight	873.000 g

Out of stock

Receives in 6 days.

Schneider Enclosure Resi9 MP Flush Mounting 1 Row of 18 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22118

PCWORX

Schneider Enclosure Resi9 MP Flush Mounting 1 Row of 18 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22118

(0)

₱1,867.20

This Resi9 MP enclosure is a flush mounted modular enclosure. This enclosure is composed of 1 row of 18 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 16 outgoers (2x16mm² + 8x10mm² + 6x6mm²). The neutral one provides 16 outgoers (2x16mm² + 8x10mm² + 6x6mm²). The In rated current is up to 63A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 402mm x (H) 252mm x (D) 98mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the door and the front face and 850°C for the back part. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.

Category	Specification	Details
Main	Range	Resi9
	Product Name	Resi9 MP
	Product / Component Type	Enclosure
	Enclosure Type	Modular enclosure
	Modules per Row (18 mm)	18
	Number of Horizontal Rows	1
	Door Type	Plain
	Width	Wall: 378 mm · Outside: 402 mm
	Height	Wall: 228 mm · Outside: 252 mm
	Depth	Outside: 18 mm · Wall: 80 mm · Total: 98 mm
Complementary	Enclosure Mounting	Flush
	9 mm Pitches	36
	Total 18 mm Modules	18
	Rated Current [In]	63 A
	Rail Type	35 mm asymmetrical rail
	Mounting Plate	Without mounting plate
	Cable Entry	Pre-cutted holes
	Terminal Block Function	Earth / Neutral
	Terminal Blocks	1 earth (screwed) with 16 outgoers 1 neutral (screwed) with 16 outgoers
	Distribution Block Outgoers	Earth: 2×16 mm², 6×6 mm², 8×10 mm² Neutral: 2×16 mm², 6×6 mm², 8×10 mm²
	Enclosure Material	Back part: technoplastic Door: technoplastic Front face: technoplastic
	Internal Depth	76 mm
	Colour	Door: White (RAL 9003) Front face: White (RAL 9003)
	Market Segment	Small commercial, Residential
Environment	Standards	IEC 60670-1, IEC 60670-24
	Quality Labels	IMQ
	Fire Resistance	Door: 650 °C Back part: 650 °C Front face: 650 °C
	IP Protection	IP40
	IK Protection	IK07
	Operating Temperature	−25 to 60 °C
Packing Units – Package 1	Unit Type	PCE
	Units per Package	1
	Dimensions (H × W × L)	9.9 × 40.2 × 25.2 cm
	Weight	1.2 kg

Out of stock

Receives in 6 days.

Schneider Enclosure Resi9 MP Flush Mounting 1 Row Of 4 Modules IP40 (MIP22104)

PCWORX

Schneider Enclosure Resi9 MP Flush Mounting 1 Row Of 4 Modules IP40 (MIP22104)

(0)

₱819.84

Specifications – Resi9 MP Modular Enclosure (4 Modules, Flush Mount)

Main

Parameter	Specification
Range	Resi9
Product name	Resi9 MP
Product or component type	Enclosure
Enclosure type	Modular enclosure
Nb of 18 mm modules per row	4
Nb of horizontal rows	1
Type of door	Plain

Dimensions

Parameter	Specification
Width	Wall: 126 mm Outside: 150 mm
Height	Wall: 228 mm Outside: 252 mm
Depth	Wall: 80 mm Outside: 18 mm Total: 98 mm
Internal depth	76 mm

Complementary

Parameter	Specification
Enclosure mounting	Flush
9 mm pitches	8
Total number of 18 mm modules	4
Rated current $[In]$	50 A
Type of rail	35 mm asymmetrical rail
Mounting plate description	Without mounting plate
Cable entry	Pre-cut holes
Terminal block function	Earth / Neutral

Terminal Blocks & Distribution

Parameter	Specification
Number of terminal blocks	1 earth (screwed) with 4 outgoers 1 neutral (screwed) with 4 outgoers
Distribution block outgoers	1 × 16 mm² (earth) 1 × 16 mm² (neutral) 1 × 6 mm² (earth) 1 × 6 mm² (neutral) 2 × 10 mm² (earth) 2 × 10 mm² (neutral)

Materials

Parameter	Specification
Enclosure material	Back part: technoplastic Door: technoplastic Front face: technoplastic

Colour

Parameter	Specification
Door	White (RAL 9003)
Front face	White (RAL 9003)

Market Segment

Parameter	Specification
Market segment	Residential Small commercial

Environment

Parameter	Specification
Standards	IEC 60670-1 IEC 60670-24
Quality labels	IMQ
Fire resistance	Door: 650 °C Back part: 650 °C Front face: 650 °C
IP degree of protection	IP40
IK degree of protection	IK07
Ambient air temperature for operation	−25…60 °C

Packing Units

Package	Details
Package 1	Unit type: PCE Units: 1 Height: 9.5 cm Width: 15.0 cm Length: 25.0 cm Weight: 496 g

Out of stock

Receives in 6 days.

Schneider Enclosure Resi9 MP Flush Mounting 2 Rows of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22212

PCWORX

Schneider Enclosure Resi9 MP Flush Mounting 2 Rows of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22212

(0)

₱2,096.40

This Resi9 MP enclosure is a flush mounted modular enclosure. This enclosure is composed of 2 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 16 outgoers (2x16mm² + 6x6mm² + 8x10mm² + 8x10mm²). The neutral one provides 16 outgoers (2x16mm² + 6x6mm²). The In rated current is up to 63A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 294mm x (H) 377mm x (D) 98mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the door and the front face and 850°C for the back part. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.

Category	Specification
Range	Resi9
Product Name	Resi9 MP
Product Type	Enclosure
Enclosure Type	Modular enclosure
Modules per Row (18 mm)	12
Number of Horizontal Rows	2
Type of Door	Plain
Dimensions (Wall / Outside / Total)	Width: 270 mm / 294 mmHeight: 353 mm / 377 mmDepth: 80 mm / 18 mm / 98 mm
Internal Depth	76 mm
Enclosure Mounting	Flush
9 mm Pitches	24
Total Number of 18 mm Modules	24
Rated Current [In]	63 A
Rail Type	35 mm asymmetrical rail
Mounting Plate	Without mounting plate
Cable Entry	Pre‑cutted holes
Terminal Blocks	1 Earth (screwed, 16 outgoers)1 Neutral (screwed, 16 outgoers)
Distribution Block Outgoers	Earth: 2×16 mm², 6×6 mm², 8×10 mm²Neutral: 2×16 mm², 6×6 mm², 8×10 mm²
Material	Back part: technoplasticDoor: technoplasticFront face: technoplastic
Colour	Door: White (RAL 9003)Front face: White (RAL 9003)
Market Segment	Small commercial, Residential
Standards	IEC 60670‑1, IEC 60670‑24
Quality Labels	IMQ
Fire Resistance	Door: 650 °CBack part: 650 °CFront face: 650 °C
IP Protection	IP40
IK Protection	IK07

Out of stock

Receives in 6 days.

Schneider Enclosure Resi9 MP Flush Mounting 3 Rows of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22312

PCWORX

Schneider Enclosure Resi9 MP Flush Mounting 3 Rows of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22312

(0)

₱2,772.84

Specifications – Main

Feature	Description
Range	Resi9
Product Name	Resi9 MP
Product or Component Type	Enclosure
Enclosure Type	Modular enclosure
Number of 18 mm Modules per Row	12
Number of Horizontal Rows	3
Type of Door	Plain

Dimensions

Dimension	Measurement
Width (Wall)	270 mm
Width (Outside)	294 mm
Height (Wall)	478 mm
Height (Outside)	502 mm
Depth (Outside)	18 mm
Depth (Wall)	80 mm
Total Depth	98 mm

Complementary Characteristics

Feature	Description
Enclosure Mounting	Flush
9 mm Pitches	24
Total Number of 18 mm Modules	36
Rated Current [In]	63 A
Type of Rail	35 mm asymmetrical rail
Mounting Plate	Without mounting plate
Cable Entry	Pre-cutted holes
Terminal Block Function	Earth / Neutral

Terminal Blocks & Distribution

Feature	Description
Number of Terminal Blocks	1 earth (screwed) with 20 outgoers 1 neutral (screwed) with 20 outgoers
Distribution Block Outgoers	Earth: 2 × 16 mm², 9 × 10 mm², 9 × 6 mm² Neutral: 2 × 16 mm², 9 × 10 mm², 9 × 6 mm²

Materials & Colour

Feature	Description
Enclosure Material	Back part: technoplastic Door: technoplastic Front face: technoplastic
Internal Depth	76 mm
Colour	Door: White (RAL 9003) Front face: White (RAL 9003)

Market & Environment

Feature	Description
Market Segment	Residential Small commercial
Standards	IEC 60670-1 IEC 60670-24
Quality Labels	IMQ

Protection & Resistance

Feature	Description
Fire Resistance	Door: 650 °C Back part: 650 °C Front face: 650 °C
IP Degree of Protection	IP40
IK Degree of Protection	IK07
Operating Temperature	−25…60 °C

Packing Units

Package 1

Feature	Description
Unit Type	PCE
Units per Package	1
Height	9.000 cm
Width	29.500 cm
Length	50.000 cm
Weight	1.950 kg

Out of stock

Receives in 6 days.

Schneider Enclosure Resi9 MP Surface 1 Row of 18 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP12118

PCWORX

Schneider Enclosure Resi9 MP Surface 1 Row of 18 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP12118

(0)

₱1,774.92

Category	Attribute	Specification
Main	Range	Resi9
	Product Name	Resi9 MP
	Product / Component Type	Enclosure
	Enclosure Type	Modular enclosure
	Nb of 18 mm Modules per Row	18
	Nb of Horizontal Rows	1
	Type of Door	Plain
	Width	Outside: 376 mm
	Height	Outside: 228 mm
	Depth	Outside: 101.5 mm
Complementary	Enclosure Mounting	Surface
	9 mm Pitches	36
	Total Number of 18 mm Modules	18
	Rated Current [In]	63 A
	Type of Rail	35 mm asymmetrical rail
	Mounting Plate Description	Without mounting plate
	Cable Entry	1 bare flange, 1 trunking flange
	Terminal Block Function	Earth / Neutral
	Number of Terminal Blocks	1 earth (screwed) with 16 outgoers; 1 neutral (screwed) with 16 outgoers
	Distribution Block Outgoers	2 × 16 mm² (earth/neutral), 6 × 6 mm² (earth/neutral), 8 × 10 mm² (earth/neutral)
	Enclosure Material	Back part: technoplastic, Door: technoplastic, Front face: technoplastic
	Internal Depth	80 mm
	Colour	Door: White (RAL 9003), Front face: White (RAL 9003)
	Market Segment	Small commercial, Residential
Environment	Standards	IEC 60670-1, IEC 60670-24
	Quality Labels	IMQ
	Fire Resistance	Door: 650 °C, Back part: 650 °C, Front face: 650 °C
	IP Degree of Protection	IP40
	IK Degree of Protection	IK07
	Ambient Air Temperature (Operation)	-25…60 °C
Packing Units	Unit Type of Package 1	PCE
	Number of Units in Package 1	1
	Package 1 Dimensions (H × W × L)	10 × 23 × 37.5 cm
	Package 1 Weight	1.105 kg

Out of stock

Receives in 6 days.

Schneider Enclosure Resi9 MP Surface 1 row of 4 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP12104

PCWORX

Schneider Enclosure Resi9 MP Surface 1 row of 4 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP12104

(0)

₱776.16

This Resi9 MP enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 1 row of 4 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The neutral one provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The In rated current is up to 50A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 124mm x (H) 198mm x (D) 95mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the door, the back part and the front face. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.

Main

Parameter	Specification
Range	Resi9
Product name	Resi9 MP
Product or component type	Enclosure
Enclosure type	Modular enclosure
Nb of 18 mm modules per row	4
Nb of horizontal rows	1
Type of door	Plain

Dimensions

Parameter	Specification
Width	Outside: 124 mm
Height	Outside: 198 mm
Depth	Outside: 95 mm
Internal depth	74 mm

Complementary

Parameter	Specification
Enclosure mounting	Surface
9 mm pitches	8
Total number of 18 mm modules	4
Rated current $[In]$	50 A
Type of rail	35 mm asymmetrical rail
Mounting plate description	Without mounting plate
Cable entry	1 bare flange, 1 trunking flange
Terminal block function	Earth / Neutral

Terminal Blocks & Distribution

Parameter	Specification
Number of terminal blocks	1 earth (screwed) with 4 outgoers 1 neutral (screwed) with 4 outgoers
Distribution block outgoers	1 × 16 mm² (earth) 1 × 16 mm² (neutral) 1 × 6 mm² (earth) 1 × 6 mm² (neutral) 2 × 10 mm² (earth) 2 × 10 mm² (neutral)

Materials

Parameter	Specification
Enclosure material	Back part: technoplastic Door: technoplastic Front face: technoplastic

Colour

Parameter	Specification
Door	White (RAL 9003)
Front face	White (RAL 9003)

Market Segment

Parameter	Specification
Market segment	Small commercial Residential

Environment

Parameter	Specification
Standards	IEC 60670-1 IEC 60670-24
Quality labels	IMQ
Fire resistance	Door: 650 °C Back part: 650 °C Front face: 650 °C
IP degree of protection	IP40
IK degree of protection	IK07
Ambient air temperature for operation	−25…60 °C

Packing Units

Package	Details
Package 1	Unit type: PCE Units: 1 Height: 9.55 cm Width: 12.4 cm Length: 19.8 cm Weight: 400 g

Out of stock

Receives in 6 days.

Main menu

Product comparison

Main menu

MAXIMIZEBF

Explore Related Collections
