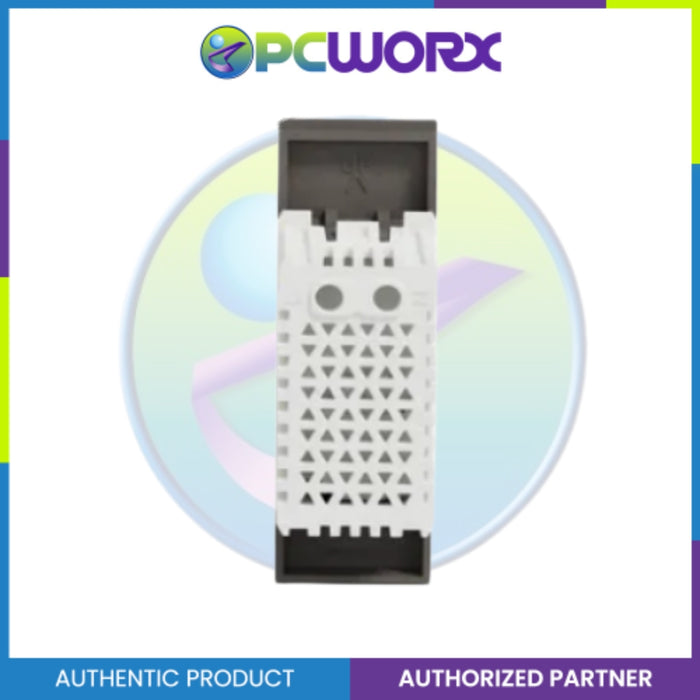

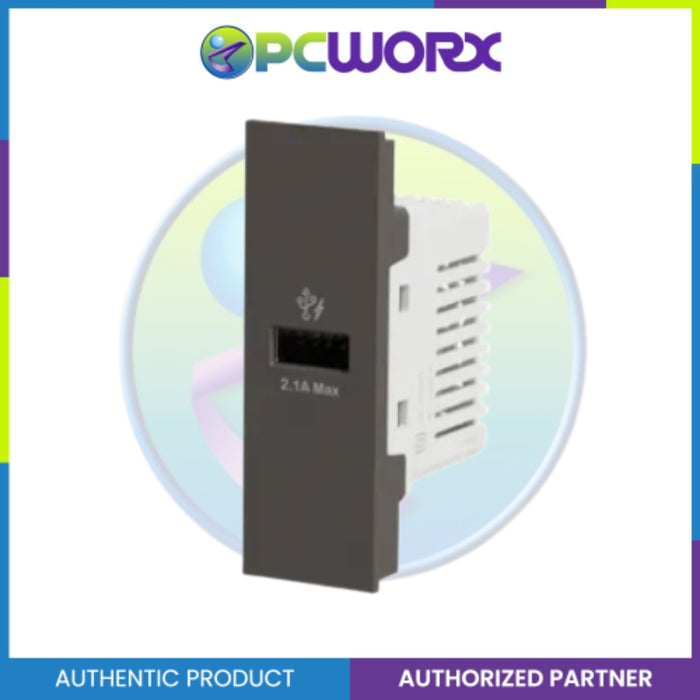

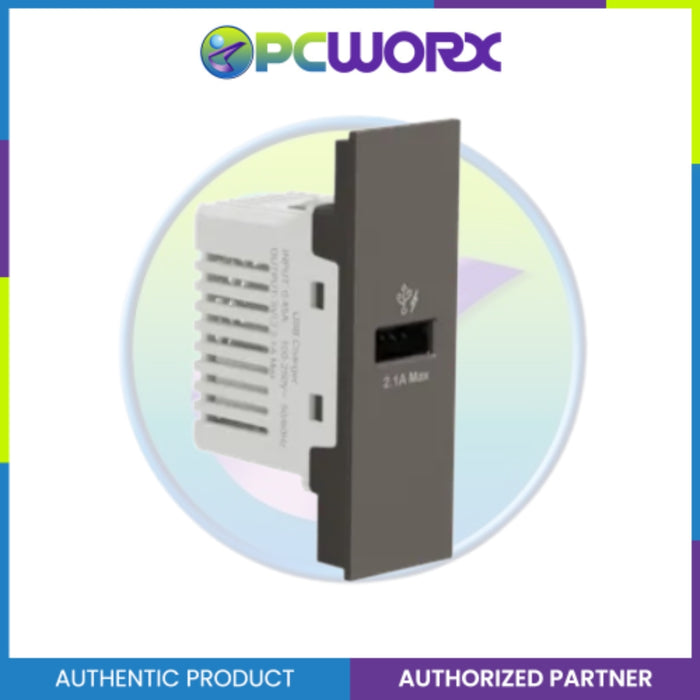

Schneider M3T_USB_BK Socket 1 port 2.1A USB S sized, BK
by PCWORX
Original price
₱0
Original price
₱868.00
-
Original price
₱868.00
Original price
Current price
₱868.00
₱868.00
-
₱868.00
Current price
₱868.00
SPECIFICATIONS
|
||
| Range of product | AvatarOn A | |
|
USB charger | |
| Mounting mode | Flush-mounted | |
| Integrated connection type | 1 USB port 5 V AC/DC, maximum load current: 2.1 A | |
| Complementary | ||
| Device presentation | Complete product | |
| Colour tint | Black | |
| Surface finish | Matt | |
| surface treatment | Painted | |
|
-5…45 °C | |
| Ambient air temperature for storage | -5…60 °C | |
| relative humidity | 0…95 % | |
| [Ue] rated operational voltage | 110...220 V 50...60 Hz | |
| Input power | 10.5 W | |
| maximum load current with 2 outputs used simultaneously | 2.1 A | |
| Material | PC (UL94 V-0) | |
| Clamping connection capacity | 0.5...4 mm² for solid or flexible cable(s) | |
| Height | 69.3 mm | |
| Width | 23.1 mm | |
| Depth | 35.5 mm | |
| Embedding depth | 24.5 mm | |
| Environment | ||
| Standards | IEC 62368-1 | |
| Product certifications | IEC | |
| IP degree of protection | IP20 | |
| Packing Units | ||
| Unit Type of Package 1 | PCE | |
| Number of Units in Package 1 | 1 | |
| Package 1 Height | 3.6 cm | |
| Package 1 Width | 2.3 cm | |
| Package 1 Length | 7.0 cm | |
| Package 1 Weight | 34.0 g | |
| Unit Type of Package 2 | BB1 | |
| Number of Units in Package 2 | 20 | |
| Package 2 Height | 9.1 cm | |
| Package 2 Width | 8.9 cm | |
| Package 2 Length | 25.5 cm | |
| Package 2 Weight | 747.0 g | |
| Unit Type of Package 3 | S03 | |
| Number of Units in Package 3 | 240 | |
| Package 3 Height | 30.0 cm | |
| Package 3 Width | 30.0 cm | |
| Package 3 Length | 40.0 cm | |
| Package 3 Weight | 9.614 kg |
