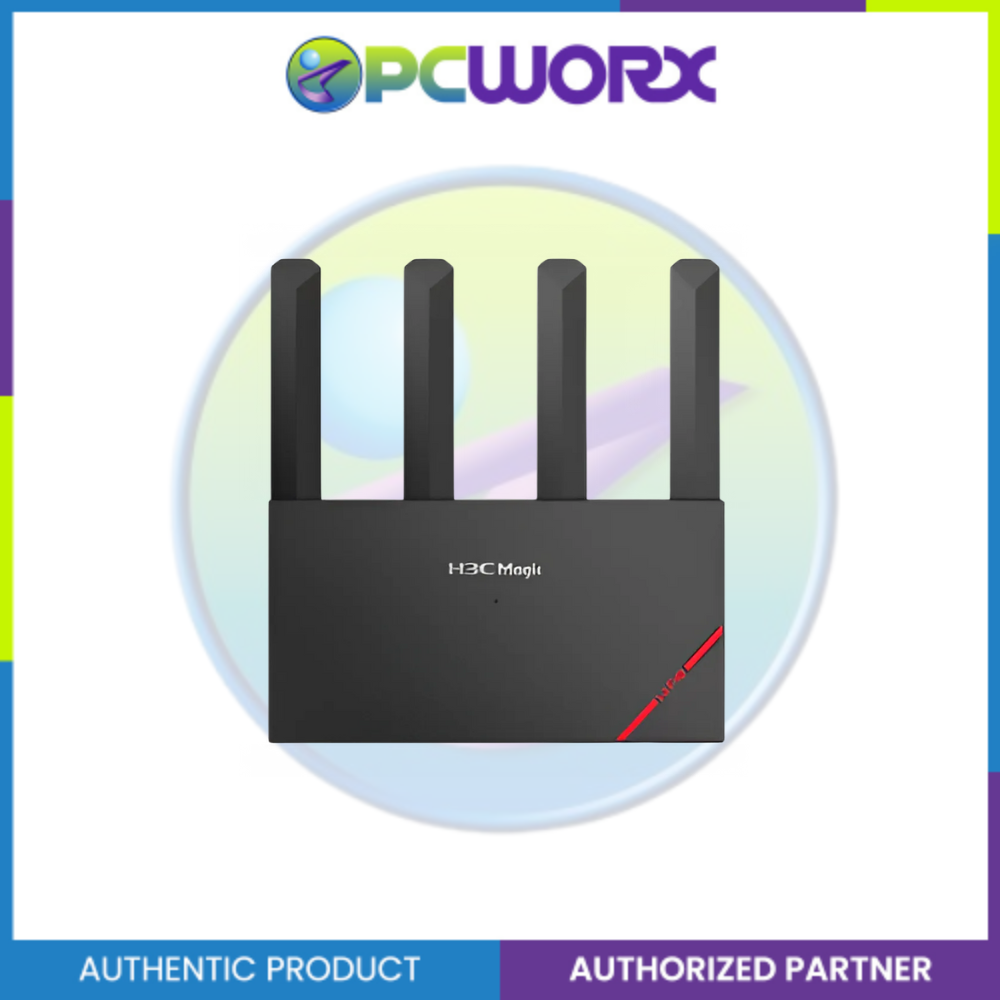

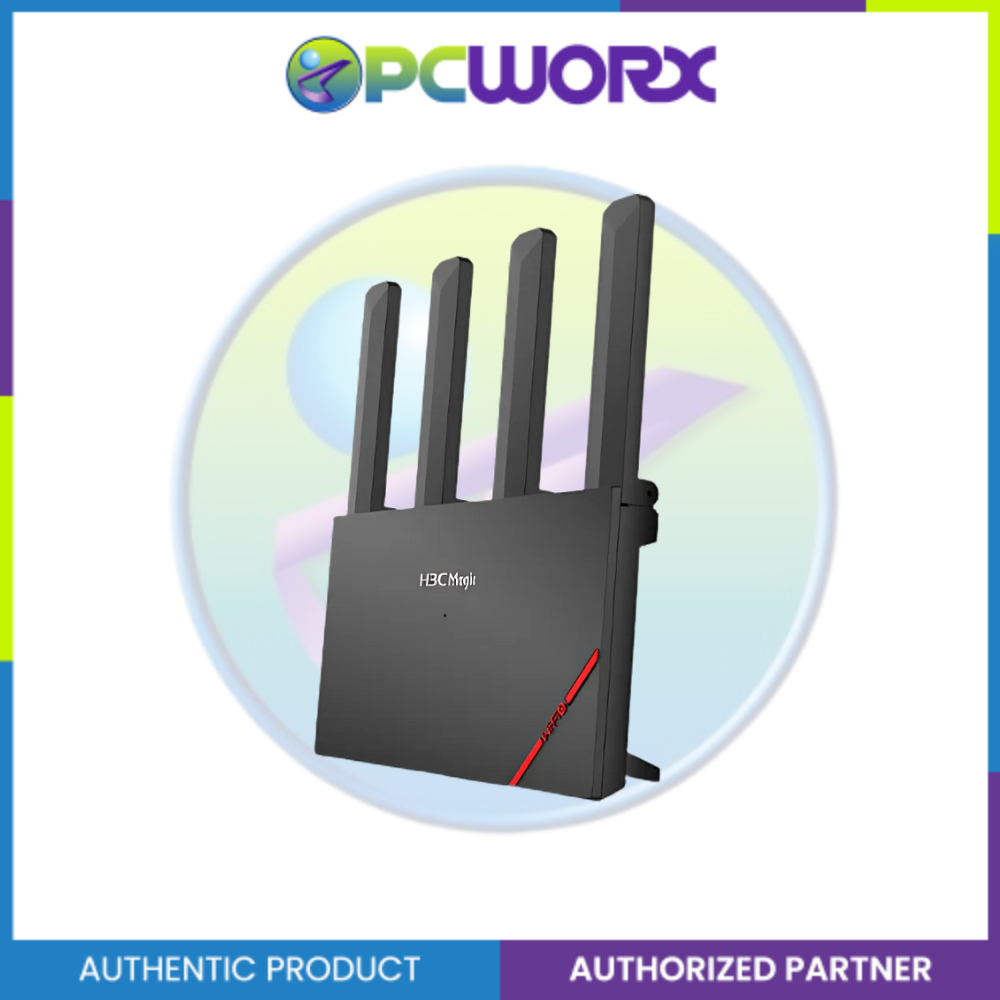

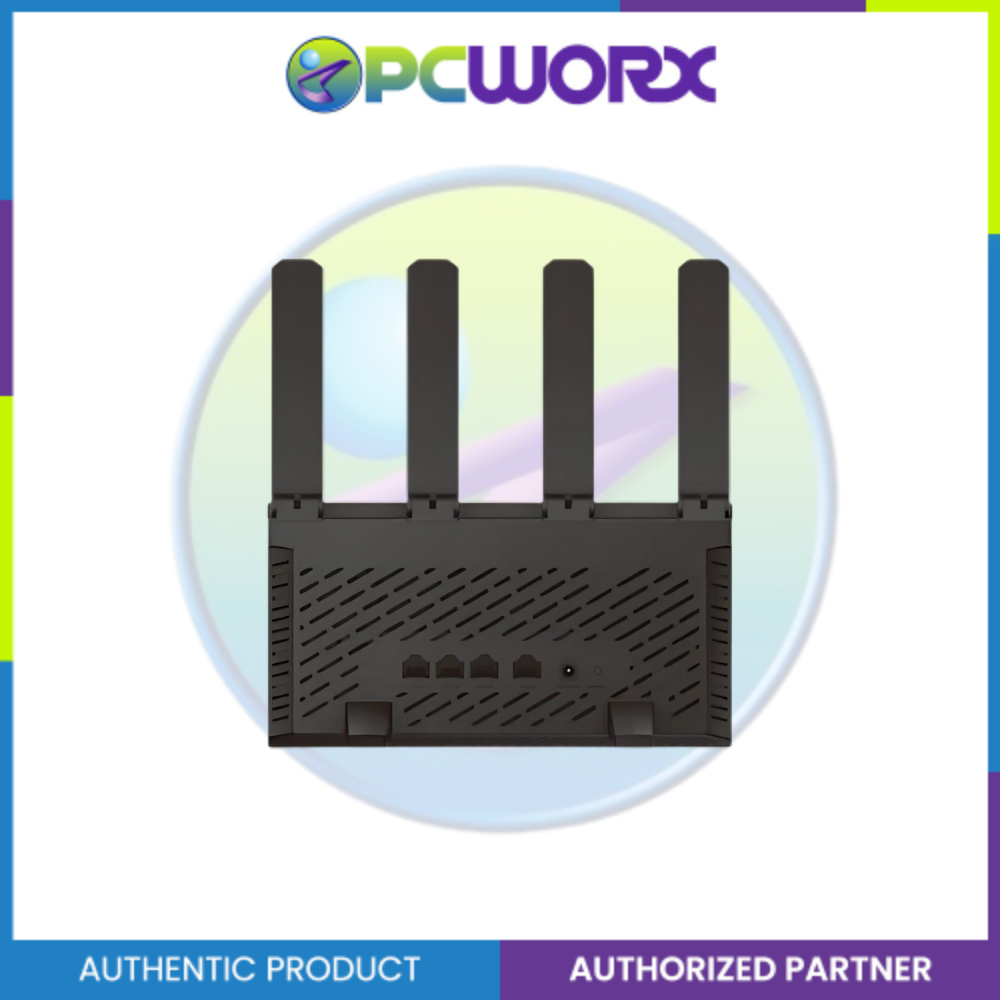

H3C Magic NX30 802.11ax 3000M Gigabit Dual Band Wi-Fi 6 Wireless Broadband Router

Product form

Free pickup in our shop(s) Free pickup in our shop(s)

SKU: 9801A4EP

1 in stock

₱5,235.04

You may also like

Specifications and parameters
Hardware
	Fixed port	Four 10/100/1000Base-T Ethernet ports Independent reset key, function keys (Mesh, wireless optimization)
	Wireless	4 external 5dBi high gain omnidirectional antennas
	CPU	Dual-core 1.0 GHz
	Memory	256 MB
	Indicator	Front LED: system status indicator
	Dimensions (W×D×H)	210mm x222mm x 64mm
	PPower supply	12V⎓1A
	Cooling method	Natural cooling
	Certification	CE, WEEE, RoHS
Wireless
	Wireless protocol	2.4 GHz: 802.11ax/n/g/b
		5 GHz: 802.11ax/ac/n/a
	Spatial flow	2.4 GHz 2x2 MIMO
		5 GHz 2x2 MIMO
	Wireless bandwidth	2.4G HT20/HT40
		5G HT20/HT40/HT80/HT160
	Wireless rate	Dual-frequency concurrency 2,976 Mbps
		2.4 GHz: 574 Mbps & 5 GHz: 2,402 Mbps
	Wireless roaming	Support of IEEE 802.11k/v
	MU-MIMO	Upstream and downstream MU-MIMO

Software	Internet connection	Routing mode: DHCP/PPPoE/Static IP
		Bridge mode: wired relay/wireless relay
	EasyMesh	Support
	IPv6	Support
	Security features	WPA3 encryption
		Anti-Wi-Fi squatting/anti-attack
		Firewall, DMZ, DoS attacks
	Network management	Guest Wi-Fi, access allowlist/denylist, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch
	Features	Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client)
	Management method	Support for H3C Magic APP (iOS, Android), Web
	Fault diagnosis	Link detection
		Internet diagnosis
Operating environment
	Operating temperature	0°C–40°C
	Storage humidity	10%–90%, RH non-condensing
