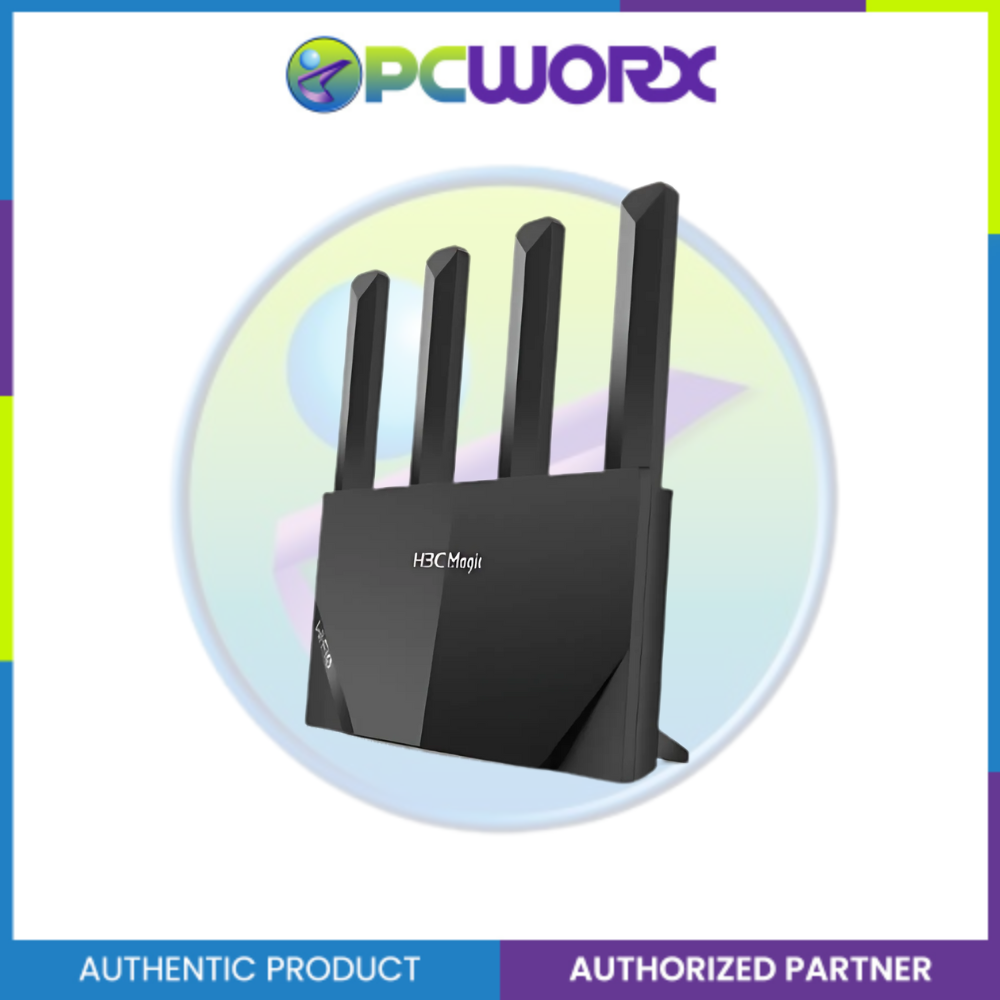

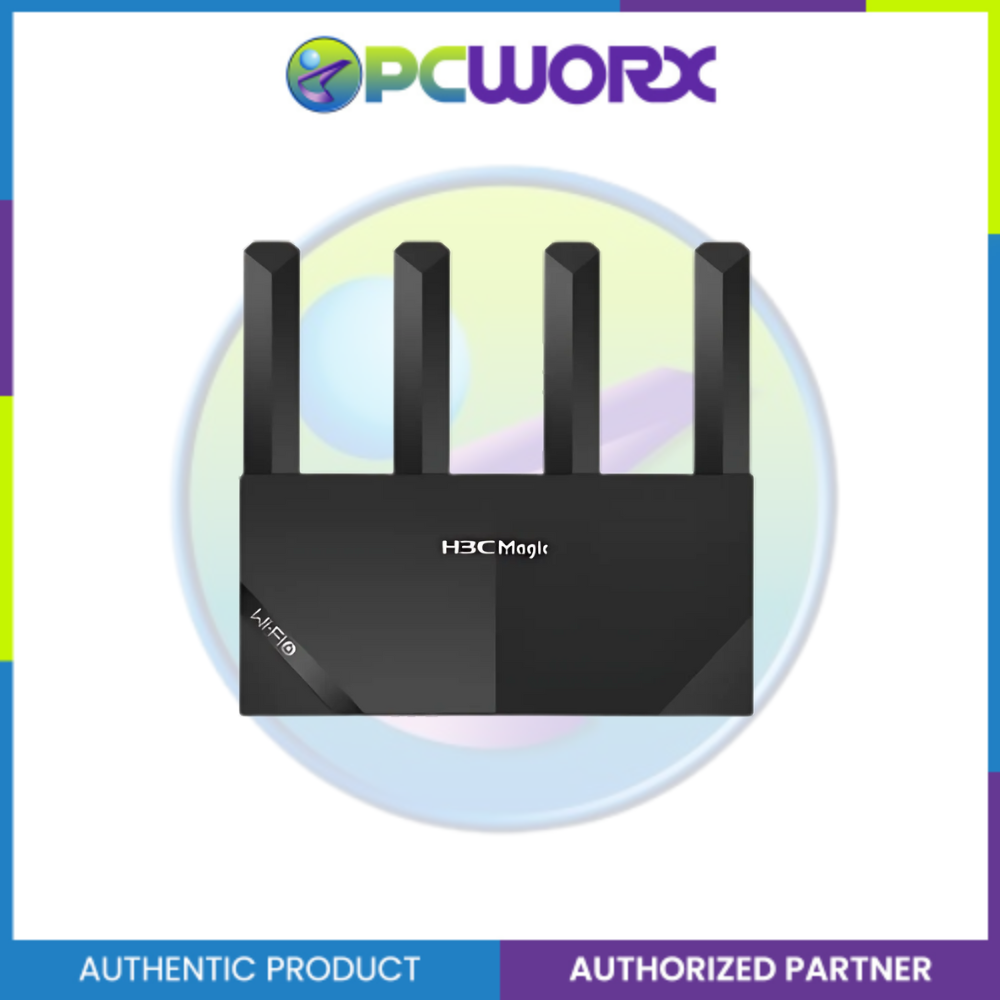

H3C Magic H3C Magic NX15--802.11ax 1500M,Gigabit Dual Band Wi-Fi 6 Wireless Router- Overseas Version(US)

Description

Description

Technical specifications
Hardware

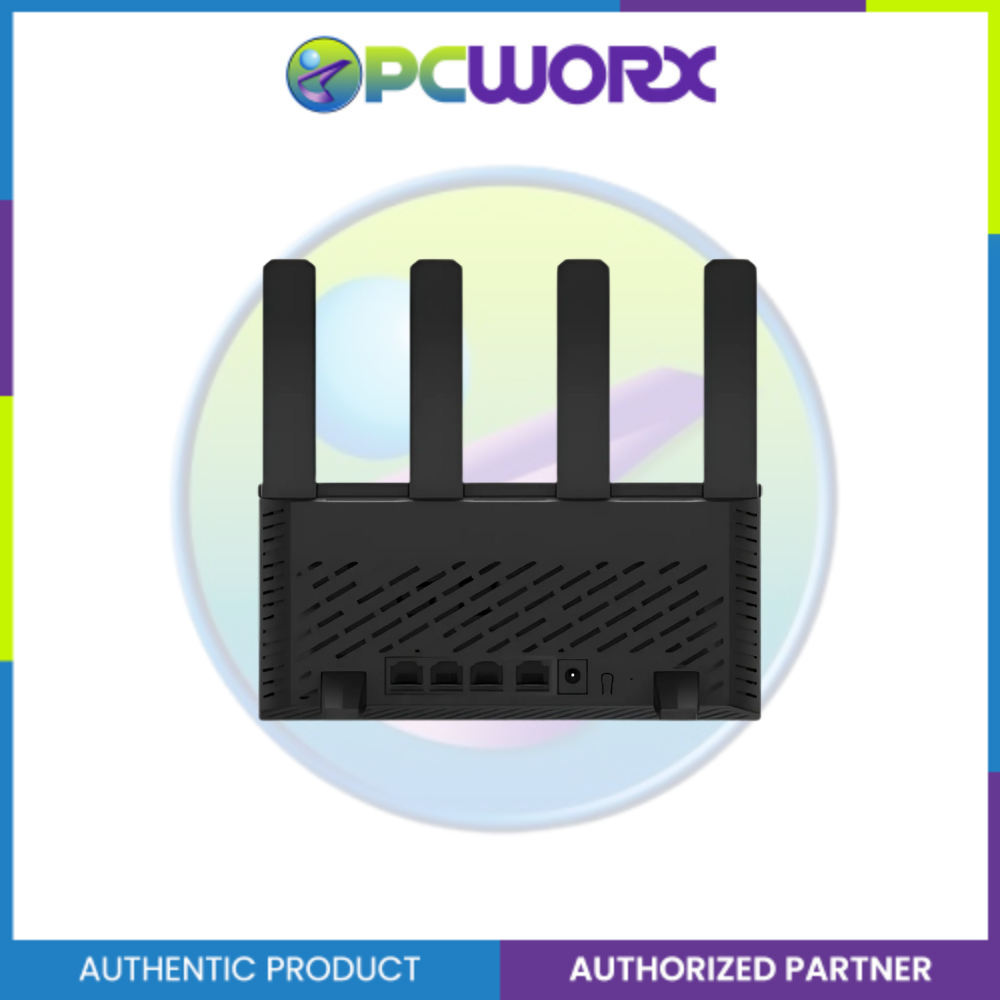

Port 4 × 10/100/1000BASE-T Ethernet ports
Antenna 4 × external 5 dBi omnidirectional antennas
LED System status LED on the rear
Dimensions (H × W × D) 180 × 195 × 57.3 mm
(7.09 × 7.68 × 2.26 in)
Power consumption ≤ 12 W
Cooling Passive cooling
Certification CE WEEE RoHS
Wireless
Wireless protocol 2.4GHz: 802.11n/g/b
5GHz: 802.11ax/ac/n/a
Spatial streams 2.4GHz 2×2 MIMO
5GHz 2×2 MIMO
Wireless bandwidth 2.4G HT20/HT40
5G HT20/HT40/HT80
Wireless rate Simultaneous dual-band: 1501 Mbps, including 300Mbps on the 2.4GHz band and 1201 Mbps on the5GHz band.
Wireless roaming IEEE 802.11k/v
MU-MIMO Upstream and downstream MU-MIMO
Software
Internet connection Routing mode: DHCP/PPPoE/static IP
Bridge mode: Wired repeating/wireless repeating
Mesh Support
IPv6 Support
Security WPA3, anti-piggybacking, firewall, DMZ
Network management Guest Wi-Fi, access allowlist and denylist, parental control at multiple time ranges, IP-based traffic control, scheduled Wi-Fi on/off
Special features QoS traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP,DynDNS), VPN(PPTP Client,L2TP Client)
Management method H3C Magic APP management (iOS, Android), Web management
Fault diagnosis Link detection
Internet access diagnosis
Operating environment
Operating temperature 0°C to 40°C (32°F to 104°F)
Storage humidity 10% to 90% RH, noncondensing

H3C Magic H3C Magic NX15--802.11ax 1500M,Gigabit Dual Band Wi-Fi 6 Wireless Router- Overseas Version(US)

Product form

Technical specifications Hardware Port 4 × 10/100/1000BASE-T Ethernet ports Antenna 4 × external 5 dBi omnidirectional antennas LED System status... Read more

Free pickup in our shop(s)

SKU: 9801A5AA

1 in stock

₱3,418.90

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.
    Description

    Description

    Technical specifications
    Hardware
    Port 4 × 10/100/1000BASE-T Ethernet ports
    Antenna 4 × external 5 dBi omnidirectional antennas
    LED System status LED on the rear
    Dimensions (H × W × D) 180 × 195 × 57.3 mm
    (7.09 × 7.68 × 2.26 in)
    Power consumption ≤ 12 W
    Cooling Passive cooling
    Certification CE WEEE RoHS
    Wireless
    Wireless protocol 2.4GHz: 802.11n/g/b
    5GHz: 802.11ax/ac/n/a
    Spatial streams 2.4GHz 2×2 MIMO
    5GHz 2×2 MIMO
    Wireless bandwidth 2.4G HT20/HT40
    5G HT20/HT40/HT80
    Wireless rate Simultaneous dual-band: 1501 Mbps, including 300Mbps on the 2.4GHz band and 1201 Mbps on the5GHz band.
    Wireless roaming IEEE 802.11k/v
    MU-MIMO Upstream and downstream MU-MIMO
    Software
    Internet connection Routing mode: DHCP/PPPoE/static IP
    Bridge mode: Wired repeating/wireless repeating
    Mesh Support
    IPv6 Support
    Security WPA3, anti-piggybacking, firewall, DMZ
    Network management Guest Wi-Fi, access allowlist and denylist, parental control at multiple time ranges, IP-based traffic control, scheduled Wi-Fi on/off
    Special features QoS traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP,DynDNS), VPN(PPTP Client,L2TP Client)
    Management method H3C Magic APP management (iOS, Android), Web management
    Fault diagnosis Link detection
    Internet access diagnosis
    Operating environment
    Operating temperature 0°C to 40°C (32°F to 104°F)
    Storage humidity 10% to 90% RH, noncondensing
