General Specifications Platform Boxed Processor Product Family   AMD Ryzen™ Processors   Product Line   AMD Ryzen™ 7 Desktop Processors   # of CPU Cores   8   # of Threads   16   Max. Boost Clock   Up to 4.7GHz   Base Clock   3.8GHz   L2 Cache   4MB   L3 Cache   32MB   Default TDP   105W   Processor Technology for CPU Cores   TSMC 7nm FinFET   Unlocked for Overclocking   Yes   CPU Socket   AM4   Thermal Solution (PIB)   Not included   Recommended Cooler   Premium air cooler recommended for optimal performance   Max. Operating Temperature (Tjmax)   90°C   Launch Date   11/5/2020   *OS Support   Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.   Connectivity   PCI Express® Version PCIe 4.0   System Memory Type   DDR4   System Memory Specification   Up to 3200MT/s   Graphics Capabilities   Integrated Graphics No   Graphics Model   Discrete Graphics Card Required   Product IDs   Product ID Boxed 100-100000063WOF   Product ID Tray   100-000000063   Key Features   Supported Technologies AMD StoreMI Technology AMD "Zen 3" Core Architecture AMD Ryzen™ Master Utility AMD Ryzen™ VR-Ready Premium   4/4/2022 *OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. Connectivity USB Type-C® Support Yes Native USB 3.2 Gen 2 (10Gbps) Ports 4 Native USB 3.2 Gen 1 (5Gbps) Ports 0 Native USB 2.0 (480Mbps) Ports 0 Native SATA Ports 2 PCI Express® Version PCIe 4.0 Native PCIe® Lanes (Total/Usable) 24 / 20 Additional Usable PCIe Lanes from Motherboard AMD X570 16x Gen 4 AMD X470 2x Gen 3 AMD X470 8x Gen 2 NVMe Support Boot, RAID0, RAID1, RAID10 System Memory Type DDR4 Memory Channels 2 Max. Memory 128GB System Memory Subtype UDIMM System Memory Specification Up to 3200MT/s Max Memory Speed 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 ECC Support Yes (Requires mobo support) Graphics Capabilities Integrated Graphics No Graphics Model Discrete Graphics Card Required Product IDs Product ID Boxed 100-100000926WOF Product ID Tray 100-000000926 Key Features Supported Technologies AMD StoreMI Technology AMD Ryzen™ VR-Ready Premium

Read more less

General Specifications: Regional Availability: Global Platform: Desktop Product Family: AMD Ryzen™ Processors Product Line: AMD Ryzen™ 7 8000 G-Series Desktop Processors with Radeon™ Graphics CPU Details: of CPU Cores: 8 of Threads: 16 Max. Boost Clock: Up to 5.1GHz Base Clock: 4.2GHz L2 Cache: 8MB L3 Cache: 16MB Default TDP: 65W AMD Configurable TDP (cTDP): 45-65W Processor Technology for CPU Cores: TSMC 4nm FinFET Unlocked for Overclocking: Yes CPU Socket: AM5

Read more less

Specification: •     # of CPU Cores : 4 •     # of Threads : 4 •     # of GPU Cores : 8 •     Base Clock : 3.6GHz •     Max Boost Clock : 4GHz •     Total L1 Cache : 384KB •     Total L2 Cache : 2MB •     Total L3 Cache : 4MB •     Unlocked : Yes •     CMOS : 12nm FinFET •     Socket :AM4 •     PCI Express® Version : PCIe 3.0 x8 •     Thermal Solution : Wraith Stealth •     Default TDP / TDP : 65W •     cTDP :45-65W •     Max Temps : 95°C _____________________________________________________ Warranty Information: •     Item compatibility is buyer’s responsibility. •     For security purposes: Kindly secure unboxing video incase wrong item and defective upon received. •     Check all items upon receipt. •     All items/claims for warranty are carry-in. •     Tampered warranty sticker voids the warranty. •     Overclocking may void the warranty. •     Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt. •     Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)

Read more less

Specification:• Platform: Desktop• Market Segment: Mainstream Desktop• Product Family: AMD Ryzen™ Processors• Product Line: AMD Ryzen™ 3 Desktop Processors• Consumer Use: Yes• Architecture: ""Zen 2""• # of CPU Cores: 4• Multithreading (SMT): Yes• # of Threads: 8• Max. Boost Clock: Up to 4.0GHz• Base Clock: 3.8GHz• L1 Cache- 256KB• L2 Cache: 2MB• L3 Cache: 4MB• Default TDP: 65W• Processor Technology for CPU Cores: TSMC 7nm FinFET• CPU Compute Die (CCD) Size: 180mm²• Package Die Count: 1• Unlocked for Overclocking: Yes• CPU Socket: AM4• Socket Count: 1P• Supporting Chipsets• X570• X470• B550• B450• B350• A520• A320• CPU Boost Technology: Precision Boost 2• Instruction Set: x86-64• Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64• Thermal Solution (PIB): AMD Wraith Stealth• Max. Operating Temperature (Tjmax): 95°C• *OS Support• Windows 11: 64-Bit Edition• Windows 10: 64-Bit Edition• RHEL x86 64-Bit• Ubuntu x86 64-Bit• *Operating System (OS) support will vary by manufacturer.Warranty Information:• Item compatibility is buyer’s responsibility.• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.• Check all items upon receipt.• All items/claims for warranty are carry-in.• Tampered warranty sticker voids the warranty.• Overclocking may void the warranty.• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)

Read more less

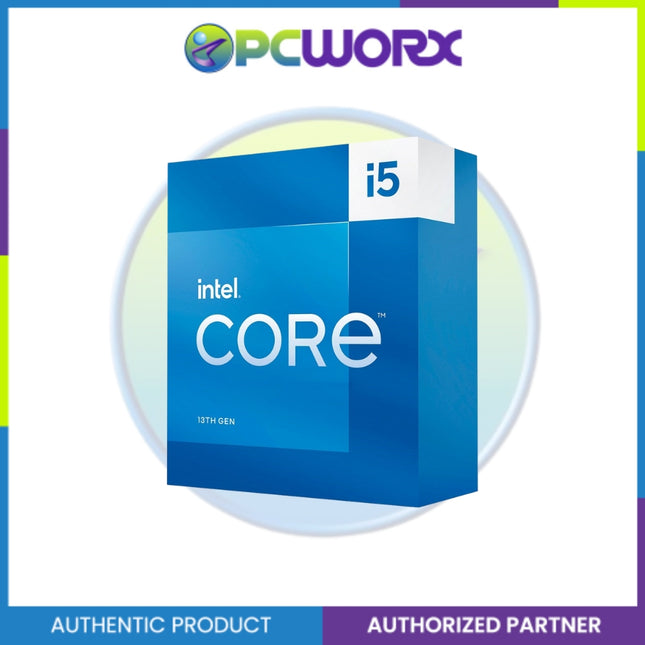

Essentials Product Collection 13th Generation Intel® Core™ i5 Processors Code Name Products formerly Raptor Lake Vertical Segment Desktop Processor Number i5-13400 Lithography Intel 7 CPU Specifications Total Cores 10 # of Performance-cores 6 # of Efficient-cores 4 Total Threads 16 Max Turbo Frequency 4.60 GHz Performance-core Max Turbo Frequency 4.60 GHz Efficient-core Max Turbo Frequency 3.30 GHz Performance-core Base Frequency 2.50 GHz Efficient-core Base Frequency 1.80 GHz Cache 20 MB Intel® Smart Cache Total L2 Cache 9.5 MB Processor Base Power 65 W Maximum Turbo Power 148 W Supplemental Information Marketing Status Launched Launch Date Q1'23 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 192 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s GPU Specifications GPU Name‡ Intel® UHD Graphics 730 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.55 GHz Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1 Execution Units 24 Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz Max Resolution (DP)‡ 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz DirectX* Support 12 OpenGL* Support 4.5 OpenCL* Support 3 Multi-Format Codec Engines 1 Intel® Quick Sync Video Yes Intel® Clear Video HD Technology Yes # of Displays Supported ‡ 4 Device ID 0x4682/0xA782 Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4 Max # of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator 3 Intel® Thread Director Yes Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel® Standard Manageability (ISM) ‡ Yes Intel® Control-Flow Enforcement Technology Yes Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

Essentials Product Collection 12th Generation Intel® Core™ i7 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i7-12700 Lithography Intel 7 CPU Specifications Total Cores 12 # of Performance-cores 8 # of Efficient-cores 4 Total Threads 20 Max Turbo Frequency 4.90 GHz Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 4.90 GHz Performance-core Max Turbo Frequency 4.80 GHz Efficient-core Max Turbo Frequency 3.60 GHz Performance-core Base Frequency 2.10 GHz Efficient-core Base Frequency 1.60 GHz Cache 25 MB Intel® Smart Cache Total L2 Cache 12 MB Processor Base Power 65 W Maximum Turbo Power 180 W Supplemental Information Marketing Status Launched Launch Date Q1'22 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s ECC Memory Supported   ‡ Yes GPU Specifications GPU Name‡ Intel® UHD Graphics 770 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.50 GHz Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1 Execution Units 32 Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz Max Resolution (DP)‡ 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz DirectX* Support 12 OpenGL* Support 4.5 OpenCL* Support 3 Multi-Format Codec Engines 2 Intel® Quick Sync Video Yes Intel® Clear Video HD Technology Yes # of Displays Supported ‡ 4 Device ID 0x4680 Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4 Max # of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator 3 Intel® Thread Director Yes Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Optane™ Memory Supported ‡ Yes Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ Yes Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Enterprise |  Intel vPro® Essentials Intel® Threat Detection Technology (TDT) Yes Intel® Active Management Technology (AMT) ‡ Yes Intel® Standard Manageability (ISM) ‡ Yes Intel® One-Click Recovery ‡ Yes Intel® Hardware Shield Eligibility ‡ Yes Intel® Control-Flow Enforcement Technology Yes Intel® Total Memory Encryption - Multi Key Yes Intel® Total Memory Encryption Yes Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Stable IT Platform Program (SIPP) Yes Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

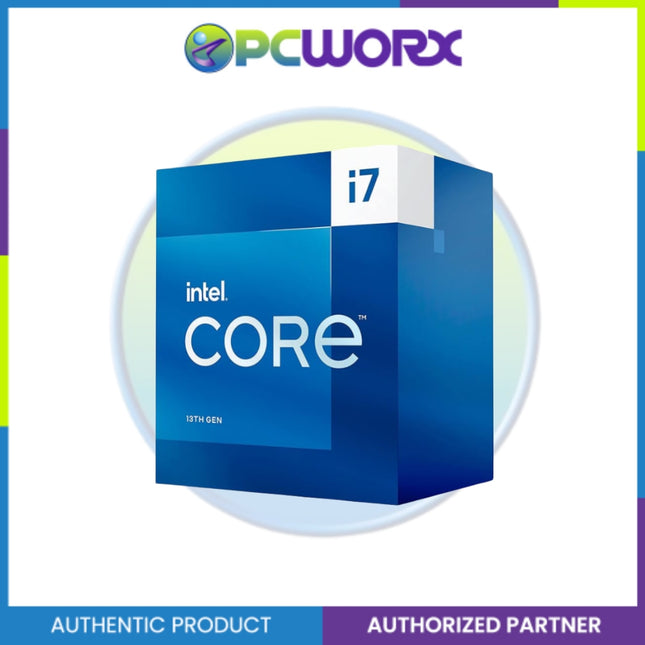

Essentials Product Collection 13th Generation Intel® Core™ i7 Processors Code Name Products formerly Raptor Lake Vertical Segment Desktop Processor Number i7-13700 Lithography Intel 7 CPU Specifications Total Cores 16 # of Performance-cores 8 # of Efficient-cores 8 Total Threads 24 Max Turbo Frequency 5.20 GHz Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.20 GHz Performance-core Max Turbo Frequency 5.10 GHz Efficient-core Max Turbo Frequency 4.10 GHz Performance-core Base Frequency 2.10 GHz Efficient-core Base Frequency 1.50 GHz Cache 30 MB Intel® Smart Cache Total L2 Cache 24 MB Processor Base Power 65 W Maximum Turbo Power 219 W Supplemental Information Marketing Status Launched Launch Date Q1'23 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 192 GB Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 89.6 GB/s ECC Memory Supported   ‡ Yes GPU Specifications GPU Name‡ Intel® UHD Graphics 770 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.60 GHz Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1 Execution Units 32 Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz Max Resolution (DP)‡ 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz DirectX* Support 12 OpenGL* Support 4.5 OpenCL* Support 3 Multi-Format Codec Engines 2 Intel® Quick Sync Video Yes Intel® Clear Video HD Technology Yes # of Displays Supported ‡ 4 Device ID 0xA780 Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4 Max # of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator 3 Intel® Thread Director Yes Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ Yes Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Enterprise |  Intel vPro® Essentials |  Intel vPro® Platform Intel® Threat Detection Technology (TDT) Yes Intel® Active Management Technology (AMT) ‡ Yes Intel® Standard Manageability (ISM) ‡ Yes Intel® Remote Platform Erase (RPE) ‡ Yes Intel® One-Click Recovery ‡ Yes Intel® Hardware Shield Eligibility ‡ Yes Intel® Control-Flow Enforcement Technology Yes Intel® Total Memory Encryption - Multi Key Yes Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Stable IT Platform Program (SIPP) Yes Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

Product Collection 10th Generation Intel® Core™ i3 Processors Code Name Products formerly Comet Lake Vertical Segment Desktop Processor Number i3-10105 Lithography 14 nm Use Conditions PC/Client/Tablet CPU Specifications Total Cores 4 Total Threads 8 Max Turbo Frequency 4.40 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.40 GHz Processor Base Frequency 3.70 GHz Cache 6 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W Supplemental Information Marketing Status Launched Launch Date Q1'21 Embedded Options Available No Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-2666 Max # of Memory Channels 2 Max Memory Bandwidth 41.6 GB/s ECC Memory Supported   ‡ No GPU Specifications GPU Name‡ Intel® UHD Graphics 630 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.10 GHz Graphics Video Max Memory 64 GB 4K Support Yes |  at 60Hz Max Resolution (HDMI)‡ 4096 x 2160@30Hz Max Resolution (DP)‡ 4096 x 2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 4096 x 2304@60Hz DirectX* Support 12 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡ 3 Device ID 0x9BC8 Expansion Options Scalability 1S Only PCI Express Revision 3 PCI Express Configurations ‡ Up to 1x16 |  2x8 |  1x8+2x4 Max # of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 Thermal Solution Specification PCG 2015C TJUNCTION 100°C Package Size 37.5mm x 37.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Thermal Velocity Boost No Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes Security & Reliability Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ No Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Stable IT Platform Program (SIPP) No Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

Essentials Product Collection 10th Generation Intel® Core™ i5 Processors Code Name Products formerly Comet Lake Vertical Segment Desktop Processor Number i5-10400 Lithography 14 nm CPU Specifications Total Cores 6 Total Threads 12 Max Turbo Frequency 4.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.30 GHz Processor Base Frequency 2.90 GHz Cache 12 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W Supplemental Information Marketing Status Launched Launch Date Q2'20 Embedded Options Available No Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-2666 Max # of Memory Channels 2 Max Memory Bandwidth 41.6 GB/s ECC Memory Supported   ‡ No GPU Specifications GPU Name‡ Intel® UHD Graphics 630 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.10 GHz Graphics Video Max Memory 64 GB 4K Support Yes |  at 60Hz Max Resolution (HDMI)‡ 4096 x 2160@30Hz Max Resolution (DP)‡ 4096 x 2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 4096 x 2304@60Hz DirectX* Support 12 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡ 3 Device ID 0x9BC8 / 0x9BC5 Expansion Options Scalability 1S Only PCI Express Revision 3 PCI Express Configurations ‡ Up to 1x16 |  2x8 |  1x8+2x4 Max # of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 Thermal Solution Specification PCG 2015C TJUNCTION 100°C Package Size 37.5mm x 37.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Thermal Velocity Boost No Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes Security & Reliability Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ No Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Stable IT Platform Program (SIPP) No Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

Essentials Product Collection 11th Generation Intel® Core™ i7 Processors Code Name Products formerly Rocket Lake Vertical Segment Desktop Processor Number i7-11700 Lithography 14 nm CPU Specifications Total Cores 8 Total Threads 16 Max Turbo Frequency 4.90 GHz Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 4.90 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.80 GHz Processor Base Frequency 2.50 GHz Cache 16 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W Supplemental Information Marketing Status Launched Launch Date Q1'21 Embedded Options Available No Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-3200 Max # of Memory Channels 2 Max Memory Bandwidth 50 GB/s ECC Memory Supported   ‡ No GPU Specifications GPU Name‡ Intel® UHD Graphics 750 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.30 GHz Graphics Video Max Memory 64 GB Execution Units 32 4K Support Yes |  at 60Hz Max Resolution (HDMI)‡ 4096x2160@60Hz Max Resolution (DP)‡ 5120 x 3200 @60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @60Hz DirectX* Support 12.1 OpenGL* Support 4.5 OpenCL* Support 3 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡ 3 Device ID 0x4C8A Expansion Options Scalability 1S Only PCI Express Revision 4 PCI Express Configurations ‡ Up to 1x16+1x4 |  2x8+1x4 |  1x8+3x4 Max # of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 Thermal Solution Specification PCG 2019C TJUNCTION 100°C Package Size 37.5 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator 2 Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Optane™ Memory Supported ‡ Yes Intel® Thermal Velocity Boost No Intel® Turbo Boost Max Technology 3.0 ‡ Yes Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 |  Intel® AVX-512 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes Security & Reliability Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) No Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Stable IT Platform Program (SIPP) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less
