100 Base-TX 100 Base-T4 100VG-AnyLAN 1000 Base-T(Gigabit Ethernet) 155Mbps ATM Inner Conductor thickness   :   0.5mm CCA Conductor size                         :  24AWG Conductor Material                :  CCA No. of Conductor                    :  4P Insulator Material                  :  HDPE Jacket                                        :  PVC Shield                                        :  Unshielded twisted pairs Filler                                          :  PE Insulation Thickness             :  0.18mm Jacket Thickness                    :  0.92-0.95mm Stretching Resistance            :  (max)250N Impedance                               :  100±15%O at 1~100MHz Transmission Velocity           :  65% Working Capacitance             :  5.4nf/100m Insulation Resistance            :  10000Mî©.km Operating Temperature        :  ~40 ºC – +70 ºC

Read more less

HARDWARE FEATURES - TL-WN881ND Interface PCI Express(x1) Dimensions ( W x D x H ) 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm) Antenna Type Detachable Omni Directional (RP-SMA) Antenna Gain 2dBi WIRELESS FEATURES Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.400-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic)11g: Up to 54Mbps(dynamic)11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -68dBm@10% PER130M: -68dBm@10% PER108M: -73dBm@10% PER54M: -73dBm@10% PER11M: -89dBm@8% PER6M: -87dBm@10% PER1M: -90dBm@8% PER Transmit Power <20dBm(EIRP) Wireless Modes Ad-Hoc / Infrastructure mode Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM OTHERS Certification CE, FCC, RoHS Package Contents Wireless Adapter2x Detachable Omni directional antennaResource CDQuick Installation Guide System Requirements Windows 10/8.1/8/7，Linux Environment Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Read more less

WIRELESS - Archer C64 Standards Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC12005 GHz: 867 Mbps (802.11ac)2.4 GHz: 400 Mbps (802.11n) WiFi Range 3 Bedroom Houses4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity MediumDual-BandAllocate devices to different bands for optimal performanceMU-MIMOSimultaneously communicates with multiple MU-MIMO clientsAirtime FairnessImproves network efficiency by limiting excessive occupation Working Modes Router ModeAccess Point Mode SECURITY Network Security SPI FirewallAccess ControlIP and MAC Binding Guest Network 1× 2.4 GHz Guest Network1× 5 GHz Guest Network WiFi Encryption WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x) HARDWARE Processor 1.2 GHz CPU Ethernet Ports 1× Gigabit WAN Port4× Gigabit LAN Ports Buttons WPS/Reset Button Power 12V = 1A SOFTWARE Protocols IPv4IPv6 EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer C64 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.Learn More> Parental Controls URL FilteringTime Controls WAN Types Dynamic IPStatic IPPPPoE(Dual Access)PPTP(Dual Access)L2TP(Dual Access) Quality of Service QoS by Device Cloud Service OTA Firmware UpgradeTP-Link IDDDNS NAT Forwarding Port ForwardingPort TriggeringUPnPDMZ IPTV IGMP ProxyIGMP SnoopingBridgeTag VLAN DHCP ServerDHCP Client ListAddress Reservation DDNS TP-LinkNO-IPDynDNS Management Tether AppWebpageCheck Web Emulator> OTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) Certifications CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing TEST DATA WiFi Transmission Power CE:<20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5 GHz) WiFi Reception Sensitivity 5 GHz:11a 6Mbps:-95dBm11a 54Mbps:-77dBm11ac VHT20 MCS8:-71dBm11ac VHT40 MCS9:-67dBm11ac VHT80 MCS9:-63dBm2.4 GHz:11g 6Mbps: -96dBm11g 54Mbps: -78dBm11n HT20 MCS7:-77dBm11n HT40 MCS7:-74dBm11ac VHT20 MCS8:-73dBm11ac VHT40 MCS9:-68dBm PHYSICAL Dimensions (W×D×H) 4.7 × 4.7 × 1.1 in(120 × 120 × 27.9 mm) Package Contents Wireless Router Archer C64Power AdapterRJ45 Ethernet CableQuick Installation Guide

Read more less

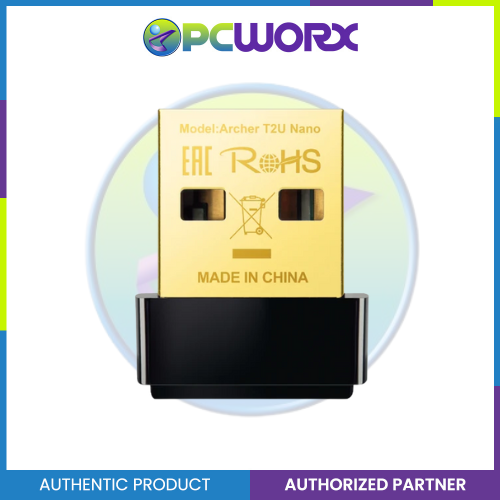

HARDWARE FEATURES - Archer T2U Nano Interface USB 2.0 Dimensions ( W x D x H ) 15*7.1*18.6mm Antenna Type Omni Directional WIRELESS FEATURES Wireless Standards IEEE 802.11ac, IEEE 802.11a,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 5GHz2.4GHz Signal Rate 5GHz11ac: Up to 433Mbps(dynamic)11n: Up to 150Mbps(dynamic)11a: Up to 54Mbps(dynamic)2.4GHz11n: Up to 200Mbps(dynamic)11g: Up to 54Mbps(dynamic)11b: Up to 11Mbps(dynamic) Reception Sensitivity 5GHz：11a 6Mbps: -90dBm11a 54Mbps: -73dBm11n HT20 MCS0: -89dBm11n HT20 MCS7: -70dBm11n HT40 MCS0: -86dBm11n HT40 MCS7: -67dBm11ac VHT80 MCS0: -82dBm11ac VHT80 MCS9: -56dBm2.4GHz:11b 1Mbps: -96dBm11b 11Mbps: -88dBm11g 6Mbps: -89dBm11g 54Mbps: -74dBm11n HT20 MCS0: -89dBm11n HT20 MCS7: -72dBm11n HT40 MCS0: -86dBm11n HT40 MCS7: -66dBm Transmit Power <20dBm (EIRP) Wireless Modes Ad-Hoc / Infrastructure mode Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM OTHERS Certification CE, FCC, RoHS Package Contents AC600 Nano Wireless USB Adapter Archer T2U NanoResource CDQuick Installation Guide System Requirements Windows 10/8.1/8/7/XP (32/64bits),Mac OS X 10.9-10.13 Environment Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Read more less

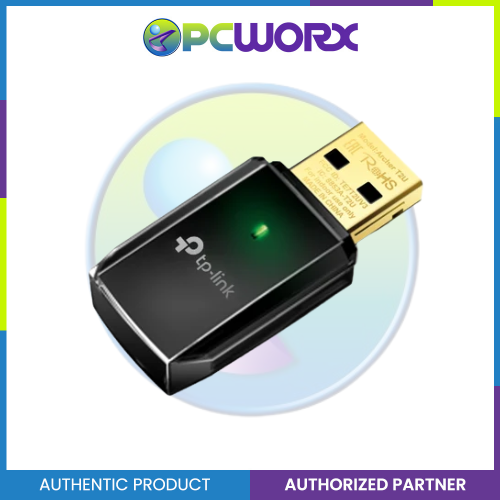

HARDWARE FEATURES - Archer T2U Interface USB 2.0 LED Status Dimensions ( W x D x H ) 1.6×0.7×0.3 in. (41×19.5×8.7mm) Antenna Type Omni Directional WIRELESS FEATURES Wireless Standards IEEE 802.11ac, IEEE 802.11a,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 5GHz2.4GHz Signal Rate 5GHz11ac: Up to 433Mbps(dynamic)11n: Up to 150Mbps(dynamic)11a: Up to 54Mbps(dynamic)2.4GHz11n: Up to 150Mbps(dynamic)11g: Up to 54Mbps(dynamic)11b: Up to 11Mbps(dynamic) Reception Sensitivity 5GHz：11a 6Mbps: -94dBm11a 54Mbps: -78dBm11n HT20 MCS0: -94dBm11n HT20 MCS7: -77dBm11n HT40 MCS0: -92dBm11n HT40 MCS7: -74dBm11ac VHT80 MCS0: -89dBm11ac VHT80 MCS9: -64dBm2.4GHz:11b 1Mbps: -99dBm11b 11Mbps: -91dBm11g 6Mbps: -94dBm11g 54Mbps: -77dBm11n HT20 MCS0: -95dBm11n HT20 MCS7: -76dBm11n HT40 MCS0: -92dBm11n HT40 MCS7: -73dBm Transmit Power <20dBm (EIRP) Wireless Modes Ad-Hoc / Infrastructure mode Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM OTHERS Certification CE, FCC, RoHS Package Contents Wireless Adapter Archer T2UResource CDQuick Installation Guide System Requirements Windows 10/8.1/8/7/XP, Mac OS X Environment Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Read more less

HARDWARE FEATURES - TL-SG1008D Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x Interface 8 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX Fan Quantity Fanless Physical Security Lock No Power Consumption Maximum: 4.63W (220V/50Hz) External Power Supply External Power Adapter (Output: 5VDC / 0.6A) Jumbo Frame 15 KB Switching Capacity 16 Gbps Dimensions ( W x D x H ) 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) Max Power Consumption 4.63W(220V/50Hz) Max Heat Dissipation 15.80BTU/h SOFTWARE FEATURES Transfer Method Store and Forward MAC Address Table 4K Advanced Functions Green Technology, saving power up to 80%802.3X Flow Control, Back Pressure OTHERS Certification FCC, CE, RoHs Package Contents 8-Port Gigabit Desktop Switch TL-SG1008DPower AdapterInstallation Guide System Requirements Environment Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Read more less

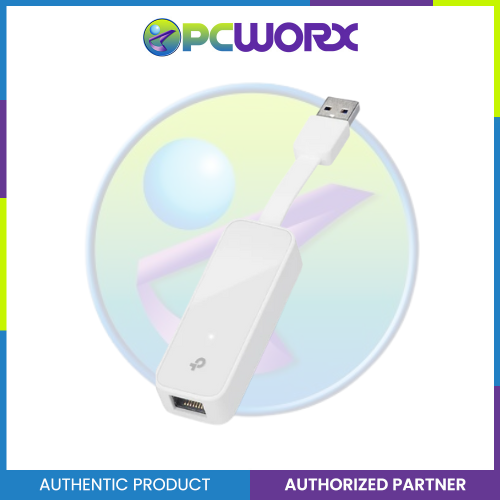

SPECIFICATIONS - UE300 Dimensions 2.8 x 1.0 x 0.6 in. (71 x 26 x 16.2mm) Output Interface 1 10/100/1000Mbps RJ45 Ethernet Port Input Interface 1 USB 3.0 Port Chipset RTL8153 Supported Systems Windows 10/8.1/8/7/Vista/XPMac OS 10.6-10.14Chrome OSLinux OS Package contents USB 3.0 to Gigabit Ethernet Network Adapter, Quick Installation Guide

Read more less
