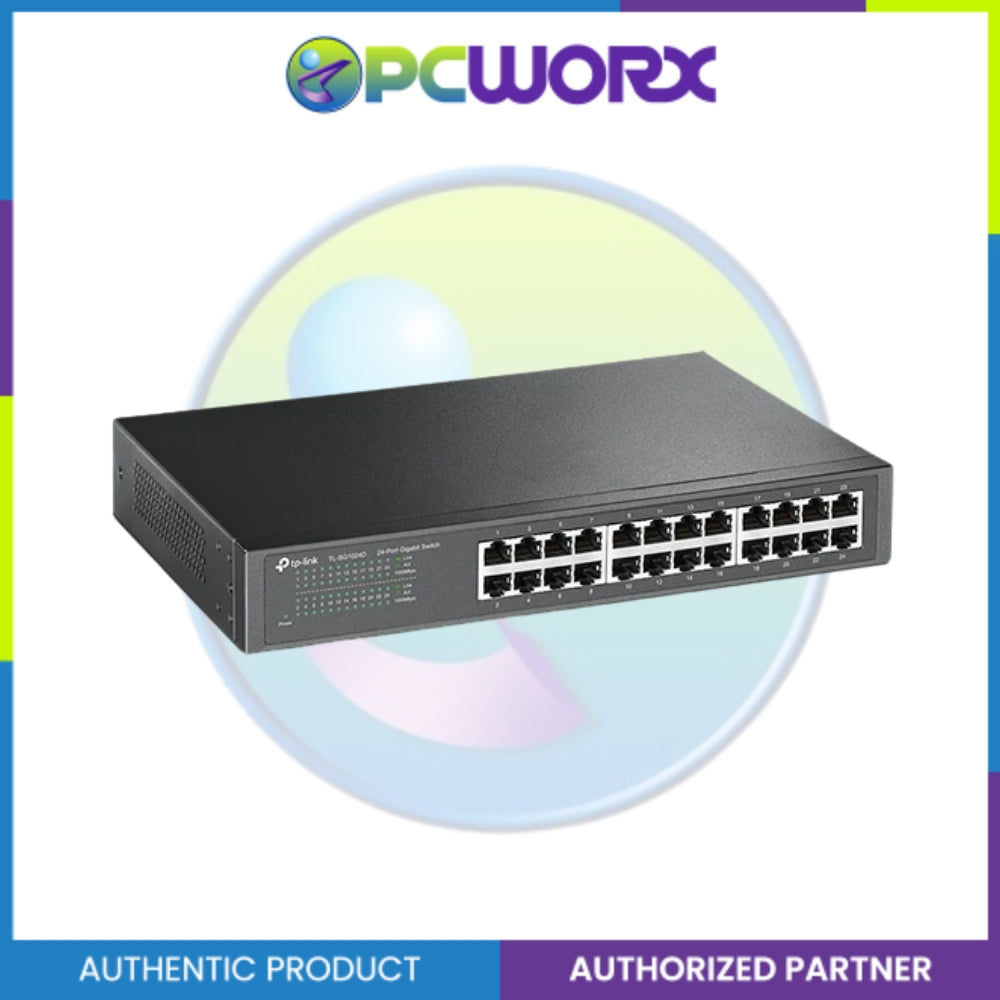

TP-Link TL-SG1024D 24 10/100/1000Mbps Ports Switch

Description

HARDWARE FEATURES - TL-SG1024D
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 13.1W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Max Power Consumption 13.62W(220V/50Hz)
Max Heat Dissipation 46.44BTU/h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Advanced Functions • Isolation Mode: Ports 1-22
• Loop Prevention: Ports 1-24
Jumbo Frame 10KB
Green Technology Yes
Transfer Method Store-and-Forward
OTHERS
Certification FCC, RoHS
Package Contents 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing

TP-Link TL-SG1024D 24 10/100/1000Mbps Ports Switch

Product form

HARDWARE FEATURES - TL-SG1024D Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x Interface 24 10/100/1000Mbps RJ45 Ports... Read more

Free pickup in our shop(s)

SKU: 0000005619

2 in stock

₱4,370.00 Excl. VAT

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO

    • Guaranteed secure & safe checkout.

    Description

    HARDWARE FEATURES - TL-SG1024D
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
    Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
    Fan Quantity Fanless
    Physical Security Lock No
    Power Supply 100-240VAC, 50/60Hz
    Power Consumption Maximum: 13.1W (220V/50Hz)
    Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
    Mounting Rack Mountable
    Max Power Consumption 13.62W(220V/50Hz)
    Max Heat Dissipation 46.44BTU/h
    PERFORMANCE
    Switching Capacity 48Gbps
    Packet Forwarding Rate 35.7Mpps
    MAC Address Table 8K
    Advanced Functions • Isolation Mode: Ports 1-22
    • Loop Prevention: Ports 1-24
    Jumbo Frame 10KB
    Green Technology Yes
    Transfer Method Store-and-Forward
    OTHERS
    Certification FCC, RoHS
    Package Contents 24-Port Gigabit Desktop/Rackmount Switch
    Power Cord
    Installation Guide
    Rackmount Kits
    Rubber Feet
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
    Storage Temperature: -40℃~70℃ (-40℉~158℉);
    Operating Humidity: 10%~90% non-condensing;
    Storage Humidity: 5%~90% non-condensing
