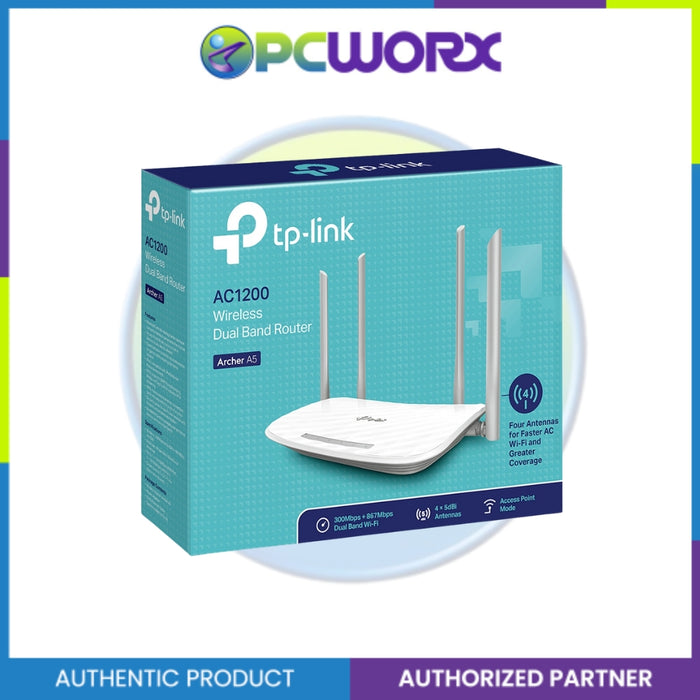

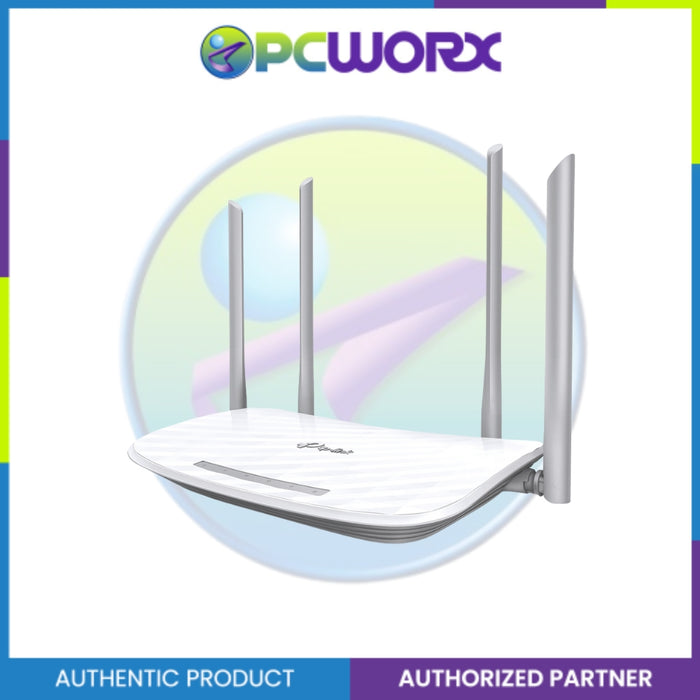

TP-LINK Archer A5 AC1200 Wireless Dual Band Router
Supports 802.11ac standard
Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
4 external antennas provide stable wireless connections and optimal coverage
Easy network management at your fingertips with TP-Link Tether
Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
Supports Access Point mode to create a new Wi-Fi access point
SPECIFICATION
WIRELESS
Standards: Wi-Fi 5 - IEEE 802.11ac/n/a 5 GHz / IEEE 802.11n/b/g 2.4 GHzWiFi
Speeds: AC1200 - 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)
WiFi Range: 2 Bedroom Houses4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity: Medium Dual-Band Allocate devices to different bands for optimal performance
Working Modes: Router Mode & Access Point Mode
HARDWARE
Processor: Single-Core CPU

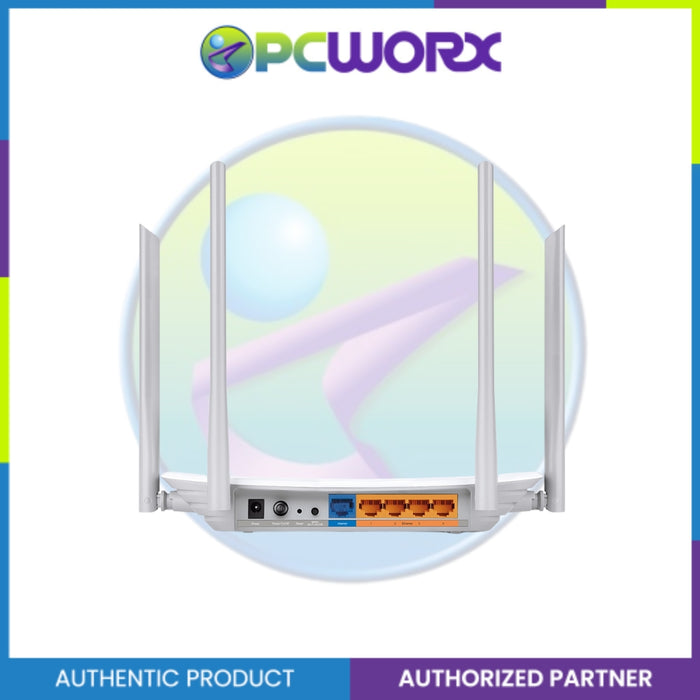

Ethernet Ports: 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons: WPS/Wi-Fi Button & Power On/Off Button Reset Button
Power: 9 V ⎓ 0.85 A
SECURITY
WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
SOFTWARE
Protocols: IPv4, IPv6
Parental Controls: URL Filtering, Time Controls
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service: QoS by Device
NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP: Address Reservation , DHCP Client List, Server
DDNS: NO-IP, DynDNS
Management: Tether App, Webpage
PHYSICAL
Dimensions (W×D×H): 9.1 × 5.7 × 1.5 in, (229.9 × 144.2 × 36.9 mm)
Package Contents: Wi-Fi Router Archer A5, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
