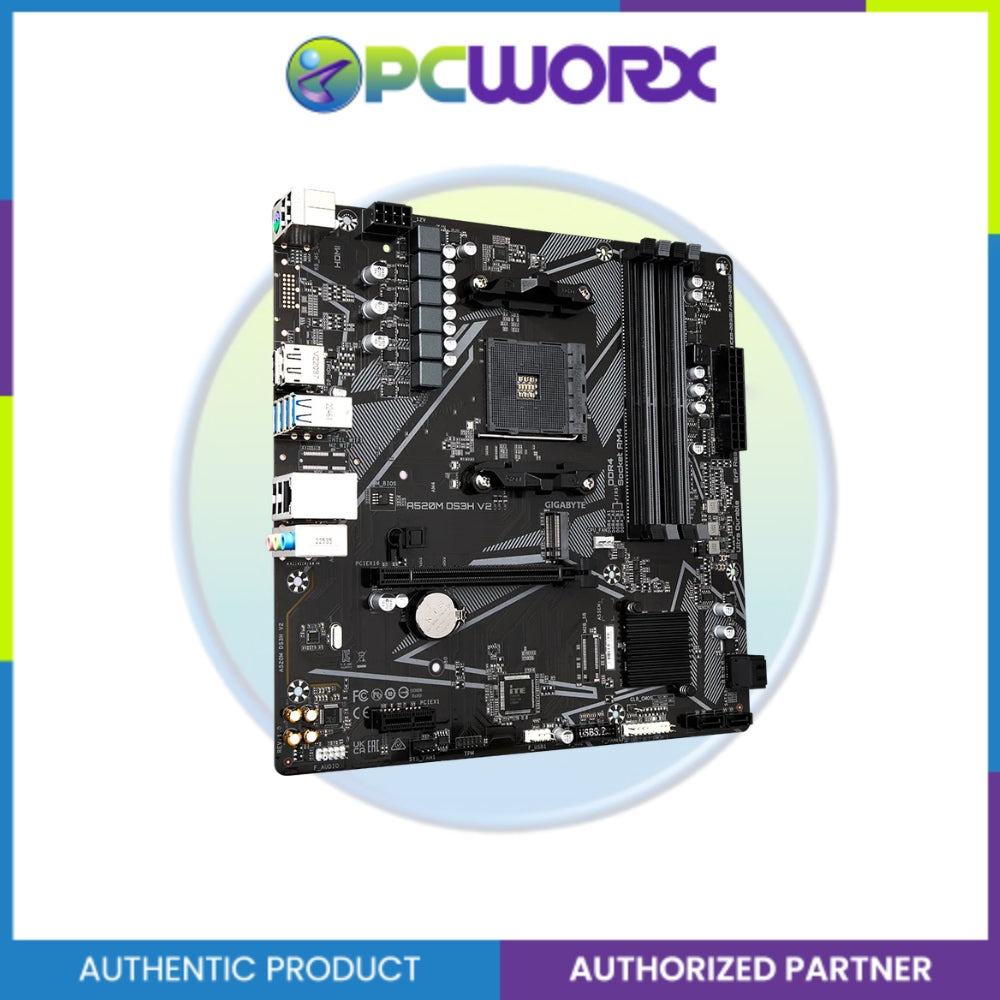

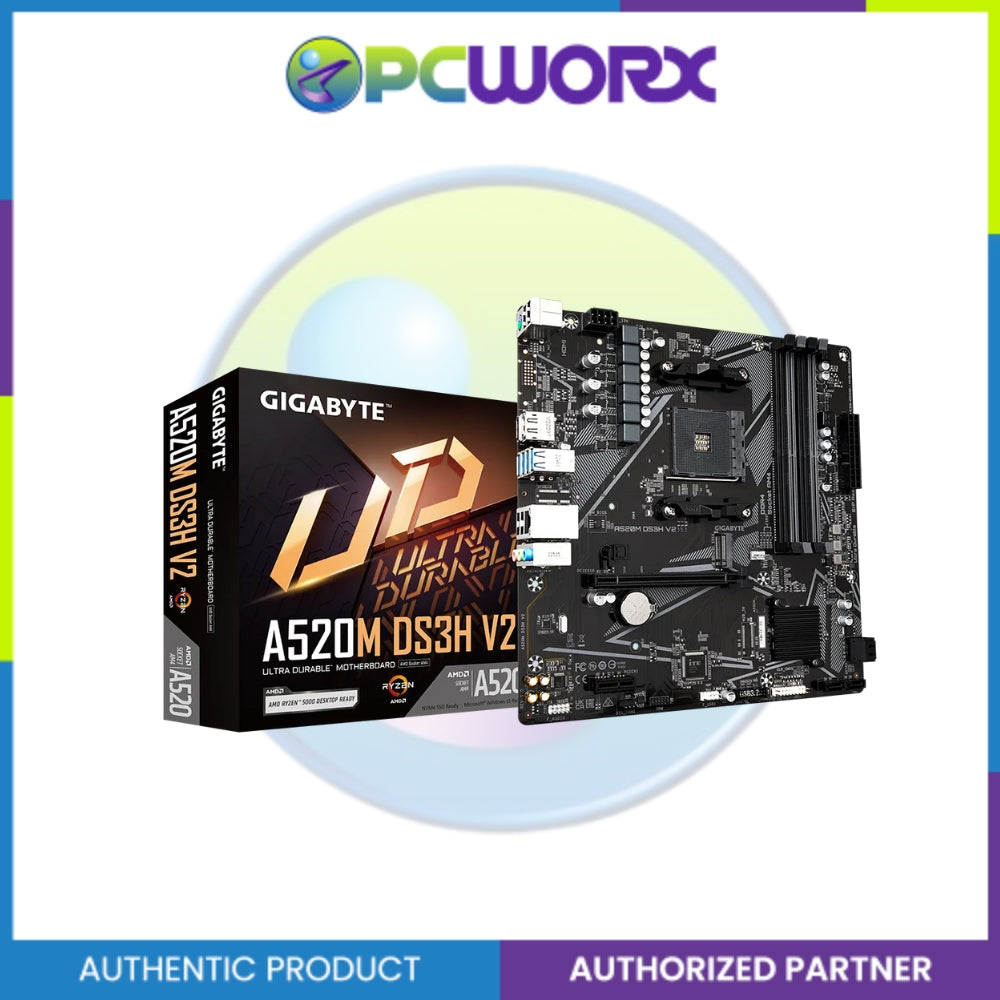

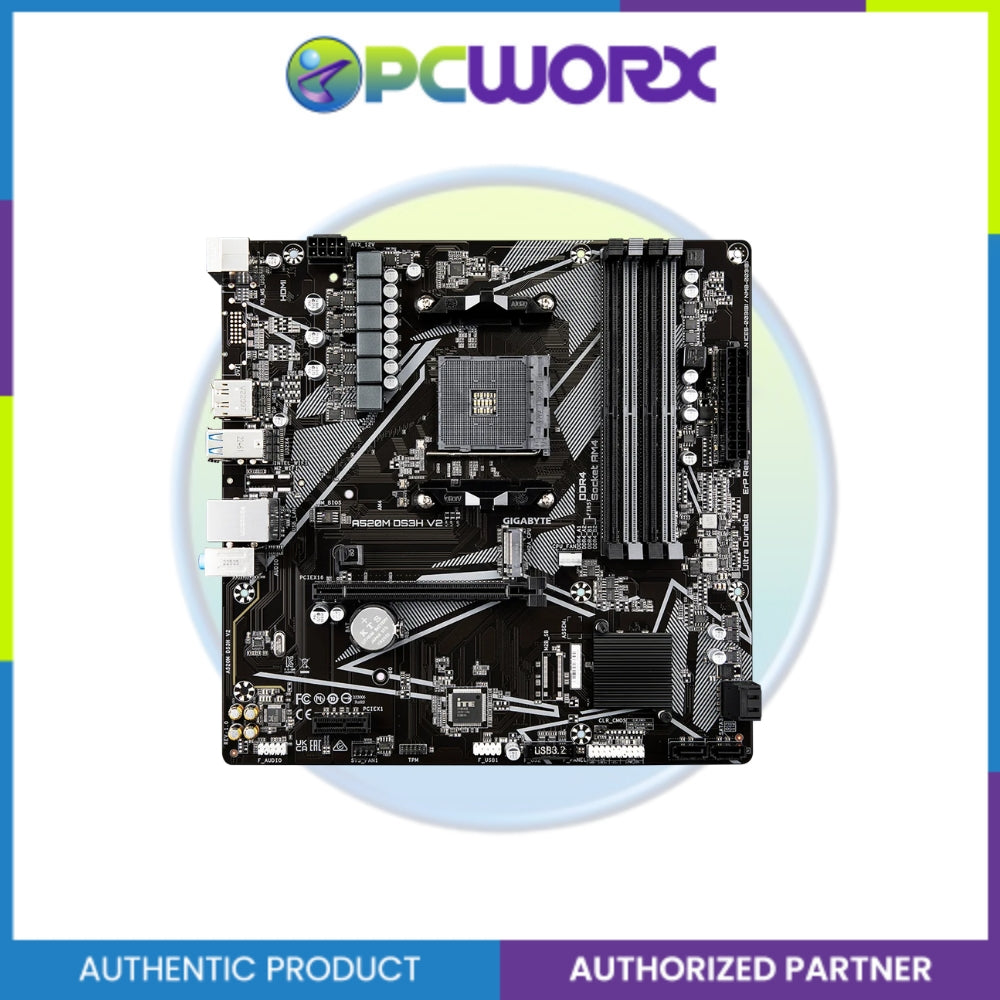

Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard
Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard
Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard
Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard

Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard

(0)
SKU: 0000066548

₱3,967.50

Brand: Gigabyte
Out of stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between March 14 and March 16.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard

₱3,967.50

₱3,967.50

Choose option
Brand: Gigabyte - Sold out
  • Gigabyte - Sold out

Authorized Seller

100% Original Authentic Product


AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra Durable™ PCIe 3.0 x16 Slot
  • NVMe PCIe 3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GbE LAN with Bandwidth Management
  • Rear DisplayPort and HDMI for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design

PERFORMANCE

GIGABYTE UD series motherboards use pure digital PWM + Low RDS (on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

CONNECTIVITY

NVMe PCIe Gen3 x4 M.2 Connector GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.


GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Category Specification
CPU Support AMD Socket AM4; supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series, and Ryzen™ 3000 G-Series processors
Chipset AMD A520
Memory 4 × DDR4 DIMM slots, up to 128 GB (32 GB per DIMM)
Memory Speed DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Memory Architecture Dual-channel
Memory Type Support ECC Un-buffered DIMM 1Rx8/2Rx8, Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Memory Features Supports Extreme Memory Profile (XMP)
Onboard Graphics Requires CPU with integrated graphics
Display Outputs 1 × DisplayPort 1.4 (max 5120×2880@60 Hz), 1 × HDMI 2.1 (max 4096×2160@60 Hz)
Maximum Shared Graphics Memory 16 GB
Audio Realtek® Audio CODEC, High-Definition Audio, 2 / 4 / 5.1 / 7.1-channel
LAN Realtek® Gigabit Ethernet (1 Gbps / 100 Mbps)
Expansion Slots 1 × PCIe 3.0 x16 slot (CPU), 1 × PCIe 3.0 x1 slot (chipset)
Storage Interface 1 × M.2 Socket 3 (2280) supporting SATA & PCIe 3.0 x4/x2 SSDs; 4 × SATA 6 Gb/s connectors
RAID Support RAID 0, 1, 10
USB (Rear / Internal) 4 × USB 3.2 Gen1 (rear), 2 × USB 3.2 Gen1 (internal header), 6 × USB 2.0/1.1 (4 rear, 2 internal)
Internal I/O Connectors 24-pin ATX power, 8-pin ATX 12V power, CPU fan header, system fan header, M.2 connector, 4 × SATA connectors, front panel header, front audio header, USB 3.2 Gen1 header, USB 2.0 header, TPM header (2×6), Clear CMOS jumper

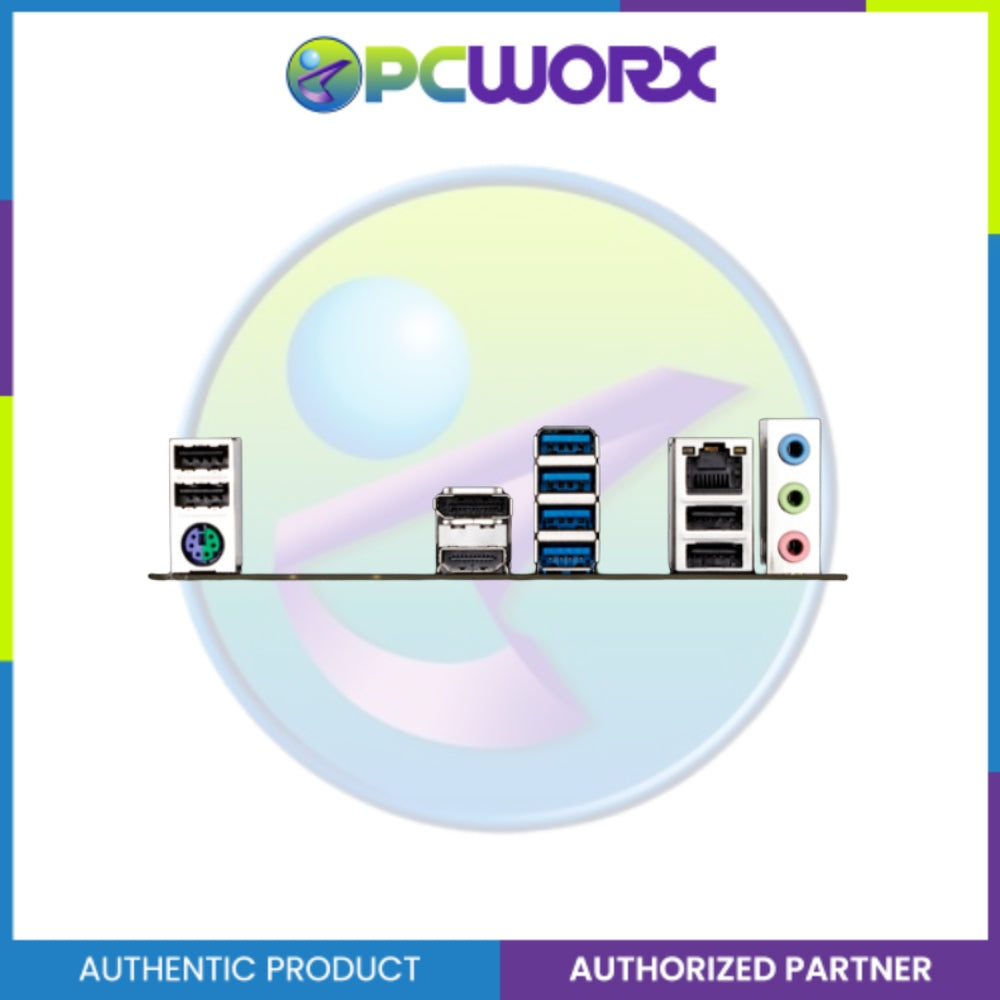

Back Panel Connectors PS/2 keyboard/mouse port, DisplayPort, HDMI, 4 × USB 3.2 Gen1, 2 × USB 2.0, RJ-45 LAN, 3 × audio jacks
I/O Controller iTE® I/O Controller Chip
Hardware Monitoring Voltage detection, temperature detection, fan speed detection, fan fail warning, fan speed control
BIOS 1 × 128 Mbit Flash, AMI UEFI BIOS
BIOS Features PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash, Xpress Install
Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Support Windows 11 (64-bit), Windows 10 (64-bit)
Form Factor Micro-ATX, 24.4 cm × 24.4 cm
