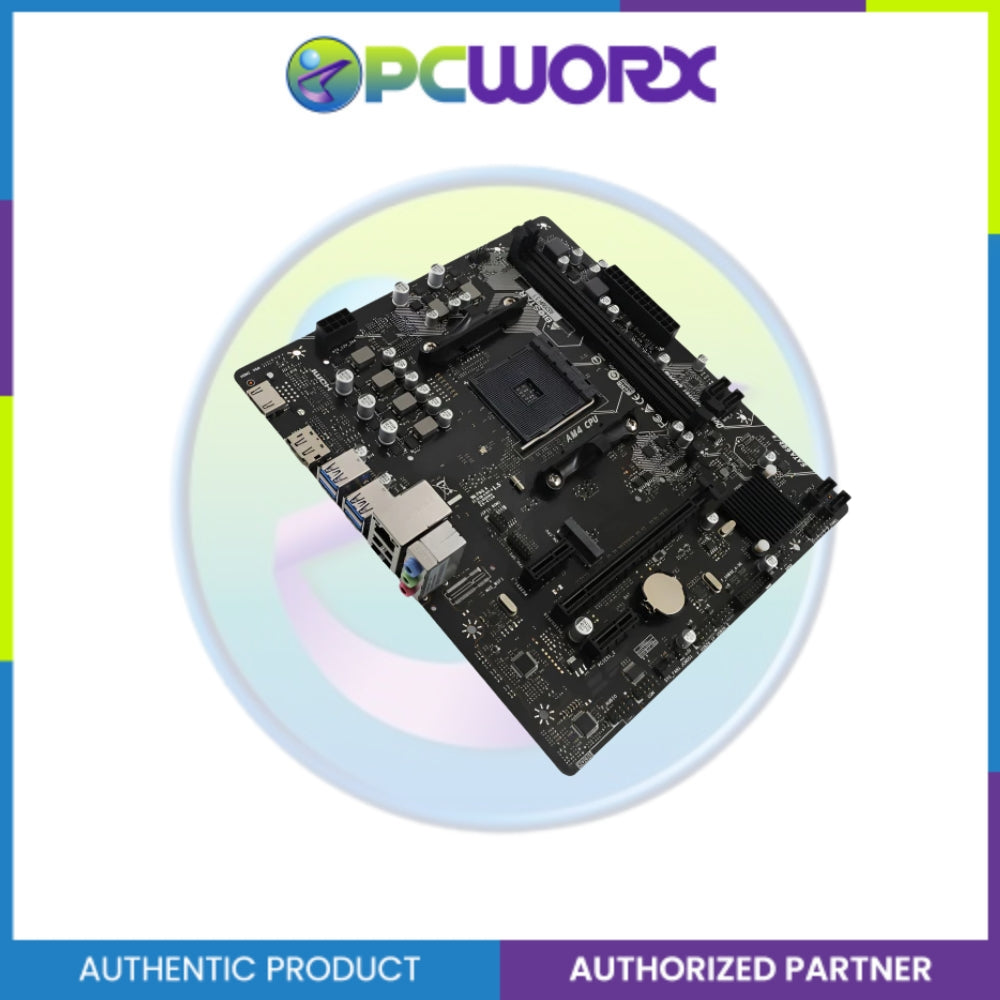

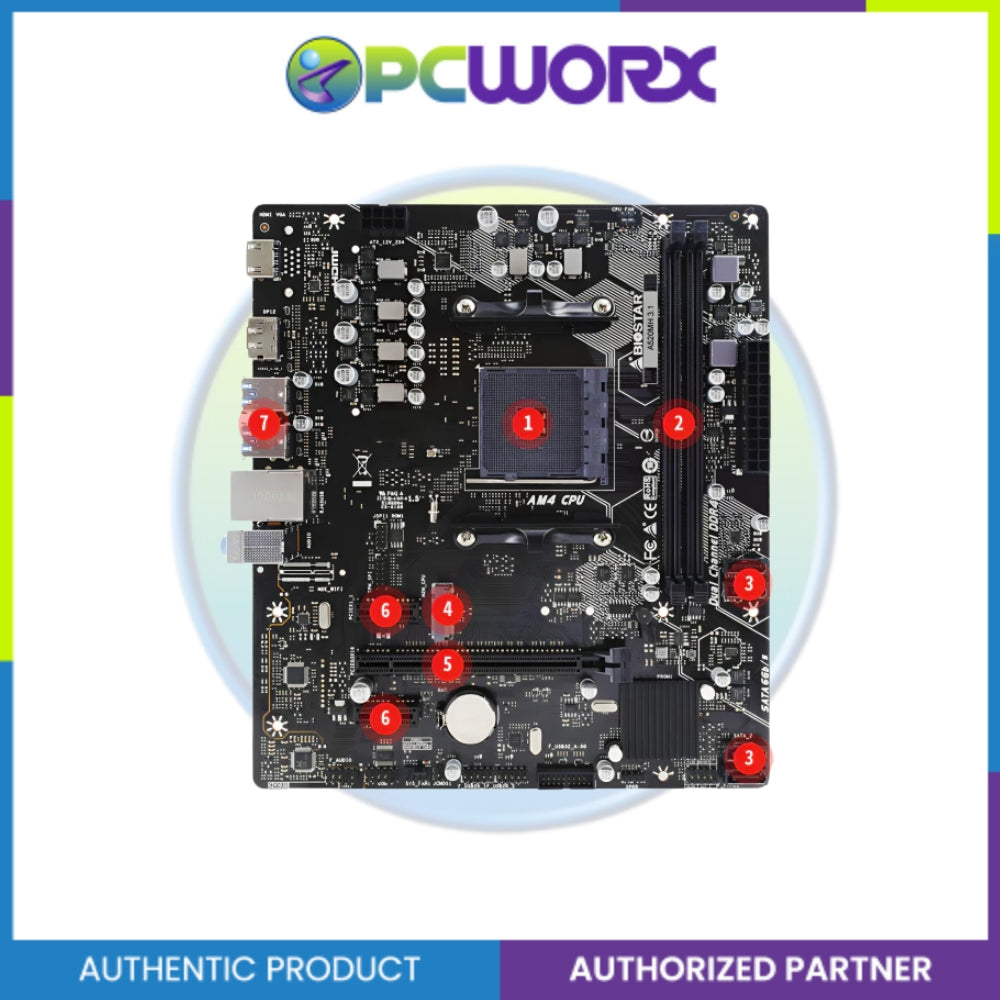

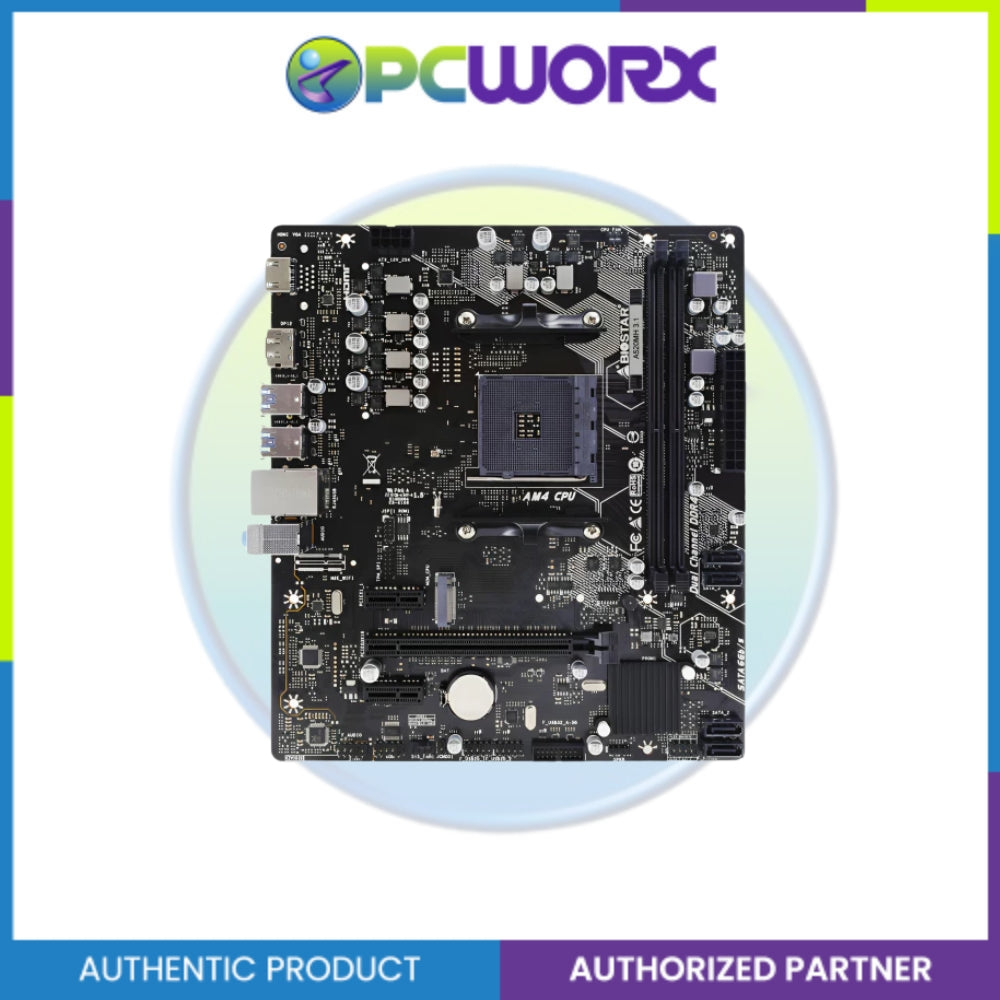

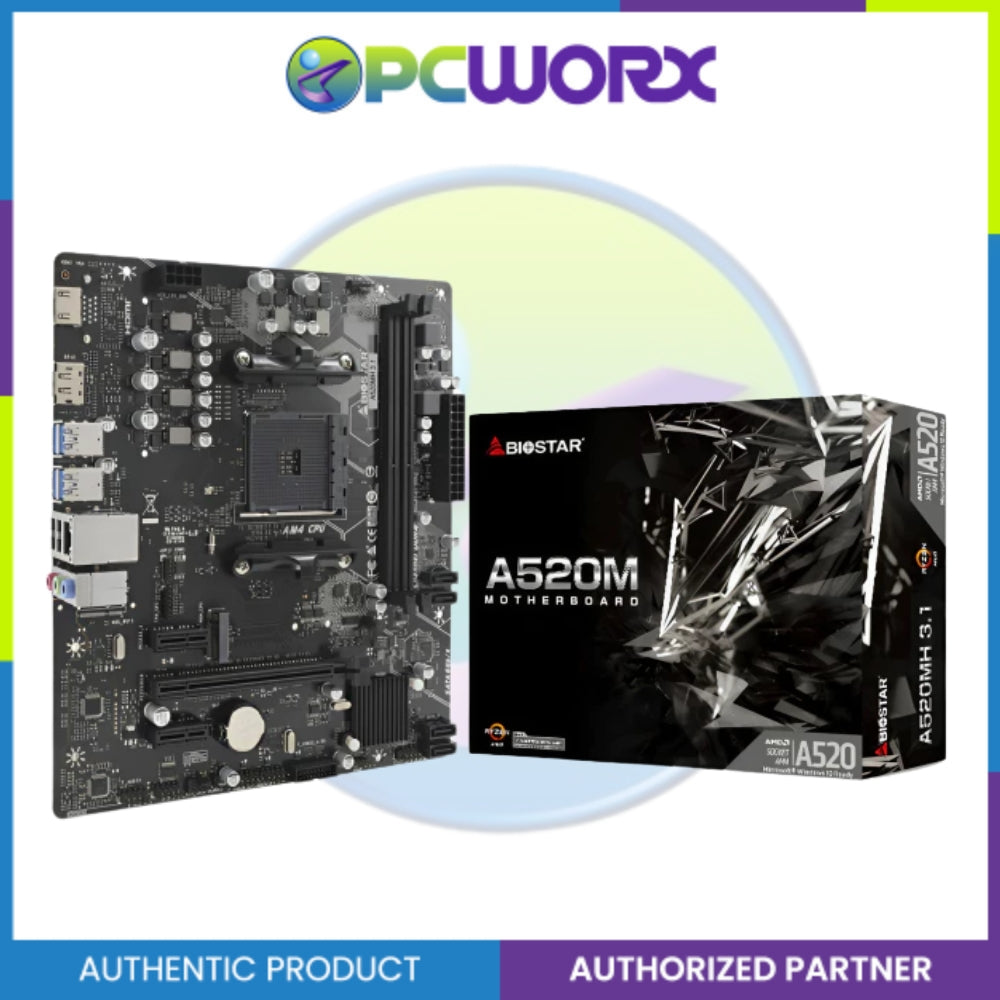

BIOSTAR A520MH 3.1 | AMD A520 AM4 W/ M.2 SSD SLOT Motherboard
BIOSTAR A520MH 3.1 | AMD A520 AM4 W/ M.2 SSD SLOT Motherboard
BIOSTAR A520MH 3.1 | AMD A520 AM4 W/ M.2 SSD SLOT Motherboard
BIOSTAR A520MH 3.1 | AMD A520 AM4 W/ M.2 SSD SLOT Motherboard
BIOSTAR A520MH 3.1 | AMD A520 AM4 W/ M.2 SSD SLOT Motherboard

BIOSTAR A520MH 3.1 | AMD A520 AM4 W/ M.2 SSD SLOT Motherboard

(0)

₱2,900.00

Brand: BIOSTAR
Out of stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between March 14 and March 16.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
BIOSTAR A520MH 3.1 | AMD A520 AM4 W/ M.2 SSD SLOT Motherboard

₱2,900.00

₱2,900.00

Choose option
Brand: BIOSTAR - Sold out
  • BIOSTAR - Sold out

Authorized Seller

100% Original Authentic Product

Specifications

MEMORY

4th Gen AMD Ryzen Processors (Vermeer CPUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
4th Gen AMD® Ryzen with Radeon Graphics Processors (Cezanne APUs):
Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):
Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
STORAGE -- Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x4 (32Gb/s) - NVMe SSD
Supports SATA III (6.0Gb/s) SSD
* Specifications vary by CPU types
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT AMD Ryzen 5000/5000 G/4000 G/3000 Processors
1 x PCIe 3.0 x16 Slot (x16 or x4/x4/x4/x4 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 Slots
* According to different CPUs will have different speeds.
* Specifications vary by CPU types

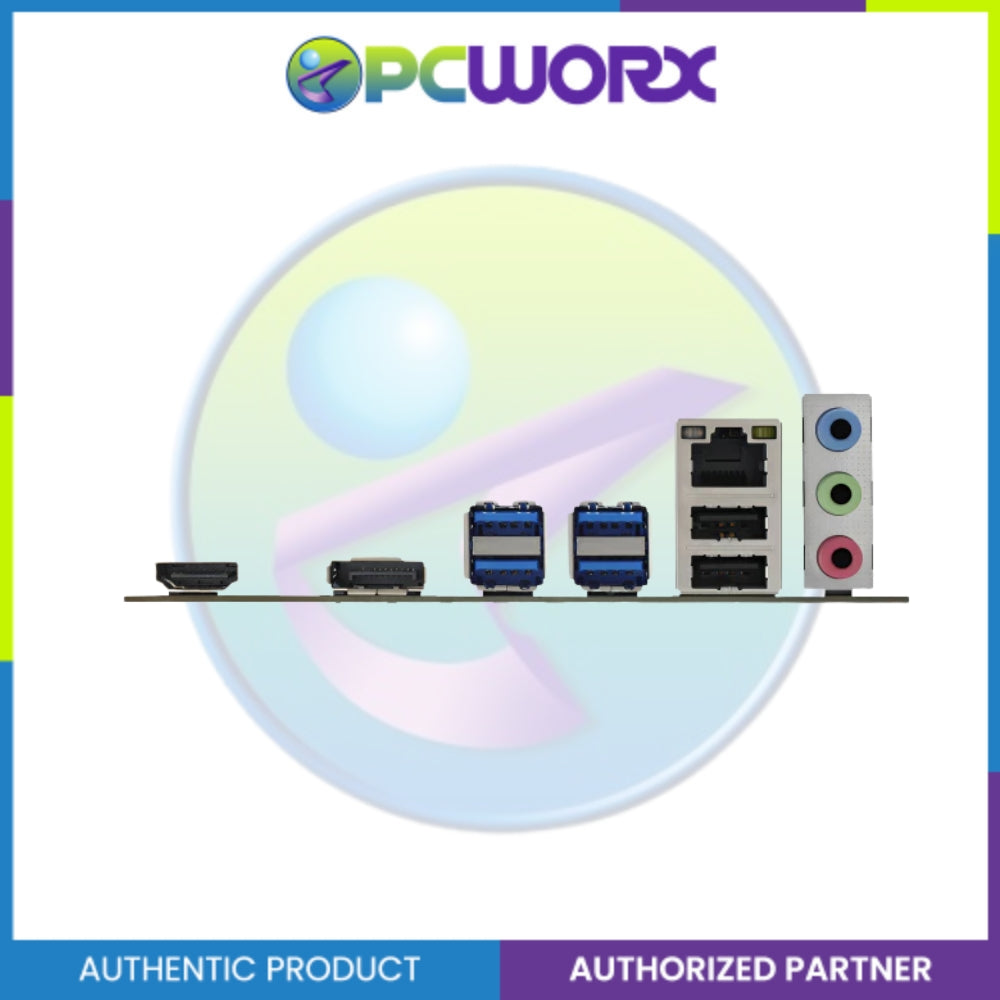

REAR I/O 1 x DP Port
1 x HDMI Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack
INTERNAL I/O 4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 23.5cm x 20.8cm ( W x L )
OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice
