₱18,925.00
| Category | Specification |
|---|---|

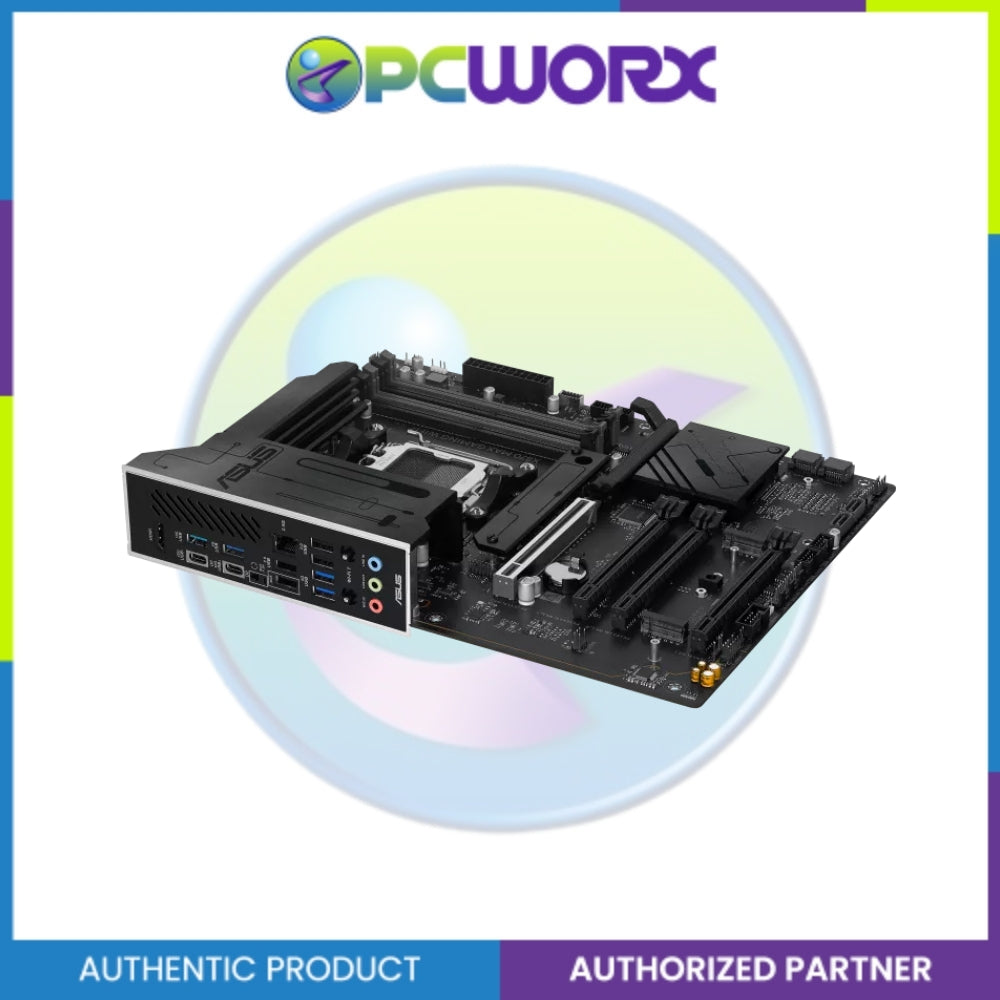

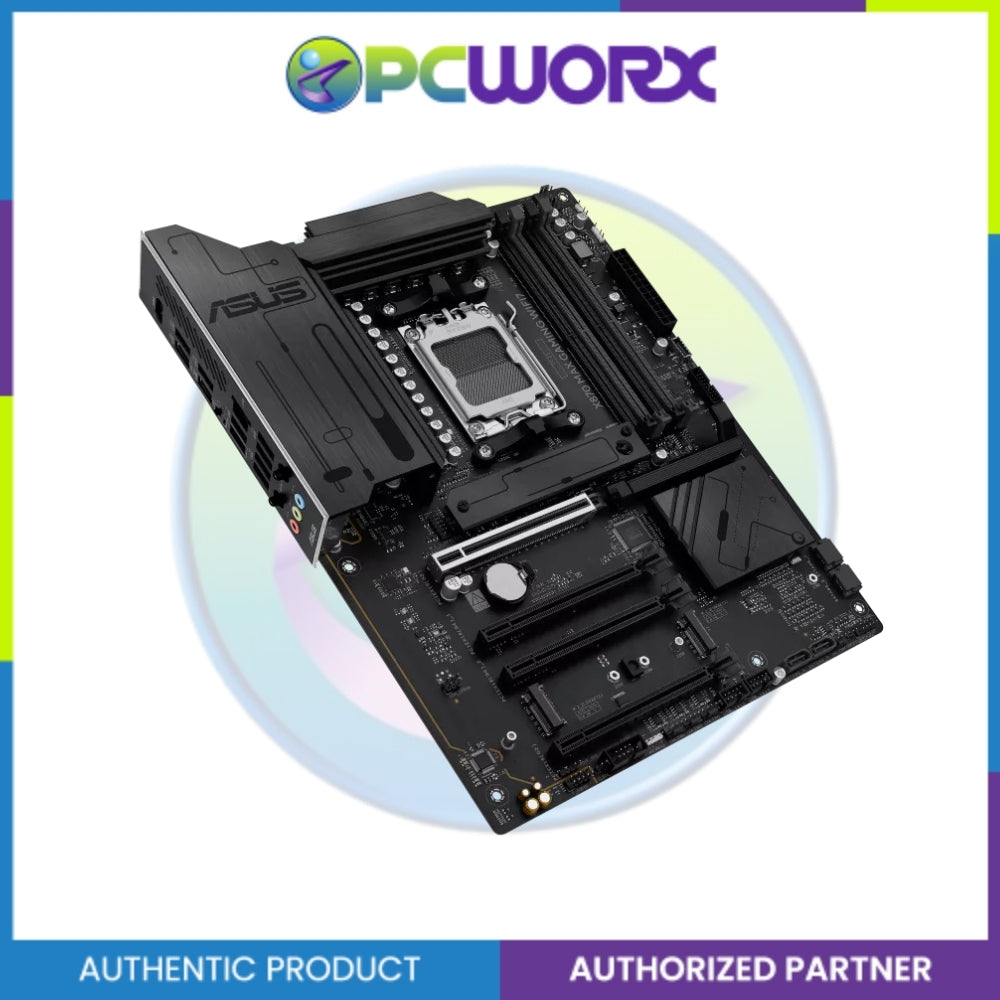

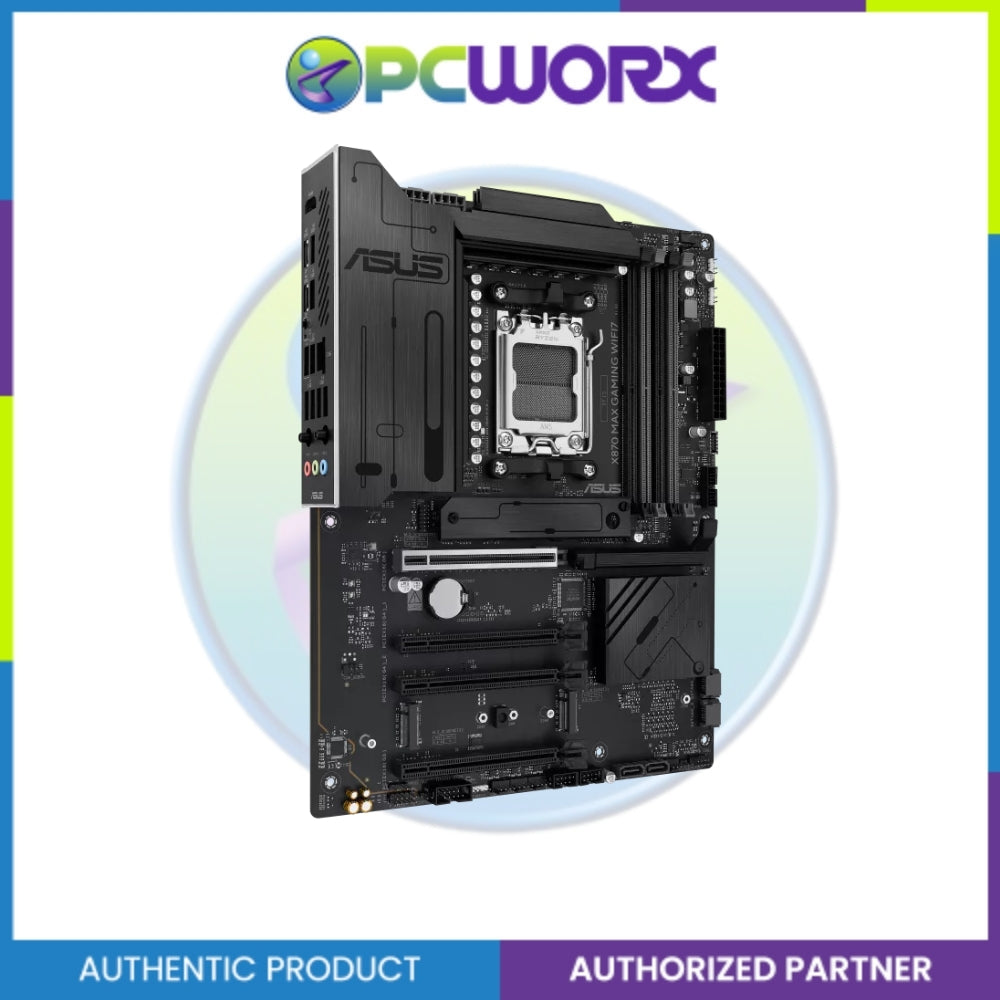

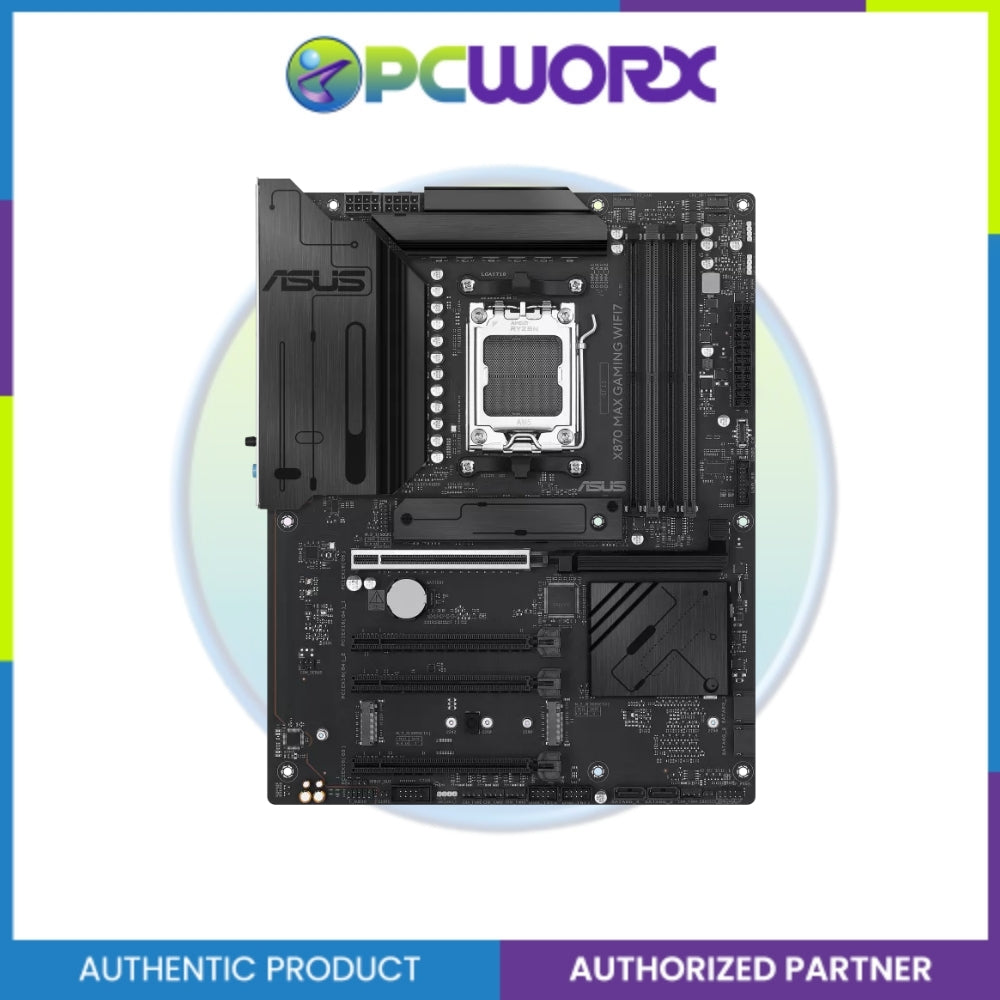

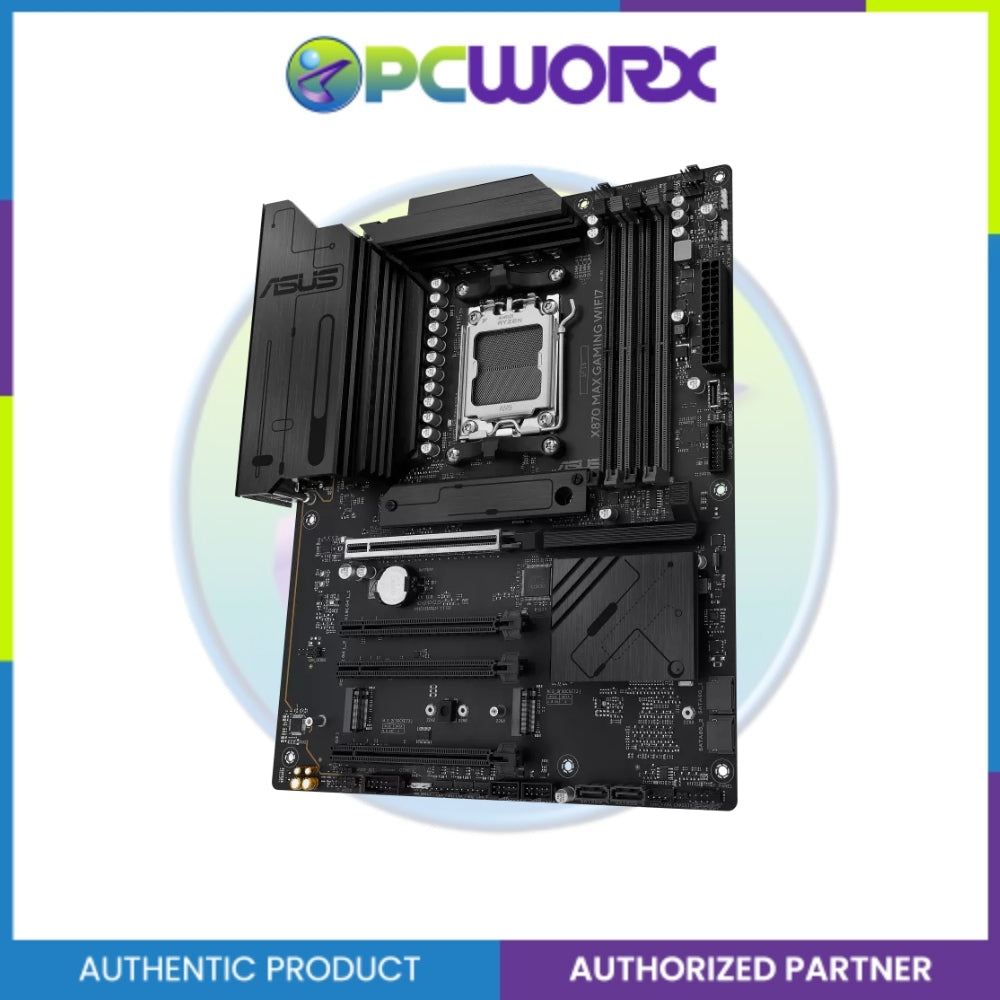

| Model | ASUS X870 MAX GAMING WIFI7 |
| Chipset | AMD X870 |
| CPU Support | AMD Socket AM5 for Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Form Factor | ATX (30.5 × 24.4 cm) |
| Weight | ~1.15–1.35 kg (board only, estimated with heatsinks and Wi-Fi module) |
| Memory Type | DDR5 |
| DIMM Slots | 4 × DIMM |
| Max Memory Capacity | Up to 256 GB |
| Memory Speed | Up to DDR5-8000+ MT/s (OC) |
| Memory Features | Dual-channel, EXPO, AEMP, ECC & non-ECC unbuffered DIMM |
| Graphics Outputs | 1 × HDMI 2.1, 2 × USB4 Type-C display outputs |
| Max Resolution | Up to 4K @ 60Hz |
| PCIe Slots | 1 × PCIe 5.0 x16, 2 × PCIe 4.0 x16 (x1 mode), 1 × PCIe 3.0 x16 (x1 mode) |
| Storage | 3 × M.2 (1× PCIe 5.0 x4, 2× PCIe 4.0 x4), 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (varies by CPU series) |
| LAN | Realtek 2.5Gb Ethernet |
| LAN Features | ASUS LANGuard |
| Wireless | Wi-Fi 7 (2×2, 2.4/5/6 GHz, up to 2.9 Gbps) |
| Bluetooth | Bluetooth 5.4 |
| Rear USB Ports | 2 × USB4 40Gbps Type-C, 1 × USB 10Gbps Type-A, 3 × USB 5Gbps Type-A, 4 × USB 2.0 |
| Front USB Support | USB-C 20Gbps, USB 5Gbps header, USB 2.0 headers |
| Audio Codec | Realtek 7.1 HD Audio |
| Audio Features | Audio shielding, premium capacitors, dedicated PCB layers |

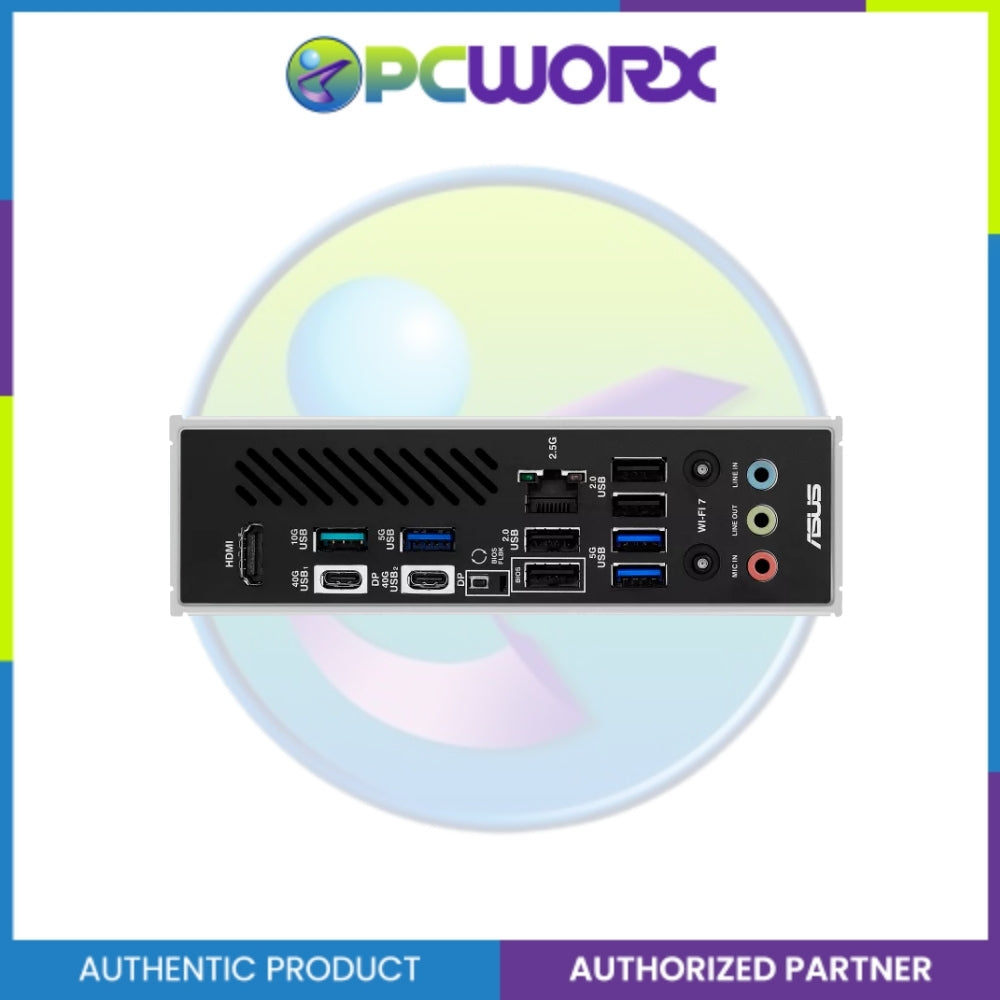

| Rear I/O Ports | USB4 ×2, USB ×8, HDMI ×1, LAN ×1, Wi-Fi module, audio jacks ×3, BIOS FlashBack |
| Internal Headers | 3 × M.2, 4 × SATA, USB headers, RGB Gen2 headers, COM, TPM, S/PDIF |
| Fan Headers | 1 × CPU fan, 1 × CPU OPT, 1 × AIO Pump, 4 × chassis fan |
| RGB Support | Aura Sync, 3 × Addressable RGB Gen 2 headers |
| Cooling Features | VRM heatsinks, flexible M.2 heatsink |
| Power Connectors | 24-pin ATX + dual 8-pin CPU |
| BIOS | 256 Mb UEFI AMI BIOS |
| BIOS Features | BIOS FlashBack, EZ Flash 3, CrashFree BIOS 3, EZ Mode |
| Protection Features | DIGI+ VRM, SafeSlot, LANGuard, overvoltage protection, stainless-steel rear I/O |
| Software | Armoury Crate, Aura Sync, Fan Xpert 4, AI Cooling II, ASUS AI Advisor, TurboV Core |
| OS Support | Windows 11 |

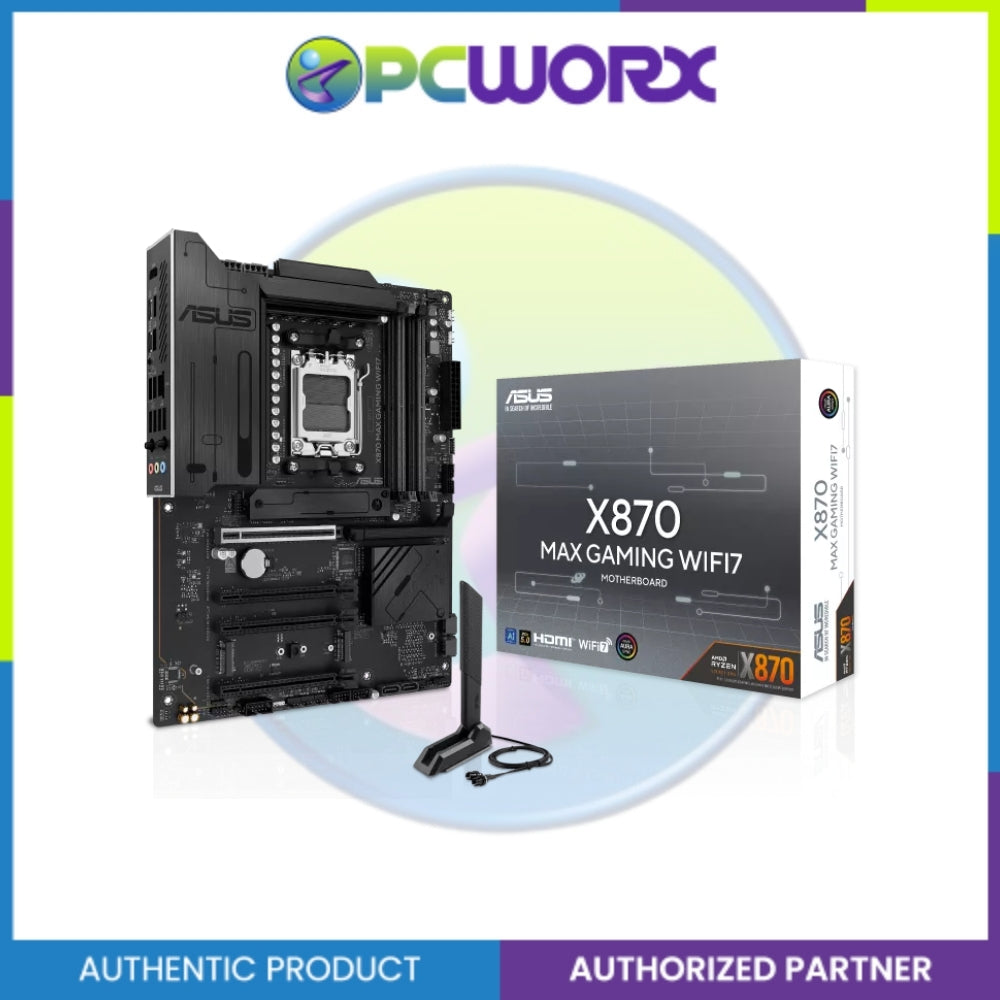

| Accessories | Wi-Fi antenna, SATA cables, M.2 rubber package, M.2 screw kit |
| Networking Features | WOL, PXE |
| Special Features | Q-Release, Q-DIMM, Q-LED Core, BIOS FlashBack, Aura Sync, AI Cooling II |
₱18,925.00
Estimated delivery between June 08 and June 10.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱18,925.00
₱18,925.00
Authorized Seller
100% Original Authentic Product
